TECHNICAL & SERVICE MANUAL

SPLIT SYSTEM AIR CONDITIONER

CA250X5TAA - GR250X5TAA

CA250X5TAA - GR250X7TAA

CA360X5TAA - GR360X7TAA

CA480X5TAA - GR480X7TAA

0.8180.112.1 05/01

−

Table of Contents

1.SPECIFICATIONS…………………………………………………………………………… 3

1-1 Unit Specifications…………………………………………………………………….. 3

1-2 Major Component Specifications……………………………………………………. 7

(A) Indoor Unit……………………………………………………………………….... 7

(B) Outdoor Unit………………………………………………………………………. 9

1-3 Other Component Specifications……………………………………………………. 12

(A) Indoor Unit……………………………………………………………………….... 12

(B) Outdoor Unit………………………………………………………………………. 13

1-4 Dimensional Data……………………………………………………………………... 14

(A) Indoor Unit……………………………………………………………………….... 14

(B) Outdoor Unit………………………………………………………………………. 16

1-5 Refrigerant Flow Diagram……………………………………………………………. 18

1-6 Operating Range……………………………………………………………………… 20

1-7 Cooling Capacity………………………………………………………………………. 21

1-8 Noise Criterion Curves……………………………………………………………….. 25

1-9 Air Throw Distance Chart…………………………………………………………….. 27

2. PROCESSES AND FUNCTIONS……………………………………………………….… 28

2-1 Room Temperature Control………………………………………………………….. 28

2-2 Freeze Prevention (Cooling)……………………………………………………….… 29

2-3 Drain Pump Control…………………………………………………………………… 29

2-4 Outdoor Fan Control………………………………………………………………….. 30

3. ELECTRICAL DATA………………………………………………………………………... 31

3-1 Electrical Characteristics……………………………………………………………... 31

3-2 Electric Wiring Diagrams / Schematic Diagrams…………………………………... 33

(A) Indoor Unit……………………………………………………………………….... 33

(B) Outdoor Unit………………………………………………………………………. 35

4. SERVICE PROCEDURES………………………………………………………………….. 43

4-1 Troubleshooting……………………………………………………………………….. 43

4-2 A Sensor is Defective…………………………………………………………………. 54

4-3 Operation of Major Electrical parts………………………………………………….. 54

4-4 Checking the Electrical Components……………………………………………….. 55

– 3–

1.SPECIFICATIONS

MODEL No. Indoor Unit CA250X5TAA

Outdoor Unit GR250X5TAA

POWER SOURCE 220 - 230 - 240 V / 1 Phase / 50 Hz

PERFORMANCE Cooling

Capacity kW 7.3

BTU / h 25,000

Air circulation (Hi/Me/Lo) m3 / h1,140/1,020/840

Moisture removal(High) Liters/ h3.6

ELECTRICAL RATINGS

Voltage rating V 220230240

Available voltage range V 198 - 264

Running amperes* A14.5 14.6 14.7

Max. running amperes** A20.2 19.6 19.4

Power input kW 3.01 3.07 3.16

Power factor %94.4 91.4 89.6

C.O.P W / W 2.43 2.38 2.31

Max. starting amperes A 69 72 75

FEATURES

Controls Microprocessor

Timer ON/OFF 24-hours & Program

Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)

Airflow direction (Indoor) Automatic (Remote control)

Air filter Washable, easy access

Remote controller (Accessory) RCS-5PN3E

Refrigerant control Capillary tube

Drain pump (drain connection) Max. head 25cm above drain connection (25A,OD32mm)

Compressor Rotary

Operation sound Indoor - Hi/Me/Lo dB - A 37 / 35 / 31

Outdoor - Hi dB - A 53

REFRIGERANT TUBING

Limit of tubing length m (ft.) 40 (131)

Limit of tubing length at shipment m (ft.) 15 (49)

Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 40 (131)

between the two units Outdoor unit is lower than indoor unit: 25 (82)

Refrigerant tube Narrow tube mm (in) 6.35 (1 / 4)

outer diameter Wide tube mm (in) 15.88 (5 / 8)

Refrigerant amount at shipment kg R22 - 2.4

DIMENSIONS & WEIGHT Indoor unit Outdoor unit

Unit dimensions Height mm (in) 328(12-29/32) 735(28-30/32)

Width mm (in) 860(33-27/32) 940(37)

Depth mm (in) 860(33-27/32) 340(13-12/32)

Package dimensions Height mm (in) 410(16-5/32) 826(32-17/32)

Width mm (in) 988(38-29/32) 1,016(40)

Depth mm (in) 988(38-29/32) 416(16-12/32)

Net weight kg (lb) 30(66) 68(150)

Shipping weight kg (lb) 47(104) 74(163)

Shipping volume m

(Cu. ft.) 0.4(14.1) 0.349(12.3)

DATA SUBJECT TO CHANGE WITHOUT NOTICE

Cooling :

Rating conditions(*) :Indoor air temperature 27 °C DB / 19 °C WB, Outdoor air temperature 35 °C DB

1-1 Unit Specifications

– 4–

1.SPECIFICATIONS

MODEL No. Indoor Unit CA250X5TAA

Outdoor Unit GR250X7TAA

POWER SOURCE 380 - 400 - 415 V / 3N / 50 Hz

PERFORMANCE Cooling

Capacity kW 7.3

BTU / h 25,000

Air circulation (Hi/Me/Lo) m3 / h1,140/1,020/840

Moisture removal(High) Liters/ h3.6

ELECTRICAL RATINGS

Voltage rating V 380400415

Available voltage range V 342- 456

Running amperes* A 4.74.74.6

Max. running amperes** A 65.85.7

Power input kW 2.76 2.82.81

Power factor %89.2 86 85

C.O.P W / W 2.64 2.61 2.6

Max. starting amperes A 27 29 30

FEATURES

Controls Microprocessor

Timer ON/OFF 24-hours & Program

Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)

Airflow direction (Indoor) Automatic (Remote control)

Air filter Washable, easy access

Remote controller (Accessory) RCS-5PN3E

Refrigerant control Capillary tube

Drain pump (drain connection) Max. head 25cm above drain connection (25A,OD32mm)

Compressor Rotary

Operation sound Indoor - Hi/Me/Lo dB - A 37 / 35 / 31

Outdoor - Hi dB - A 53

REFRIGERANT TUBING

Limit of tubing length m (ft.) 40 (131)

Limit of tubing length at shipment m (ft.) 15 (49)

Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 40 (131)

between the two units Outdoor unit is lower than indoor unit: 25 (82)

Refrigerant tube Narrow tube mm (in) 6.35 (1 / 4)

outer diameter Wide tube mm (in) 15.88 (5 / 8)

Refrigerant amount at shipment kg R22 - 2.4

DIMENSIONS & WEIGHT Indoor unit Outdoor unit

Unit dimensions Height mm (in) 328(12-29/32) 735(28-30/32)

Width mm (in) 860(33-27/32) 940(37)

Depth mm (in) 860(33-27/32) 340(13-12/32)

Package dimensions Height mm (in) 410(16-5/32) 826(32-17/32)

Width mm (in) 988(38-29/32) 1,016(40)

Depth mm (in) 988(38-29/32) 416(16-12/32)

Net weight kg (lb) 30(66) 68(150)

Shipping weight kg (lb) 47(104) 74(163)

Shipping volume m3(Cu. ft.) 0.4(14.1) 0.349(12.3)

DATA SUBJECT TO CHANGE WITHOUT NOTICE

Cooling :

Rating conditions(*) :Indoor air temperature 27 °C DB / 19 °C WB, Outdoor air temperature 35 °C DB

1-1 Unit Specifications

– 5–

1.SPECIFICATIONS

MODEL No. Indoor Unit CA360X5TAA

Outdoor Unit GR360X7TAA

POWER SOURCE 380 - 400 - 415 V / 3N / 50 Hz

PERFORMANCE Cooling

Capacity kW 10.6

BTU / h 36,000

Air circulation (Hi/Me/Lo) m3 / h1,920/1,680/1,320

Moisture removal(High) Liters/ h4.7

ELECTRICAL RATINGS

Voltage rating V 380400415

Available voltage range V 342 - 456

Running amperes* A 5.25.15.1

Max. running amperes** A 6.76.56.4

Power input kW 3.07 3.11 3.15

Power factor %89.7 88 85.9

C.O.P W / W 3.45 3.41 3.37

Max. starting amperes A 31 33 34

FEATURES

Controls Microprocessor

Timer ON/OFF 24-hours & Program

Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)

Airflow direction (Indoor) Automatic (Remote control)

Air filter Washable, easy access

Remote controller (Accessory) RCS-5PN3E

Refrigerant control Capillary tube

Drain pump (drain connection) Max. head 25cm above drain connection (25A,OD32mm)

Compressor Rotary

Operation sound Indoor - Hi/Me/Lo dB - A 43 / 40 / 36

Outdoor - Hi dB - A 54

REFRIGERANT TUBING

Limit of tubing length m (ft.) 50 (164)

Limit of tubing length at shipment m (ft.) 15 (49)

Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 50 (164)

between the two units Outdoor unit is lower than indoor unit: 30 (98)

Refrigerant tube Narrow tube mm (in) 9.52 (3 / 8)

outer diameter Wide tube mm (in) 19.05 (3 / 4)

Refrigerant amount at shipment kg R22 - 4.0

DIMENSIONS & WEIGHT Indoor unit Outdoor unit

Unit dimensions Height mm (in) 358(14-3/32) 1,235(48-20/32)

Width mm (in) 1,150(45-9/32) 940(37)

Depth mm (in) 860(33-27/32) 340(13-12/32)

Package dimensions Height mm (in) 440(17-10/32) 1,326(52-7/32)

Width mm (in) 1,278(50-10/32) 1,016(40)

Depth mm (in) 988(38-29/32) 416(16-12/32)

Net weight kg (lb) 38(84) 94(207)

Shipping weight kg (lb) 62(137) 101(223)

Shipping volume m

(Cu. ft.) 0.556(19.6) 0.56(19.8)

DATA SUBJECT TO CHANGE WITHOUT NOTICE

Cooling :

Rating conditions(*) :Indoor air temperature 27 °C DB / 19 °C WB, Outdoor air temperature 35 °C DB

1-1 Unit Specifications

– 6–

1.SPECIFICATIONS

MODEL No. Indoor Unit CA480X5TAA

Outdoor Unit GR480X7TAA

POWER SOURCE 380 - 400 - 415 V / 3N / 50 Hz

PERFORMANCE Cooling

Capacity kW 14

BTU / h 47,800

Air circulation (Hi/Me/Lo) m3 / h1,920/1,680/1,320

Moisture removal(High) Liters/ h7.4

ELECTRICAL RATINGS

Voltage rating V 380400415

Available voltage range V 342 - 456

Running amperes* A 8.48.58.9

Max. running amperes** A10.3 9.99.5

Power input kW 4.74.76 4.86

Power factor %85 80.8 76

C.O.P W / W 2.98 2.94 2.88

Max. starting amperes A 71 73 75

FEATURES

Controls Microprocessor

Timer ON/OFF 24-hours & Program

Fan speeds Indoor/Outdoor 3 and Automatic control/ 2 (Auto)

Airflow direction (Indoor) Automatic (Remote control)

Air filter Washable, easy access

Remote controller (Accessory) RCS-5PN3E

Refrigerant control Capillary tube

Drain pump (drain connection) Max. head 25cm above drain connection (25A,OD32mm)

Compressor Rotary

Operation sound Indoor - Hi/Me/Lo dB - A 43 / 40 / 36

Outdoor - Hi dB - A 56

REFRIGERANT TUBING

Limit of tubing length m (ft.) 50 (164)

Limit of tubing length at shipment m (ft.) 15 (49)

Limit of elevation difference m (ft.) Outdoor unit is higher than indoor unit: 50 (164)

between the two units Outdoor unit is lower than indoor unit: 30 (98)

Refrigerant tube Narrow tube mm (in) 9.52 (3 / 8)

outer diameter Wide tube mm (in) 19.05 (3 / 4)

Refrigerant amount at shipment kg R22 - 4.3

DIMENSIONS & WEIGHT Indoor unit Outdoor unit

Unit dimensions Height mm (in) 358(14-3/32) 1,235(48-20/32)

Width mm (in) 1,150(45-9/32) 940(37)

Depth mm (in) 860(33-27/32) 340(13-12/32)

Package dimensions Height mm (in) 440(17-10/32) 1,326(52-7/32)

Width mm (in) 1,278(50-10/32) 1,016(40)

Depth mm (in) 988(38-29/32) 416(16-12/32)

Net weight kg (lb) 38(84) 106(234)

Shipping weight kg (lb) 62(137) 113(249)

Shipping volume m3(Cu. ft.) 0.556(19.6) 0.56(19.8)

DATA SUBJECT TO CHANGE WITHOUT NOTICE

Cooling :

Rating conditions(*) :Indoor air temperature 27 °C DB / 19 °C WB, Outdoor air temperature 35 °C DB

1-1 Unit Specifications

– 7–

1.SPECIFICATIONS

(A)Indoor Unit

MODEL No.CA250X5TAA

Source 220 - 230 - 240 V / 1 phase / 50 Hz

Remote controller (Accessory) RCS- 5PN3E

Controller P. C. B Ass'y CR - X363GS

Switch Ass'y SW - X363GS

Fan (Number … diameter) mm Turbo (1… ø 490)

Fan motor

Model … Nominal output WSFG6X - 41A5P … 40 W

Source 220 - 230 - 240 V / 1 phase / 50 Hz

No. of pole … r.p.m. (230 V, High) rpm 6 … 470

Coil resistance ΩBRN–WHT :114.0 ,ORG–YEL :66.4

(Ambient temperature 20 °C) WHT–VLT :23.9 ,WHT–PNK : 77.4

VLT –ORG :12.4 ,YEL–BLK : 82.1

Safety device

Operating temperature Open°C130±8 °C

Close°C79±15 °C

Run capacitor VAC , µF440 V , 4 µF

Heat exchanger

Coil Aluminum plate fin / Copper tube

Rows … fin pitch mm 2 … 1.7

Face area m20.295

Panel

Model No. PNR - X253GS

Indicator Lamp Ass'y IND - X253GS

Dew proof heater 240 V , 26 W

Auto louver motor M2LB24ZA12

Auto louver motor … Rated V, W, rpm. 240 VAC , 3 W , 2.5 rpm

Coil resistance (at 25 °C) Ω15,620 Ω±15 %

1-2 Major Component Specifications

– 8–

1.SPECIFICATIONS

(A) Indoor Unit

MODEL No.CA360X5TAA CA480X5TAA

Source 220 - 230 - 240 V / 1 phase / 50 Hz

Remote controller (Accessory) RCS - 5PN3E

Controller P. C. B Ass'y CR - X363GS

Switch ass'y SW - X363GS

Fan (Number … diameter) mm Turbo (1… ø 490)

Fan motor

Model … Nominal output WSFG6X - 61A3P … 60 W

Source 220 - 230 - 240 V / 1 phase / 50 Hz

No. of pole … r.p.m. (230 V, High) rpm 6 … 530

Coil resistance ΩBRN –WHT :71.1 ,ORG–YEL :22.7

(Ambient temperature 20 °C) WHT–VLT :8.7 ,VLT –PNK :43.2

VLT –ORG :13.3 ,YEL–BLK :54.32

Safety device

Operating temperature Open°C130±8 °C

Close°C79±15 °C

Run capacitor VAC , µF440 V , 6 µF

Heat exchanger

Coil Aluminum plate fin / Copper tube

Rows … fin pitch mm 2 … 1.7

Face area m20.479

Panel

Model No. PNR - X483GS

Indicator Lamp ass'y IND - X483GS

Dew proof heater 240 V , 31 W

Auto louver motor M2LB24ZA12

Auto louver motor … Rated V, W, rpm 240 VAC , 3 W , 2.5 rpm

Coil resistance (at 25 °C) Ω15,620Ω±15 %

– 9–

1.SPECIFICATIONS

(B) Outdoor Unit

MODEL No. GR250X5TAA

Source 220 - 230 - 240 V / 1 phase / 50 Hz

Compressor Rotary (Hermetic)

Model ... Code No. C -R221H5V

Nominal output W2,200

Compressor oil cc 1,350

Coil resistance (at 25°C) Ω

C - R : 0.76, C - S :2.76

Refrigerant amount at shipment kg R22 - 2.4

Safety device Internal/OL - D24

Operating temperature Open °C 160±5/150±10

Close °C 87±9/63±10

Run capacitor V,µF400V, 40

High pressure switch ACB -1TB07

Set pressure OFF kg/cm230

ON kg/cm224 ±2.0

Fan (Number…diameter (mm)) Propeller (1…ø 460)

Fan motor

Model…Nominal output WKFC6S - 91C5P…100 W

No. of pole ... rpm (230V, High) rpm 6...868

Coil resistance ΩBRN–WHT :61.0

(Ambient temperature 20°C) YEL–PNK :17.7

WHT–YEL :64.3

Safety device Internal type

Operating temperature Open °C130±8

Close °C79±15

Run capacitor VAC, µF440 V, 5 µF

Heat exchanger

Coil Aluminium plate fin / Copper tube

Rows ... fin pitch mm 2...2.0

Face area m20.616

+ 2.0

+ 0.5

1-2 Major Component Specifications

– 10–

1.SPECIFICATIONS

(B) Outdoor Unit

MODEL No.GR250X7TAA

Source 380 - 400 - 415 V / 3 phase / 50 Hz

Compressor Rotary (Hermetic)

Model … Code No. C - R224H8S

Nominal output W2,200

Compressor oil CC 1,350

Coil resistance (at 25°C) ΩR - S:5.54,S - T:5.54,T - R:5.54

Refrigerant amount at shipment kg R22 - 2.4

Safety device Internal type External type

Overload relay models —FMSA - 1SZ607A

Operating temperature Open °C120±5—

Close °C98±11 —

Operating ampere (at 25°C) A—6A, 110 %

Run capacitor V, µF—

High pressure switch ACB - 1TB07

Set pressure OFFkg/cm230

ON kg/cm224 ±2.0

Fan Number … diameter mm Propeller (1 … ø 460)

Fan motor

Model … Nominal output WKFC6S - 91C5P … 100 W

No. of pole … rpm (230 V, High) rpm 6 … 868

Coil resistance ΩBRN–WHT :61.0 ,YEL–PNK :17.7

(Ambient temperature 20°C) WHT–YEL :64.3

Safety device

Operating temperature Open °C130±8

Close °C79±15

Run capacitor VAC, µF440V, 5 µF

Heat exchanger

Coil Aluminum plate fin / Copper tube

Rows … fin pitch mm 2 … 2.0

Face area m20.616

+ 2.0

+ 0.5

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Technibel

Technibel

Technibel MCAF94MR5IAA Manual de funcionamiento

Technibel

Technibel MCA 45C Manual de usuario

Technibel

Technibel MCA90MR5TA Series Manual de usuario

Technibel

Technibel PHRIE 095 Manual de usuario

Technibel

Technibel GRF148MR5IAA Manual de funcionamiento

Technibel

Technibel GRF128 Manual de usuario

Technibel

Technibel MPAF188R5TAA Manual

Technibel

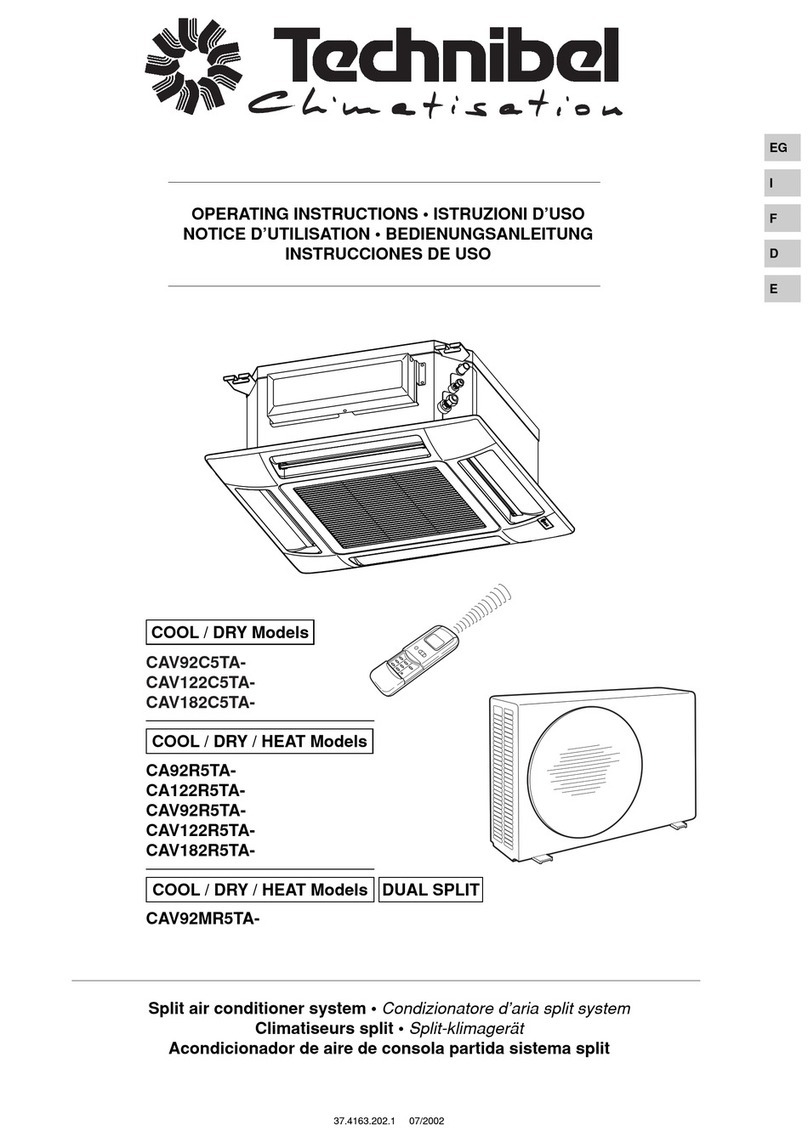

Technibel CAV92C5TA Series Manual de usuario

Technibel

Technibel CA8FIA0R5IAA Manual

Technibel

Technibel GR54M2R Manual

Technibel

Technibel MCAF72R5TAA Manual de usuario

Technibel

Technibel PHT 13 Manual de usuario

Technibel

Technibel MCAV77R5VAA Manual de funcionamiento

Technibel

Technibel MCAV92C5TA Series Manual de usuario

Technibel

Technibel MAFX 183 Manual de usuario

Technibel

Technibel KPAVM93R5TAA Manual

Technibel

Technibel KPAV128C5TAA Manual

Technibel

Technibel CAFP125R5IA Series Manual de usuario

Technibel

Technibel DSAF184MR5IA Manual

Technibel

Technibel MPAF99R5I Series Manual de usuario

Technibel

Technibel TWN Series Manual de usuario

Technibel

Technibel CA8FIA0R5I Manual de usuario

Technibel

Technibel MCAV77C5 Manual de funcionamiento

Technibel

Technibel MPAF13A0R5I Series Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
