Techly IADAP USB31-HDMI Manual de usuario

USB 3.1 Type- C to HDMI

Adapter（DP Alt mode）

User Manual

Contents

1.0 Introduction ........................................................1

2.0 Features .............................................................1

3.0 Specifications ......................................................2

4.0 Package Contents ................................................2

5.0 Product Show ......................................................2

6.0 Operation ...........................................................3

7.0 Connection Diagram .............................................3

USB 3.1 Type- C to HDMI

Adapter

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and

safety, please read these instructions carefully before connecting,

operating or using this product. Please keep this manual for future

reference.

1.0 INTRODUCTION

This USB3.1 Type-C to HDMI Adapter provides high throughput using

the USB 3.1 bus and supports the high definition monitors with high

resolution and high refresh rate. The USB3.1 Type-C Adapter allows

you to connect your desktop PC or laptop's USB port to an extra

monitor or TV.

2.0 FEATURES

Standard USB3.1 Type-C

Supports USB 3.1 input and HDMI output

Flexible USB Type-C Switching Support for USB 5G and

DisplayPort 1.2 Alt mode

Supports per lane data rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR)

and 1.62 Gbps (RBR)

Supports multiple color formats: RGB 6/8/10/12-bit per

component (bpc) and YCbCr4:4:4, YCbCr4:2:2,8/10/12bpc

Supports HDMI 1.4 and former versions

Supports resolution up to 3840x2600 @60Hz (mirror mode) in

DP1.1 (or 1.2) in SST mode.

Supports resolutions as follows:

4Kx2K，@ 24Hz、25Hz、30Hz；

1080P，@24Hz、50Hz、60Hz；

720P、480P、576i、480i，@50Hz and 60Hz

Supports HDMI audio

Supports bus-powered and self-powered operation

3.0 SPECIFICATIONS

Signal Inputs/Output

Input port

USB3.1 Type-C Male x1

Output port

HDMI Female x1 (HDMI 1.4)

Warranty

Limited Warranty

1 Year

Environmental

Operating Temperature

0 ℃to +45℃

Operating Humidity

10% to 85 % RH (no

condensation)

Storage Temperature

-10℃to +80℃

Storage Humidity

5% to 90 % RH (no

condensation)

Certifications

FCC,CE

Power Requirement

USB bus power

External Power Supply

Accessories Adapter

Size(L-W-H)

Main Unit :41.5×37×14.5mm

Cable: 150mm

Remote control

User Manual

English Version

4.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and

make sure the following items are contained in the shipping carton:

Main unit x1

User Manual x1

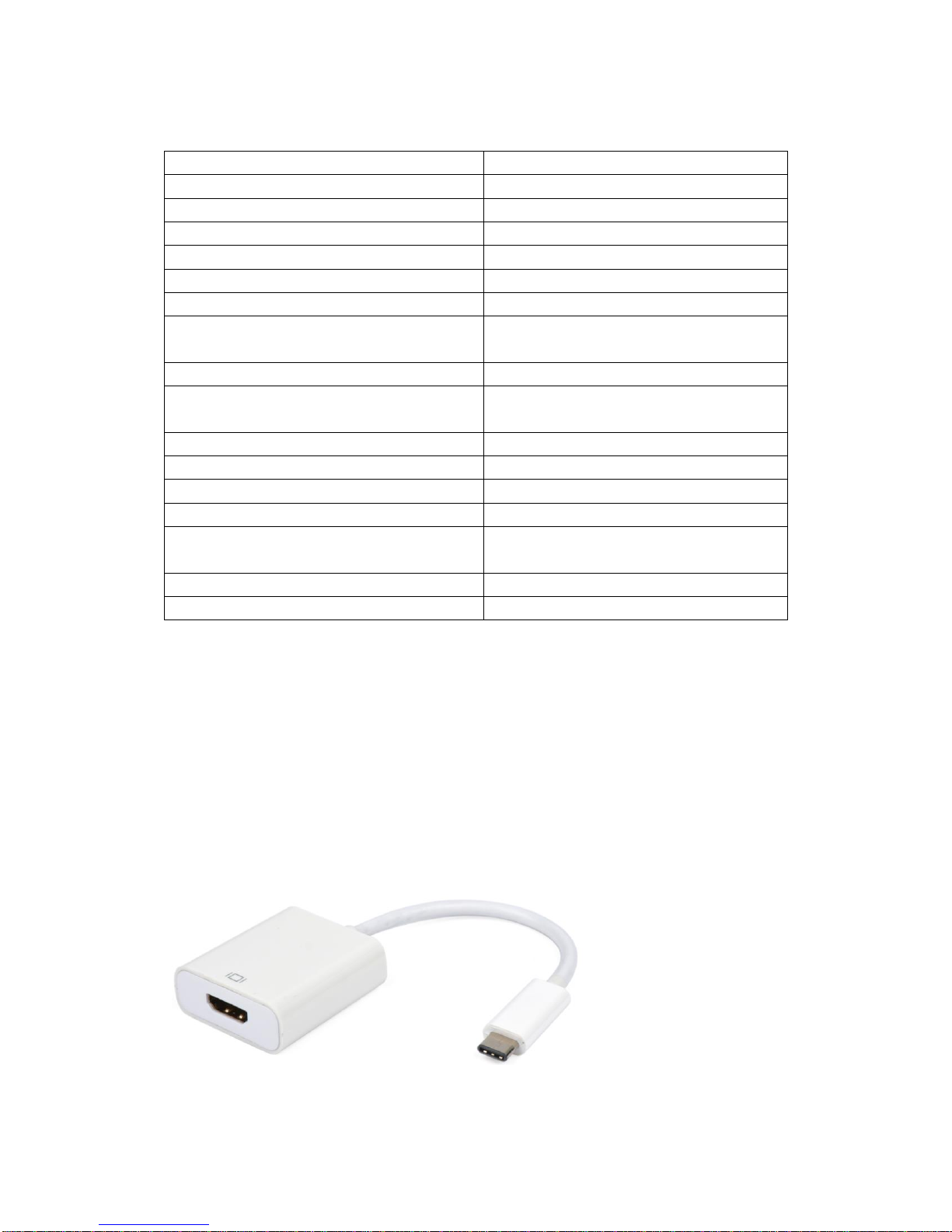

5.0 PRODUCT SHOW

6.0 OPERATION

①Connect USB3.1 Type-C port of this product to computer

②Connect HDMI output of this product to HDTV using one HDMI

M/M cable

Attention: Insert / Unplug cable gently.

7.0 CONNECTION DIAGRAM

P/N13009
