Teac SL-D90 Manual de usuario

SL-D90

AM/FM STEREO DIGITAL

1 SAFETY INFORMATION

PC board shown are viewed from parts side.

The parts with no reference number or no parts number

in the exploded views are not supplied.

As regards the resistors and capacitors, refer to the

circuit diagrams contained in this manual.

Parts marked with this sign are safety critical

components. they must be replaced with identical

ensure exact replacement.

components - refer to the appropriate parts list and

2 SPECIFICATIONS

4 EXPLODED VIEW AND PARTS LIST

5 PC BOARDS AND PARTS LISTS

6 WIRING DIAGRAM

7 INCLUDED ACCESSORIES

3 ADJUSTMENT AND CHECKS 4

RADIO WITH CD PLAYER

Parts of [ ] mark can be used only with the version designated.

[UL/CSA]: T/C [ME/UNI]: EX/T [JIS]: DM [IT]: EUR

[HK]: UK/HKG

All manuals and user guides at all-guides.com

all-guides.com

1 SAFETY INFORMATION

USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURESOTHER THAN THOSESPECIFIED HEREIN MAY RESULTIN

HAZARDOUS RADIATIONEXPOSURE.

SAFETY INFORMATION

This product has been designed and manufactured according to FDA regulations " title 21, CFR, chapter 1,subchapter J,based on the

Radiation Control for Health and Safety Act of 1968" and is classified as class 1 laser product. There is not hazardous invisible laser

radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective

housings. The label required in this regulation is shown .

CAUTION

SL-D90

CERTIFICATION

THIS PRODUCT COMPLIES WITH DHHS

RULES 21 CFR SUBCHAPTER J APPLI-

CABLE AT DATE OF MANUFACTURE.

TEAC CORPORATION

3-7-3, NAKA-CHO, MUSASHINO-SHI, TOKYO, JAPAN

MANUFACTURED : HKE

SERIAL

NO.

FOR U.S.A.

DO NOT REMOVETHE PROTECTIVE HOUSINGUSING SCREWDRIVER.

IF THIS PRODUCTDEVELOPS TROUBLE, MAKEA CONTACTWITH OUR SERICEMAN,AND DO NOTUSE THE PRODUCTA TROUBLED STATE.

Optical pickup:

Type : KSM-213CDM

Laser output : Lessthan 0.5 mW onthe objective lens

Wavelength : 770 -795 nm

Manufacturer : SONY Corporation

All manuals and user guides at all-guides.com

2 SPECIFICATIONS

SL-D90

Design and specificationsare subject to change without notice.

TUNER Section

Frequency Range (FM):

Frequency Range (AM):

87.5MHz to 108.00MHz

520kHz to 1710kHz

Illustrations may differ slightly fromproduction models.

Power Requirements:

Dimension (W xH x D ):

Weight:

Standard Accessories:

Warranty Card x 1

340 x 190x 238.5 mm

5.15 kg (11-3/8 lb)

120V AC,60Hz (U.S.A/Canadamodel)

Power Consumption:

CD PLAYER Section

Frequency Response: 20 Hz to20 kHz (+/- 1dB)

Wow andFlutter: Unmeasurable

SPEAKER SYSTEM Section

Type: 1-way

Impedance: 8 ohms (L& R)

GENERAL

120/230V AC,50-60Hz (Generalexport model)

40 W

Owner s Manualx 1

8 ohms (subwoofer)

(13-3/8 x 7-1/2x 9-3/8) inches

Remote Control (RC-858)x 1

FM Lead-type Antennax 1

TotalOutput Power : 20 W

All manuals and user guides at all-guides.com

3 ADJUSTMENTS AND CHECKS

SL-D90

3-2 Adjustments and Test Points

Use a screwdriverwith a plastic or ceramic gripfor all adjustment.

3-1 TUNER SECTION

1. Set thefunction switch tothe TUNER position.

2. Set theBAND switch to the AM position.

3. Connect thetest loop antennaacross the output of the signalgenerator.

4. Connect theoscilloscope to thePHONES JACK terminal.

3-1-1 AM adjustment

5. Set thesignal generator as listed in thealignment chart.

1. Set thefunction switch to the TUNER position.

3. Connect thesignal generator output through a 75ohm dummy antennato (ANT)

3-1-2 FM adjustment

2. Set theBAND switch to the FM position.

on TUNER PCBCN8

4. Connect theoscilloscope to thePHONES JACK terminal.

5. Set thesignal generator aslisted in the alignment chart.

AM ANT COIL

TUNER PCB

TC1

Fig. 3-2-1

All manuals and user guides at all-guides.com

Fig. 3-2-3

AM Loop

Antenna

60cm

AM signal generator SL-D90

PHONES

AC voltmeter

1 k ohm

3-2-2 AM Tuner

ITEM

SIGNAL GENERATOR SETTING TUNER ADJUSTMENTS MEASURING

POINTS, RESULT

Audio Modulation Frequency Output

1. VOLTAGE

adjustment

2. IFT

adjustment

3. ANT coil

adjustment

4. TC1

adjustment

1710KHz

530 KHz

610KHz

30%

1KHz

1410KHz

TC1

AM ant coil

Check

Repeat step 3

and 4

76 dBuV

8.0V

30%

610KHz

SETTING

1.5V

output level

Maximum

1KHz 610KHz 76 dBuV 610KHz L3

Maximum

output level

1KHz 76 dBuV 1410KHz

Maximum

output level

SL-D90

All manuals and user guides at all-guides.com

3-2-4 FM Tuner

ITEM

SIGNAL GENERATOR SETTING TUNER ADJUSTMENTS MEASURING

POINTS, RESULT

Audio Modulation Frequency Output

1. VOLTAGE

adjustment

2. IFT

adjustment

106.1MHz

90.1MHz

22.5KHz

1KHz L5

Check

25 dBuV

5.5-5.9V

SETTING

1.2-1.6V

output level

Maximum

90.1MHz

Check

FM signal generator

75 ohm

AC voltmeter

1 k ohm

Fig. 3-2-5

SL-D90

PHONES

SL-D90

All manuals and user guides at all-guides.com

all-guides.com

SL-D90

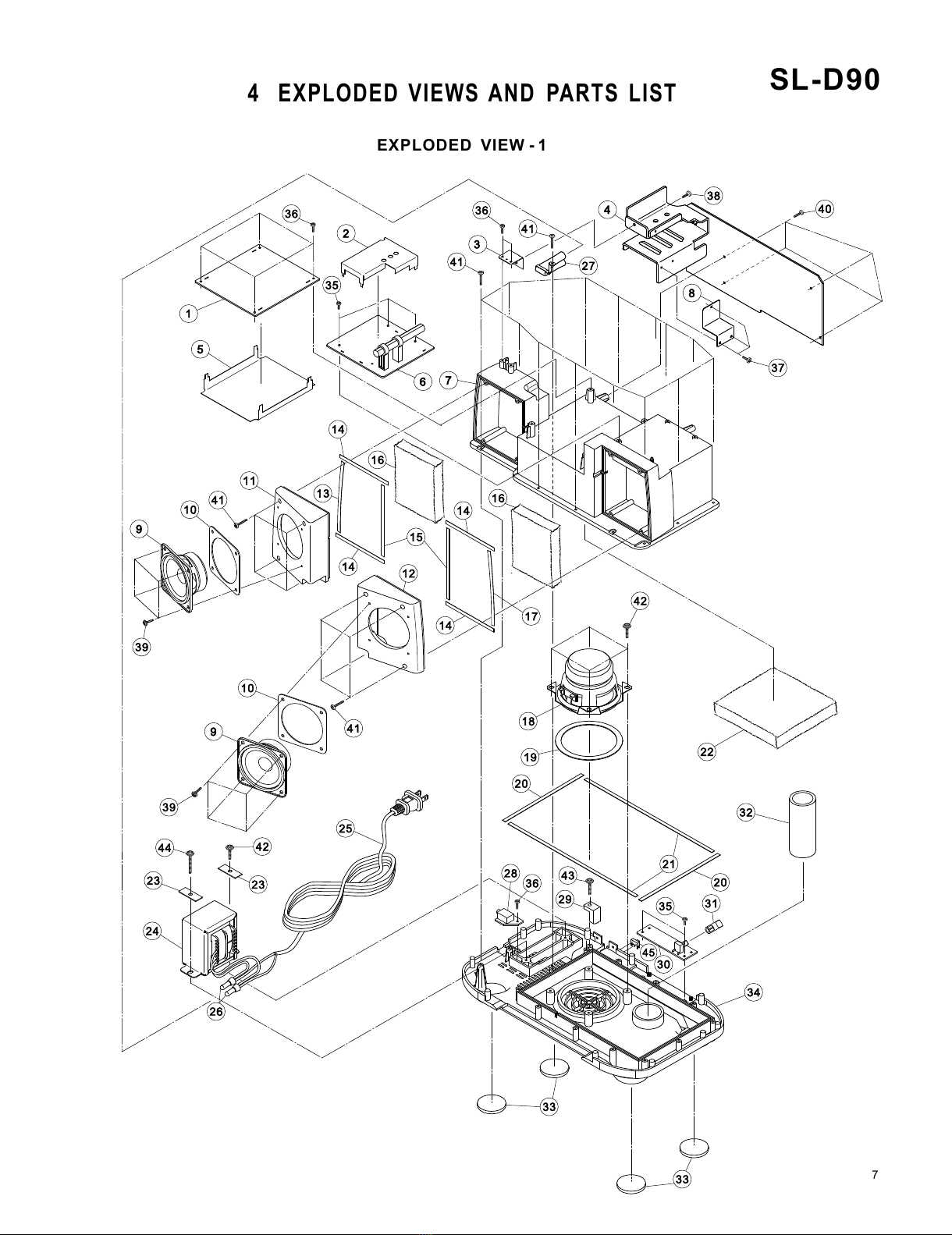

4 EXPLODED VIEWS AND PARTS LIST

EXPLODED VIEW - 1

6 7

36 36

All manuals and user guides at all-guides.com

SL-D90

REF. NO

EXPLODED VIEW-1

PARTS NO. DESCRIPTION

1-22

1-23

1-24

1-25

1-1

1-2

1-3

1-4

1-5

1-6

1-7

1-8

1-9

1-10

1-11

1-12

1-13

1-14

1-15

1-16

1-17

1-18

1-19

1-20

1-21

100-SD902030 CD PCB ASSY

011-SD900300 TUNER PCB SHIELD PLATE

087-00000007 AC CORD UL (T/C)

087-00000013 AC CORD PSE (DM)

087-00000001 AC CORD VDE (EUR)

087-00000004 AC CORD BSI (UK/HKG)

084-SD900200 TRANSFORMER ( T/C)

084-SD900700 TRANSFORMER (EX/T)

084-SD900300 TRANSFORMER (DM)

084-SD900100 TRANSFORMER (EUR,UK/HKG)

HEAT SINK BRACKET

MAIN PCB ASSY

100-SD902010

011-SD900100 CD PCB SHIELD PLATE

100-SD902040 TUNER PCB ASSY

010-SD900000 SPEAKER BOX

ADIABATIC SHEET

015-SD900100

SPEAKER 2(INCHES)

061-SD900800

R/L SPEAKER EVA WASHER

L-SPEAKER COVER

R-SPEAKER COVER

010-SD900300

010-SD900400

EVA SHEET (D)

EVA SHEET (E)

EVA SHEET(C)

ABSORB COTTON 80x100x20

EVA SHEET (F)

SPEAKER 3(INCHES)

061-SD900801

WOOFER SPK EVA WASHER

EVA SHEET (B)

EVA SHEET (A)

ABSORB COTTON 120x135x20

011-SD900400 TRANSFORMER BRACKET

011-SD900200

035-SD900082

035-SLD90052

035-SLD90042

035-SLD90062

035-SLD90072

035-SLD90032

035-SLD90022

099-39SLD902

035-SLD90002

099-39SLD901

087-00000027 AC CORD UL (EX/T)

REMARK

All manuals and user guides at all-guides.com

SL-D90

REF. NO

EXPLODED VIEW-1

PARTS NO. DESCRIPTION REMARK

1-26

1-27

1-28

1-29

1-30

CLOSE END CONNECTOR

WIRE CLAMPER W/TUBE

HEAD PHONE JACK ASSY

100-SD902070

010-SD900600 CORD STOP

100-SD902050 AUX PCB ASSY

036-00000001

041-00000004

001-SD900204 BOTTOM PANEL-RED (EX/T)

001-SD900205 BOTTOM PANEL-WHITE (EX/T)

001-SD900206 BOTTOM PANEL-JADE (EX/T)

001-SD900207 BOTTOM PANEL-BLACK (EX/T)

001-SD900203 BOTTOM PANEL-BLACK (T/C,DM,EUR,UK/HKG)

001-SD900202 BOTTOM PANEL-JADE (T/C,DM,EUR,UK/HKG)

001-SD900201 BOTTOM PANEL-WHITE (T/C,DM,EUR,UK/HKG)

001-SD900200 BOTTOM PANEL-RED (T/C,DM,EUR ,UK/HKG)

1-31

1-32

1-33

1-34

1-35

1-36

1-37

1-38

1-39

1-40

1-41

1-42

1-43

1-44

004-SD900700 BASE KNOB

SPEAKER PAPER TUBE

RUBBER FOOT

037-SD900000

021-13006032 SCREW 3x6MM PT ZMC HD

021-13008032 SCREW 3x8MM PT ZMC HD

024-23008032 SCREW 3x8MM BA ZMC HD

SCREW 3x8MM BM BLACK HD

022-23008033

024-43010033 SCREW 3x10MM PWA BLACK HD

021-13010032 SCREW 3x10MM PT ZMC HD

021-44010032 SCREW 4x10MM PWT ZMC HD

021-23014033 SCREW 3x14MM BT BLACK HD

021-44012032 SCREW 4x12MM PWT ZMC HD

021-44018032 SCREW 4x18MM PWT ZMC HD

044-SLD90040

1-45 063-GF480300 AC POWER SLIDE SWITCH (EX/T)

All manuals and user guides at all-guides.com

SL-D90

EXPLODED VIEW - 2

All manuals and user guides at all-guides.com
