TCL TRF-210 Manual de usuario
Refrigerator Service Manual
TRF-210
TCL Home Appliances (HeFei) Co., Ltd.
Contents
1.Product introduction
2.Exploded View of Product Structure
3.Product operation rules
4.Refrigeration system and electrical control
5.Maintenance guide
1.Product introduction
Technical Parameters
2.Exploded View of Product Structure
S/N
Description of the material
Quantity
1
Upper hinge cover
1
2
Upper hinge
1
3
Mid hinge assembly
1
4
Lower hinge assembly
1
5
Adjustable feet
1
6
Bracket
1
7
Refrigerating middle bottle holder
3
8
Refrigerating lower bottle holder
1
9
Freezing glass shelf assembly
1
10
Refrigerating glass shelf assembly
2
11
Fruit and vegetable box glass shelf assembly
1
12
Fruit and vegetable box
1
13
Freezing chamber foam door body
1
14
Refrigerating chamber foam door body
1
15
Freezing door gasket assembly
1
16
Refrigerating door gasket assembly
1
17
Foamed cabinet
1
18
Water tray
1
19
Compressor assembly
1
20
Compressor chassis assembly
1
21
Side light assembly
1
22
Cross recessed hexagon flange self-tapping locking screws
3
23
Cross recessed hexagon flange self-tapping locking screws
2
24
Cross recessed hexagon flange self-tapping locking screws
4
25
Cross recessed pan head tapping screws
1
26
Cross recessed flat head tapping screws
2
27
Cross recessed flat head tapping screws
2
28
Dry filter
1
29
Cross recessed flat head tapping screws
1
30
Power line
1
31
Cross recessed hexagon flange self-tapping locking screws
2
32
Process tube
1
33
Return-air transition duct
1
Detailed list of refrigerator accessories
3.Product operation rules
Temperature regulation
--The temperature inside the refrigerator is controlled by the
temperature controller mounted in the refrigerating chamber,
which is provided with 8 gears (0, 1,2,...... 7).Temperature
controller lighting combination panel-- The temperature
inside the refrigerator decreases gradually when the
temperature control knob is turned from 0 "7; conversely, the
temperature increases gradually;
--The use may set the temperature control knob at different
gears on the basis of refrigerator service environment and
specific situations of stored foods;
--The temperature inside the refrigerator will vary as the
temperature control knob is placed at different gears, and
meanwhile the power consumption will show some
differences;
--Upon overall consideration of preservation effect and
power consumption, the recommended regulated values are
as follows:
4~6 gears in summer, 4 gear in spring and autumn
and 2~4 gears in winter.
Food storage
Refrigerating chamber (2 ° C ~ 8 ° C)
--The refrigerating chamber is mainly used to store food for temporary preservation, such as milk, eggs and
bottled beverages etc.
--Vegetables, melon and fruits should be placed in the crisper to prevent water loss.
--The cooked food should be packed with storage bags and placed in the refrigerator, so as to prevent back
frosting and increase of energy consumption.
Freezer chamber (-22 °C ~ -15 ° C)
--The freezer chamber is used for long-term food storage.
--If fishes and meat need to be frozen, please cut them into small pieces by category and separately pack with
storage bags to place in the freezer drawer.
--Don’t place the glass or sealed container containing liquid into the freezer chamber, so as to avoid the danger
of frozen burst.
--The fresh food shall not be stored together with the existing frozen food for storage.
Defrosting
Refrigerating chamber defrosting
If it is discovered that the refrigerating chamber is of thick frost layer on the back which affects the refrigeration
effect, it is necessary to perform refrigerating chamber defrosting. During defrosting, it is necessary to adjust the
temperature controlling rotary knob to gear 0 first, and after the defrosting is completed, readjust the temperature
controlling rotary knob back to the original state.
Freezer chamber defrosting
Defrosting is considered necessary when it is discovered that the freezer chamber evaporator is of thick frost layer.
First of all, unplug the refrigeration power plug for power off, and then take out the drawer in the freezer chamber,
and keep the refrigerator doors open. After the defrosting is completed automatically, wipe the moisture on the
evaporator, door body and drawer with a clean and dry cloth, and place the drawer back to the freezer chamber, thus,
defrosting is completed.
Note:
1. Don’t use metal tools for defrosting, so as not to damage the refrigerator.
2. Don’t use electrical heater for refrigerator defrosting.
Ice-making
--Pour four-fifths of the water into the ice-making box, and place it into
the freezer chamber, after the water in the ice-making box freezes, you
can separate the ice from the ice-making box by gently twisting the ice-
making box. But don’t bend the ice-making box, when separating the
ice, wrap the ice-making box with dry cloth so as to avoid freezing injury
of fingers.
Accessory disassembly and assembly method

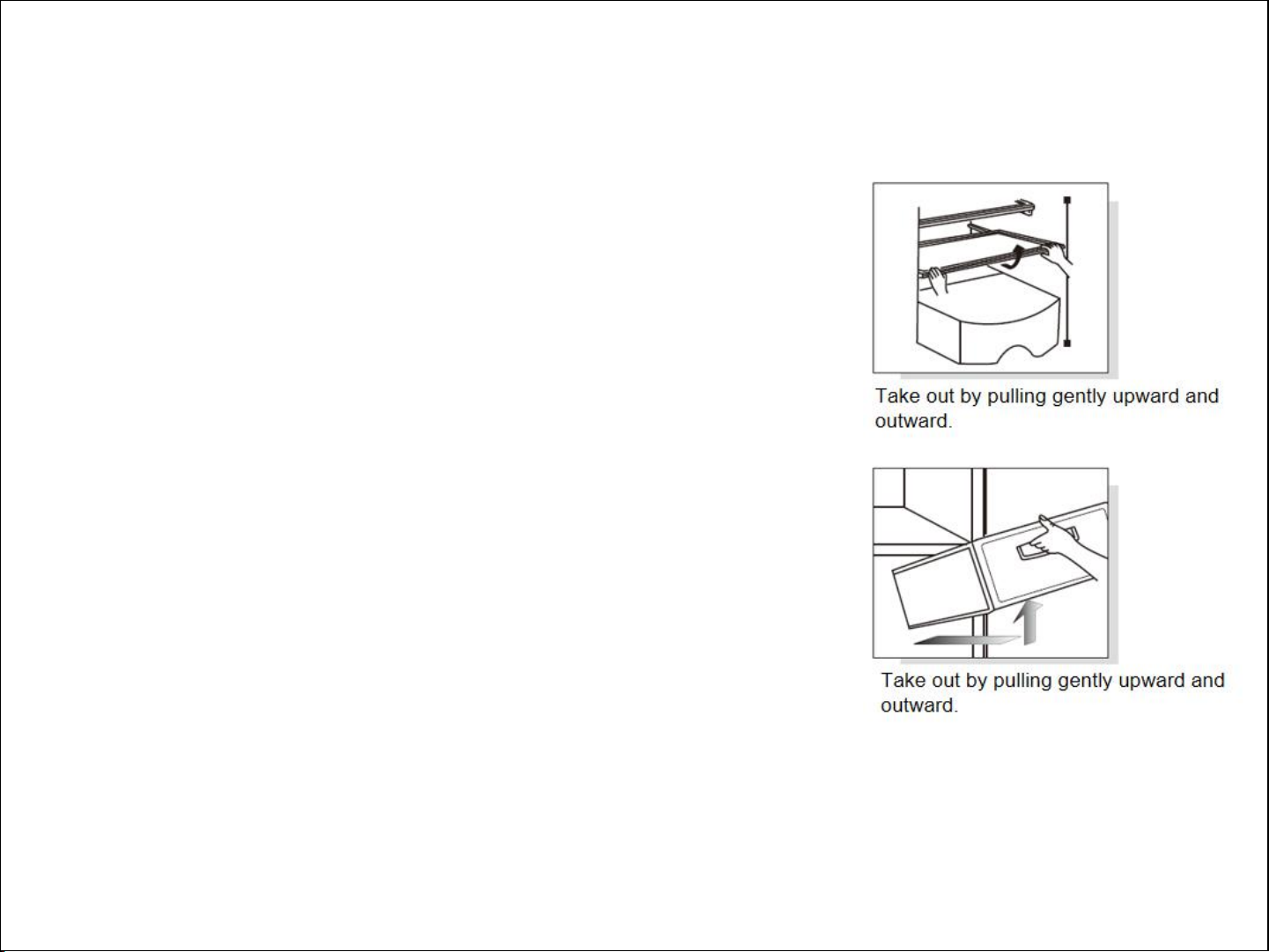

--Refrigerating chamber glass shelf: it is able to store items with
various volumes, and can be taken out by pulling gently upward and
outward.
--Crisper: it is used to store vegetables, fruits etc., and can be taken
out by pulling outward.
--Freezer chamber glass shelf: it is used to store meat, fish and other
food that require long-term preservation. It can be taken out by
pulling gently upward and outward.
Warm prompt: to avoid the difficulty to cut the frozen food, it is
suggested to cut the large meat into small pieces for placement. The
quick frozen food shall be evenly distributed as much as possible for
centralized storage after being frozen.
--Refrigerating door bottle pedestal: it is used to store eggs, various
bottled beverages and other sundries, and it can be taken out by
lifting gently upward.
Note: don’t pull the refrigerating door bottle pedestal out by force
during disassembly, so as not to cause damage to the refrigerator.
