TCL P221TMW Manual de usuario

Refrigerator

Operating Instructions

P221TMW

• Please carefully read the operation instructions before powering on, and keep them safe.

• Product specifications subject to change without notice.

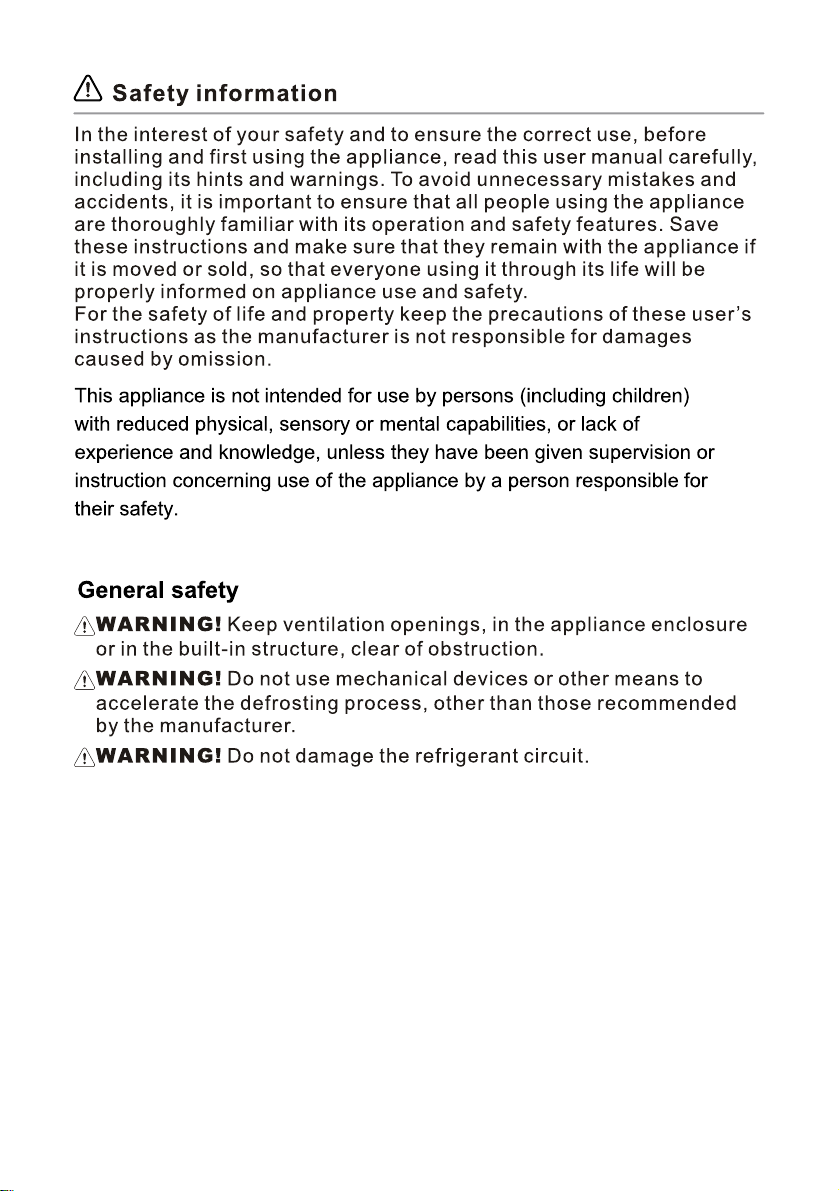

Children should be supervised to ensure they do not play with the appliance.

1

Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type

recommended by the manufacturer.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualiﬁed persons in

order to avoid a hazard.

WARNING!:Do not locate multiple portable socket-outlet or portable

power supplies at the rear of the appliance.

2

3

As a responsible supplier, we care about the environment.As such, we

ask that you follow the correct disposal procedures for your product

and packaging.This will help ensure that your product

4

is recycled in a manner that protect the environment and your health.

You must dispose of your product and packaging according to local laws and

regulations. Because this product contains electronic components and

possibly batteries, this product and its accessories must be disposed

separately from your household waste when the product reaches end of life.

Contact your local authority to learn about disposal and recycling. The

product should be taken to your local collection point for recycling. Please

note that regulations may change, so always consult with your local authorities

at time of disposal.

5

The actual may slightly differ.

Control Knob

Control Knob

Freezer

Compartment

Chill

Compartment

6

LevellingFeet

Shelves

Shelves

Door Reversal

7

Before reversing the door, please ensure you have following tools:Flat Screwdriver, Phillips Head

Screwdriver (Star type), Spanner and the components in the poly bag:

1. Close the upper door and take out the screw from the top hinge covers using a Phillips head screwdriver.

Take off the hinge cover, then unscrew the top hinge and take off the upper door.

2. Unscrew the middle hinge using a Phillips head screwdriver, then remove the lower door.

3. Laying down the refrigerator, take out the adjusting feet as shown below, then unscrew the lower hinge

using a Phillips head screwdriver. (Please note- once the fridge is upright, please wait about 2 hours

before turning on the fridge, and do not leave the fridge laying down longer than necessary).

4

5

Door Reversal

8

the proper position.

6. Rotate the middle hinge 180° , inset the middle hinge pin to the upper hole of the lower door on

the left side, and re-insert and tighten the screws ans shown below.

Door Reversal

9

.

7. Unscrew the right middle stopper with the metal block from the bottom of the upper door. Then,

install the left middle stopper and metal block on the left side of the bottom upper door.

9. Take the left hinge cover from the accessory bag and attach it to the top hinge. Then install

the hole cover on the right side.
