TCL Flip Manual de usuario

QUICK START GUIDE

TCL-4056L

PLEASE CONSIDER THE

ENVIRONMENT BEFORE PRINTING

SAVE

PAPER

SAVE

TREES

About your phone

Camera

External display

Headset

Connector Volume Key

Charging Port

Microphone

NOTE: Not all features, apps or services may be available

with your plan, device operating system and software version.

Please contact your wireless service provider for more

information.

Devices and software are constantly evolving, the screen

images and icon you see here are for reference only.

①Left Soft Key

• Press: to access Notifications

②Call Key

• Press: Make a call

• Press: Enter call log (from Idle screen)

③Favorite Contacts

• Press: Access Favorite Contacts

④Internal display

⑤Navigation Key (up, down, left, right)

• Menu selection moves up, down, right, and left

• Press Left: Access Applications

• Press Up: Access Phone Settings

• Press Right: Access Camera / Video

⑥Right Soft Key

• Press: Access Contacts

⑦Center Soft Key

• Confirm an option (press OK key)

• Press: Access app list (from Home screen)

⑧End/Power Key

• Press: End a call, return to the Idle screen

• Press and hold: to Restart and Power on/o

⑨Back/Delete Key

• Move backwards through Menus

• Delete entered number or letters

⑩Messages

• Press: Access Messages

Letters symbols

• Press then choose a symbol. Press the Center

Soft Key to insert in message or email

Text input

• Repeat press of to change text input method

from ABC to Abc, 123 or Predictive text

Setting up your phone

Your phone already has a NANO SIM card installed.

MicroSDTM cards (up to 32GB) may be purchased separately.

NOTE: Power o the device before opening the back cover

to install a microSD or replace the NANO SIM card.

Step 1. With the device facing down, remove the back cover

from the bottom left corner. Use your fingernail to carefully

lift the cover away from the device body.

Step 2. Remove the battery using your fingernail to lift from

the top left corner.

Step 3. To insert SIM card or microSD card, push the SIM

card or microSD card into the card slot with the gold-colored

contacts facing down.

SIM card

SD card

SIM card

SD card

To remove the SIM card or microSD card, press down on the

small plastic tab (①), then slide out the card (②). Do not use

force or any sharp objects.

Step 4. Re-install the battery by aligning the gold contact

points of the battery with the gold contact points of the

device. It only fits one way. Press down to snap in place.

Step 5. Carefully align the back cover with tabs and press

into place. It only fits one direction.

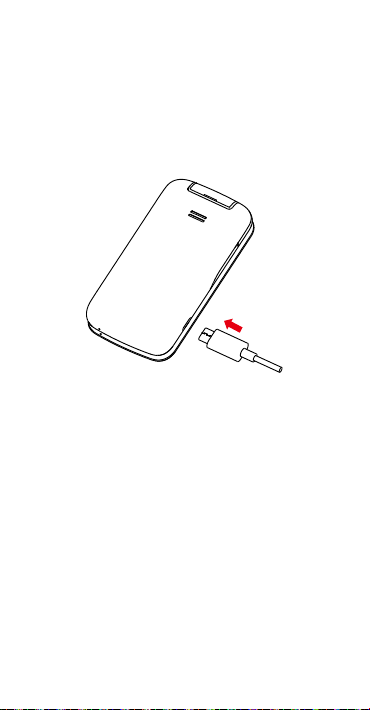

Step 6. Charge your phone fully before turning it on and

starting the set up process. Insert the small end of the

charging cable into the charger port on the phone. Insert the

other end of the cable into your wall charger and plug it into

a wall outlet.

WARNING: Only use the charger and cable supplied with

the phone. Using incompatible chargers or tampering with

the charging port could damage your phone and void the

warranty.

Using your phone

Turn your phone on/o

To turn on your phone, press and hold the End/Power Key

NOTE: The first time you turn on your phone, you may need

to activate it. Follow the on screen instructions to set up

your phone.

To turn o your phone, press and hold the End/Power Key

for about 2 seconds. Then press the Navigation Key

to select “Power O”, then press the Center Soft Key

to confirm.

Locking/Unlocking your screen

To keep your phone contents secure and protect your

privacy, you can lock the phone screen by creating a

password.

• From the Home screen, press the Center Soft Key ,

select Settings , and then press the Navigation Key

to select Privacy & Security > Screen lock.

• Press the Center Soft Key and select On to enable

screen lock in the Screen lock screen.

• Enter the passcode twice and press the Right Soft Key

to create.

Home screen

The Home screen has a convenient shortcut to the KaiOS

Store. Using the KaiOS store, you may download many free

apps such as Google Assistant, Google Maps and YouTube.

Simply press the left side of the Navigation key, and then

scroll up and down to select the desired app.

Making a call

1. Dial the desired number then press the Call Key to

place the call.

2. If you make a mistake, press the Back/Delete Key

to delete the incorrect digits.

3. Press the Right Soft Key to display more Options.

Then press up or down on the Navigation key to select

which option you would like to complete.

Receiving a call

When you receive a call:

• Press the Left Soft Key or the Call Key to

answer;

• If the device is closed, you will get a preview of an

incoming call on the external screen. You can accept the

call by flipping the device open and you can begin talking

immediately.

• Press the the Right Soft Key or the End/Power Key

to reject;

• To mute the ringtone volume of an incoming call, press the

Volume Up/Down Key.

Calling your voicemail (1)

Press and hold key to call and listen to your voicemail.

(1) Contact your network operator to check service availability.

General Information

• Visit the TCL website at www.tcl.com for tutorials and

answers to frequently asked questions, and to download

the User Manual.

• To get support for your phone, visit the TCL website

(www.tcl.com), or dial the number listed below:

Canada- 1-855-224-4228

United States- 1-855-224-4228

• Update your phone’s software

Go to Settings > Device > Device information > System

Update to check software updates.

• Reset your phone

Go to Settings > Device > Device information > Reset

Phone > Reset.

• Add your KaiOS Account

Go to Settings > Account > KaiOS account > Create

Account.
