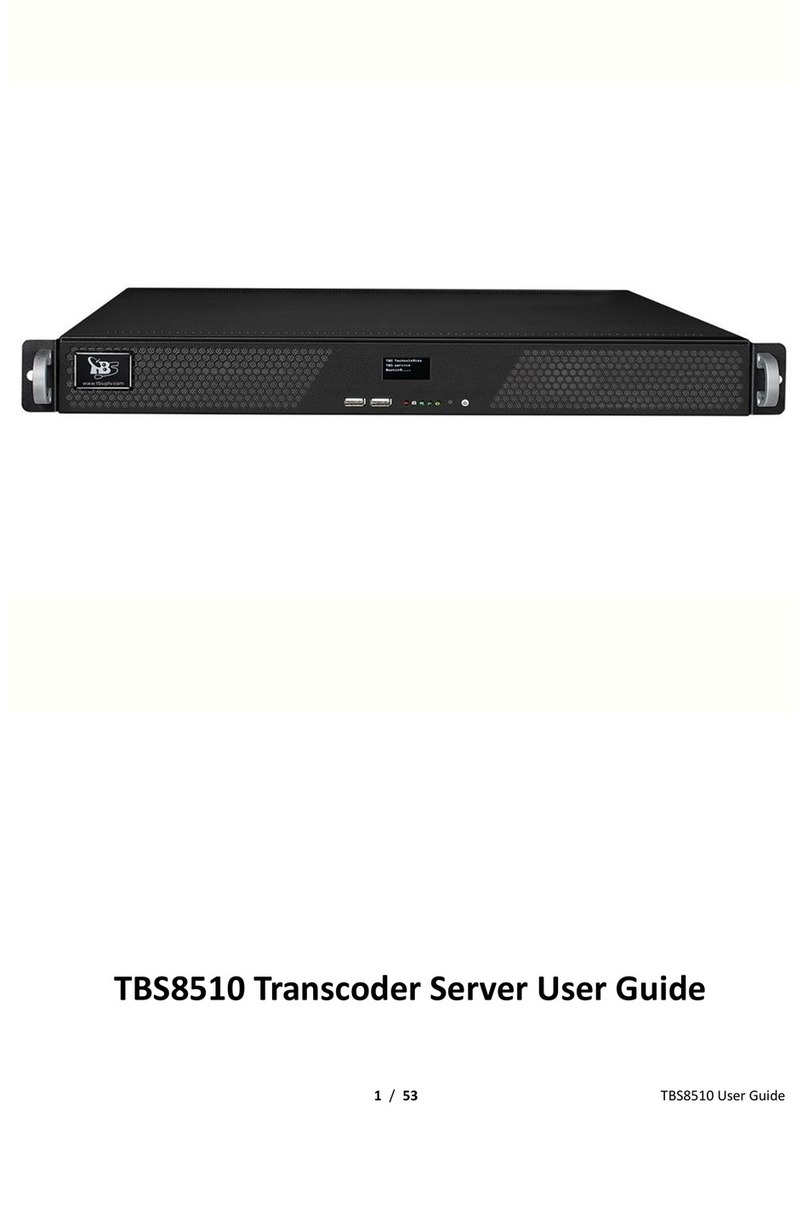

TBS technologies TBS8510 Manual de usuario

1/ 57 TBS8510 User Guide

TBS8510 Transcoder Server User Guide

2021-04-07

 2/ 57 TBS8510 User Guide


Catalog /content

Product Overview ................................................................................................................................................4
1 Product Presentation.................................................................................................................................4
2 Product Specifications ...............................................................................................................................5
Quick Start ...........................................................................................................................................................7
Home Page...........................................................................................................................................................8
Clients ...................................................................................................................................................................9
1 General Setting ..........................................................................................................................................9
2 Clients ........................................................................................................................................................9
Content Setting..................................................................................................................................................11
1 General Setting ........................................................................................................................................11
1.1 Summary.......................................................................................................................................11
1.2 Settings .........................................................................................................................................11
1.3 Advanced Settings.........................................................................................................................12
2 DVB Management....................................................................................................................................13
2.1 Transponders (DVBS/S2, DVBT/T2, DVB-C, ATSC…).......................................................................13
2.2 All Channels ..................................................................................................................................16
2.3 TV Channels ..................................................................................................................................17
2.4 Radio Channels .............................................................................................................................17
2.5 Tuner Cards...................................................................................................................................18
3 Import Stream Management...................................................................................................................19
3.1 Unicast Stream Import..................................................................................................................19
3.2 Multicast Stream Import...............................................................................................................20
3.3 HTTP Stream Import .....................................................................................................................21
3.4 RTSP stream import ......................................................................................................................22
3.5 HDMI/SDI Capture Import ............................................................................................................23
3.6 HTTP Live Playlists.........................................................................................................................24
3.7 MPTS stream Import.....................................................................................................................26
3.8 Local Files Import..........................................................................................................................28
3.9 Other file input (RTMP input) .......................................................................................................30
4 TS Submission ..........................................................................................................................................32
4.1 Multicast .......................................................................................................................................32
4.2 CDN (RTMP Output)......................................................................................................................33
4.3 MPTS Multiplexing........................................................................................................................36
4.4 DVB/ASI Modulators .....................................................................................................................38
5 Profiles Setting.........................................................................................................................................39
5.1 Preprocessing Profile ....................................................................................................................39
5.2 Post-processing Profile (Transcode Profile)...................................................................................40
7.3 Output Profile (HLS/ABR Profile)...................................................................................................43
Status Page.........................................................................................................................................................46
1 Monitoring...............................................................................................................................................46
2 Resources (Output Stream Address)........................................................................................................49

 3/ 57 TBS8510 User Guide

System Page.......................................................................................................................................................50
1 General Setting ........................................................................................................................................50
1.1 Settings .........................................................................................................................................50
1.2 Data Time......................................................................................................................................51
1.3 Tools..............................................................................................................................................52
1.4 User Interface ...............................................................................................................................52
2 Users ........................................................................................................................................................53
3 Services....................................................................................................................................................53
3.1 SNMP ............................................................................................................................................53
3.2 Sharing..........................................................................................................................................54
4 Network ...................................................................................................................................................54
4.1 Interface........................................................................................................................................54
4.2 Diagnostics....................................................................................................................................56
5 Third-Party Plugins...................................................................................................................................57
Let the System parameter changes take effect..................................................................................................57

4/ 57 TBS8510 User Guide

1. Product Overview

1.1 Product Description

TBS8510 multiple inputs H.264/H.265 IPTV transcoder is specially designed for our TBS TV tuner card

customers. It’s a high-performance video server that features in high integration and reliable hardware

transcoding server. The original data rate of DVB-S/S2 channels is very high, which will take up a lot of

bandwidth if it is sent directly to the internet. So, you will need both receiving server and transcoding server to

compress the bit rate. But it is definite not a convenient solution, as it will greatly increase the cost of the

system.

Now, with TBS8510 real-time transcoding server, you can receive and transcode channels at the same time.

This is a cost-effective solution for OTT IPTV providers. With Two Giga Ethernet Ports, TBS8510 is capable to

transcode either 80 SD or 30 Full HD streams. Equipped with 2 pieces of TBS Tuner/Capture PCI-e card (up to 16

tuners), TBS8510 is also capable to receive channels directly from DVB RF or ASI / IP inputs.

TBS8510 can be easily managed through NMS system and has become an ideal solution for operators to

provide high quality video transcoding. TBS8510 is a real multi-channel/formal transcoding server that meets

all market requirements and is thus the suitable solution for Terrestrial, Satellite, Cable, IPTV networks.

5/ 57 TBS8510 User Guide

1.2 Product Specifications

D: IPMI is the Intelligent Platform Management Interface, you can setup the IP inside the BIOS

F: LAN1 is the default network port

6/ 57 TBS8510 User Guide

Size

Input interface

2xRJ45, 1000M Base-T2

2xPCI-E slot

Input

Input Signal

DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI

Input Net Stream

UDP, RTP, RTMP, HTTP, HLS, Media Files

Video codecs

MPEG-2, AVC / H.264, HEVC / H.265

Resolution

1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576,

640x576,704x576

Audio codecs

AAC, MP2, MP3, AC-3

Output

Output types

UDP, RTMP, HTTP, HLS, Media Files

Video codecs

AVC / H.264, HEVC / H.265

Resolution

1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576,

704x576

Audio codecs

AAC, MP3

Rate Control

CBR/VBR

Transcoder

Version 1:

up to 60-80 SD/30 HD 1080 AVC(H.264) streams

up to 60 SD/28 HD 1080 HEVC(H.265) streams

Version 2:

up to 80-100 SD/40 HD 1080 AVC(H.264) streams

up to 80 SD/36 HD 1080 HEVC(H.265) streams

Power

Consumption

65W ~ 250W

7/ 57 TBS8510 User Guide

2. Quick Start

When using the TBS8510 transcoder for the first time, please connect the default Ethernet LAN1 and VGA

to your monitor.

Power on the server, then the following information will be displayed on the screen:

You can see the default IP configuration of the server:

default IP: 10.47.48.1/255.255.240.0

User name: admin

Password: kylone@1

Make sure that your PC is set to have the same range IP as TBS8510.

8/ 57 TBS8510 User Guide

You can use Google Chrome Browse to open the web page of TBS8510:

After login in, you can see the whole panel of TBS8510:

3. Home Page

Here you can see the transcoder’s CPU and Memory Usage status, Ethernet Input and Output status, and

detailed transcode modules status.

9/ 57 TBS8510 User Guide

4. Clients

4.1 General Setting

Allow Remote Devices this option is used to enable or disable the streaming from TBS8510. If you set to Yes,

then you can use VLC to play the stream from TBS8510. If you use RTMP to send the stream to your CDN, then

you can disable this to protect your stream.

4.2 Clients

This page shows the connection information of each client, including which application and how long it

has been connected.

You can click any IP to enter detailed page. If you want to protect the stream and prevent this IP getting

the stream from you TBS8510, you can set it as bellowed:

10 / 57 TBS8510 User Guide
