TBS technologies TBS8112 Manual de usuario

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

1/ 11

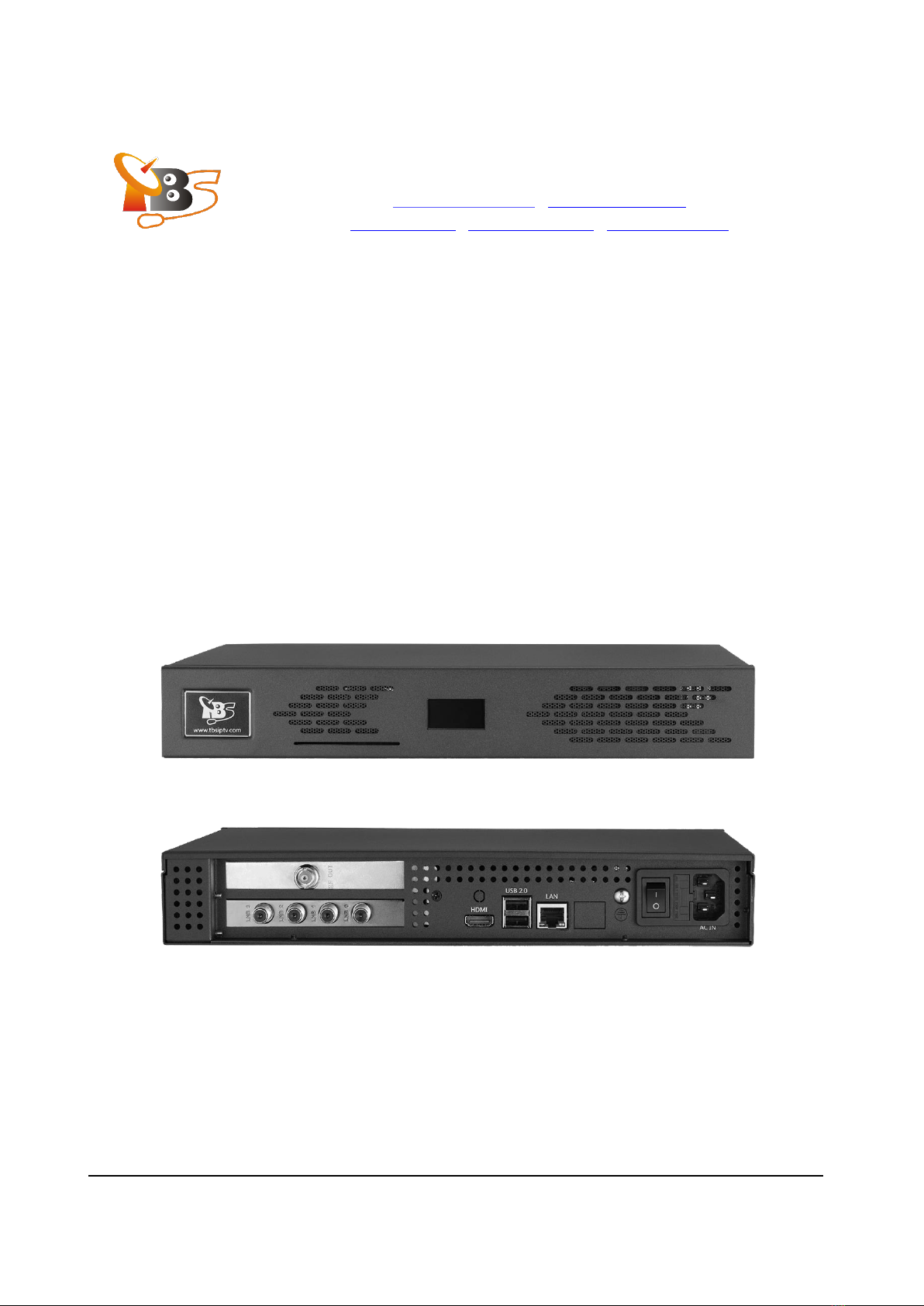

TBS8112 DVB-S/S2/S2X to DVB-T

TRANS-MODULATOR

User Manual

TBS Technologies International Ltd.

http://www.tbsiptv.com | http://www.tbsdtv.com

sales@tbsdtv.com | support@tbsiptv.com | support@tbsdtv.com

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

2/ 11

SAFETY NOTES

Read the user’s manual before using the equipment, mainly "SAFETY RULES" paragraph.

The symbol on the equipment means "SEE USER’S MANUAL". In this manual may also appear as a Caution

or Warning symbol.

WARNING AND CAUTION statements may appear in this manual to avoid injury hazard or damage to this

product or other property.

USER'S MANUAL VERSION

Version

Date

1.0

March 2022

SAFETY REQUIREMENTS

* The security can be compromised if not applied the instructions in this manual.

* Use this instrument under the specified environmental conditions.

* The user is not allowed to perform changes inside the equipment.

Any change on the equipment must be done exclusively by specialized staff.

* Do not obstruct the ventilation system of the equipment.

* Use appropriate low-level radiation cables for input / output signals, especially on high level signals.

* Follow the cleaning instructions described in the Maintenance paragraph.

 Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055
3/ 11

Catalog

Product Introduction ...........................................................................................................................................4
1 Overview....................................................................................................................................................4
2 Specification...............................................................................................................................................5
System Connection and Log in.............................................................................................................................6
Network setting ...................................................................................................................................................7
Input source setting.............................................................................................................................................7
1 DVB-S/S2/S2X input setting .......................................................................................................................7
2 Network TS input setting ...........................................................................................................................8
3 Local file input setting................................................................................................................................9
4 LCNs ...........................................................................................................................................................9
REMUX Channels and Generate to DVB-T Signal...............................................................................................10
1 Select and REMUX the channels..............................................................................................................10
2 DVB-C output setting ...............................................................................................................................10
Maintenance......................................................................................................................................................11
1 Instructions for returning by mail............................................................................................................11
2 Cleaning Recommendations ....................................................................................................................11

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

4/ 11

1. Product Introduction

1.1 Overview

TBS8112 is a compact trans-modulation device that is used to convert free DVB-S/S2/S2X satellite TV

channels to DVB-T (Digital Terrestrial Television) format. It supports to receive free satellite channels from 4

frequencies via 4 RF port, and output DVB-T channels in 4 frequencies.

To meet customers’ various requirements, TBS8112 DVB-S/S2/S2X to DVB-T trans-modulator also support IP

streams input and local video file storage. With “Remux” technology, you can randomly select required

channels from input streams or local video files, then multiplexed to a new TS stream and output in 4 DVB-T

Frequencies.

TBS8112 DVB-S/S2/S2X to DVB-T trans-modulator supports NMS system, can be controlled and configured via

Ethernet using a standard browser.

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

5/ 11

1.2 Specification

4 Frequencies DVB-S/S2/S2X satellite input

Frequency range

950-2150 MHz

Standard

DVB-S/S2

DVB-S2X

code rate

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,

8/9, 9/10

QPSK: 1/4,1/3, 2/5 (S2-MODCODs), 1/2,

3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

(S2-MODCODs), 11/45, 4/15, 14/45,

7/15 8/15, 32/45

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9

(S2-MODCODs), 7/15, 8/15, 26/45,

32/45

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9

(S2-MODCODs), 7/15, 8/15, 26/45, 3/5,

32/45

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

32APSK (32APSK-L): 3/4, 4/5, 5/6, 8/9,

9/10(S2-MODCODs), 32/45, 11/15, 7/9

Symbol rate

1 ~ 45Msymb/s

Input power range

–70 to –20 dBm typ., –50 dBm nominal, –5 dBm max

Input Impedance

75 Ω

Input return loss

> 10 dB

Noise figure

14 dB maximum

4 Frequencies DVB-T output

Frequency range

47 MHz - 858 MHz

Output level

–20 dBm ± 1 dB, 50 ohms

Modulation DVB-T

QPSK, QAM16, QAM64

Channel bandwidth

7/8 MHz

Guard interval

1/4, 1/8, 1/16, 1/32

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

Trans-modulation process

TS REMUX

Select arbitrary number of services from the received DVB-S/S2/S2X TS,

REMUX and convert to DVB-T TS

User-defined NID, ONID, Network Name

Remote control

1000 Mbps Ethernet connector to access a webserver

User-defined IP address

OS and Driver

Linux 11 (bullseye)

Working Environment

Operating temperature: 0 to 40 deg C

Storage temperature: –20 to 70 deg C

Relative Humidity: 5% to 90% non-condensing

Dimensions(chassis)

313*220*48 mm

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

6/ 11

2. System Connection and Log in

➢The default IP for TBS8112 DVB-S/S2/S2X to DVB-T trans-modulator is 192.168.8.101:8081.

➢In first place, check the IP address of the PC. It must be in the same IP range of the device. This means, an

IP like 192.168.8.xxx (xxx can be 0 to 255 except 101 to avoid conflict with module IP address). Add a new

IP or change the current one to meet this requirement.

➢Check connections. The Ethernet cable must be connected to the LAN port (see description chapter). It is

recommended to try a ping on the command-line interface to confirm they are on the same network

range and communication between them is possible.

➢Now use a web browser to run the webserver application from the PC. Write the IP address (by default

192.168.8.101) on the URL bar and press ENTER.

➢If connection is successful, the browser will display a login screen (see description chapter). Enter the

Username and Password (by default both are “root”) then click on ‘Login’ to enter the webserver

application.

NOTE: After communication is established, the user can set a new User name and Password.

The default ID: root

The default password: root

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

7/ 11

3. Network setting

In the network setting page, users can enable the DHCP.

Users can change the network parameters for trans-modulator in this page, too.

4. Input source setting

4.1 DVB-S/S2/S2X input setting

1. Adapters: Choose TBS6909se DVB-S/S2/S2X adapter 0-3 (tuner).

2. Delivery Systems: Choose DVB-S, DVB-S2 or DVB-S2X here. (Depending on the signal standard that your

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

8/ 11

channels belong to)

3. Frequency (kHz): Enter the transponder’s frequency value here.

4. Symbol Rate (Sym/s): Enter the signal’s symbol rate value here.

5. Polarisation: Choose V or H, according to the signal’s condition.

6. Modulation: Choose the signal’s Modulation here.

7. FEC: Choose the signal’s FEC value here.

8. Click “Scan Channels” to lock the signal and scan channels.

9. If you need to check the parameter of the satellite transponder, you can visit the website:

https://www.lyngsat.com/

4.2 Network TS input setting

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

9/ 11

1. TBS8112 support to catch network streams in HTTP, UDP, RTP protocol.

2. Enter the URL of the streams and click “Apply” to catch the network TS.

4.3 Local file input setting

1. TBS8112 trans-modulator supports to convert local SPTS file into DVB-T signal.

2. The Local SPTS file should be:

Video format: MPEG-1 MPEG-2 MPEG-4 H264 H.265

Audio format: MPEG-1 MPEG-2 AAC_ADTS AAC_LATM A52 (aka AC3)

3. The SPTS file should be stored in “/usr/local/tbs/video”, so that the system can detect the file.

4.4 LCNs

LCN: Logical channel number is the number that specifies the index to sort services on the digital

terrestrial television receiver.

By default, the system numbers all the channels automatically.

If the users want to number the channels manually, please email to support@tbsdtv.com or

support@tbsiptv.com.

Address: East Room, 3/F Bldg. B, Xinghong Industrial Park, Shuiku RD., Xixiang Town, Bao’an District, SZ, China, 518055

10 / 11

5. REMUX Channels and Generate to DVB-T Signal

5.1 Select and REMUX the channels

1. Available Items: The “enable” channels from input source are all show here.

2. Click or and move the selected channels for DVB-T generation.

3. TBS8112 Trans-modulator has 4 DVB-T mod (0-4) for DVB-T channels output.

5.2 DVB-C output setting

1. Network ID: It is the number that identifies the network where the signal is distributed. Enter any

value from (0-65535).

2. Original Network ID: It is a number that identifies the network from where the signal comes. Enter any

value from (0-65535).

3. Transport Stream ID: It is a number that identifies a specific transport stream. Enter any value from

(0-65535).

4. Network Name: It is the name that identifies the network where the signal is distributed.

5. Provider Name: It is the name that identifies the provider of the signal.

6. Output Bitrate: Enter any value from (10-31M) according to your system requirements.

7. Frequency: Enter Frequency value for DVB-T output.

8. Bandwidth: Enter Bandwidth value for DVB-T output.

9. Modulation: Enter Modulation value for DVB-T output.

10. Transmission: Enter Transmission value for DVB-T output.

11. Guard Interval: Enter Guard Interval value for DVB-T output.

12. FEC: Enter FEC value for DVB-T output.
