TBRC Micro Warlock Manual de usuario
Thank you for purchasing a Micro Warlock from TBRC Wings.
Kit Contents
1x Center wing panel
2x Outer wing panels
2x Tail booms
1x uselage
1x Coroplast horizontal stabilizer with built in elevator
2x Vertical stabilizers
3x 2mm fiberglass spars
2x Balsa ailerons
3x Plastic control horns for elevator and ailerons
1x 1.5 meters 3mil laminate
1x Decal set
Center of Gravity (CG) is 11mm from the leading edge of the wing.
Step1
Trim 2mm off the trailing edge of the wing center section. This is so that it fits
perfectly inside the booms.
Step2
Trim 25mm, the width of the ailerons, off the trailing edge of each
outer wing panel. Glue the outer wing panels to the center wing
section.
Step3
While the glue is drying on the wing panels cut spar channels into your fuselage and
booms and install the fiberglass spars.
Fuselage Sparing bottom and sides.
or the bottom spar cut to 180mm. This will be installed in Step 11.
or the sides they are to be cut at 80mm lengths and can be installed now.
Diagram 3
Boom Spars
Cut the boom spars to 100mm lengths and install them on the top and sides of the
booms as shown.
100mm
Step4
Cut and add the spars to your wing on top and bottom placed over each other. Be
careful, make sure the wing is straight and true without any warps as the glue dries.
Pay particular attention to the outer wing panels as not to twist them when weighting
them in place. Be sure to spar top and bottom of the wing.
The main spar is 11mm back from the leading edge of the center section.
The main spar is also the Centre of Gravity (CG) line.
Step5
Laminate the wing with the supplied laminate. Cut out spaces in the laminate where
the booms and fuselage will attach. This allows foam to foam contact for the best bond
possible.
Step6
Laminate and install the ailerons to the outer portions of the wings. Install the
aileron servos next. This allows the wires to be embedded in the wing and pass
under the booms when installed.
Step7
Glue the booms and the fuselage to the wing, be sure that they are straight and parallel.
Step8

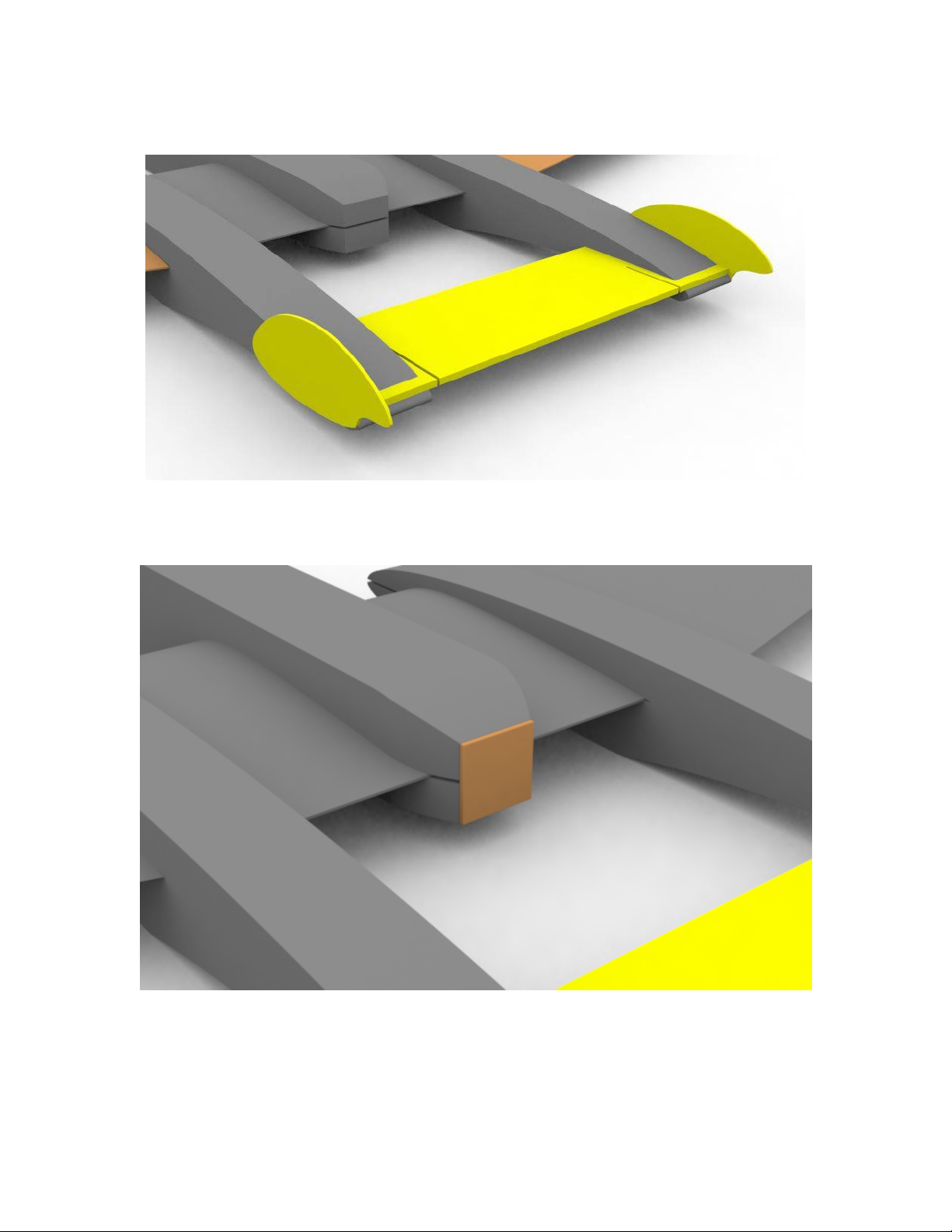

Glue in the horizontal stabilizer in the slot at the back of the booms. Be sure the
elevator is oriented properly at the back of the aircraft.
Step9
Glue the vertical stabilizers on the outside rear portion of the booms.
Step10
If you are making the Micro Warlock in a pusher configuration you can fabricate a light
plywood motor mount plate and attach to the rear of the fuselage as shown.
Step11
Cut the bay plug to the desired height and glue it in place. Install the spar on the bottom.
As shown in diagram 3.
Step12
Laminate the fuselage and the booms
Step13
Install the electronics. The elevator needs only small throws. Connect the pushrod to the
center hole and the second hole down on the elevator control horn to decrease pitch
sensitivity.
Step14
Go out and fly.
Center of Gravity (CG) is 11mm back from the leading edge of the middle wing section.
