TBK vision TBK-NVR2204 Manual de usuario
Quick Start Guide
Network Video Recorder
TBK-NVR2200 series
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 1
TABLE OF CONTENTS
Chapter 1 Panels Description ................................................................................................................................................................6
1.1 Front Panel .................................................................................................................................................................................6
1.2 Rear Panel ..................................................................................................................................................................................7
TBK-NVR2204, TBK-NVR2208, TBK-NVR2216 .................................................................................................................7
TBK-NVR2208-8P...................................................................................................................................................................8
Chapter 2 Installation and Connections ...............................................................................................................................................9
2.1 NVR Installation ........................................................................................................................................................................9
2.2 Hard Disk Installation ................................................................................................................................................................9
2.3 HDD Storage Calculation Chart...............................................................................................................................................11
Chapter 3 Menu Operation .................................................................................................................................................................13
3.1 Menu Structure.........................................................................................................................................................................13
3.2 Startup and Shutdown ..............................................................................................................................................................13
3.3 Activating Your Device ............................................................................................................................................................14
3.4 Using the Unlock Pattern for Login..........................................................................................................................................16
3.5 User Login................................................................................................................................................................................17
3.6 Using the Setup Wizard ............................................................................................................................................................17
3.7 Network Settings ......................................................................................................................................................................18
3.8 Adding IP Cameras...................................................................................................................................................................18
3.9 Live View .................................................................................................................................................................................19
3.10 Recording Settings .................................................................................................................................................................20
3.11 Playback .................................................................................................................................................................................21
Chapter 4 Accessing by Web Browser ................................................................................................................................................22
Quick Start Guide
ALL RIGHTS RESERVED.
This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed,
translated, or distributed, partially or wholly, by any means, without the prior written permission of
TBK Vision. Unless otherwise stipulated, TBK Vision does not make any warranties, guarantees or
representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network Video Recorders (NVR) TBK-NVR2200 series.
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information contained
in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please
find the latest version in the company website www.tbkvision.com
Please use this user manual under the guidance of professionals.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 2
HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-
INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE
OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT
YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH
ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 3
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper recycling, return this product to your local
supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of
as unsorted municipal waste in the European Union. See the product documentation for
specific battery information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Applicable Models
This manual is applicable to the models listed in the following table.
Series
Model
TBK-NVR2200
TBK-NVR2204
TBK-NVR2208
TBK-NVR2208-8P
TBK-NVR2216
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 4
Safety Instructions
⚫Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
⚫In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region. Please refer to technical specifications for detailed
information.
⚫Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to
technical specifications for detailed information.
⚫Do not connect several devices to one power adapter as adapter overload may cause over-
heating or a fire hazard.
⚫Please make sure that the plug is firmly connected to the power socket.
⚫If smoke, odor or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
⚫If the POE ports of device do not comply with Limited Power Source, the additional equipment
connected to POE ports shall have fire enclosure.
⚫The USB interface of the /P devices can be connected with the mouse and U-flash disk storage
device only.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
⚫Ensure unit is installed in a well-ventilated, dust-free environment.
⚫Unit is designed for indoor use only.
⚫Keep all liquids away from the device.
⚫Ensure environmental conditions meet factory specifications.
⚫Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of
dropping it may cause damage to the sensitive electronics within the unit.
⚫Use the device in conjunction with an UPS if possible.
⚫Power down the unit before connecting and disconnecting accessories and peripherals.
⚫A factory recommended HDD should be used for this device.
⚫Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 6
Chapter 1 Panels Description
1.1 Front Panel
Table 1-1 Description of Front Panel
No.
Name
Function Description
1
POWER
Turns green when the power switch on the rear panel is
turned on.
STATUS
Flickers red when data is being read from or written to
HDD.
Tx/Rx
Flickers green when network connection is functioning
properly.
2
MENU
Accesses the main menu interface.
ESC
Exits and back to the previous menu.
3
IR Receiver
Receiver for IR remote
4
USB Interface
Universal Serial Bus (USB) port for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 7
1.2 Rear Panel
TBK-NVR2204, TBK-NVR2208, TBK-NVR2216

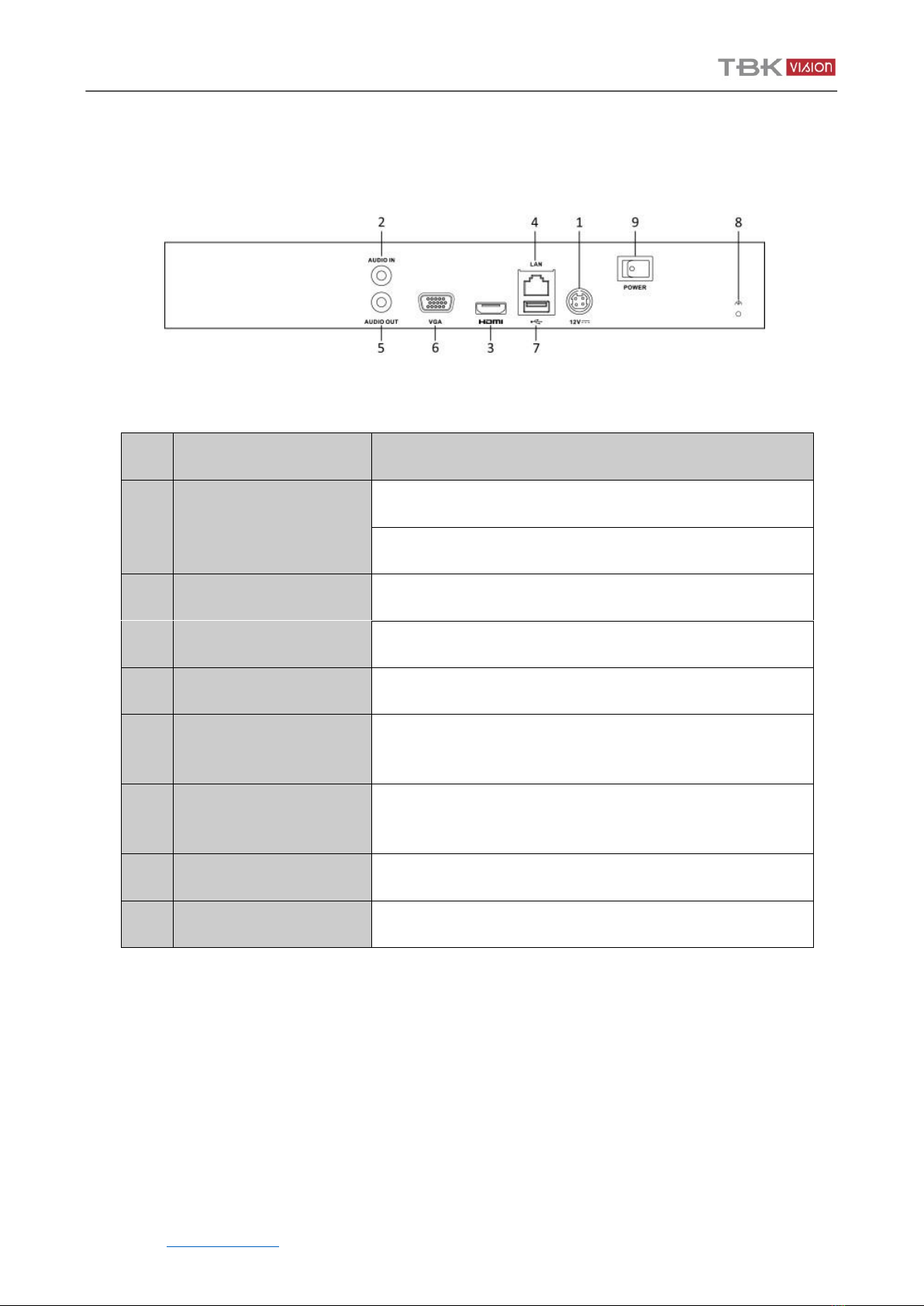

Figure 1-1 TBK-NVR2204, TBK-NVR2208, TBK-NVR2216
Table 1-2 Panel Description
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
Audio In
RCA connector for audio input.
3
HDMI Interface
HDMI video output connector.
4
LAN Network Interface
1, 10 /100 /1000 Mbps self-adaptive Ethernet interface.
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video output
and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 8
TBK-NVR2208-8P
Figure 1-2 TBK-NVR2208-8P
Table 1-3 Panel Description
No.
Item
Description
1
Power Supply
100~240 VAC power supply.
2
Audio In
RCA connector for audio input.
3
HDMI Interface
HDMI video output connector.
4
LAN Network Interface
1, 10 /100 /1000 Mbps self-adaptive Ethernet interface
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video output
and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Network Interfaces
with PoE function
Network interfaces for the cameras and to provide power
over Ethernet.
TBK-NVR2200 Network Video Recorder Quick Start Guide
www.tbkvision.com 9
Chapter 2 Installation and Connections
2.1 NVR Installation
During installation of the NVR:
⚫Use brackets for rack mounting.
⚫Ensure ample room for audio and video cables.
⚫When routing cables, ensure that the bend radius of the cables are no less than five times than
its diameter.
⚫Connect the alarm cable.
⚫Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
⚫Ensure the NVR is grounded.
⚫Environmental temperature should be within the range of -10 to +55º C, +14 to +131º F.
⚫Environmental humidity should be within the range of 10% to 90%.
2.2 Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.
Step 1 Remove the cover from the NVR by unfastening the screws on the rear and side panel.
Figure 2-1 Remove Cover
Step 2 Connect one end of the data cable to the motherboard of NVR and the other end to the HDD.
Este manual sirve para los siguientes modelos
4
Tabla de contenidos
Otros manuales de Hardware de red de TBK vision
Manuales populares de Hardware de red de otras marcas
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manual de usuario
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manual de usuario
Yudor
Yudor YDS-16 Manual de usuario
D-Link
D-Link ShareCenter DNS-320L Manual de usuario
Samsung
Samsung ES1642dc Instrucciones de uso
Honeywell Home
Honeywell Home LTEM-PV Instrucciones de montaje
