The Taylor® 24 Hour Forecaster will provide you with actual cur-

rent temperatures. Predict the weather conditions for the next

24 hours as well as your local television weatherperson! Taylor

uses the temperature and changes in relative humidity levels to

forecast the upcoming day. Plan the day with condence with

Taylor® Today’s Weather.

Please read this instruction manual carefully before use. Keep

these instructions handy for future reference.

Today’s Weather 24 Hour Forecaster

Instruction Manual

1380

To Power up Weather Forecaster

Use 2 AAA batteries (not included).

Remove the battery compartment cover on the back of the

unit. Install 2 AAA batteries according to the polarity markings in

the compartment. Replace the cover.

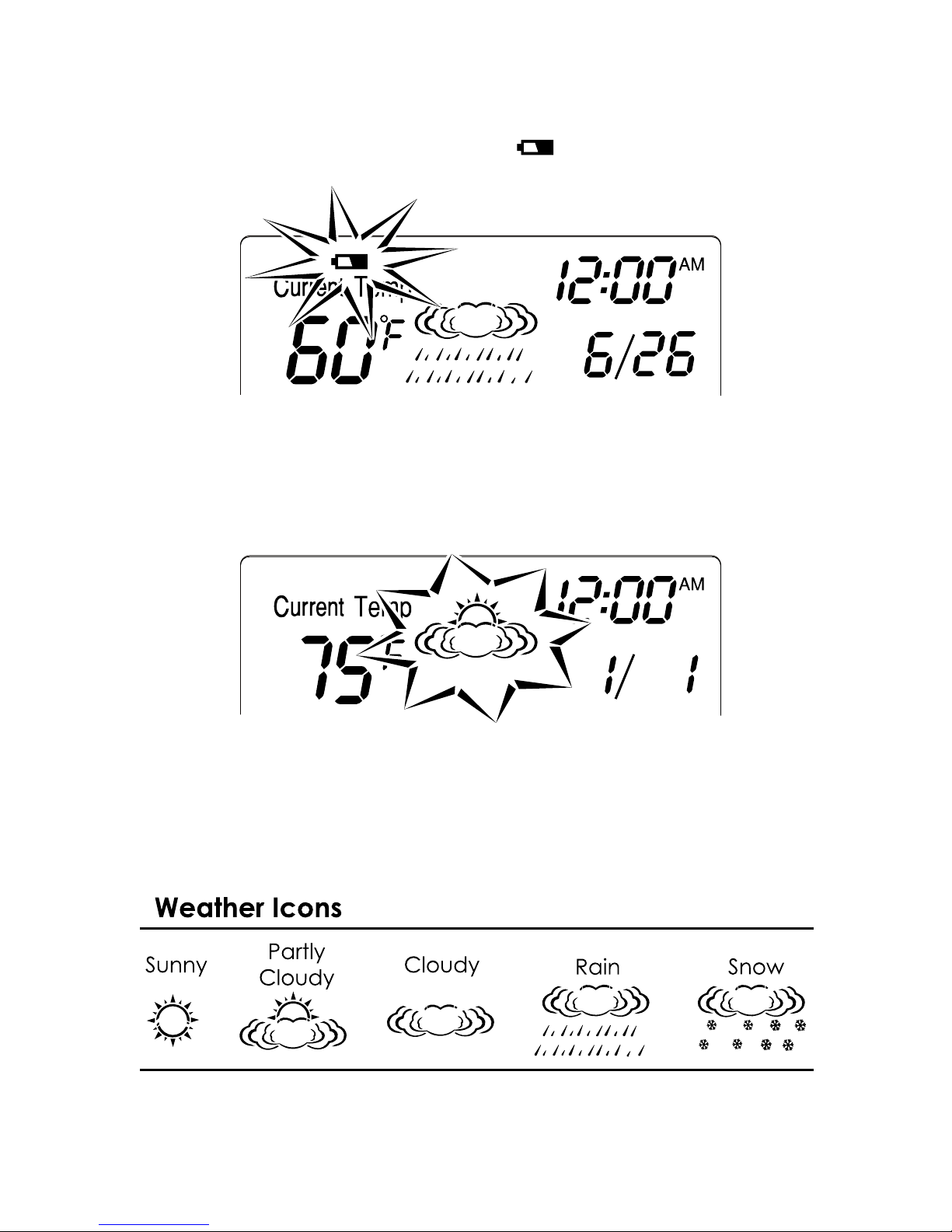

Low Battery Warning

Replace both batteries when the “ ” icon appears or

readings become dim or irregular.

To Set Up the Weather Forecaster for Use

1. After battery installation, the current weather icon ashes.

2. Press “Up” or “Down” to select the weather icon you believe

most closely reects the current conditions in your area.

(Partly Cloudy is the default setting).

3. Press “TIME/DATE” to select the displayed weather icon. The

icon stops ashing.

Icon ashes during setup, then steady when set

4. Please allow at least 6 hours for the unit to read weather

conditions and start to forecast. During this time, the current

temperature will update, but all other readings will remain

the same.

Only current temperature will update during 1st hour.

Temperature forecasts and weather icons are

identical while analyzing 1st forecast.

5. Use the attached cable with sensor probe to measure outdoor

weather conditions. Open a window and run the cable

through the opening so that the sensor probe at the end of

the cable is exposed to the outdoor temperature and weather

conditions. Locate the sensor probe in a dry, shaded area. Di-

rect sunlight, direct contact with snow or ice, or other extreme

temperature conditions will affect accuracy. Gently close the

window to avoid crimping or severing the cable.

Important: Though the sensor probe is weather resistant, it should

be placed away from direct sunlight, rain, snow and should never

be submerged in water.

6. When the unit begins to forecast weather conditions, all

temperature and weather screens will update.

7. The remote sensor will automatically transmit updates to the

base unit.

• The current temperature will update approximately every 30

seconds.

•Temperature and weather forecasts will update every 6

hours during the rst 24 hours of operation.

• After 24 hours, updates occur every 1 hour.

Please note: if the sensor probe senses identical weather

conditions over a 24 hour period, all the screens will show

identical readings.

To Set Clock and Date

1. Press and hold “TIME/DATE” for 2 seconds, then release.

2. Press “UP” or “DOWN” to change the hours. Press “TIME/DATE”.

3. Press “UP” or “DOWN” to change the minutes. Press “TIME/DATE”.

4. Press “UP” or “DOWN” to switch between a 12 or 24 hour clock.

Press “TIME/DATE”.

5. Press “UP” or “DOWN” to change the year. Press “TIME/DATE”.

6. Press “UP” or “DOWN” to change the month. Press “TIME/DATE”.

7. Press “UP” or “DOWN” to change the date. Press “TIME/DATE”.

8. Clock/Date setup are complete.

9. Press “TIME/DATE” to toggle between the time and year displays.

°C/°F Selection

Press the “C/F” button on the back of the unit to switch between

Fahrenheit and Celsius temperatures.

Tips

Setup:

Place the tabletop base unit indoors in a well-ventilated location

away from direct sunlight with access to the outdoors through a

window or other opening.

Locate the sensor probe in a dry, shaded area. Direct sunlight,

direct contact with snow or ice, or other extreme temperature

conditions will affect accuracy.

Reset:

To reset the weather forecaster, remove and reinstall all batteries.

Repeat set up procedures.

To Read the Weather Forecaster

(1) Current outdoor temperature

(2) Low battery indicator

(3) Current weather condition icon

(4) Clock/Date

(5) 3 forecast displays over 24 hours:

Morning (7AM-11AM)

Afternoon (11AM-3PM)

Evening (3PM-9PM)

Forecast screens will rotate as time periods change, with the next

period appearing at the left.

Problem Solving

1. If the LCD readout is faint, replace the batteries.

2. If temperatures do not display on the base unit or seem irregular:

a) Check to see the cable is not crimped, severed or otherwise

damaged;

b) Relocate sensor probe if it is obstructed from weather condi-

tions or in contact with an object that might affect temperature

readings (hot metal object, snow, etc.)

c) Remove and reinstall all batteries, using new fully charged bat-

teries;

d) Repeat set-up procedures;

3. If new batteries are faulty on the initial installation, install fresh

batteries. If you did not notice the Low Battery icon warning and

the product performed correctly after initial set up, the batteries

have lost their charge. Replace the batteries (see To Power up

Weather Forecaster).

Display Information

If the receiver unit does not receive a transmission from the sensor

probe for 1 hour, the display will show dashes. Remove and reinstall

all batteries and repeat set up procedures. Check to see that the

cable is not crimped or severed and the sensor is not obstructed.

Try various locations for the sensor probe if necessary.

Over- or under- temperature range displays:

If the temperature is outside the unit’s temperature range of -40°F

to 158°F / -40°C to 70°C (with use of lithium batteries), the LCD will

show “HH” (higher than the temperature range) or “LL” (lower than

the temperature range). When temperatures are within the range,

the readings will return. If necessary, relocate the sensor probe

away from locations with extreme temperatures (such as snow or

a hot surface).

Keyhole

Table stand

ºC/ºF Button

Battery

Compartment

Back View

Placement:

Table stand –

Use to sit the base unit

on a at surface, such

as a desk or countertop.

Keyhole –

Use to hang on a wall.

Temperature/Forecast Updates

The sensor probe sends temperature and weather condition infor-

mation to the base unit.

After battery installation, allow 6 hours for the unit to analyze

weather conditions and report forecasts.

Weather readings will update as follows:

• Current temperature updates approximately every 30 seconds.

• Temperature and weather forecasts update every 6 hours during

the rst 24 hours of operation after battery installation.

• After 24 hours, updates occur every 1 hour.

After an extreme temperature changes (ex. relocating the sensor

from a warm indoor location to snowy outdoors), allow a few min-

utes for the temperature reading to stabilize.

Precautions

1. Always read the instruction manual before operating this product.

2. Do not immerse the base unit in water. If you spill liquid on it, dry

immediately with a soft, lint-free cloth.

3. The sensor probe is weather resistant but not waterproof and

should never be submerged in water. It should be placed away

from direct sunlight, rain, and snow.

4. Do not clean the unit with abrasive or corrosive materials. This may

scratch plastic parts and corrode electronic circuits.

5. Do not subject unit to excessive force, shock, dust, temperature

or humidity. This may result in malfunction, shorter electronic life

span, damaged battery or distorted parts.

6. Do not tamper with the unit’s internal components. Doing so will

invalidate the warranty on this product and may cause damage.

The unit contains no user-serviceable parts.

7. Do not mix old and new batteries. Do not mix Alkaline, Lithium,

carbon zinc (standard) or Nickel-Cadmium (rechargeable) bat-

teries. Do not dispose of batteries in re. Batteries may explode or

leak. Remove the batteries if the unit will not be used for a long

period of time.

8. The base unit is intended for indoor use only. It is not sealed

against moisture and could be damaged if used outdoors or in

humid indoor conditions.

9. Due to continuous product improvements, the illustrations shown

in this manual may differ from the actual displays.

10. If you choose to locate the sensor probe indoors (in a basement,

attic, child’s room, etc.), the sensor will not be tracking outdoor

conditions and the base unit will not be able to receive an ac-

curate weather forecast.

Specications

Range of temperature measurement: -40°F to 158°F (-40°C to 70°C)

Resolution: 1° for temperature

Power: 2 AAA alkaline batteries

5 weather forecast icons: Sunny, Partly Cloudy, Cloudy, Rain, Snow

3 forecast time displays over 24 hours:

Morning (7AM-11AM)

Afternoon (11AM-3PM)

Evening (3PM-9PM)

12/24 clock with date and year

One Year Limited Warranty

This product is warranted against defects in materials or work-

manship for one (1) year from date of original purchase for

original purchaser. It does not cover damages or wear resulting

from accident, misuse, abuse, commercial use, or unauthorized

adjustment and/or repair. Should this product require service (or

replacement at our option) while under warranty, do not return to

retailer. Please pack the item carefully and return it prepaid, along

with store receipt showing date of purchase and a note explain-

ing reason for return to:

Taylor Precision Products

2220 Entrada Del Sol, Suite A

Las Cruces,New Mexico 88001

www.taylorusa.com

There are no express warranties except as listed above. This war-

ranty gives you specic legal rights, and you may have other rights

which vary from state to state.

For additional product information, or warranty information in

Canada or elsewhere outside the USA, please contact us through

www.taylorusa.com.

Made to our exact specications in China.

rights reserved.
