Task Force Tips CROSSFIRE XFF-APL Manual de usuario
Truck Mount Adapter - XFF-APL
Flange Truck Mount Adapter - XFF-MPL
XFF-MPP
CROSSFIRE

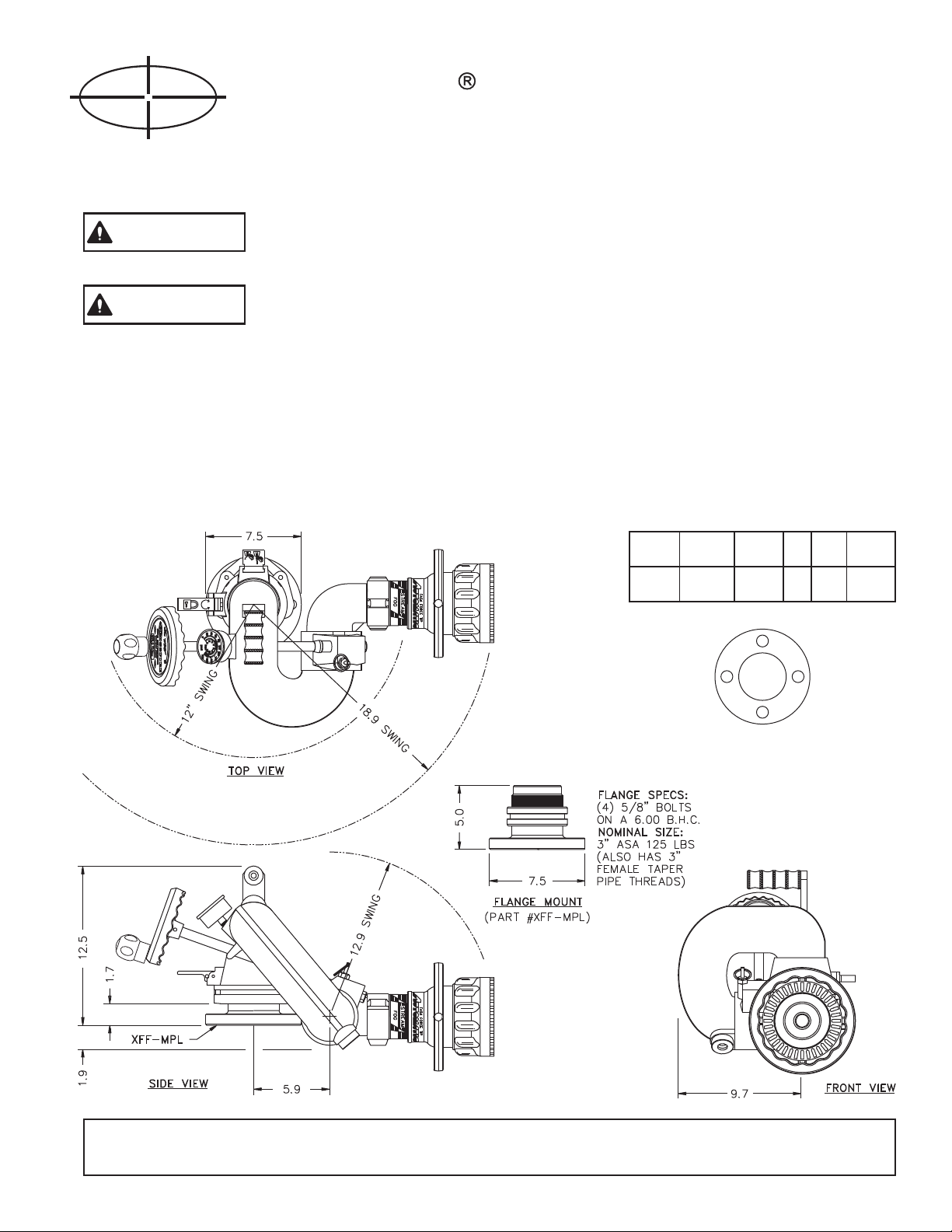

The XFF-APL Truck Mount Adaptor will connect the CROSSFIRE® monitor to a riser pipe with a 3" NPT male thread. The XFF-MPL Truck Mount
Adapter will connect a CROSSFIRE® monitor to a riser pipe with either a 3" ANSI 150 lb ASA flange or 3" NPT male threads. The XFF-MPP Truck
MountAdaptor will connect a CROSSFIRE® monitor to a riser pipe with either 4"ANSI 150 flange or 4" NPT male threads.
Injury can occur from an inadequately supported monitor. The mounting must be capable of supporting the
nozzle reaction force which can be as high as 950 lbs. (1250 GPM at 175 PSI). Flanges and pipe made from
plastic are inadequate for monitor mounting and must not be used.
WARNING
DANGER
Make sure that there is no interference between monitor and other deck mounted equipment in all directions.
A drain valve should be provided in the riser pipe which supplies the monitor. The riser should be drained immediately after each use during cold
weather to prevent freezing and possible damage.
The Crossfire monitor has an automatic drain. If this drain has been deactivated, the monitor must be drained by lowering the nozzle below horizontal.
Use pipe thread sealant on the riser pipe threads when installing the XFF-APL or using the internal threads of the XFF-MPL or XFF-MPP adapters.
When installing the bolted flanges, use the supplied ring gasket.
If you have any questions or installation difficulties, please call 1.800.348.2686.
Read instruction manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Users who have not read and understood all
operating and safety instructions are not qualified to operate this portable/deck gun.
Model
XFF-MPL
Flange
Thickness
.75 in
19mm
#of
Bolts
4
Bolt
Dia
5/8 in
Torque
on Bolts
76-80
ft-lbf
Flange
Height
5in
127mm
XFF-MPL
TASK FORCE TIPS, Inc. 2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
MADE IN USA •www.tft.com
Flange Bolt Tightening Sequence
Tighten sequentially each bolt three times.
1
2
3 4
©Copyright Task Force Tips, Inc. 1999-2007 LIX-047 May 8, 2007 Rev05
Flange Bolt Tightening Sequence
Tighten sequentially each bolt three times.
1
2
3
5
6
7
8
4
Truck Mount Adapter - XFF-APL
Flange Truck Mount Adapter - XFF-MPL
XFF-MPP
CROSSFIRE
XFF-APL
XFF-MPP
Model
XFF-MPP
Flange
Thickness
.94 in
24mm
#of
Bolts
8
Bolt
Dia
5/8 in
Torque
on Bolts
76-80
ft-lbf
Flange
Height
7.9 in
200.5mm
©Copyright Task Force Tips, Inc. 1999-2007 LIX-047 May 8, 2007 Rev05
TASK FORCE TIPS, Inc. 2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
MADE IN USA •www.tft.com
