TASCAM DM-24 Version 2.1 Release Notes 1

New features in DM-24 version 2.1

Buss assignment

Busses 1-8 can now be assigned to the stereo buss on

the

ASSIGN

page, the

MODULE

page and also using the

ASSIGN section key.

Bear in mind that like

EFFECT 1-2

DIGITAL IN 1-2

and

ASSN RETURNS 1-4

, these signals enter the stereo buss

after (post) the Master Comp Insert Matrix.

The result of this is that if you are compressing the

stereo buss, these signals assigned to the stereo buss

are not affected by the compressor.

However, if the

ASSIGNABLE

sends and returns are

used as stereo buss

INSERTS

, these inserts will affect

the signals sent to the stereo buss. Any analog inserts

used on the stereo buss will also affect these signals.

1To assign these signals directly to the stereo

buss, use POD 4 to move the cursor to

the upper right of the

ASSIGN

page.

2Then use the

SEL

key of the buss, or the cur-

sor keys or the dial to highlight the item you

wish to assign and press the ENTER key.

This assignment can also be made in the buss

MODULE

page.

To assign busses 1-8 to the stereo buss using the

STEREO key in assign section:

1Select the busses 1-8 using the SEL keys.

2Then press the STEREO key in the assign sec-

tion. Busses 1-8 are assigned to the stereo

buss directly (this can be confirmed on the

MODULE

page).

Buss signals assigned to the stereo buss fol-

low the

Balance Level CENTER: 0dB

setting on the

OPTION-PREFERENCES

page.

9101449300

New features in DM-24 version 2.1

2 TASCAM DM-24 Version 2.1 Release Notes

Talkback source

On the

MONITOR –OSC/COM

page, you can now choose

either MIC/LINE input 1 or 16 (in high sampling fre-

quency, MIC/LINE input 1 or 8) as the talkback

source. This allows you to use any microphone you

wish as a talkback mic, rather than the DM-24’s

built-in microphone.

This is especially helpful in situations such as ADR

rooms in post-production, where more than one per-

son needs to use the talkback mic. An omnidirec-

tional microphone can be mounted in the room for

this purpose.

ADAT S/MUX support

The DM-24 now supports S/MUX for 96kHz con-

nections. This allows 96kHz communication with

such devices as the Alesis HD-24, the MOTU

2408III and RME digital audio interfaces.

New default clock setting

Previously, the default clock setting for the DM-24

was to use TDIF as the clock source. This meant that

the EXT CLOCK indicator flashed if there was no

TDIF source at the default frequency.

In version 2.1, the default clock setting is now the

DM-24’s own internal clock, at 44.1kHz (and the

EXT CLOCK indicator therefore does not flash).

When the DM-24 is changed to the high sampling

frequency mode, the sampling frequency is 88.2kHz.

New features in DM-24 version 2.1

TASCAM DM-24 Version 2.1 Release Notes 3

Busses as effect input sources

Busses 1-8 can now be used as input sources for the

internal effects on the

PATCH

page. This can be conve-

nient if all aux sends are already being used for other

purposes.

New features in HUI

The HUI page has changed considerably and new

functions have been added.

As only channel strips 1-8 are functional in HUI

mode, the keys on channel strips 9-16 have been

mapped to perform specific functions.

• Pressing the

SHIFT

soft key icon allows you to use

the faders as aux send level controls for the chosen

send. Pressing this soft key again returns the faders

to fader control of the DAW.

•MUTE keys 11-12 act as left bank and right bank

keys. These banks operate in 8-channel incre-

ments.

•SEL keys 11-12 act as left and right channel

advance keys. This is similar to the bank keys, but

these keys only “move” by one channel at a time.

•REC key 11 recalls the EDIT screen in Pro Tools,

while REC key 12 recalls the MIX screen in Pro

Tools.

•SEL 14 and SEL 16 make the waveform shorter

and longer (time axis) respectively.

• Pressing the SEL 15 key activates ZOOM. REC 15

key and MUTE 15 key make the waveform larger

and smaller respectively.

•MUTE key 10 selects the POD controls as pan con-

trols.

•REC key 9 selects SEND A, REC key 10 selects

SEND B, SEL key 9 selects SEND C, SEL key 10

selects SEND D, and MUTE 9 selects SEND E.

All of these functions are laid out clearly on the HUI

page as shown here.

Bug fixes

In addition to the features listed above, the DM-24

version 2.1 firmware release addresses all known

bugs.

Otros manuales para DM-24

Tabla de contenidos

Otros manuales de Mezclador de música de Tascam

Tascam

Tascam Sonicview 16 Manual de usuario

Tascam

Tascam M-2600MKII Instrucciones de montaje

Tascam

Tascam DM-3200 Cómo utilizar

Tascam

Tascam Digital Portastudio DP-24 Manual de operación y mantenimiento

Tascam

Tascam 24 Manual de usuario

Tascam

Tascam DM-3200 Guía de inicio rápido

Tascam

Tascam TM-D1000 Instrucciones de operación

Tascam

Tascam DM-3200 Guía del usuario

Tascam

Tascam Ministudio Porta One Manual de usuario

Tascam

Tascam MM-1 Manual de usuario

Tascam

Tascam 24 Manual de usuario

Tascam

Tascam M-50 Guía de solución de problemas

Tascam

Tascam 12 Instrucciones de instalación y funcionamiento

Tascam

Tascam XS-8 Manual de usuario

Tascam

Tascam TM-D8000 Manual de usuario

Tascam

Tascam DM-24 Manual

Tascam

Tascam TM-D1000 Guía de inicio rápido

Tascam

Tascam Digi 001 Manual de usuario

Tascam

Tascam DM-4800 Manual de usuario

Tascam

Tascam TM-D1000 Manual de usuario

Tascam

Tascam Portastudio Guía de instalación

Tascam

Tascam 644 Midistudio Manual de usuario

Tascam

Tascam DP-004 Guía

Tascam

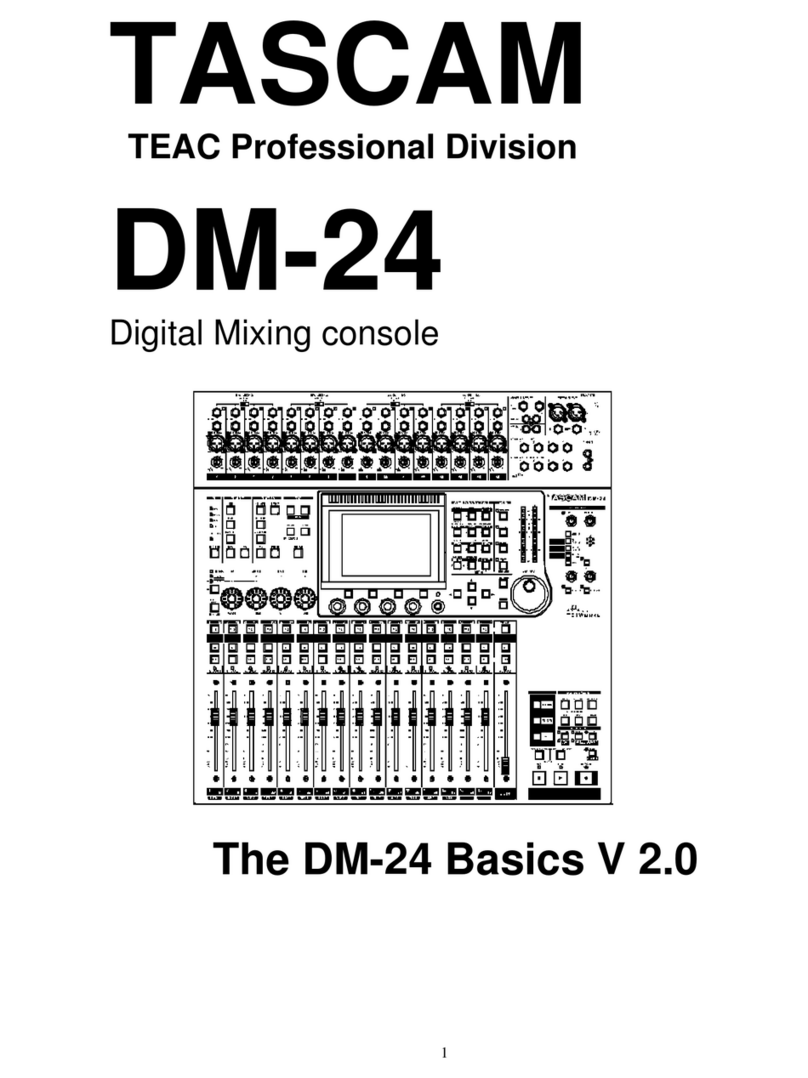

Tascam DM-24 Guía del usuario
