Model Number:
TED-210C
GAS DRILL (Limited Canadian Production)
P/N N/A
Rev 000
Date 1-15-08
Serial Numbers (T277487 - T284900)
AND
Serial Numbers (U205952 - U268935)
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
www.tanakapowerequipment.com [email protected]
www.tanakapowerequipment.com
PARTSINFORMATION
Page 1
TED-210C
CYLINDER, PISTON, CRANKSHAFT, IGNTION • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1 1570650091 CAP,SPARK PLUG ASS'Y 1
1-2 0180654021 PLUG,SPARK 1
1-3 0010650090 SET,CYLINDER 1 Includes cylinder gasket
1-4 99416050201 SCREW,5X20/WS 2
1-7 0170650020 GASKET,CYLINDER 1
1-8 04100601210 RING,PISTON 1
1-9 0300650090 SET,PISTON 1 Includes rings and circlips
1-10 03706500200 PIN,PISTON 1
1-11 03901620200 CIRCLIP,PISTON PIN 2
1-12 04606500801 CRANKSHAFT 1
1-13 99962081225 BEARING,NEEDLE,F-810 1
1-27 1532153390 COIL,IGNITION 1
1-28 99416040226 SCREW,WS,4X22 2
1-36 25006500200 TUBE,INSULATOR 1
1-37 1780650080 CORD,STOP COMPLETE 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 2
TED-210C
CRANKCASE, MAGNETO • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-21 07206502900 CRANKCASE,ASS'Y 1 Crankcase Ass'y includes bearings, seals
2-22 09006500200 GASKET,CRANKCASE 1 and gasket
2-23 99966122206 SEAL,OIL,#TC12227 2
2-24 99961600100 BEARING,BALL,#6001 2
2-25 33000200210 SHIM,12.2X19X.10 1 Shims are "as needed" to obtain
2-25 33000200220 SHIM,12.2X19X.15 1 correct side clearance
2-25 33000200230 SHIM,12.2X19X.20 1
2-25 33000200240 SHIM,12.2X19X.30 1
2-26 59900601200 CUSHION 1
2-30 99414050301 SCREW,5X30/S 3
2-31 1552152380 ROTOR, MAGNETO 1
2-32 99201080011 WASHER,8 1
2-33 99210080012 WASHER,S,8 1
2-34 99101080011 NUT,8 1
2-35 10012000200 STUD,6X26 2
www.tanakapowerequipment.com
PARTSINFORMATION
Page 3
TED-210C
MUFFLER COVER, MUFFLER, RECOIL STARTER • FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-3 7380650020 PROTECTOR,MUFFLER 1
3-4 73706500200 GASKET,MUFFLER 1
3-5 13306500200 SHIELD,HEAT 1
3-6 7040650090 SET,MUFFLER 1
3-7 99201050011 WASHER,5 2
3-8 99051050503 BOLT,HEX,5X50 2
3-11 1120650A80 CASE,FAN 1
3-12 78006097200 SPRING,RECOIL 1
3-13 77406097200 PULLEY,STARTER 1
3-15 8390201020 SCREW,SET 1
3-16 79806500900 PULLEY,STARTER,ASS'Y 1
3-17 2030604A202 GROMMET 1
3-18 78306097200 ROPE,STARTER 1
3-19 78506410200 HANDLE,STARTER 1
3-20 99415040162 SCREW,PS,4X16 3
3-21 75106500200 GASKET,MUFFLER 1
3-22 7210650490 SET, TAIL PIPE 1
3-24 99414040081 SCREW,4X8 2
3-47 2770634F900 CLUTCH,ASS'Y 1
3-61 99072045164 SCREW,TAPPING,4.5X16 1
3-62 99425040128 BOLT,PS,4X12 2
3-65 79006097200 SPRING,STARTER PAWL 1
3-66 7880650020 PAWL,STARTER 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 4
TED-210C

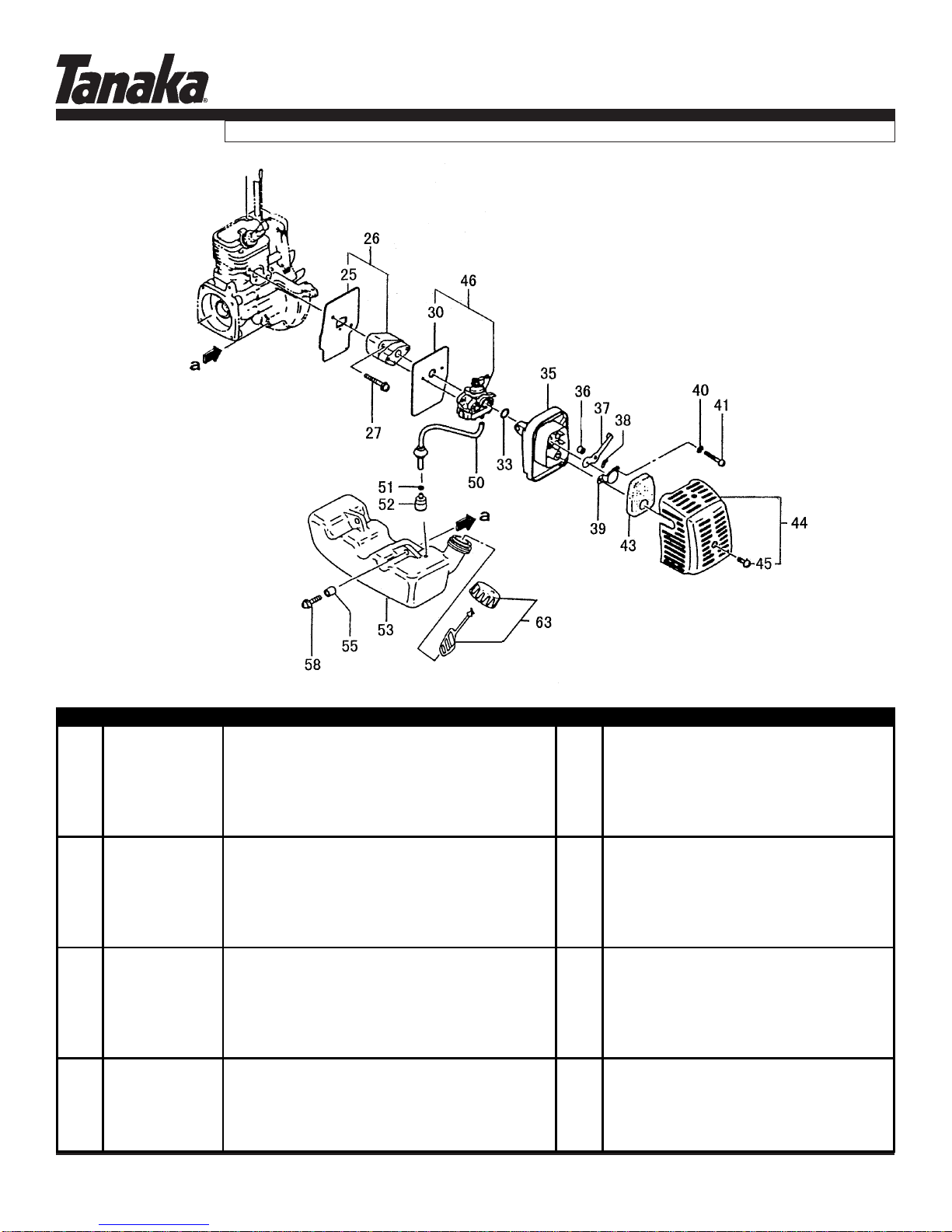

AIR CLEANER, FUEL SYSTEM • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
4-25 40306500200 GASKET,INTAKE 1
4-26 4040650090 SET,CARB INSULATOR 1
4-27 99416050252 SCREW,5X25WS 2
4-30 40206500200 GASKET,CARBURETOR 1
4-33 99967015000 O-RING,P15 1
4-35 4230650081 BODY,CLEANER 1
4-36 47006500200 COLLAR 2
4-37 52806500200 VALVE,CHOKE 1
4-38 99204080030 WASHER,8 1
4-39 47601700200 BOARD,BLOW OVER CHECK 1
4-40 99210050012 WASHER,S,5 2
4-41 99011050602 SCREW,5X60 2
4-43 4460650020 ELEMENT,CLEANER 1
4-44 4520650091 COVER,CLEANER,W/BOLT 1
4-45 3800637C200 BOLT,CLEANER COVER 1
4-46 4550651E90 CARBURETOR,TED-210C 1
4-50 2230650090 PIPE,FUEL,ASS'Y 1
4-51 68000731201 CLIP 6.3 1
4-52 6750404280 FILTER,FUEL 1
4-53 5910650000 TANK,FUEL PIPE,ASS'Y 1
4-55 65900801200 COLLAR 2
4-58 99463050185 BOLT,HEX 5X18PS 2
4-63 5950423Q90 CAP,TANK 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 5
TED-210C
CARBURETOR • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
5-0 4550651E90 CARBURETOR,TED-210C 1
5-1 54825140200 SCREW,THROTTLE SET 2
5-5 53925120200 SWIVEL 1 Carburetor Repair Kit - 650-25140-900
5-7 48925100200 RING,STOP 1 Gasket / Diaphragm Kit - 652-25140-900
5-8 48825145800 VALVE,THROTTLE 1
5-10 55025100200 O-RING 1
5-11 599200AW41 JET,MAIN 41.5 1
5-13 ~ ~ ~ GASKET,PUMP 1 ~ Contained in Carb Kits
5-14 ~ ~ ~ DIAPHRAGM,PUMP 1
5-17 57825007200 SCREEN,INLET 1
5-18 5752515280 BODY,PUMP 1
5-19 ~ ~ ~ GASKET,DIAPHRAGM 1
5-20 ~ ~ ~ DIAPHRAGM,METERING 1
5-21 47625004200 COVER,DIAPHRAGM 1
5-22 54825101200 SCREW,SET 4
www.tanakapowerequipment.com
PARTSINFORMATION
Page 6
TED-210C
GEAR CASE • FIGURE 6
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
6-1 0023218280 CASE,GEAR A 1
6-2 0063210A80 CASE,GEAR,B 1
6-3 2263210A800 HOUSING,CLUTCH 1
6-4 01232120200 GEAR,#2 1
6-5 01632120201 GEAR,#3 1
6-6 06800300200 KEY,WOODRUFF,3X10X3.7 1
6-11 99961600102 BEARING,BALL,#6001Z 1
6-12 99961600100 BEARING,BALL,#6001 1
6-13 99350012002 RING,STOP,C-12 EX 1
6-14 01832120200 GEAR,#4 1
6-15 99961720221 BEARING,BALL,#7202B 1
6-16 04032120201 WASHER,BEARING 1
6-17 99961620202 BEARING,BALL,#6202Z 1
6-18 99351035002 RING,IN,C-35,STOP 1
6-19 06801006200 KEY,WOODRUFF,3X13X5 1
6-20 02232120201 SHAFT,DRIVE 1
6-22 99023060301 BOLT,P,6X30 2
6-23 99101060011 NUT,6 2
6-24 99210060012 WASHER,S,6 4
6-26 99414050181 SCREW,S,5X18 4
6-43 99209350030 WASHER,WAVE,B.B,35 1
6-44 23132175200 COLLAR,GEAR SHAFT B 1
6-45 30032250801 FITTING,GREASE 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 7
TED-210C
HANDLES, THROTTLE, STOP SWITCH • FIGURE 7
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
7-28 2583210A82 HANDLE,A 1
7-29 1653313020 HANDLE,GRIP,A 1
7-30 10132120201 LEVER,THROTTLE 1
7-34 99011050251 SCREW,5X25 1
7-35 99101050011 NUT,5 1
7-36 19833130200 CLAMP,CORD 2
7-37 99023060161 BOLT,6X16 PLUS 1
7-38 99210060012 WASHER,S,6 1
7-39 25932120810 HANDLE,B 1
7-41 99210100012 WASHER,S,10 1
7-46 1563210A801 SWITCH,STOP 1
7-47 9253317620 DECAL,STOP BUTTON 1
7-48 2581165020 BUTTON,STOP 1
7-49 99011030101 SCREW,3X10 1
7-51 88506502801 WIRE,THROTTLE 1
7-52 16407029000 TUBE,PROTECTION 1
7-53 1553210A200 HOLDER, CHUCK KEY 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 8
TED-210C
CHUCK & KEY, WRENCH, DECALS • FIGURE 8
8
66
66
6
77
77
7
ITEM PART NUMBE
R
DESCRIPTION QTY COMMENTS
8-0 05932120911 CHUCK & KEY SET 1/2" 1
8-1 06032120911 CHUCK,1/2" 1
8-2 06132120811 CHUCK KEY 1/2" 1
8-3 8292000080 SPANNER,COMBI,13X19 1
8-4 9203217220 DECAL,CAUTION 1
8-5 9213217220 MARK, CAUTION 1
8-6 91106500200 DECAL,SRS 1
8-7 9060650520 PLATE, NAME, TED-210 1
8-8 27218 KEYLESS CHUCK 1/2" 1 OPTIONAL
Este manual sirve para los siguientes modelos
4
Tabla de contenidos
Otros manuales de Perforar de Tanaka
Tanaka
Tanaka TED-270PFL, TED-270PFLS, TED-270PFR, TED-270PFRS, TED-270PFHS, TED-270PFDH,... Manual de usuario
Tanaka
Tanaka TED-232 Manual de instrucciones
Tanaka
Tanaka TED-262DH Manual de usuario
Tanaka
Tanaka TED-210 Manual de usuario
Tanaka

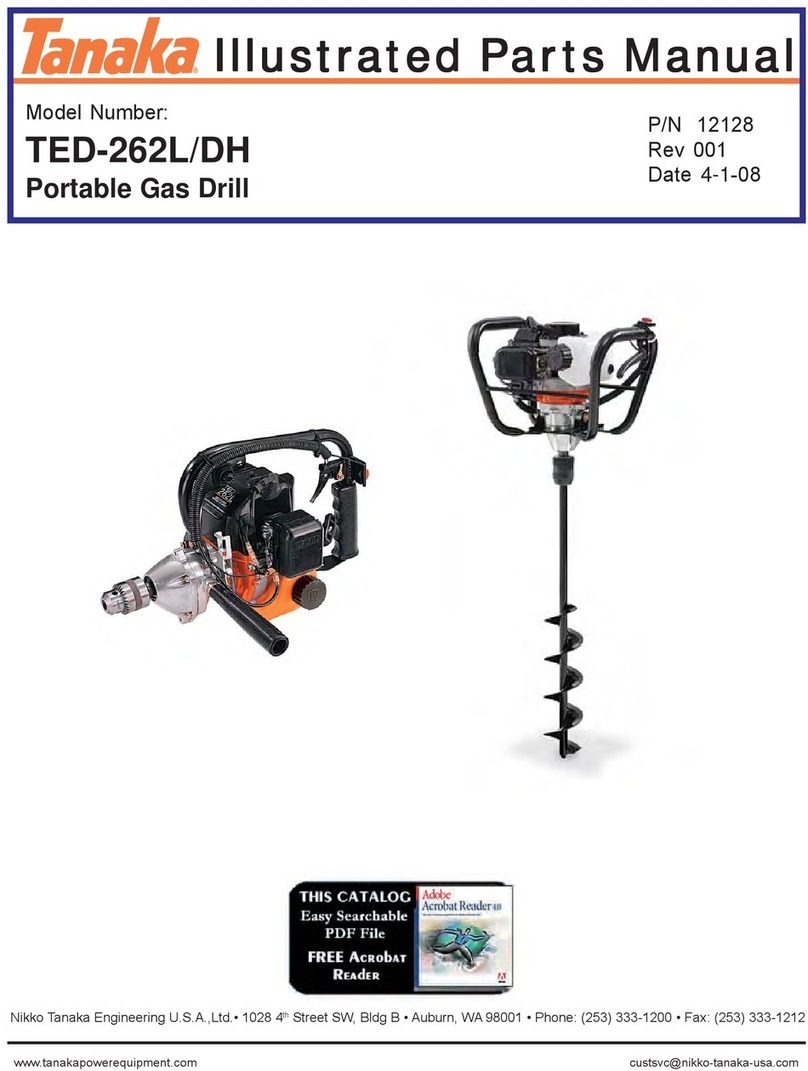

Tanaka TED-262L Guía de configuración
