Tanaka ECS-3301/B Guía de configuración
IllustrIllustr
IllustrIllustr
Illustraa
aa
ated Pted P
ted Pted P
ted Parar
arar
arts Mants Man
ts Mants Man
ts Manualual
ualual
ual
Model Number:
ECS-3301/B
32cc CHAINSAW
P/N 40135
Rev 000
Date 5-14-07
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
www.tanakapowerequipment.com [email protected]
www.tanakapowerequipment.com
PARTSINFORMATION
Page 1
ECS-3301/B
ENGINE / CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1 15711666900 CAP,SPARK PLUG 1
1-2 01801805200 PLUG,SPARK 1
1-6 0010174090 CYLINDER SET 1 ~R232011 Includes cylinder gasket
1-6 0010174091 CYLINDER SET 1 R232012~ Includes cylinder gasket
1-7 99461050164 BOLT,HEX,5X16,S 4
1-9 0170174020 GASKET,CYLINDER 1
1-10 04101730200 RING,PISTON 2
1-11 0300174090 PISTON SET 1 ~R232011 Includes rings and circlips
1-11 0300174190 PISTON SET 1 R232012~ Includes rings and circlips
1-12 03701400200 PIN,PISTON 1
1-13 03900000201 CIRCLIP,PISTON PIN 2
1-16 0460174080 CRANKSHAFT 1
1-17 99962091325 BEARING,NEEDLE,F-910 1
1-18 06810100200 KEY,WOODRUFF,3X13X4.5 1
1-31 99416040186 SCREW,WS,4X18 2
1-34 20501700200 TAB,TERMINAL 1
1-35 1672152980 COIL,IGNITION 1 ~S039107
1-35 1672154080 COIL,IGNITION 1 S039108~
1-66 75532050200 TUBE,CORD 1
1-75 1780174080 CORD,STOP 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 2
ECS-3301/B
CRANKCASE / FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-19 0710406321 SHIM,CRANKSHAFT,0.1 V
2-19 0710406323 SHIM,CRANKSHAFT,0.2 V
2-19 0710406324 SHIM,CRANKSHAFT,0.3 V
2-19 0710406325 SHIM,CRANKSHAFT,0.4 V
2-21 06600000200 NUT,FLYWHEEL 1
2-22 99210070012 WASHER,S,7 1
2-23 99201070011 WASHER,7 1
2-24 1552152991 ROTOR,MAGNETO 1 ~S039107
2-24 1552154090 ROTOR,MAGNETO 1 S039108~
2-26 7880174020 PAWL,STARTER 2
2-27 7900174020 SPRING,STARTER PAWL 2
2-28 99355040001 RING,STOP 2
2-36 99461050204 BOLT,HEX,HOLE,5X20,S 4
2-41 0720174093 CRANKCASE,ASS'Y 1 ~C110350 - Incl brgs, seals and gasket
2-41 0720174094 CRANKCASE,ASS'Y 2 C110351~ Incl brgs, seals and gasket
2-42 99966122240 SEAL,OIL,#12227 2
2-43 0900174021 GASKET,CRANKCASE 1 ~Y211450
2-43 0900174120 GASKET,CRANKCASE 1 Y211451 to C110350
2-43 0900174G20 GASKET,CRANKCASE 2 C110351~
2-44 99961620106 BEARING,BALL,#6201 2
2-46 99905250980 ROLLER,NEEDLE,2.5X9.8 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 3
ECS-3301/B
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-51 5603291090 CASE,ENGINE 1
3-52 56204060200 VALVE,AIR VENT,B 1
3-54 6450175090 AIR VENT VALVE SET 1
3-57 99463050204 BOLT,HEX 5X20 4
3-71 16201570900 SWITCH,STOP,ASS'Y 1
3-72 18301300200 NAME PLATE,SWITCH 1
3-73 27401700800 CORD,EARTH 1
3-80 0523290021 GROMMET,A 1
ENGINE CASE • FIGURE 3
www.tanakapowerequipment.com
PARTSINFORMATION
Page 4
ECS-3301/B
AIR BOX, INTAKE, CARBURETOR • FIGURE 4
Unitsafterserialnumber
C110351~
Unitsbeforeserialnumber
~T017501
www.tanakapowerequipment.com
PARTSINFORMATION
Page 5
ECS-3301/B
AIR BOX, INTAKE, CARBURETOR • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
4-1 3800631A200 BOLT,CLEANER COVER 1
4-2 0513290091 SET,CLEANER COVER 1
4-3 4460174020 FILTER,AIR-FOAM 1 R032271~
4-4 4200174080 ELEMENT,CLEANER 1
4-5 99414050451 SCREW,5X45/S 2
4-7 99200050011 WASHER,SMALL,5 1
4-8 70832350200 SHIM,5.2X8X.80 2
4-9 7003291820 VALVE,CHOKE,4.0 1
4-10 4553290091 CARBURETOR SET 1 ~T017501 Includes gasket
4-11 4020174020 GASKET,CARBURETOR 1
4-12 99461050204 BOLT,HEX,HOLE,5X20,S 2
4-14 99200050011 WASHER,SMALL,5 2
4-15 4040174091 SET,INSULATOR 1 ~C110350
4-15 4040174G90 SET,INSULATOR 1 C110351~
4-16 39401700200 VALVE,REED 1 ~C110350
4-16 3940174G20 VALVE,REED 1 C110351~
4.17 3950173020 HOLDER,REED VALVE 1 ~C110350
4.17 3950174G20 HOLDER,REED VALVE 1 C110351~
4-19 99015030121 SCREW,3X12 2
4-20 40901700200 RUBBER,CARB INSULATOR 1
4-21 4030174021 GASKET,INLET MANIFOLD 1 ~C110350
4-21 4030174G20 GASKET,INLET MANIFOLD 1 C110351~
4-36 99075045144 SCREW, TAPPING,4X14 3
4-39 1523290J21 COVER,CLEANER B 1
4-40 4553290G91 CARBURETOR SET 1 T017501~ Includes gasket
4-45 1290173020 COVER,SEAL 1
4-46 1913297020 GROMMET,IDLE 1 Z179051~
www.tanakapowerequipment.com
PARTSINFORMATION
Page 6
ECS-3301/B
MUFFLER • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
5-26-1 99011050351 SCREW,5X35 2 ~R232011
5-26 99011050401 SCREW,5X40 2 R232012~
5-27 99201050011 WASHER,5 2
5-28-1 7040171090 SET,MUFFLER 1 ~R232011
5-28 7040174291 MUFFLER SET 1 R232012~
5-29-1 71701712800 BODY,MUFFLER,B 1 ~R232011
5-29 7170174080 BODY,MUFFLER,B 1 R232012~
5-30-1 72401700200 METAL,MUFFLER FITTING 1 ~R232011
5-30 7240170920 METAL,MUFFLER FITTING 1 ~T128443
5-30 7240174220 MUFFLER METAL 1 T128444~
5-31-1 73201710200 ARRESTER,SPARK 1 ~R232011
5-31 7320174020 ARRESTER,SPARK 1 R232012~
5-32-1 71601700800 BODY,MUFFLER A 1 ~R232011
5-32 7160170980 BODY,MUFFLER A 1 R232012~
5-33 73701700200 GASKET,MUFFLER 1
5-34 7390170920 GASKET,MUFFLER 1 R232012~
www.tanakapowerequipment.com
PARTSINFORMATION
Page 7
ECS-3301/B
FUEL PIPE, OIL FILTER & CHOKE • FIGURE 6
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
6-1 50532710200 PIPE,OIL,B 1
6-2 68004019210 CLIP,7 3
6-3 99201050011 WASHER,5 1
6-4 48732712201 FILTER,OIL 1
6-5 4863271090 FILTER,ASS'Y 1
6-6 4903291020 ROD,THROTTLE 1
6-7 49132710200 GUIDE,THROTTLE 1
6-16 6780174020 PIPE,RUBBER 1
6-17 6750404280 FILTER,FUEL 1
6-26 99967018000 O-RING,P18 1
6-28 19032710200 CAP,ADJUSTER 1
6-29 70732710200 GROMMET 1
6-30 70432710800 BUTTON,CHOKE 1
6-31 19132710200 GROMMET 1
6-32 99967020000 O-RING,P20 1
6-35 6353271990 CAP,FUEL ASS'Y 1
6-36 6423271990 CAP,OIL TANK 1
6-40 1903290G20 CAP,ADJUSTER 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 8
ECS-3301/B
STARTER • FIGURE 7
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
7-0 7560174090 STARTER,RECOIL,ASS'Y 1
7-1 99072050144 SCREW,TAPPING,5X14 1
7-2 36832350200 WASHER,BRAKE SHAFT 1
7-3 7740174020 PULLEY,STARTER 1
7-4 7830174020 ROPE,STARTER,3X890 1
7-5 7780174090 SPRING,RECOIL ASSY 1
7-7 7850174020 HANDLE,STARTER 1
7-9 1120174080 CASE,FAN 1
7-10 99072045204 SCREW,TAPPING,4.5X20 4
www.tanakapowerequipment.com
PARTSINFORMATION
Page 9
ECS-3301/B
CARBURETOR • FIGURE 8 / 9
Units AfterSerial
NoT017501~
Units Prior to Serial
No~T017501
Este manual sirve para los siguientes modelos
1
Otros manuales de Motosierra de Tanaka
Tanaka
Tanaka ECV-5601 Guía de configuración
Tanaka
Tanaka ECS-3351/B Guía de configuración
Tanaka
Tanaka ECS-3300 Manual de usuario
Tanaka
Tanaka ECV-4501 Manual de usuario
Tanaka
Tanaka ECS-300 Manual de instrucciones
Tanaka
Tanaka TCS 33ED Manual de usuario
Tanaka
Tanaka TCS 51EAP Manual de usuario
Tanaka
Tanaka ECS-415 Manual de instrucciones
Tanaka
Tanaka ECS-3500B Manual de instrucciones
Tanaka
Tanaka TCS 40EA Manual de usuario
Tanaka
Tanaka ECS-290 Manual de instrucciones
Tanaka
Tanaka ECS-330 Manual de instrucciones
Tanaka
Tanaka TCS 33EB Manual de usuario
Tanaka
Tanaka TCS 51EAP Guía de solución de problemas
Tanaka
Tanaka TCS 40EA Guía de solución de problemas
Tanaka
Tanaka TCS 40EA Manual de usuario
Tanaka
Tanaka TCS 51EAP Manual de usuario
Tanaka
Tanaka ECS-351 Manual de instrucciones
Tanaka
Tanaka ECS-356 Manual de instrucciones
Tanaka

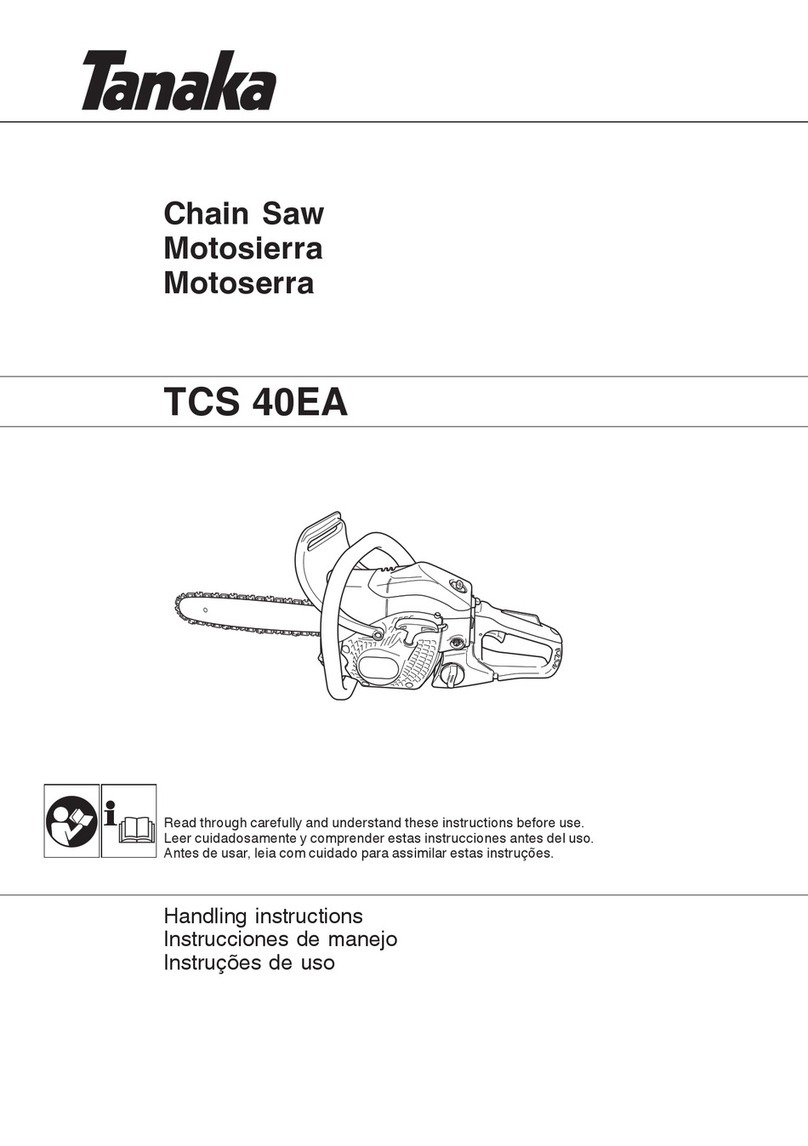

Tanaka TCS 40EA Manual de usuario
