Installation Guide 7010 Peeler Unit

This guide is provided for use by service representatives who must install the

peeler unit. If the peeler is not installed, please contact your supplier.

(1) Check to make sure that the printer's power switch is turned off then disconnect the

power cord.

(2) Open the top cover and lift the thermal printhead and sensor arm.

(3) Remove the operation panel on

the front of the printer (2 screws).

When doing this, remove the

flexible cable that is connected

to the operation panel.

(4) Remove the front right cover on

the front of the printer. (2 screws)

Head open lever Sensor arm open lever

Thermal printhead

Flexible cable

Sensor arm

Top cover

Operation

panel

Front right

cover

Note Installation requires a cross-point ('Phillips') screwdriver with magnetic tip and a

shaft at least 200 mm (8 inches) long.

Caution

(6) Remove the plastic cover from the front center cover that you have removed.

(2 screws)

Note The plastic cover that you have removed is needed if the peeler unit is

de-installed, so store it carefully.

(7) Attach the peel guide plate to the front center cover taking care not to over-tighten

the screws as they are threaded in plastic. (2 screws)

(5) Remove the front center cover. (2 screws)

Plastic cover

Peel guide plate

Front center cover

Release knob

Peeler unit

Alignment holes and pins

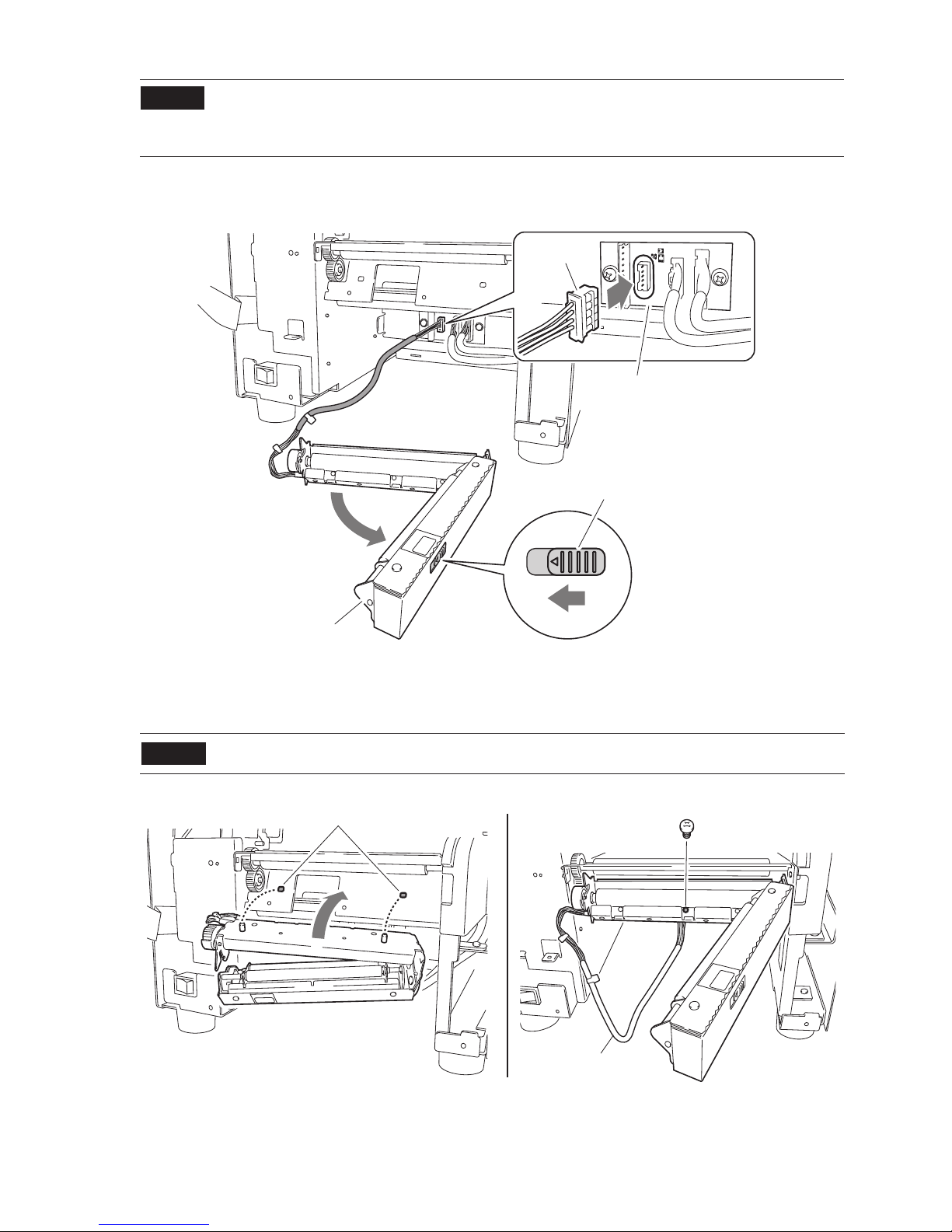

(8) Attach the connector of the peeler unit to the daughter board as shown in the figure.

Note The connector cannot be connected if it is inserted in the wrong orientation

unless force is used!

Check the orientation of the connector carefully.

(9) Slide the release knob of the peeler unit to the left and open the peeler unit.

Daughter board

Connector

(10) After positioning the peeler unit on the printer using the alignment pins on the peeler

as a guide, fix the unit to the printer using the screw supplied. Then close the peeler.

Note Be careful not to pinch the wiring harness from the peeler unit.

Wiring harness

(12) Attach the front right cover removed at step 4 in its original position. (2 screws)

(13) Attach the operation panel removed at step 3 in its original position. (3 screws)

Note Be sure to connect the flexible cable that you disconnected as it was

formerly connected. The blue side of the tip is upwards.

(14) Close the top cover.

(15)

Connect the power cord and turn on the power switch on the printer.

Note Removing the peeler unit

To remove the peeler unit from the printer, follow the installation steps in

reverse order. If the screws that fasten the peeler unit are removed, the unit

may fall from the printer, so hold the peeler unit with your hand while

loosening the fastening screws.

(11) Align the two tabs on the bottom of the 'front center cover' to the slits of the printer as

it is slid in to the printer. The bottom plate of the front cover needs to be held up from

below to ensure a good fit. Attach the front center cover from step 5 in its original

position. (3 screws, of which 1 is an accessory to the unit)

Alignment "pin"

Slit

Alignment hole

Front center cover
