SystemBase CS-LAN Manual de usuario
User Manual
www.sysbas.com
CS-LAN
Version 1.0.1 2015/07/12
1
Revision History
Revision Date
Document Version
Pages
Description
July. 20. 2015
1.0
All
Initial release
2
Contents
Chapter 1 Overview 4
About this Manual 4
Reader 4
Documents 4
Technical Supports 5
Chapter 2 Getting Started 6
Overview 6
Features 6
Application 8
Chapter 3 Hardware Specifications 10
Hardware 10
LED 10
Serial Port Pin Specifications 11
Chapter 4 Connecting Network 12
Before Connecting 12
First-time Use 12
Making Connection 12
Chapter 5 Setting via Web 14
Access 14
Network Setting 14
Serial Setting 16
Change ID/PW 19
Reboot 19
Chapter 6 Utility-based Setting 20
Search 20
Settings 20
4
1. Overview
This chapter is intended to provide the CS-LAN related data, one of the serial converter device manufactured by
SystemBase.
About this Manual
This manual is intended to describe the connection and communication, setting and other managements regarding
the CS-LAN.
Reader
This manual was prepared for the users of CS-LAN. It is recommended to thoroughly read and understand this
manual prior to using or setting the CS-LAN. This manual includes the application of hardware level and settings of
software level. This manual is intended to help the users to easily control and manage the device to be connected
with CS-LAN.
Documents
The technical documents related to CS-LAN are listed as follows.
Please visit http://www.sysbas.com/ to download the CS documents, as well as the latest software and firmware. You
can be also provided with the technical support via FAQ or board.
Document
Description
CS-LAN Spec Sheet
CS-LAN Specifications
CS-LAN White Paper
General overview of convertor, description of background and
technology, and market environment
All documents provide the latest version at the homepage. The contents of document can be modified without a prior
notification.
Document
Description
User Manual
Description of integration, settings and management of CS-LAN
COM Port Redirector
User Manual
Description of the uses of SystemBase COM Redirector
TestView User Manual
Description of TestView – Comport, TCP and UDP test program
SGConfig Manual
Description of utility uses
5
Technical Supports
SystemBase provides technical support through two methods below:
1. Send an e-mail to our technical support team at [email protected]om to receive fast responses. Any questions,
requests, suggestions or comments are welcomed.
2. For instant response, call us. Our technical team will always provide detailed consultation and guides through a
simple phone call.
The phone number is: +82-2-855-0501 (ext. 233)
Available from Monday to Friday, 9:00 ~ 18:00 KST. We are closed on weekends and holidays.
6
2. Getting Started
This chapter provides the overview and core function of CS-LAN, and its package composition and application field.
Overview
CS-LAN is microscopic wire convertor that provides Ethernet wire communication to equipment supporting RS232.
The communication specification supports IEEE 802.3 10/100Base-TX and amounts RS232 standard DE9 connector,
thereby providing the serial communication speed at the highest 921.6Kbps and Ethernet communication speed at
100Mbps. A CS-LAN is the device that connects the remote control, monitoring and various types of serial devices
in the device connected via network.
Features
The basic features of CS-LAN are as follows. Other functions are also described throughout this manual.
-Serial communication speed at the highest 921 Kbps
-RS-232 method
-10/100 Mbps(Auto MDIX) Ethernet Port
-COM Port Redirector
-Web-based device settings
-SGConfig utility-based settings
7
Contents of Package
The CS-LAN package is composed as follows. Check if all components are included in the package.
CS-LAN device unit 1
5V DC Adaptor
Ethernet Cable
CS-LAN User Manual
Class A equipment
Sellers or users should be aware of the fact that this device is intended for industrial use(Class A),
not for residential use.
8
Application
CS-LAN can be applied in various fields.

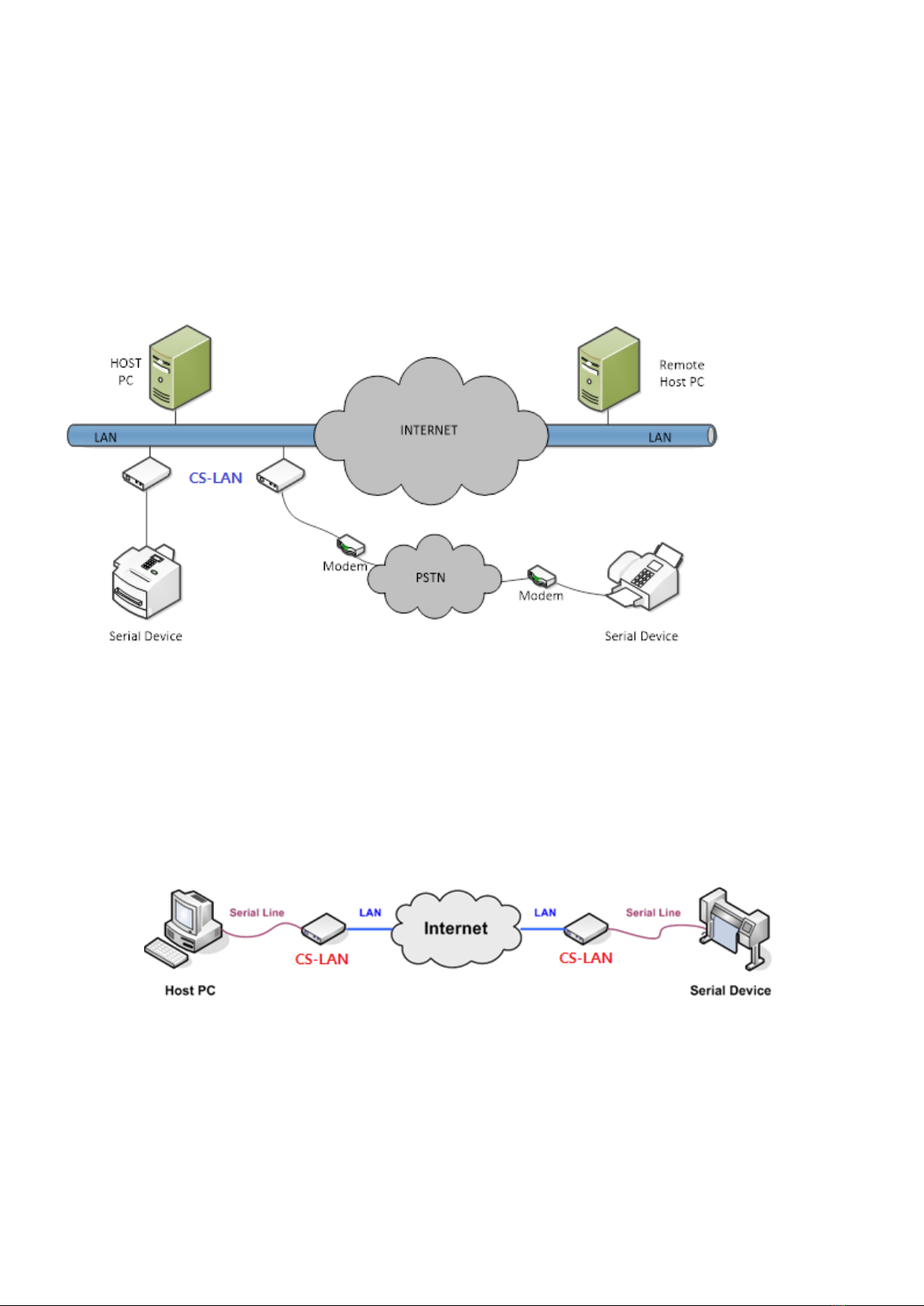

Network Serial Communication
As the most common example of application, The PC and CS-LAN are connected to a network so the serial devices
connected to CS-LAN can be used in the PC.
Serial Communication Tunneling
A serial cable connected between the PC and serial device is extended to network so it can be used as a serial
cable (without distance limits). In order to use this function, please refer to the serial settings in the Chapter 5
Setting via Web to set at TCP Server – TCP Client or UDP Server – UDP Client mode. At these two modes, the
data can be received and sent.
9
COM Port Redirection
Using a redirection to use the serial port of CS-LAN connected to network as the serial port mounted on a PC.
Factory / Industrial Automation
PLC, Robot, Arm, Human-Machine Interface, Logistics storage rail
Medical device, tester controller
Alarm
Home appliance / electronic device
Power managing device, game console
Measuring equipment, gas detector, and water level and contamination measuring equipment
Data collector and distributor
Finance / Building Automation
Card reader, barcode scanner, Kiosk, POS related equipment
Serial printer, cash withdrawal, credit card reader
Biometric sensor security equipment
