Synergy E5 Manual de usuario
w w w .s y n e r g y r c h e lic o p t e r s .c o m
w w w .s y n e r g y r c h e lic o p t e r s .c o m

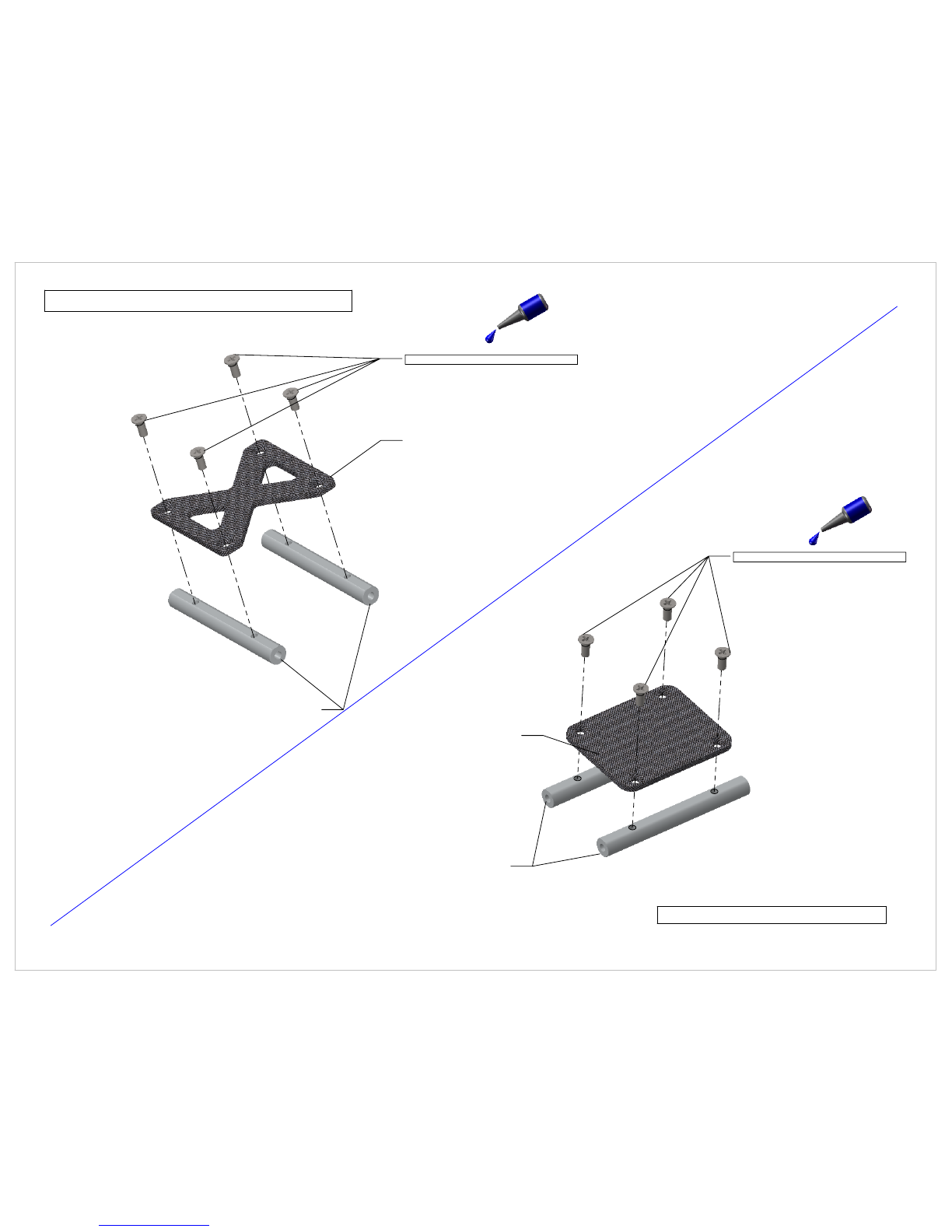

103-256 M2.5 Flat Head Cross Recess
305-102 CF Lower Frame Brace
305-101 E5 Frame Spacer
103-256 M2.5 Flat Head Cross Recess
305-103 E5 CF Gyro Mount Plate
305-101 E5 Frame Spacer
Lower Frame Brace Assembly
Page 1
Gyro Mount Plate Assembly
WWW.SYNERGYRCHELICOPTERS.COM
108-105 - 10x19x5 Radial Bearing
108-105 - 10x19x5 Radial Bearing
305-104 E5 Third Main Shaft Bearing Block
305-124 E5 Main Shaft Bearing Block
Main Shaft Bearing Block Assembly
*** Note ***
Observe orientation of bearing blocks
Page 2
WWW.SYNERGYRCHELICOPTERS.COM
Front Tail Transmission Assembly
108-124 12x18x4 Radial Bearing
320-301 Front Mushroom Gear Bearing Block
320-218 18T Front Trans Mushroom Gear
100-351 M3 Nylock Nut
100-372 M3x12 Set Screw
100-354 M3 Washer
108-510 5x10x4 Radial Bearing
320-302 Bevel Gear Top Bearing Block
320-406 11mm Pin for 18T Bevel Gear
320-303 Spur Gear Bottom Bearing Block
108-593 5x9x3 Radial Bearing
320-408 Spur Gear Shaft
305-213 13T Spur Gear
320-407 2mm Spur Gear Pin
320-101 TranSupport CF Plate
305-105 E5 TranSupport Standoff
101-306 M3x6 Button Head x12
100-372 M3x12 Set Screw
Important! - TIghten and
secure set screw with loctite.
This set screw secures bevel
gear pin.
Page 3
320-118 Front Trans Bevel Gear
IMPORTANT! - Any screw which is metal to metal needs loctite! Clean oil from bolts and apply blue loctite.
WWW.SYNERGYRCHELICOPTERS.COM
305-121 Key Chain Canopy Mount, Female 21mm
305-106 Break-away Plate
101-306 M3x6 Button Head
X2
Front Canopy Mounts (21mm)
101-306 M3x6 Button Head
305-117 Key Chain Canopy Mount, Female 17mm
305-106 Break-away Plate
Key Chain Style Canopy Mounts
X2
Rear Canopy Mounts (17mm)
Page 4
WWW.SYNERGYRCHELICOPTERS.COM
103-256 M2.5 Flat Head Cross Recess
305-101 E5 Frame Spacer
305-107 Front Battery Plate
Front Battery Plate
Page 5
WWW.SYNERGYRCHELICOPTERS.COM
103-256 M2.5 Flat Head Cross Recess
305-101 E5 Frame Spacer
305-108 E5 Rear Battery Plate
Rear Battery Plate
Page 6
WWW.SYNERGYRCHELICOPTERS.COM
103-256 M2.5 Flat Head Cross Recess
305-101 E5 Frame Spacer
305-109 E5 ESC Mount Plate
ESC Mount Plate
Page 7
WWW.SYNERGYRCHELICOPTERS.COM
101-306 M3x6 Button Head
100-310 M3x10 Socket Head
305-111 E5 Main Boom Clamp
305-110 E5 Radio Plate
Main Boom Clamps and Radio Plate
Note - Bolts engaged in pinching mechanism do not require loctite
Page 8
WWW.SYNERGYRCHELICOPTERS.COM
