Symmons Evolution EVOFR200KIT Manual de usuario

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Evolution Flow Sensor Module, Clamp-on Meter

Installation Guide

Model Numbers Feature Highlights

☐EVOFR200KIT FLOW SENSOR, Clamp-on Meter,

1-1/2 to 2"

☐EVOFR300KIT FLOW SENSOR, Clamp-on Meter,

2-1/2 to 3"

☐EVOFR500KIT FLOW SENSOR, Clamp-on Meter,

4" to 5"

☐EVOFR800KIT FLOW SENSOR, Clamp-on Meter,

6" to 8"

• Flow Sensor Meter

• 24V DC Power Supply 60"

• 30 Foot M12 Cable

• Clamp-On Meter - Pipe Sizes ranging from 1-1/2" to

8" - Please see "Supported Pipe Diameter" Chart on

dimension page for appropriate sizing.

Location:

Compliance

Limited Lifetime - to the original end

purchaser in consumer/residential

installations.

10 Years - for commercial/industrial

installations. Refer to

www.symmons.com/warranty for

complete warranty information.

Warranty

Symmons Evolution EVOFR200KIT, EVOFR300KIT, EVOFR500KIT, EVOFR800KIT Includes ﬂow sensor module, 24 V

DC power supply, 30 foot M12 cable, and clamp-on meter (pipe sizes ranging from 1-1/2” to 8”). 10 Year Commercial

Warranty. FCC rules compliant.

Architectural/ Engineering Speciﬁcation

Repair Parts

☐EVOAPWR24 Replacement Power Supply

24VDC

• IC: 24889-WW08189

• FCC ID: 2ASQP-WW08189

This device complies with part 15 of the FCC Rules.

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Dimensions - Flow Sensor (Included in Kit)

PCBA Plug

30 Feet

M12

Power Jack

1-11/16”

60”

Power Supply

24C DC

Evolution Sensor

Module

Measurement

A1-7/16"

B1-5/8"

C5"

D3-7/8"

E6-1/2"

X 4

X 12

Mounting Hardware

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

M6 x 2

M12 Connector

11/16"

1-11/16"

3/8”

2-1/16”

1”

A C

10- 1/16"

1-7/16”

2-3/4”

Clamp on Meter Dimensions (mm)

Model A B C D E F

EVOFR200KIT 76mm 71mm 0mm -7.9 to -1.1

1-1/2" (40A): -2.6

2" (50A): -6.7 (4.4) 247mm

EVOFR300KIT 114mm 73mm 7.9mm -1.6 to 14.1

2-1/2" (65A): 9.3

3" (80A): 4.3 (43.2) 265mm

* The Correct Orientation is one in which the upper bracket is to the right of the lower bracket

Dimensions - EVOFR200KIT & EVOFR300KIT Clamp On Meter (Included in Kit)

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Dimensions - EVOFR500KIT & EVOFR800KIT Clamp On Meter (Included in Kit)

2- 13/16"

11/16" 11/16"

1- 11/16"

5/8”

3/16"

9/16"

1- 3/8"

2- 3/4"

10- 1/16"

1”

5-7/8”

M6 X4

M12 Connector

Clamp on Meter Dimensions (mm)

Model A B C D

EVOFR500KIT 57mm 14.1 to 34.6

4" (100A): 29

5" (125A): 19 76.9mm 306mm

EVOFR800KIT 62mm 17.1 to 42.9

6" (150A): 37.6

8" (200A): 18.5 56mm 315mm

Supported Pipe Diameter

Model EVOFR200KIT EVOFR300KIT EVOFR500KIT EVOFR800KIT

Outer Diameter (mm) Ø44 to Ø55 Ø55 to Ø64 Ø64 to Ø83 Ø83 to Ø100 Ø100 to Ø127 Ø127 to Ø152 Ø152 to Ø191 Ø191 to Ø220

NPS (Nominal Pipe Size) 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8"

DN (Diameter Nominal) 40 A 50 A 65 A 80 A 100 A 125 A 150 A 200 A

* The Correct Orientation is one in which the upper bracket is to the right of the lower bracket

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Installation Training Checklist

Setup Custom on Evolution App

Install Gateway

Install Temperature Sensor

Install Pipe Clamp-On Flow Sensor

Conﬁgure System

1. Open the Box and Find a location to plug in the Gateway

2. Unpack, assemble, and plug Gateway to 120VAC Supply

3. Creates and Conﬁgure Customer Property

4. Creates Customer account and send Email Invitation

5. Customer Logs into water.symmons.com

6. Download the Evolution App for iOS or Android and Sign-In

7. Scan Gateway QR Code and Complete App Steps

8. Plug a Temperature Probe into a Sensor Module and Turn ON

9. Install Temperature Sensor

10. Scan Temperature Sensor Module and Complete App Steps

11. Plug Clamp-on Keyence Sensor Probe into Sensor Module and plug power supply

into a 120VAC outlet

12. Install Clamp-on Flow Sensor onto pipe

13. Scan Sensor Module and Complete App Steps

14. Setup Other Users

15. Conﬁgure Alerts

16. Set Meeting for System follow-up (1-2 weeks from Training)

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

A. Locate Gateway, Power

Adapter, (1x) Thin Antenna,

(2x) Wide Antennas

B. Connect Antennas and Pow-

er Adapter to the back of

the Gateway

Install Gateway

1. Location

1. Connect Gateway Hardware

Mechanical Room Admin. Oce Front Desk

Find a central location for the Gateway. Location should be a secure area not enclosed

in metal. Recommended locations include:

Note: After plugging the Gateway power adapter into an outlet, it could take a few minutes to boot up.

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Customer App Setup

1. Create and Conﬁgure Customer Property

2. Create Customer account & send Email Invitation

3. Customer Logs into water.symmons.com

4. Download the Evolution App for iOS or Android and Sign-In

5. Scan Gateway QR Code and Complete In-app Steps

Scan the Provided QR Code with your

Smartphone or camera to download the

evolution App.

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Installation - Pipe Clamp-On Flow Sensor

1. Setup Custom on Evolution App

2. Find the best location to mount.

Tools Required

•Philips-head screwdriver

•The pipe measuring kit include in welcome pack

•Measuring tape to check mounting clearances

A. Determine which sensor for your pipe size,

A. The sensor connects to the module box with either a 10-foot or 30-foot

cable and the module box has a 4-foot power cable that must be plugged

into an electrical outlet.

B. Select a section of a straight pipe that is clean with no insulation, rust, or

seams. If there is insulation on the pipe, cut away a space slightly larger

then the sensor.

C. Look for a pipe that is horizontal or is vertical with an upward ﬂow

D. There are two dierent types of brackets. FD-Q for smaller pipes and FD-R

for larger pipes.

Supported Pipe Diameter

Model EVOFR200KIT EVOFR300KIT EVOFR500KIT EVOFR800KIT

Outer Diameter (mm) Ø44 to Ø55 Ø55 to Ø64 Ø64 to Ø83 Ø83 to Ø100 Ø100 to Ø127 Ø127 to Ø152 Ø152 to Ø191 Ø191 to Ø220

NPS (Nominal Pipe Size) 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8"

DN (Diameter Nominal) 40 A 50 A 65 A 80 A 100 A 125 A 150 A 200 A

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Installation - Pipe Clamp-On Flow Sensor EVOFR200KIT & EVODFR300KIT

3. Mounting EVOFR200KIT and EVOFR300KIT

A. Determine the installation orien-

tation of the lower bracket. The

orientation of the main unit’s

display is determined by the in-

stallation orientation of the lower

bracket.

B. Attach the lower bracket and the

upper bracket so that they are

pressed against the pipe, and

then use the metal belts to lightly

ﬁx these brackets in place.

C. Adjust the position of the upper bracket to align the alignment guide with the

lower bracket.

D. Adjust the position of the upper

bracket so that the scale posi-

tion is the same on the left and

right.

Evolution

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

EVOFR200KIT, EVOFR300KIT, EVOFR500KIT,

EVOFR800KIT

Installation - Pipe Clamp-On Flow Sensor EVOFR200KIT & EVODFR300KIT (Cont'd)

E. Firmly tighten the metal belt screws and close the screw covers

F. Fix the main unit in place on the

upper bracket.

G. Connect the unit connection cable to

the main unit and subunit. Fix the unit

connection cable to the cable holders.

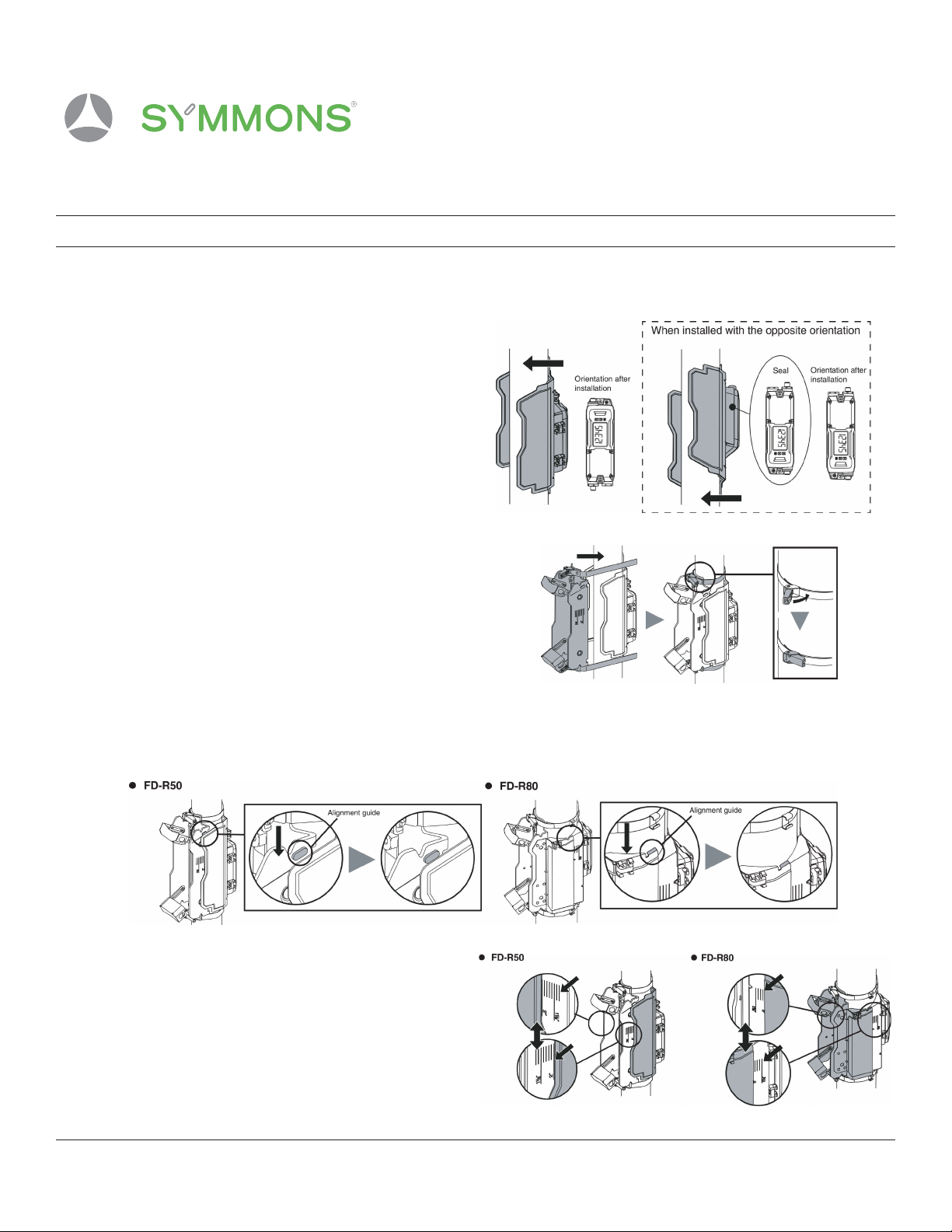

Este manual sirve para los siguientes modelos
