Sylvania SDVD8741 Manual de usuario
SDVD8741
Table Of Contents
Safety Precaution
Package
Main Features
Main Unit Controls
System Connection
Basic operation
System Setup
Specification
Troubleshooting
1
3
3
4
6
11
15
18
19
Safety Precaution
Warning: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
1) Please read the instruction manual carefully and follow all the requirements
of safe operation to operate the device.
2) Do not use this unit near water. Do not place over the unit any container
with liquid inside.
3) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
4) Unplug this unit during lightning storms or when unused for long time.
5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use
liquid detergent or aerosol.
6) Only use accessories specified by the manufacturer.
7) Refer all servicing to qualified service personnel, servicing is required when
the unit has been damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the unit,
exposed to moisture, does not operate normally. Don't try to repair the
machine by yourself because of the danger of high voltage and electric
shock.
8) Do not use irregular shaped discs such as heart or star-shaped discs as
they may cause the unit to malfunction.
1
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
2
Package
Main Features
High brightness color 7" LCD screen
Compatible with disc of DVD, MP3, CD, JPEG etc.
Built-in stereo speaker
Support PAL/NTSC system
Support Multi-language OSD, speed forward/backward,repeat function
1
1
1
1
2
DVD player
DC+Audio/Video cable
AC/DC Power Adapter
Cigarette Lighter Adapter
User Manual
Mounting Straps
1
3
34 5 6 7 8
9
10
11
12
13
12
ON OFF
Main Unit Controls
1. Open knob
2. Power ON/OFF switch
3. SETUP button
4. Functron button
5.
6.OK button (Function same as
"ENTER" on Remote control)
7. Play/Pause
8. STOP button
9. DC IN 9-12V
10. DC OUT
11. AV OUT
12. Earphone jack
13. Volume knob
14. Bracket
15. Rating Label Position
4
1514
DCOUT
AV O U T
ON OFF
OK
Monitor View
1. Power ON/OFF
2. Volume knob
3. Earphone jack
4. AV IN
5. DC IN 9-12V
6. Brightness Knob
7. Bracket
8. Rating Label Position
5
CLOSE
ON OFF
1
2
3
4
5
6
BRIGHTNESS
87
DC OUT
AV OU T
DC OUT
AV OU T

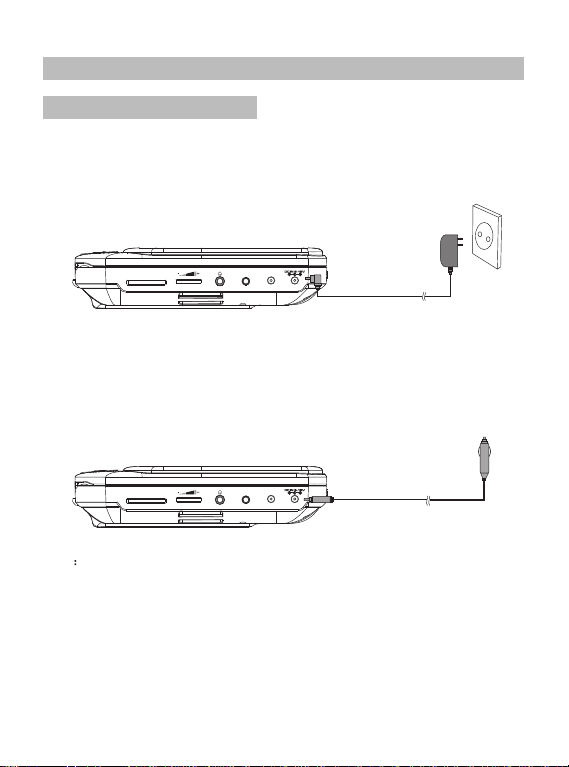

Plug one end of the AC/DC power adaptor into the DC IN9-12V jack on the
right of the machine, then plug the other end into the AC power receptacle.
Please refer to the following illustration.
If using car cigarette lighter adaptor to connect to the power: Plug one end of
the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the
other end into the car cigarette lighter socket. See illustration below.
System Connection
Powering And Installation
Note
1. Car cigarette lighter adaptor is available to use only when the car cigarette
lighter with DC 12V negative grounding.
2. The mains plug is used as the disconnect device, the disconnect device
should remain readily operable.
6
Connecting To The Monitor
The unit can also be connected to the external LCD monitor.
Connect the unit to power by AC/DC adapter or cigarette lighter adapter.
Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor
by a DC/AV cable. Also use this DC/AV cable to connect the AV OUTjack of
the unit to AV IN jack of the Monitor.
Please refer to the illustration below.
Note: You're advised to supply both units the power by the cigarette lighter
adapter only. TheAC/DC adapter is used to supply power of one unit only
and as the charger to charge the main unit if it's with built-in battery.
7
ON OFF
DC OUT
AV OUT
8
1. Fit the straps to the DVD Player / Monitor as required.
In Car Installation
Please install the units with strap A (long)
and strap B (short) together.
Turn the player around so the backs are facing you.
A
B
Strap A through the unit from right clip first, then
across the loop in Strap B, last Strap A through
the unit left clip.
A
B
