Swissmex Professional Series Manual de usuario

BNMXLATE-0619E/EX

R00

Litho´d in México

Impreso en México

OPERATOR´S MANUAL

MANUAL DE OPERADOR

081185/101185

189185/289185

MODELS/MODELOS

PULVERIZADOR DE MOCHILA

4.7, 5.8, 4, 5.3 US GAL

PULVERIZADOR 15,18, 20 Y 22 LITROS

05, 06, 07, 08

Model MX-05/MX-06/MX-07/MX-08, is equi-

pped with a lateral internal piston pumping

system.

With this sprayer you may apply liquid

products: insecticides, herbicides, fertilizers,

etc. In a practical and safe way.

El modelo MX-05/MX-06/MX-07/MX-08,

estan equipados con sistema de bombeo de

pistón lateral interno.

Con este equipo usted puede aplicar produc-

tos líquidos como: insecticidas, herbicidas,

fertilizantes, etc. De forma práctica y segura.

2 YEAR

2 AÑOS

WARRANTY

GARANTÍA

SEE INSIDE FOR DETAILS

CONSULTE EL

MANUAL ENEL INTERIOR

INDEX

INTRODUCTION

Thank you for buying a Swissmex equipment, we guarantee that the product you have acquired was made with an unbeatable quality, because it was

developed with state of the art technology following all quality standards required. This equipment was carefully designed and built with the purpose

of providing the maximum performance, economy and ease of operation. It is very important that the operator knows all the information contained in

this manual, read it before operate it, follow the recommendations step by step and keep it at hand to consult it when necessary.

This manual contains important safety warnings: read it carefully, and watch for any

possible accident. Preserve all the equipment stickers and if necessary replace them.

Remember that inadequate application of agrichemicals may be harmful to man, environment and crops.

Backpack sprayers have been designed to apply different liquid products like herbicides, fungicides, insecticides, etc. Swissmex backpack sprayers

are practical and light. Model MX05/MX06/MX07/MX08 has a lateral internal piston pump. It produces a good pressure and its novelty tank is sealed

preventing any leaking. It has a back support and padded straps, spray gun with filter, a big tank opening with strainer and handle to transport and

facilitate emptying it.

NOTE:

SAFETY INFORMATION

2.1 PROTECTION EQUIPMENT

Personal protection equipment needed:

- Protective gloves

- Eye protection

- Enclosed shoes

- Overall

- Mask

10.

Operation…………….4

Maintenance…………….4

5.1 Maintenance guide

Trouble shooting guide…………….5

Accesories.......................5, 6

Spare parts list…………….7, 8

Storage..............................9

Warranty.............................9

Introduction…………….1

Safety information………1,2

2.1 Protection equipment

2.2 Safety measures

General Information…………2,3

3.1 Main components

3.2 Technical data

3.3 Assembly

3.3.1 Parts you will receive

3.3.2 How to assemble your sprayer

ENGLISH VERSION

For your own safety and the safety ot those around you please use the protective equipment suggested below when operating your sprayer:

2.2 SAFETY MEASURES

Read carefully the entire owner’s manual before filling, using or cleaning the sprayer.

Do not leave the sprayer in reach of children or persons not qualified to handle it properly.

Do not modify your equipment; it may compromise your equipment and put into risk third party safety. Any modifications or adaptation is under your

own risk and it voids the warranty.

Keep your equipment in good condition and in a safe place. Always wash and store the sprayer without pressure.

Read and follow instructions of chemical supplier.

Wear always the personal protective equipment advised above, whenever using, filling or cleaning the sprayer.

Keep connections well tightened to prevent leaks.

Never fill the sprayer with hot liquids. Max. 30°C = 85°F.

Do not use your sprayer to apply caustic, corrosive or flammable solutions.

3.1 MAIN COMPONENTS

GENERAL INFORMATION

1. Tank

2. Tank opening, tank lid

3. Strainer

4. Pump tube with piston sleeve

5. Pump lever

6. Ergonomic grip

7. Pump handle

8. Shut-off valve with filter

9. Adjustable plastic nozzle

10. Hose

11. Adjustable carrying straps

12. Guide nut

13. Spray lance

3.2 TECHNICAL DATA

Model

Tank capacity

Filling port

Carrying Straps

Pumping system

Piston Sleeve

Hose

Shut-Off valve

Spray wand

Nozzle

Discharge at 3 bar/min

Work pressure

Net Weight

Weight with box

Dimentions

ESPECIFICATIONS

081185 MX05

4.7 US gal / 18 L 4 US gal / 15 L5.8 US gal / 22 L 5.2 US gal / 20 L

4.3” / 11 cm

1.5” / 40 mm 1.8” / 45 mm

5.6” / 14.2 cm

Cushioned with belt

Plastic piston

fiber vinil reinforced 3/8” ID

Professional with filter

20.5”/52 cm fiberglass

Plastic adjustable

0.21 US gsl / 800 ml

1-6 BAR / 14.5-87 PSI

101185 MX06 189185 MX 07 289185 MX08

11.6 lbs / 5.3 kg

13 lbs / 5.9 kg

12.3 lbs / 5.6 kg

13.6 lbs / 6.2 kg

11 lbs / 5 kg 12.3 lbs / 5.6 kg

13.6 lbs / 6.2 kg

22X14.7 X 8.6” / 56.5 X 37.5 X 22 cm

5.4 US gal / 12 L

3.3 ASSEMBLY

- 1 Owner’s manual

Inside the tank you will find:

- 1 Strainer

- 1 Bushing guide

- 1 Felt ring

- 1 Pump tube with hose and shut-off valve

- 1 Agitator

And a plastic bag with:

- 1 washer

- 1 “R” lock pin

- 3 washers and 3 “c” lock pin

- 1 Adjustable nozzle

- 1 Pump handle

- 1 Pump lever

- 1 Spray wand

- 1 Tank lid

3.2.1 Parts you will receive

models

MX 07

MX 08

model

MX 06

model

MX 05

MODEL:

081185 MX05

101185 MX06

MODEL: 189185 MX07

289185 MX08

3.3.2 How to assemble your sprayer:

1. Take out all the parts from the box and from the tank.

2. Place the sprayer vertically on a table, place the pump holder nut, gasket and felt ring on the side mouth. Oil the piston sleeve and the pump tube,

insert it in the pump tube guide; carefully directing the piston sleeve to avoid any damage.

3. Tighten the pump holder nut. Place the agitator.

4. Place the strainer and the tank lid on the tank opening.

Insert the connecting rod in the pump tube placing one flat washer on each side, fix them with the lock pins “C”.

6. Pass the pump handle through the base of the tank fixing it to the connecting rod with a flat washer and a lock pin “C” and on the other end with a lock

washer and a cotter pin.

7. Finally tighten the spray gun and tube.

Following is explained how to assemble your sprayer, read carefully the text. The number at the beginning of the line corresponds to the

graphic.

081185

MX05

101185

MX06

189185

MX07

289185

MX08

MX05

MX06

MX07

MX08

Always use the strainer when filling the tank up with liquid.

Mix the solution in a separate container, following the supplier directions on the box.

Pour pre-mixed solution into sprayer and cap.

Place the sprayer on your back and pressurize tank by pumping 25 times approx.

You will need to pump once each 3 or 4 seconds to maintain the desired spraying pressure.

For a continuous spraying, fix the shut-off valve lever with the lever lock.

Move the nozzle cap to change the spraying pattern.

The use of agrochemicals is dangerous, it should be operated with care.

NOTE:

To ensure good performance use original

“SWISSMEX-RAPID” spare parts

OPERATION

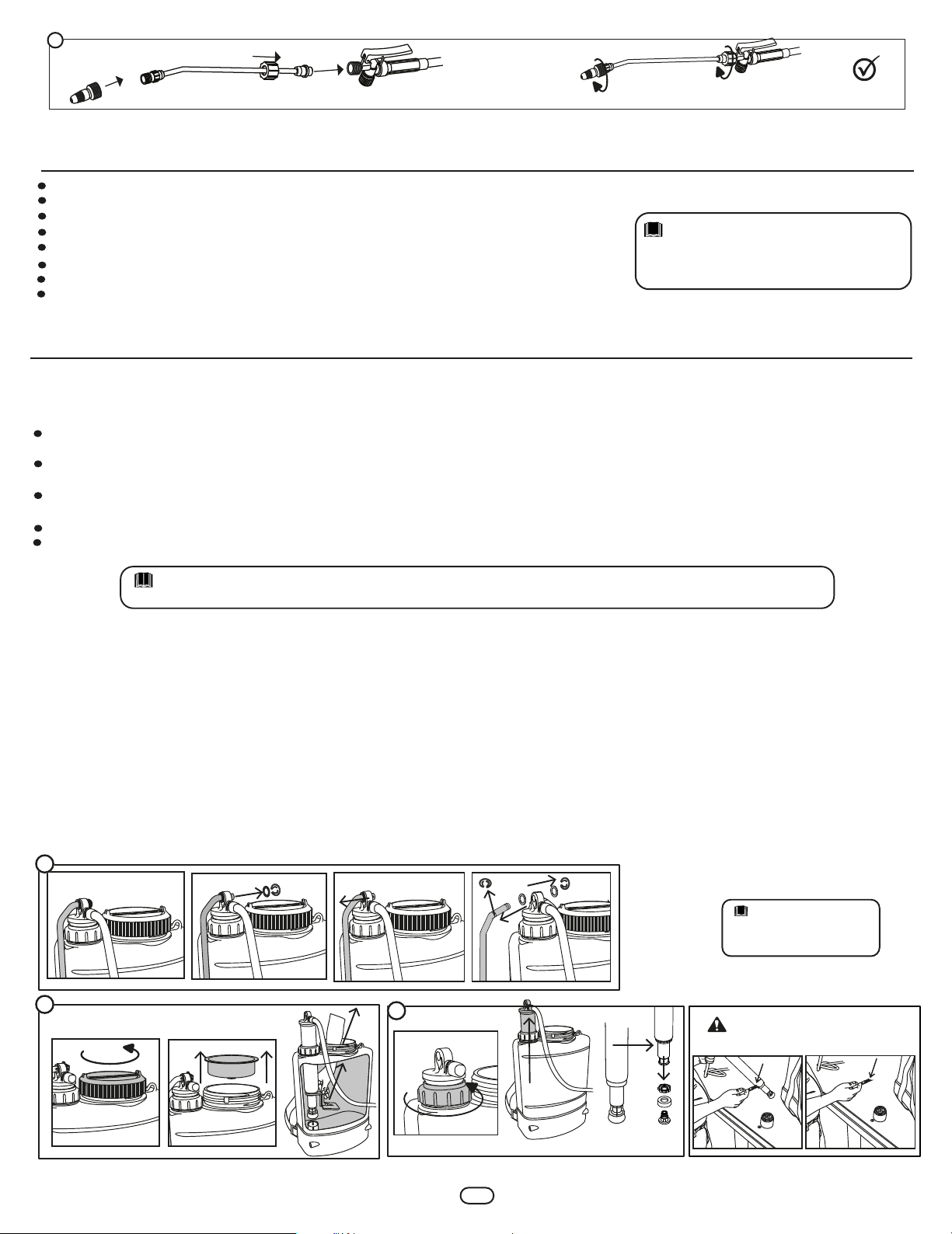

5.1 MAINTENANCE GUIDE

Disassembly instructions:

1.- Place the sprayer on a flat surface. Pull the pin from the upper end out of the pump lever.

2.- Loosen the pump holder nut and take the lever out.

3.- Pull out pump tube and check the plastic ball and the piston inside the tube, remove piston and make sure the ball and piston is clean and in good

shape, if not replace it.

3.- Once you replace it, repeat this steps backwards. Do not forget to lubricate it.

Pour approximately 1/2 gallon of fresh water in the tank, pressurize and flush, the pumping system by pressing trigger at least 2 minutes, then

drain all remaining water.

Carrying straps are made of non-absorbent materials, nevertheless in case of solution spillage, wash them with fresh water to eliminate all risk

of skin irritation.

A unit that has been used with herbicides should never be used to spray insecticides, unless the sprayer has been properly cleaned and all

other chemicals neutralized. Failure to do this could cause you to kill plants that have been sprayed.

Always follow manufacturer’s instructions of the chemicals in use to avoid accidents and take maximum advantage of the product.

Store your sprayer clean, empty and dry in a place protected from sunlight.

MAINTENANCE

Since the sprayer needs little maintenance, if you follow the steps mentioned in this manual its lifespan will be very long.

Do not keep the sprayer with pressure after finishing your spraying job, release the pressure through the nozzle depressing the trigger, then

take the cap and strainer out and pour the remaining solution. Now rinse system with fresh water as follows:

To keep your sprayer in good conditions of use is necessary to maintain oiled the following parts:

Nozzle O-rings ,gun o-rings , piston ring , gasket, breather valve and cap gasket.

NOTE:

Below are instructions for maintaining your spray:

Rinse with clean water externally and internally, to avoid risk of contamination. To keep your sprayer in good condition it is recommended to change the

following parts when servicing your sprayer:

- Checks for O-rings - Piston Ring - Gun o-rings - O-rings for nozzle - Gasket - Breather valve

ATENTTION OIL PUMP TUBE AND PISTON SLEEVE BEFORE

ASSEMBLING IN THE SPRAYER.

To lubricate all parts, use

multipurpose grease.

NOTE:

TROUBLE SHOOTING GUIDE

PROBLEM

The tank collapses when pressuring it.

CAUSE SOLUTION

The breather check needs lubrication. Lubricate or replace it if it is damaged.

The piston sleeve does not run smoothly

and it is hard to pump.

The agrichemical used has made the

piston sleeve to swell up.

Replace the piston sleeve, lubricate it first.

The piston sleeve runs too smoothly and

it does not keep pressure.

The piston sleeve is worn out or shrunk. Replace the piston sleeve, lubricate it first.

Although the sprayer is being pumped

vigorously it does not build pressure.

The plasticball is stuck or dirt is preventing

the ball to sit properly on the ball-holder nut.

Clean the ball holder nut, and the ball,

replace them if necessary.

When pumping a creak is produced

between the pump tube and pump

holder nut.

The pump tube and pump holder nut

need lubrication.

Lubricate both of them.

The shut-off valve does not close after

releasing the trigger.

The plunger O-rings are worn out or

swollen.

Replace them and lubricate the plunger

with the new O-rings.

The shut-off valve does not function

when depressing the trigger.

The filter or nozzle are blocked. Take the filter out of the shut-off valve,

clean or replace it and clean the nozzle.

E219-140-C - 19.6” / 50 cm

E219-147-C - 39.37” / 20 cm

E219-148-C - 28.7” / 73 cm

ACCESSORIES

Brass spray lances ( without spray tip, nut and gasket)

FVR spray lances ( without spray tip, nut and gasket)



SPRAY LANCES:

E219-136-C - 19.68” / 50 cm

E219-142-C - 39.37” / 1.0 m

E219-143-C - 59.0” / 1.50 m

E219-146-C - 78.7” / 2.0 m

E219-195-C with two nozzles,

length 19.368” / 50 cm

E803-085 - 19.68” / 50 cm

E803-400 - 15.74” / 40 cm

219-420-C - 39.37 - 1.0 m

E219-282-C - 39.0” / 1.5 m E219-072-C - 59.0” / 1.5 m

E219-138-C - 39.37” - de 1 m

E219-151-C - 59.0 de 1.5 m

2-nozzle FVR extensions

3-nozzle FVR extensions

4-nozzle FVR extension 4-nozzle brass extension

3-nozzle brass extensions

Brass extensions ( with connector)

 2-nozzle brass extensions

EXTENSION LANCE:

E219-500-C -26.3” / 67 cm

E219-510-C - 39.37” / 1.0 m

E219-520-C - 47.24” / 1.20 m

E219-098-C - 15.74” / 40 cm

SCREEN SHIELDS

E219-099 -15.74” / 40 cm

E219-117 - 8.6” / 22 cm

SHUT-OFFS

E803-073-C

E807-073-C

E808-073-C

Shut-offs without

grip

Key tool

Filter housing Extension adapter

Shut-offs complete with filter and

filter housing

MORE ACCESSORIES CARRYING STRAPS

FILTERS

PRESSURE REGULATORS

EY11-16SY

ER11-16SY

EBM-16SR

EG11-16SY

E1210.050

E1210.080

E1210.100

E1210.150

E1210.180

E080-034-C

E501-034-C

E501-134-C

E501-230-C

E501-336-C

E803-602-C E219-555

E219-003

SPRAY TIPS

E1030.020 E1102.022

E809-073-C

For more technical information please look into our Nozzle Chart at www.swissmex.com

COMPLETE NOZZLES

E803-092-C E219-610-C

E219-710-C

SPARE PARTS LIST

ASpare parts and consumables always available.

PUMP TUBE

TANK LID MODEL 081185

TANK LID MODEL 101185

PUMP HOLDER NUT

SPRAY LANCE

PUMP LEVER

PUMP HANDLE

TANK BASE

SPRAY GUN

PLUNGER ASSY

ADJUSTABLE PLASTIC NOZZLE

HOSE

CARRIYING STRAP

CILINDER

FELT RING

PLASTIC BALL

BUSHING GUIDE

PISTON DISCK

PISTON FITTING

CLAMP

GASKET

FILTER

AGITATOR

LOCK PIN

WASHER

LOCK PIN

PLUNGER SPRING

Part No. Qty.

Code Description

BMedium-use parts, available at discretion

STRAINER MODEL 081185

STRAINER MODEL 101185

PISTON

TANK LID GASKET MODEL 081185

TANK LID GASKET MODEL 101185

BREATHER CHEK

NUT

PLASTIC CAP

NUT

SEAL KITS

Part No. Qty.

Code Description

21a

E080-004

E501-004

E081-054

E080-002

E501-002

E501-020

E803-059

E803-064

E803-090

E081-200-C

In the interest of continued technologic progress

specifications are subject to change without notice.

NOTE:

NOTE: Not supplied with unit.

+33 E081-200-C SEAL KIT

PISTON

BREATHER CHECK

PLASTIC PISTON HOLDER

PISTON FITTING

FELT RING

PLASTIC BALL

NUT

BALL

GASKET (to nozzle body)

GASKET (to plunger)

FILTER

ORING (to cap)

ORING (to plunger)

ORING (to nozzle)

E081-030-C

E425-301-C

E501-001-C

E080-908

E803-219-C

E080-115-C

E082-016-C

E081-007

E807-075-C

E803-167-C

E803-262-C

E803-177

E082-034-C

E081-024-C

E080-008

E080-022

E080-201

E081-055

E081-033

E501-082

E803-114

E807-074

E080-050

E289-014

E326-037

E501-010

E501-051

E803-067

MODELS:

081185 - 101185

732

21a

ASpare parts and consumables always available.

TANK LID

STRAINER

PUMP HOLDER NUT

SPRAY LANCE

PUMP LEVER

PUMP HANDLE MODEL 189185

PUMP HANDLE MODEL 289185

SPRAY GUN

PLUNGER ASSY

ADJUSTABLE PLASTIC NOZZLE

HOSE

CARRIYING STRAPS

FELT RING

PLASTIC BALL

BUSHING GUIDE

PISTON FITTING

CLAMP

GASKET

FILTER

AGITATOR

LOKING PIN

WASHER

LOCK PIN

PLUNGER SPRING

HOLDING CAP FOR CYLINDER

Part No. Qty.

Code Description

BMedium-use parts, available at discretion

PUMP TUBE MODEL 189185

PUMP TUBE MODEL 289185

TANK BASE MODEL 189185

TANK BASE MODEL 289185

CILINDER MODEL 189185

CILINDER MODEL 289185

PISTON

PISTON DISCK

TANK LID GASKET

BREATHER CHECK

NUT

PLASTIC CAP

NUT

KIT SEALS

Part No. Qty.

Code Description

14a

E189-120-C

E289-225-C

E189-007

E289-007

E189-024

E289-024

E189-054

E189-021

E501-002

E501-020

E803-059

E803-064

E803-090

E189-200-C

In the interest of continued technologic progress

specifications are subject to change without notice.

NOTE:

NOTE: Not supplied with unit

*33 E189-200-C SEAL KIT

FELT RING

ORING

PISTON

PLASTIC BALL

NUT

BREATHER CHECK

ORING (to nozzle body)

ORING (to cap)

ORING (to plunger)

GASKET (to nozzle body)

GASKET (to plunger)

FILTER

E501-001-C

E501-004

E080-908

E803-219-C

E180-115-C

E082-016-C

E289-116

E807-075-C

E803-167-C

E803-262-C

E803-177

E428-034-C

E080-008

E080-022

E080-201

E189-033

E501-082

E803-114

E807-074

E200-050

E289-014

E326-037

E501-010

E501-051

E803-067

E189-025

MODELS:

189185 -289185

14a

WARRANTY

10.

Always store the sprayer clean and empty in a dry place protected from the sun.

STORAGE

Any claim made under this warranty must adhere to the Warranty Policy described below:

The warranty will be granted by SWISSMEX RAPID SA DE CV when the product presents manufacturing, assembly or material defects

and this has been established after conclusive analysis at Swissmex plant (Lagos de Moreno, Jalisco, Mexico). The warranty consists

of replacement of damaged parts or replacement of damaged equipment depending on conclusions of the analysis of the claim. This

warranty does not include labor installation costs or shipping costs.

The warranty of your product can be PREMIUM, MEDIUM or BASIC, depending on which category your equipment belongs to.You can

check this on the Operator’s Manual and our website at www.swissmex.com.

The applicable warranty period can be:

Advanced Line = 3 years

Professional Line = 2 years

Heavy duty = 1 year

THIS WARRANTY WILL BE INVALID UNDER THE FOLLOWING CIRCUMSTANCES:

1. When the product presents faults due to abuse, misuse or inadequate maintenance, lack of proper cleaning and rinsing according to

the instructions contained in the Owner’s manual.

2. For the purpose of this warranty the use of any chemical solution listed as dangerous or different from those recommended in the

Operator’s Manual will be considered as misuse.

3. When the product has undergone modifications or adaptations by unauthorized persons or by the use of spare parts that have not

been provided by SWISSMEX-RAPID.

4. When the product has been damaged as a result of natural disasters.

5. When the fault is caused by normal wear of the parts due to use.

SWISSMEX-RAPID is not responsible for indirect or consequential damages arising from the use or operation of the product, damages

resulting in personal injury, economic loss, loss of property, loss of income or profits or costs of removal, installation or reinstallation.

SWISSMEX-RAPID, makes no other express warranty with the exception of the one quoted here. This warranty gives you specific legal

rights and you may have other rights that vary from country to country.

To make this warranty valid, contact your dealer and present proof of purchase.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Pistola pulverizadora de pintura de swissmex

swissmex

swissmex MX-30 Manual de usuario

swissmex

swissmex 547195 Manual de usuario

swissmex

swissmex SW 502175 Manual de usuario

swissmex

swissmex 319310 Manual de usuario

swissmex

swissmex Advanced SP Series Manual de usuario

swissmex

swissmex MX10 Manual de usuario

swissmex

swissmex 309030 Manual de usuario

swissmex

swissmex Advanced SP 06 Series Manual de usuario

swissmex

swissmex SW503 Instrucciones de montaje

swissmex

swissmex SP Series Manual de usuario

swissmex

swissmex 319305 Manual de usuario

swissmex

swissmex SW07 Manual de usuario

swissmex

swissmex ACIDS 319315 Manual de usuario

swissmex

swissmex SW Series Manual de usuario

swissmex

swissmex SP11 Series Manual de usuario

swissmex

swissmex MX Series Manual de usuario

swissmex

swissmex Advanced Series Manual de usuario

swissmex

swissmex Heavy Duty Series Manual de usuario

swissmex

swissmex 319310 Manual de usuario

swissmex

swissmex SP12 Series Manual de usuario

Manuales populares de Pistola pulverizadora de pintura de otras marcas

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manual de usuario

Graco

Graco 246737 Manual de uso y cuidado

Binks

Binks SV100 Manual de usuario

Fimco

Fimco LG-4-3-1 Manual de usuario

AG SPRAY

AG SPRAY FS-ATV-25BL Manual de usuario

Nordson

Nordson MicroMax 2 Manual de usuario

Bonide

Bonide 051 Manual de operación

zogics

zogics Z-DAS Manual de usuario

KISANKRAFT

KISANKRAFT KK-KBS-165 Manual de usuario

Matrix

Matrix SG 650 Manual de usuario

Anest Iwata

Anest Iwata SGA-3 Guía de inicio rápido

paasche

paasche VV Hoja de datos

Carlisle

Carlisle DeVilbiss JGA-510 Manual de usuario

Gardena

Gardena 11120 Manual de usuario

Conrad

Conrad Hobby Airbrush K3 Manual de usuario

wiwa

wiwa 14025 R/F Manual de usuario

Graco

Graco EM 390 Manual de operación

DeVilbiss

DeVilbiss LUNA2i Manual de usuario

swissmex Professional Series Manual de usuario

Manuales populares de Pistola pulverizadora de pintura de otras marcas
