Swisher 2828 Manual de usuario

1602 CORPORATE DRIVE PO BOX 67 WARRENSBURG, MISSOURI 64093

PH 660. 747. 8183 AX 660. 747. 8650

swisherinc.com

MANU ACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945

Owner’s

Manual

Manual Lift

2828

IMPORTANT

Read and follow all

Safety Precautions

and Instructions

Before Operating this

Equipment.

Made In The

USA

ASSEMBLY

OPERATION

SERVICE AND ADJUSTMENT

REPAIR PARTS

2831 REV. 05-014

To maximize efficiency when using the 2643

Bucket and 2644 Skid Lift (which are built to

transport much heavier loads) use of a

properly rated winch rather than the 2828

Manual Lift is recommended .

The manufacturer’s warranty to the original consumer purchaser is: This

product is free from defects in materials and workmanship for a period of

one (1) year from the date of purchase by the original consumer

purchaser. We will repair or replace, at o

ur discretion, parts found to be

defecti e due to materials or workmanship. This warranty is subject to

the following limitations and exclusions:

1) Commercial Use The warranty period for any product used for

commercial or rental is limited to ninety (90) days

from the date of original purchase.

2) Limitations This warranty applies only to products which ha e

been properly assembled, adjusted, and operated in

accordance with the instructions contained within this

manual. This warranty does not apply to any product

of Swisher Mower Co., Inc., that has been subject to

alteration, misuse, abuse, improper assembly or

installation, or shipping damage.

3) Exclusions

Excluded from this warranty are normal wear, normal

adjustments, and normal maintenance.

LIMITED WARRANTY

In the e ent you ha e a claim under this warranty, you must return the

product to an authorized ser ice dealer. All transportation charges,

damage, or loss incurred during transportation of parts submitted for

replacement or repair under this warranty shall be borne by the purchaser.

Should you ha e any questions concerning this warranty, please contact us

toll-free at 1-800-222-8183. The model number, serial number, date of

purchase, and the name of the authorized Swisher dealer from whom you

purchased the product will be needed before any warranty claim can be

processed.

THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRANTIES

ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN

FOR ALL EXPRESSED WARRANTIES.

Some states do not allow the limitation of consequential damages or

limitations on how long an implied warranty may last, so the abo e

limitations or exclusions may not apply to you. This warranty gi es you

specific legal rights and you may ha e other rights, which ary from state-

to-state. This is a limited warranty as defined by the Magnuson-Moss Act

of 1975.

Never make adjustments or repairs to lift with the AT

engine running.

• Read the manual. Learn to operate this machine safely.

• Keep the ATV operating speed LOW!!!!! Do not operate o er 5 MPH

(8KMH)

• Allow only responsible adults who are familiar with these instructions to

operate this machine. Ne er allow children to operate this machine.

• Be sure the area is clear of other people before operating. Children are often

attracted to the machine and the operating acti ity. Never assum e that

children will rem ain where you last saw them. Keep children under the

watchful care of another responsible adult.

• W atch for traffic when operating near or crossing roadways.

• Do not operate any accessory mounted to lift, if it has been dropped or

damaged in any manner. Repair as necessary.

• Dress properly. Do not operate when barefoot or wearing open sandals.

• Do not operate the machine while under the influence of alcohol or drugs.

• Ne er tamper with safety de ices. Check their proper operation regularly.

This Safety Alert Symbol indicates important messages in this

manual. W hen you see this symbol, carefully read the message that

follows and be alert to the possibility of personal injury.

Read this manual completely. Failure to observe the following safety instructions

could result in serious injury or death.

SAFETY PRECAUTIONS & DECALS

1. Mount handle to the lever weldment. Secure with roll pin. Slide handle grip over

handle (Applying soap to inside of grip may improve ease of assembly).

2. Mount lift to the front A V rack using mounting brackets, 5/16” carriage bolts, 5/16”

washer, and 5/16

” Nyloc nuts. he lift needs to be mounted in the center of the rack.

Position of the mounting brackets needs to be determined by the end user

depending on the type of A V and rack the lift is being mounted to.

3. Construct the cable assembly using chain connectors, cable, turnbuckle and

adjustment chain. Note: The turnbuckle should have the eyebolts extended out

to allow for final adjustment of the cable assembly.

4. Mount cable assembly to the lift. Raise handle to the vertical position.

5. Attach adjustment chain to bolt on the plow attachment. Adjust the chain to it’s

tightest position. For final adjustment, tighten turnbuckle until slack is removed.

6. Assemble cover to baseplate. Secure with ¼-20 screws.

. Attachments are raised by pulling the handle toward the oper

ator and resting on the

A V rack. Maximum lift is approximately 2 ½” to 3” at the cable.

INSTALLATION AND OPERATION O MANUAL LI T

TO ENSURE PROPER INSTALLATION, CAR ULLY

OLLOW ALL INSTRUCTIONS LISTED BELOW

PLOW ATTACHMENT

COVER

¼-20 SCREW

NYLOC NUT

5/16” WASHER

HANDLE

HANDLE GRIP

LEVER WELDMENT

ROLL PIN

BRACKET

5/16 CARRIAGE BOLT

CONNECTOR

TURNBUCKLE

ADJUSTMENT CHAIN

CABLE

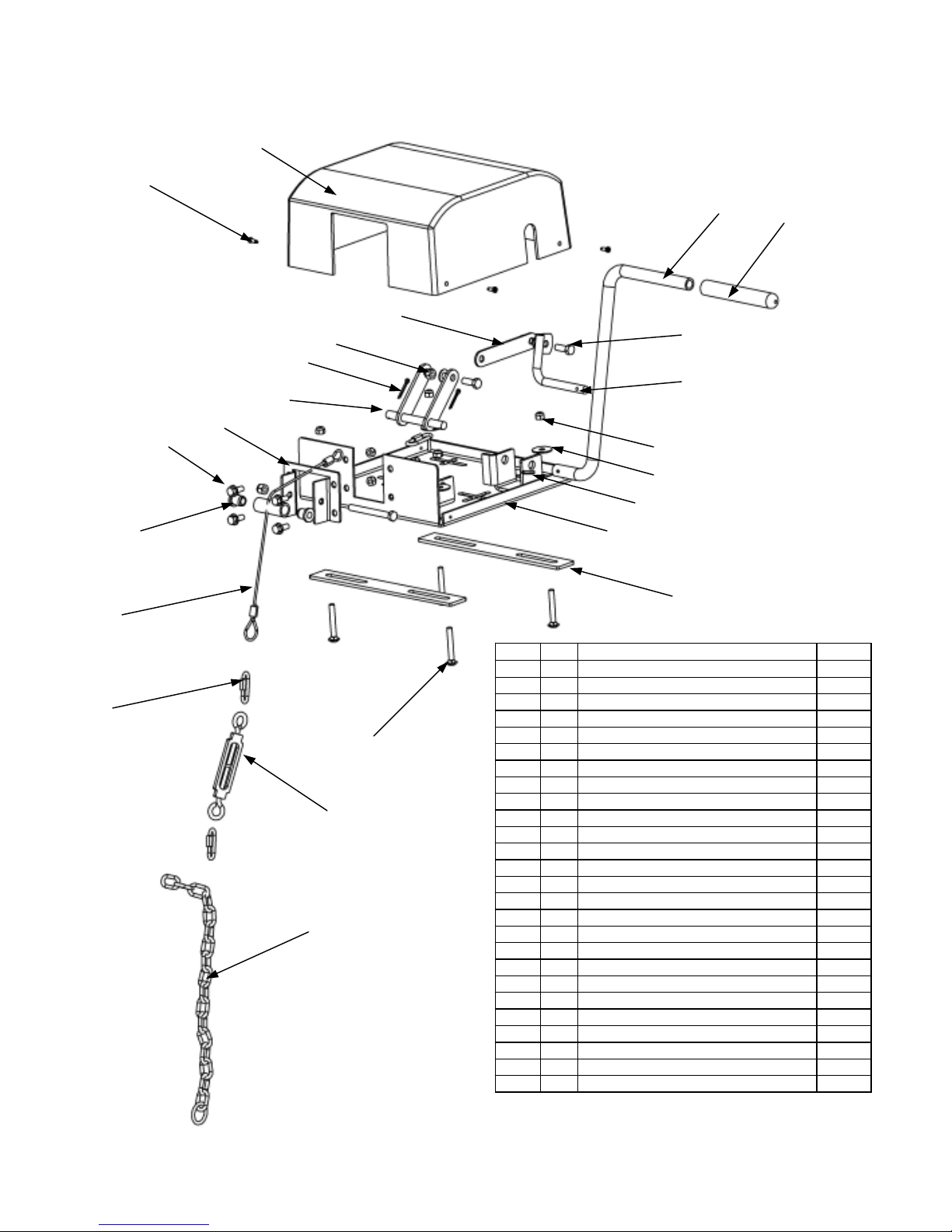

MANUAL LI T ASSEMBLY

MANUAL LI T ASSEMBLYMANUAL LI T ASSEMBLY

MANUAL LI T ASSEMBLY

419

Item # QTY. Description Part #

1 1 Lever Weldment, Painted 2818 K

2 1 Main Shaft Weldment, Painted 2822 K

3 1 Connector, Manual Lift, Painted 2792 K

4 1 Handle, Manual Lift, Painted 2820 K

5 1 3/8-16 X 3 1/2 GR5 ZP NB649

6 2 3/8-16 X 1 GR5 ZP Bolt NB604

7 3 3/8-16 Nyloc Nut NB182

8 2 1/8 X 1 Cotter Pin NB126

9 1 3/16 X 1 Roll Pin NB123

10 4 5/16-18 X 3/4 Serr Flg Bolt NB596

11 2 Mounting Bracket, Painted 2791 K

12 1 Front Roller Mount, Painted 2793 K

13 2 3/8 SAE Washer NB272

14 4 5/16-18 X 2 1/4 Carriage Bolt NB110

15 4 5/16 X 1 1/4 OD Fender Washer NB579

16 8 5/16-18 Nyloc Nut NB181

17 1 Cable Assembly, Manual Lift 2824

18 3 3/16 Chain Connector ES077

19 1 ransmission Lever Grip 2427

20 1 Cover, Manual Lift 2794

21 2 Bushing .625 8048

22 1 Fairlead Roller .875 OD X 2.25 8005Z

23 1 Base Plate Weldment, Painted 2826 K

24 4 1/4-20 X 1/2 MSC ZP Hex Washer NB114

25 1 urn Buckle 2825

26 1 Adjustment Chain 2703

Notes

swisherinc.com

MANU ACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945

WHEN ORDERING PARTS, PLEASE HAVE THE

OLLOWING IN ORMATION AVAILABLE:

* PRODUCT – ________________

* SERIAL NUMBER - _______________

* MODEL NUMBER - _______________

TYPE - _______________

* PART NUMBER WITH PAINT CODE

* PART DESCRIPTION

TELEPHONE - 1-800-222-8183

AX - 1-660-747-8650

SWISHER MOWER & MACHINE CO. INC.

SWISHER MOWER & MACHINE CO. INC.SWISHER MOWER & MACHINE CO. INC.

SWISHER MOWER & MACHINE CO. INC.

1602 CORPORATE DRIVE

P.O. BOX 67

WARRENSBURG, MO 64093

MANUAL LI T

Owner’s

Manual

IMPORTANT

Read and follow all

Safety Precautions

and Instructions

Before Operating this

Equipment.

Manual Lifter

2828
