Swegon PARASOL EXc Guía

PARASOL EXc

Installation – Commissioning – Maintenance 20200901

Art. 942428008

A1, B1

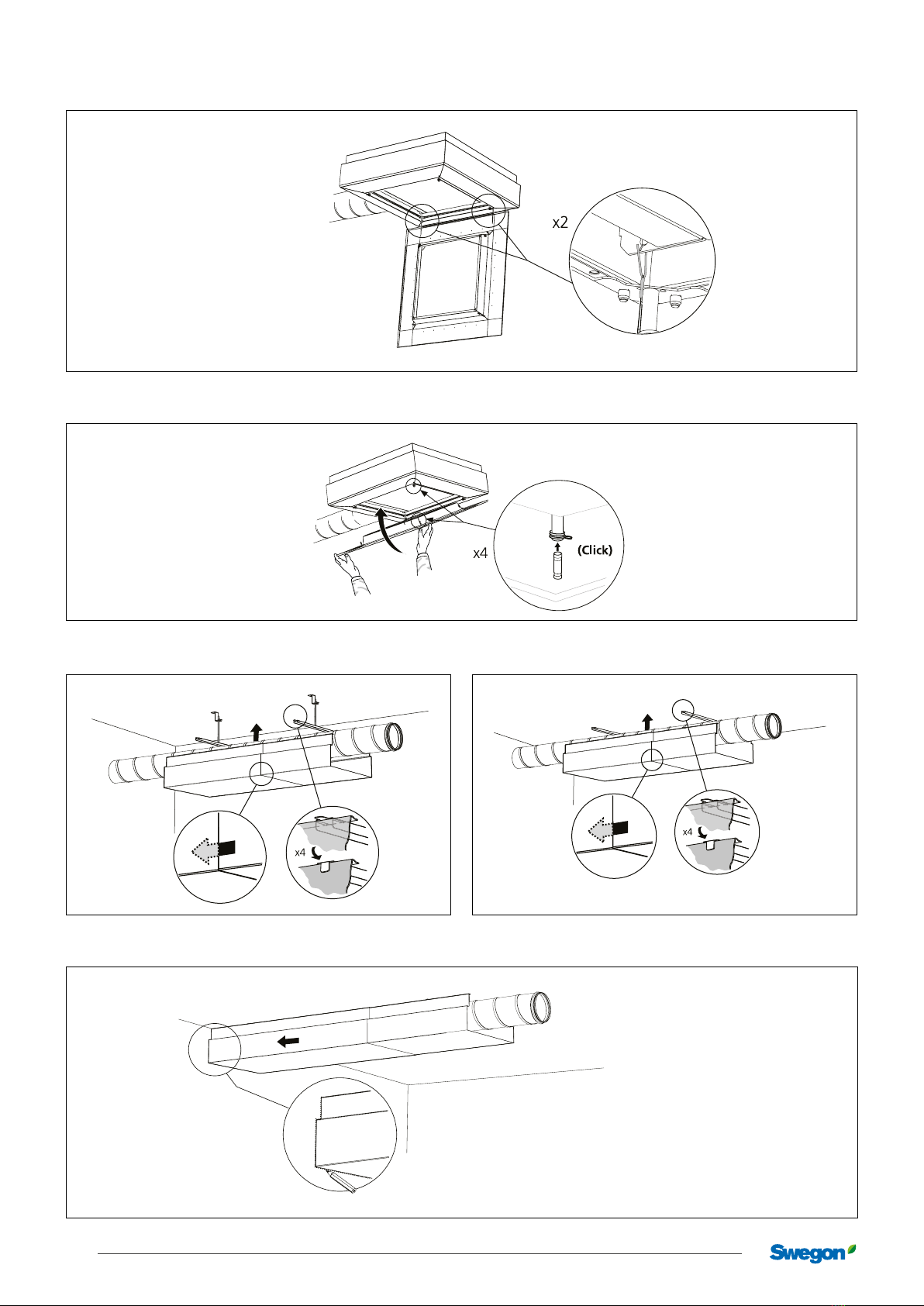

Installation / Montering

PARASOL EXc

2Swegon reserves the right to alter specications 20200903

MF/HF

Ø125

Ø160

20200903 Swegon reserves the right to alter specications

PARASOL EXc

A7, B5

A8, B6

A9, B7

A10, B8

TORX T-25 / 1 x 8

690/1290 side 2/sida 2 1290 side 4/sida 4 (Left)

PARASOL EXc

4Swegon reserves the right to alter specications 20200903

A11, B9

A12, B10

A13 B11

A14, B12

20200903 Swegon reserves the right to alter specications

PARASOL EXc

A16, B14

A15, B13

A17, B15

Equipped with connection casing (option)

Utrustad med kanalkåpa (tillbehör)

Equipped with standard cover plate

Utrustad med täckplåt som standard

PARASOL EXc

6Swegon reserves the right to alter specications 20200903

PARASOL EX c 690 MF

Single-module unit/Enmodulsenhet

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

MF L - 0,253

MF M - 0,440

MF H - 0,693

MF C - 0,000

PARASOL EX c 1290 MF

Double-module unit/Tvåmodulsenhet

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

MF L1&3 short/kort 0,176

MF L2&4 long/lång 0,464

MF M1&3 short/kort 0,253

MF M2&4 long/lång 0,667

MF H1&3 short/kort 0,429

MF H2&4 long/lång 1,131

MF C 1, 2, 3, 4 0,000

PARASOL EX c 1290 HF

Double-module unit/Tvåmodulsenhet

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

HF L1&3 short/kort 0,253

HF L2&4 long/lång 0,667

HF M1&3 short/kort 0,440

HF M2&4 long/lång 1,160

HF H1&3 short/kort 0,693

HF H2&4 long/lång 1,827

HF C 1, 2, 3, 4 0,000

PARASOL EX c 1290 PF

Double-module unit/Tvåmodulsenhet

Type/Modell Nozzle/Dysa Side/Sida k-factor/-faktor

PF L1&3 short/kort 0,85

PF L2&4 long/lång 2,22

PF M1&3 short/kort 0,99

PF M2&4 long/lång 2,62

PF H1&3 short/kort 1,21

PF H2&4 long/lång 3,20

PF C 1, 2, 3, 4 0,000

Side/Sida

1 2 3 4

Water/ Vatten

Air/ LuftAir/ Luft

Commissioning / Injustering

k-factor/-faktor HLMH = 0,693+0,667+0,440+1,827=3,63

Example Product Code/ Exempel, produktkod:

PARASOL EX c 1290-A-HF-HLMH

Side/Sida 1 = H k=0,693

Side/Sida 2 = L k=0,667

Side /Sida 3 = M k=0,440

Side /Sida 4 = H k=1,827

Air connection side 2 (standard)

Luftanslutningssida 2 (standard)

Air connection side 4

Luftanslutningssida 4

Water/ Vatten

Air/ LuftAir/ Luft

20200903 Swegon reserves the right to alter specications

PARASOL EXc

Nozzle conﬁguration/ Dyskonﬁguration

H M C L

H =

q = k · √p [l/s]

p = [Pa]

i()

[pi Pa]

q [l/s]

k= k-factor/-faktor

1 x 8

T-25

PARASOL EXc

8Swegon reserves the right to alter specications 20200903

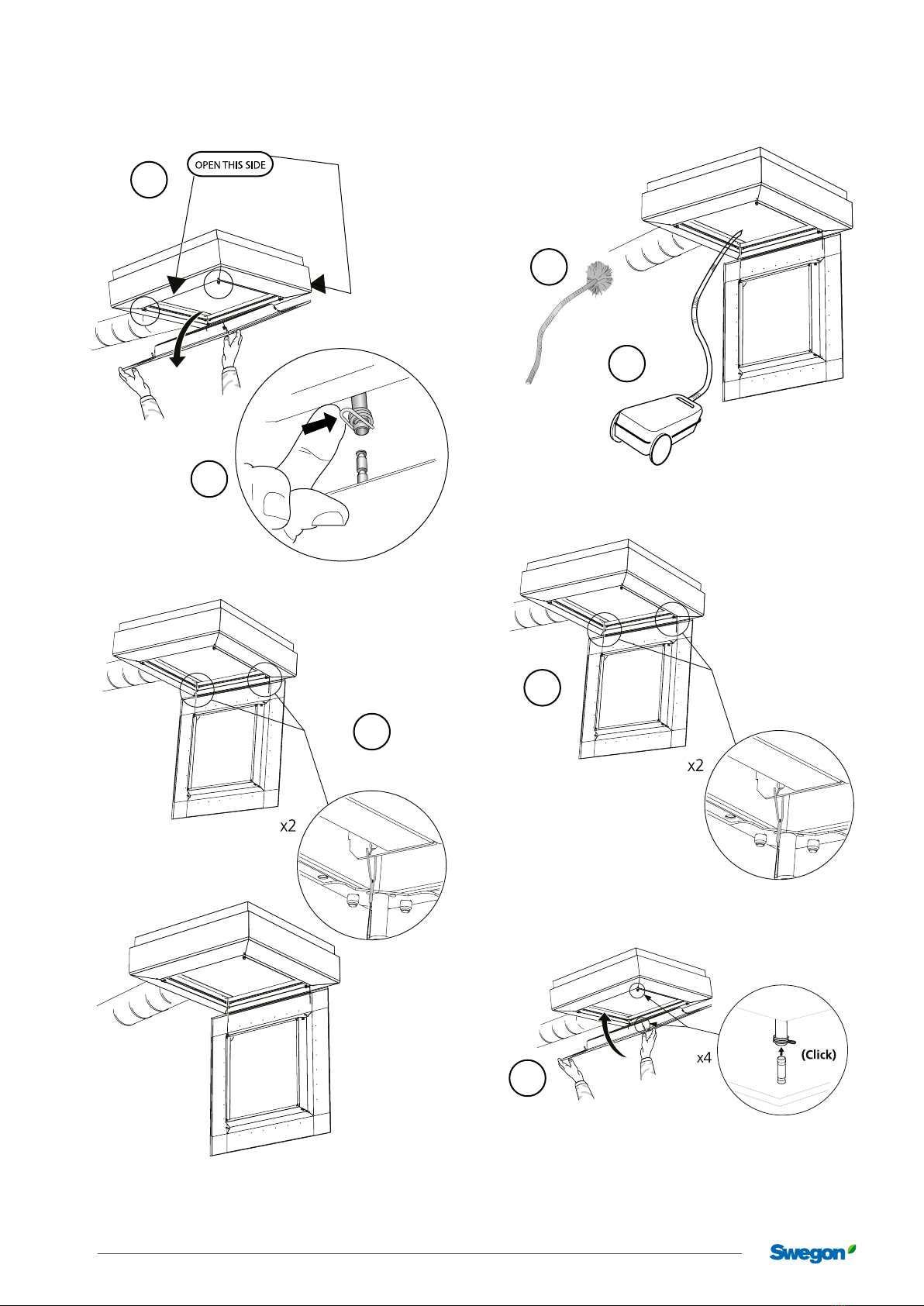

Maintenance / Skötsel
