USER’S MANUAL

H.264 REAL TIME DVR

Swann DVR16-8900

User’s Manual

Rev. 1.1 (2010-07-22)

H.264 Real-Time

Standalone DVR

Please read the safety precaution before using the product. MT16120810E

USER’S MANUAL

H.264 REAL TIME DVR

Safety Precautions

Disconnect power to the DVR when

connecting or disconnecting cables or

accessing the rear panel.

Exercise caution handling liquids around

the DVR. Don’t place cups or bottles

containing liquids on or near the DVR.

Do not bend, twist or place heavy objects

on your cables.

Do not clean using liquids, soaps or

detergents. Use a dry cloth or towel to

remove dust from the DVR as necessary.

Do not install the DVR in areas with high

humidity, dust or smoke.

When unplugging the power, hold the plug

and unplug slowly. Do not hold the plug

with wet hands or connect the DVR to a

loose power outlet.

Do not disassemble or reconfigure the

DVR. Don’t remove the casing except to

change the hard drive or backup battery.

There are no other user serviceable parts

inside.

Ensure there are no obvious dangers

where you install the DVR. Check for

moisture, damaged cables or wiring,

unstable surfaces and infrastructure and so

on. Don’t install the DVR in any location

where one or more dangerous elements is

present.

Do not install the DVR in direct sunlight.

Install the DVR in a cool and well ventilated

location. Don’t install the DVR in an area

near heating devices.

Install the DVR on a sturdy, flat surface.

Don’t install the DVR in a location where it is

likely to fall.

The power outlet the DVR uses must be

grounded, and the voltage range must be

within 10% of the rated voltage.

Do not share the power outlet the DVR uses

with high-current devices (such as

hair dryer

iron, refrigerator or heating device).

When replacing the battery, always replace

with the same type of battery as the one

provided. When disposing the battery, follow

the directions of the manufacturer

, or the law

as it applies in your locality.

Always use new, high quality hard drives.

Older or damaged hard drives may lose

data. If this occurs, the DVR will show the

message “Error or Defective” indicating that

it cannot access information on the hard

drive. In the event this occurs, contact the

hard drive manufacturer: many have data

recovery services available.

USER’S MANUAL

H.264 REAL TIME DVR

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Two Symbols

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of un-insulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL

MARKING ARE ON THE BOTTOM OF THE SYSTEM.

“WARNING – TO PREVENT FIRE OF SHOCK HAZARD,

DO NOT EXPOSETHE UNIT TO RAIN OR MOISTURE”

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

FCC CLASS A NOTICE

USER’S MANUAL

H.264 REAL TIME DVR

Caution

Please read the following precautions carefully before installing the product and follow the directions for installation.

Don’t install the DVR in a location which has high levels of dust, moisture, smoke or other contaminants.

Avoid locations which have high or fluctuating temperatures, and avoid direct sunlight. Do not install the product

where the temperature is ever above 104°F/40°C, or below freezing 32°F/0°C).

Do not install the product where it is exposed to direct sunlight or close to a heating device.

Don’t install the DVR near any magnetic fields (such as microwaves).

Don’t place objects on top of the DVR. Ensure that the ventilation holes are not obstructed.

Don’t access the rear panel or remove the DVR casing unless the power is disconnected.

Make sure you have enough room to connect all the cables and accessories before installing the DVR.

Ensure the location you install the DVR to is level, well ventilated and is not subject to vibrations of any kind.

Firmly fix the DVR in place on a stable, flat and stationary surface in a well ventilated area.

Try not to install the DVR around other electrical devices – they can sometimes interfere with one another.

Only qualified technicians should ever disassemble the DVR.

Do not put heavy objects on top of the product.

The power outlet must be grounded.

If you hear any strange noises or smell any new odors around DVR, stop using the DVR immediately.

Disconnect the power supply and call the technician who installed it or technical support for help.

Do not move or flip the DVR over while it’s turned on. Damage could be done to the spinning hard disks.

Periodically check that the DVR is functioning properly.

When replacing the battery, always replace with the same type of battery as the one provided. When disposing

the battery, follow the direction of the manufacturer.

We are not responsible for the problem from misuse by the user.

USER’S MANUAL

H.264 REAL TIME DVR

TABLE OF CONTENTS

CHAPTER 1 INSTALLATION

1-1 Product characteristics ------------------------------------------------------------ 7

1-2 Contents ---------------------------------------------------------------------------- 8

1-3 Front Panel ------------------------------------------------------------------------- 8

1-4 Rear Panel -------------------------------------------------------------------------- 9

1-5 Remote controller ----------------------------------------------------------------10

1-6 Connection and initial settings -------------------------------------------------11

1-7 RS-485 connection ---------------------------------------------------------------11

1-8 Control port (Output) connection ----------------------------------------------12

1-9 Sensor (Input) connection -------------------------------------------------------12

1-10 Internal hard disk installation -------------------------------------------------13

CHAPTER 2 MAIN SYSTEM APPLICATION

2-1 Operation--------------------------------------------------------------------------18

Start up ................................................................................................................ 18

Shutdown .............................................................................................................. 19

2-2 Live Display -----------------------------------------------------------------------20

2-3 System setting --------------------------------------------------------------------24

System .................................................................................................................. 24

Video/Audio........................................................................................................... 29

Event..................................................................................................................... 34

Network................................................................................................................. 38

User....................................................................................................................... 42

2-4 PTZ control------------------------------------------------------------------------45

2-5 Search (playback) & backup ----------------------------------------------------47

Time search........................................................................................................... 47

Event search ......................................................................................................... 48

Backup .................................................................................................................. 49

USER’S MANUAL

H.264 REAL TIME DVR

CHAPTER 3 WEB VIEWER

3-1 Installation ------------------------------------------------------------------------ 54

1. Web viewer installation................................................................................54

3-2 Functional description ----------------------------------------------------------- 56

1. Web viewer monitoring window...................................................................56

2. Web viewer search window.........................................................................57

3. Search menu ...............................................................................................58

4. Saving as AVI file .......................................................................................59

CHAPTER 4 APPLE IPHONE ACCESS

4-1 Functional description ----------------------------------------------------------- 61

1. Real-time monitoring....................................................................................61

CHAPTER 5 APPENDIX

5-1 Check before requesting for service ------------------------------------------- 63

5-2 Recommended device to use --------------------------------------------------- 66

5-3 Initial setting list for factory default ------------------------------------------- 68

5-4 Product specification ------------------------------------------------------------ 73

USER’S MANUAL

H.264 REAL TIME DVR

1-1 Product characteristics ------------------------------------------------------------ 7

1-2 Contents ---------------------------------------------------------------------------- 8

1-3 Front Panel ------------------------------------------------------------------------- 8

1-4 Rear Panel -------------------------------------------------------------------------- 9

1-5 Remote Controller----------------------------------------------------------------10

1-6 Connection and initial setting---------------------------------------------------11

1-7 RS-485 connection ---------------------------------------------------------------11

1-8 Control port (Output) connection ----------------------------------------------12

1-9 Sensor (Input) connection -------------------------------------------------------12

1-10 Internal hard disk installation -------------------------------------------------13

USER’S MANUAL

H.264 REAL TIME DVR

1-1. Product characteristics

Runs a very stable, embedded version of Linux operating system.

Stable file system recovery even after power supply is disconnected from a power outage.

Realized small file size and high video quality by applying the H.264.

Supports terra byte hard disk ( up to 1.5TB )

Supports e-SATA port to use additional external hard disk.

Real time recording

-Maximum of 480IPS@352 X 240 at NTSC

-Maximum of 400IPS@352 X 288 at PAL

Supports various recording resolutions and qualities.

-D1(704x480), Half D1(704x240), CIF(352x240) at NTSC

-D1(704x576), Half D1(704x288), CIF(352x288) at PAL

-5 stage recording qualities (Very high, high, normal, low, and very low).

Easy operation through various user interface and user friendly GUI system.

Realized powerful multi-function.

-Real time video display and recording, network transmission and back up can be performed

simultaneously.

Easy search functions.

-Date/Time search (Calendar search), event search

Recording before event. (Can be 5 seconds).

Recording after event. (Can be only up 10 seconds).

The operating condition pre-check function according to the change in motion detection and

movement detection

Can set recording quality and number of recording frames per seconds.

Powerful recording schedule management.

Complete synchronization of video/audio.

Easy software upgrading through USB storage device or network.

Maximum of 4 clients can be connected to 1 DVR at the same time.

Band width setting is automatically set depending on the network speed connected to this device.

Remote alarm notification via e-Mail.

PTZ (Pen/Tilt/Zoom) operation.

Remote control operation

Key board control operation (optional)

Supporting Daylight saving

Simultaneous output to VGA and BNC

USER’S MANUAL

H.264 REAL TIME DVR

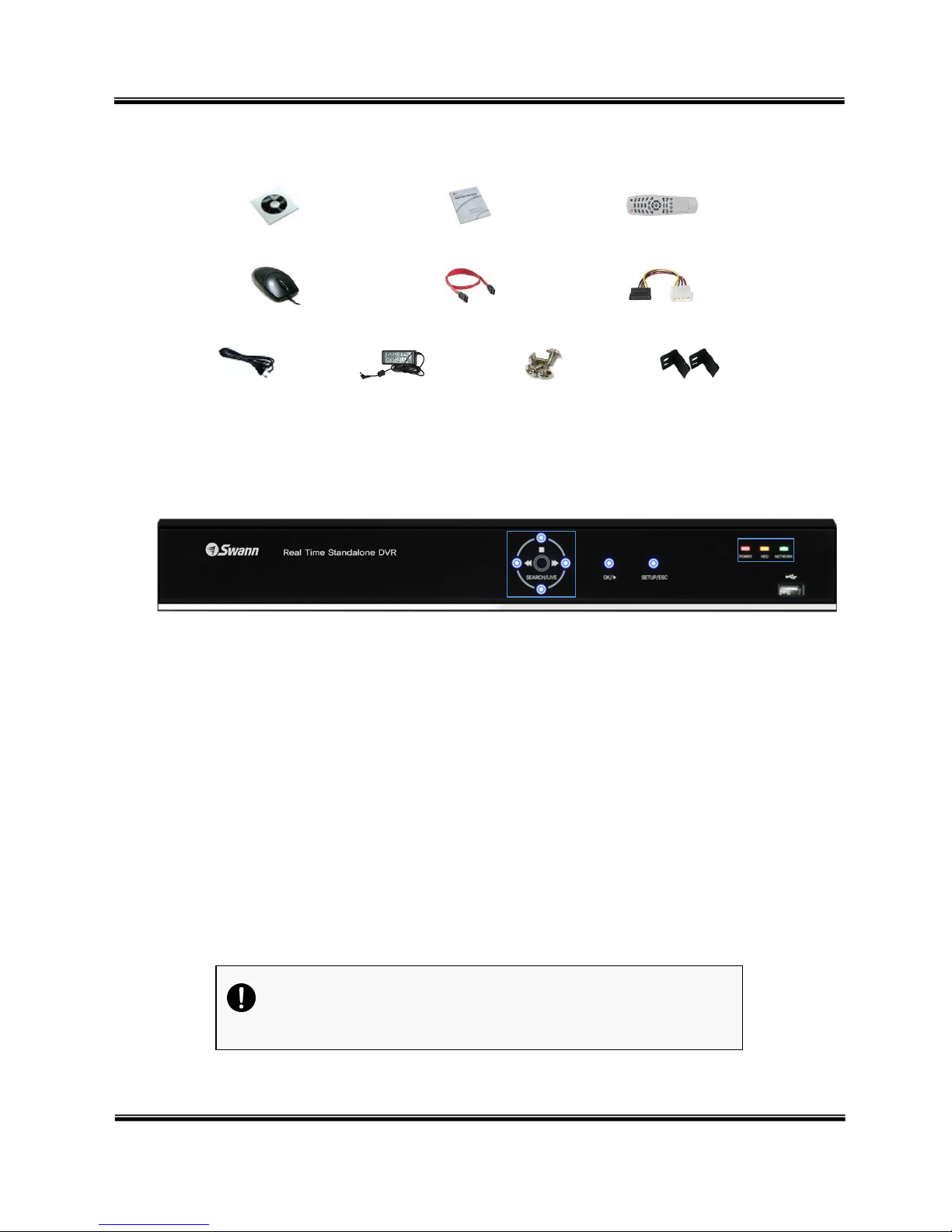

1-2. Contents

Software Installation CD

User’s Manual

Remote Controller

Mouse

SATA cable

HDD power cable

Power cable

Adapter

Screws

19” Rack mount

Reference: The type of components can be applied differently by the option.

1-3. Front Panel

①Navigation buttons

“▼” button is used as navigation key, when menu is shown, on the other hand, it is used for

switching key between SEARCH and LIVE screen when menu not be shown.

②ENTER – This is used to select OSD menu and control playback.

At power off status, it is turned on by pressing “OK” button in some seconds.

At power on status, instant panic recording is executed by pressing “OK” button in some

seconds.

③SETUP/ESC – This is used to open or close menu.

④LED

Hard disk LED – This is turned on HDD is accessed.

Power LED – This is turned on when the power is turned on.

Network LED – This is turned on when network is connected.

⑤USB – This is used to connect USB storage device.

Caution

Mouse should be connected to mouse port at rear side.

⑤

①②③④

USER’S MANUAL

H.264 REAL TIME DVR

1-4. Rear Panel

①USB port – Used to connect USB storage device, such as a flash drive.

②Main output port – It is used to connect BNC type monitor. (It outputs the same video as MAIN

output.)

③Camera video input – These are used to connect cameras

④Audio input port – It is used to connect audio output port of external device.

⑤External HDD port – It is used to connect e-SATA HDD.

⑥Sensor/Alarm/RS-485 ports – These are used to connect sensor, alarm and RS-485 serial

communication port

⑦Mouse port – It is used to connect USB mouse.

⑧Ethernet port – It is used to connect RJ-45 Ethernet connector. (LAN PORT).

⑨VGA port – It is used to connect VGA monitor.

⑩SPOT output port – It is used to connect BNC type monitor.

⑪Audio output port – It is used to connect audio input port of external device.

⑫Power connector – It is used to connect power adapter.

Otros manuales para DVR16-8900

Tabla de contenidos

Otros manuales de DVR de Swann

Swann

Swann ADVANCED-SERIES H.264 Manual de usuario

Swann

Swann DVR16-8600 Combo Manual de usuario

Swann

Swann QH16 Manual de usuario

Swann

Swann DVR4-2500 Manual de usuario

Swann

Swann DVR4-5500TM Manual de usuario

Swann

Swann SW-R-DVR16 Manual de usuario

Swann

Swann SW-R-DVR9 Manual de usuario

Swann

Swann FlashlightDVR SW244-TDV Manual de usuario

Swann

Swann DVR16-3000 TruBlue Manual de usuario

Swann

Swann RedAlert Single Channel Digital Security... Guía de inicio rápido

Swann

Swann Advanced D1 series Manual de usuario

Swann

Swann SW242-2LP Manual de usuario

Swann

Swann SW244-DRC Manual de usuario

Swann

Swann DVR4-1000 SW242-DU2 Manual de usuario

Swann

Swann DVR4-1100 Manual de usuario

Swann

Swann DVR4-1525 Manual de usuario

Swann

Swann QH16 Manual de usuario

Swann

Swann Advanced-Series 8 Channel DVR H.264 Manual de usuario

Swann

Swann QH48 Manual de usuario

Swann

Swann DVR 2500 Instrucciones de montaje

Swann

Swann dvr 8-8500ai Manual de usuario

Swann

Swann 4-4350 Manual de usuario

Swann

Swann DVR4-5100 Guía de inicio rápido

Swann

Swann SW244-8ML Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario

DIGIFUSION

DIGIFUSION FVRT150 Manual de usuario
