SWAGTRON EB-5 Manual de usuario
IN ORDER TO CONTINUE SERVING OUR CUSTOMERS AND PROVIDING THE BEST PRODUCTS, OUR PRODUCT INFORMATION INCLUDING OUR USER MANUALS MAY RECEIVE UPDATES FROM TIME TO TIME. PLEASE CHECK OUR WEBSITE FOR THE LATEST USER MANUALS AND PRODUCT MATERIALS. VER. 1.0 01/16/18
USER MANUAL
Thank you for your purchase of the EB-5 E-Bike by SWAGTRON®!
There are many generic and copycat brands out there, but don’t be fooled. If you want real swag, you’re in
the right place.
To ensure your safety and the safety of others, please read and be sure to follow all instructions and safety
recommendations in this user manual prior to and when riding your bike.
If you have any questions regarding the SWAGTRON® EB-5 E-Bike, contact us at 1-844-299-0625 for
further assistance.
Happy Riding!
-The SWAGTRON® Team
Table of Contents
PRODUCT SAFETY NOTICE ...........................................................................................................................................................................................................1
Section 1. General Information....................................................................................................................................................................................................3
1.1 About the SWAGTRON®EB-5 E-Bike..............................................................................................................................................................................3
1.2 What’s In the Box?..........................................................................................................................................................................................................4
1.3 SWAGTRON®EB-5 E-Bike Diagram................................................................................................................................................................................5
Section 2. Folding, Unfolding & Adjusting Your SWAGTRON®EB-5 E-Bike .............................................................................................................................6
2.1 Unfolding the Head Tube & Frame .................................................................................................................................................................................6
2.2 Unfolding & Folding the Pedals......................................................................................................................................................................................7
2.3 Folding the Head Tube ....................................................................................................................................................................................................7
2.4 Folding the Frame...........................................................................................................................................................................................................8
2.5 Adjusting the Handlebars...............................................................................................................................................................................................8
2.6 Adjusting Handlebar Height ...........................................................................................................................................................................................9
2.7 Adjusting Seat Height .....................................................................................................................................................................................................9
Section 3. Charging Your SWAGTRON®EB-5 E-Bike..................................................................................................................................................................10
Section 4. How to Ride.................................................................................................................................................................................................................12
Section 5. Safe Riding Techniques & Tips ..................................................................................................................................................................................13
5.1 Disposal at End-of-Life ..................................................................................................................................................................................................14
Section 6. Maintenance ...............................................................................................................................................................................................................14
6.1 Cleaning...........................................................................................................................................................................................................................15
6.2 Storage ............................................................................................................................................................................................................................15
6.3 Transportation.................................................................................................................................................................................................................15
Section 7. Specifications .............................................................................................................................................................................................................16
1 Year Limited Hardware Warranty.............................................................................................................................................................................................17
1ENGLISHSWAGTRON EB-5 14" Electric Bike
PRODUCT SAFETY NOTICE
The SWAGTRON® EB-5 E-Bike has been designed with the utmost safety in mind for its riders. Extra
precautions have been taken to protect the user from product hardware malfunctions through our
meticulous design and engineering.
However, like any mode of transportation, the SWAGTRON® EB-5 E-Bike has inherent hazards associated
with its use (e.g.: losing control, falling off, or riding into a hazardous situation). Please read and be sure
to follow all instructions and safety recommendations in this user manual prior to and when riding your
E-Bike.
Before each ride, especially if you may travel a long distance, inspect your bike. First, check the tires for
proper inflation and cracks on the walls of the tires. Keeping the tires properly inflated and maintained
will help prevent flats and damage. Second, check all cables and cable housings for fraying, breaks, rust,
or corrosion and replace if necessary. Lastly, inspect the brakes to make sure they are working properly.
Additionally, check the brake pads for any damage as they will wear over time and eventually need
replacement.
If a replacement of the brake pads or any other part is needed, please contact customer support for
replacement service. In general, it is recommended to make sure all nuts and bolts are taut and properly
fastened to prevent injury and unnecessary wear and tear on your E-Bike.
Maximum Weight 264 lbs / 120kg
Maximum Speed 15.5 MPH / 25 km/h
Max Incline 25˚
This device requires coordination, agility, and balance. Use your best judgement to determine if an individual can use
the SWAGTRON® EB-5 E-Bike safely.
2
ENGLISH SWAGTRON EB-5 14" Electric Bike
SAFETY GEAR, CLOTHING,AND FOOTWEAR Please wear appropriate clothing and safety gear
including shoes, kneepads, elbow pads and an ASTM
F1492 approved helmet.
Avoid wearing anything that can drape over or get caught
into/under the wheels. Wear closed-toe, flat shoes to
maintain flexibility and stability.
MODIFICATIONS AND REPAIRS The SWAGTRON® EB-5 E-Bike is a highly sophisticated
electronics product that includes complex, technical
circuitry. Attempting to repair or modify your E-Bike can
void all warranties. Only authorized repair centers may
open and service the SWAGTRON® EB-5 E-Bike.
OBEY LOCAL LAWS AND REGULATIONS Always check and adhere to local laws regarding personal
transportation devices, including pedestrian laws.
The E-Bike is considered a motor vehicle, so should not
be ridden after consumption of alcohol, drugs, or while
intoxicated. You can be arrested for drunk driving.
By riding the SWAGTRON®EB-5 E-Bike, the user acknowledges and accepts personal responsibility of all risks associated with
the use of the SWAGTRON®EB-5 E-Bike, which may include, but are not limited to, muscle injuries, broken bones, lacerations, or
serious injury which may be sustained while using the SWAGTRON®EB-5 E-Bike.
3ENGLISHSWAGTRON EB-5 14" Electric Bike
Section 1. General Information
This user manual will guide you through the functions and usage of your SWAGTRON® EB-5 E-Bike. Before
operating this device, read all the instructions for safe assembly, charging, and usage.
Upon unpacking, please inspect the SWAGTRON® EB-5 E-Bike for any signs of physical damage or defects.
Ensure that the SWAGTRON® EB-5 E-Bike is fully charged before using.
If you have questions, contact SWAGTRON® before you attempt to use or return your E-Bike.

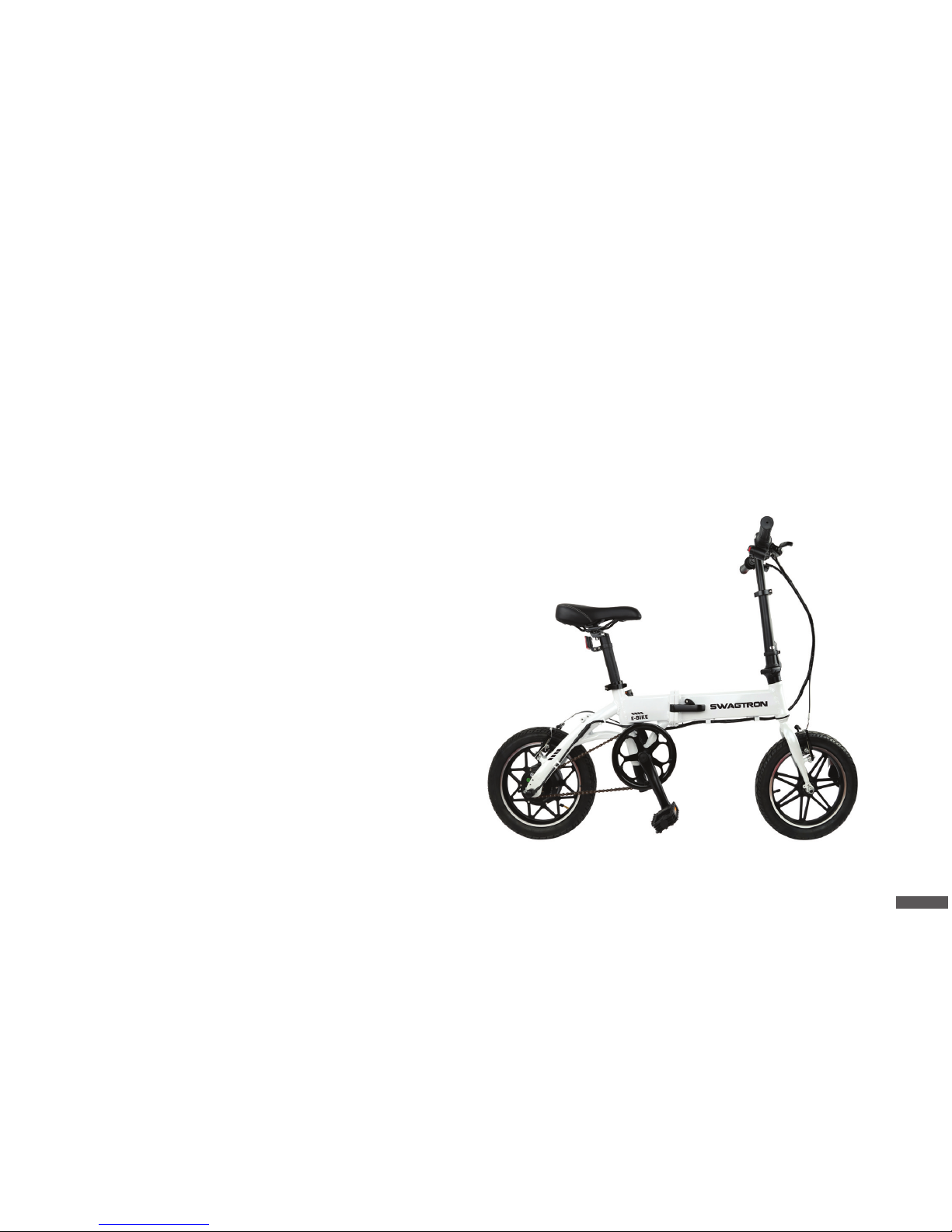

1.1 About the SWAGTRON®EB-5 E-Bike
The EB-5 Folding Electric Bike is a compact,
zero emissions personal transportation device
that feels like a bike but rides like a moped! It's
environmentally-friendly and uses only the highest
quality components and industry-leading safety
features.
• Riding speeds up to 15.5 mph
• Rechargeable, portable, and reliable
• Eco-friendly and all-electric with zero emissions
Wrench x 1Allen Key x 1 User Manual x 1
SWAGTRON® EB-5 Electric Bike x 1 Charging Cable & Adapter x 1
4
ENGLISH SWAGTRON EB-5 14" Electric Bike
1.2 What’s In the Box?
• 1 x SWAGTRON® EB-5 E-Bike
• 1 x Charging Cable & Adapter
• 1 x Allen Key
• 1 x Wrench
• 1 x User Manual
5ENGLISHSWAGTRON EB-5 14" Electric Bike

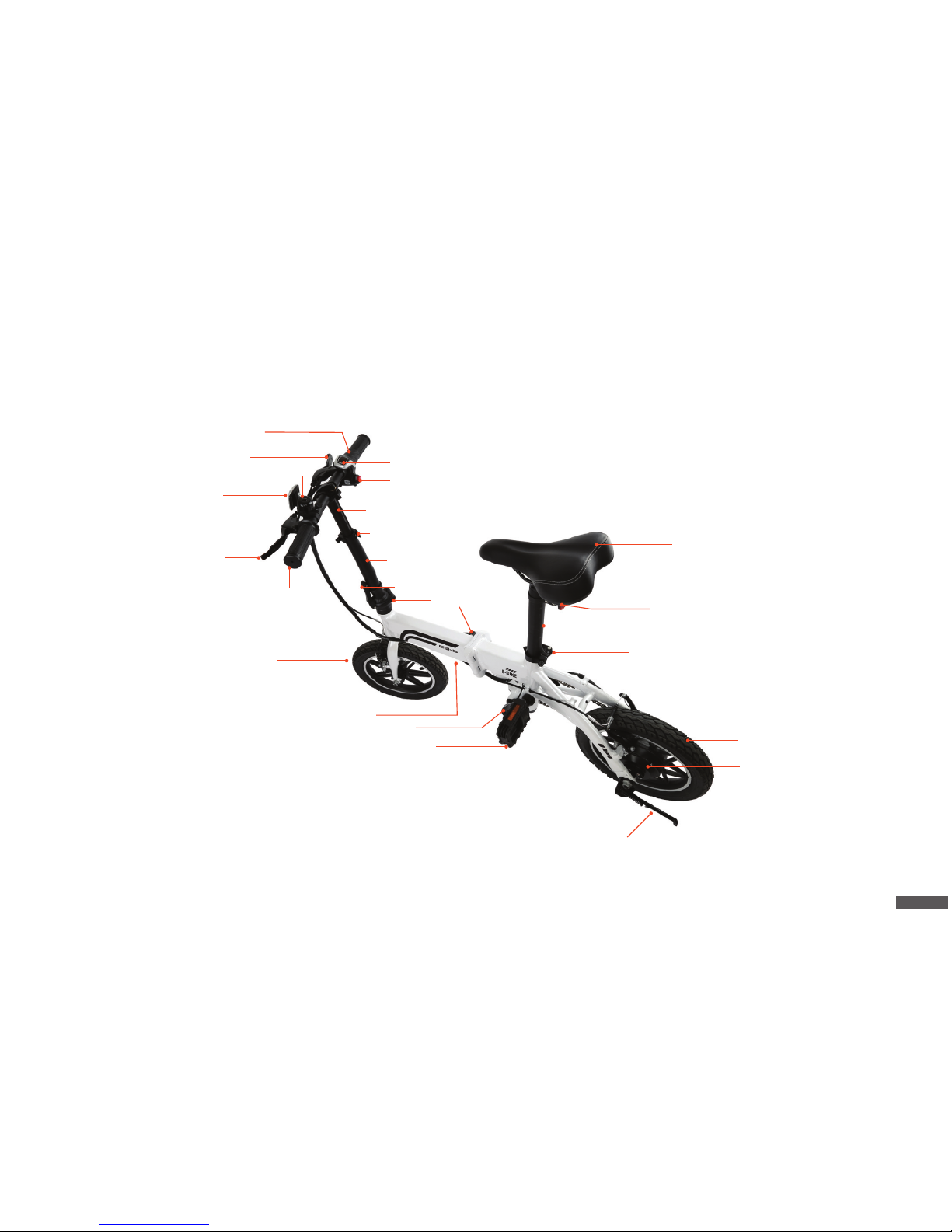

1.3 SWAGTRON® EB-5 E-Bike Diagram
POWER BUTTON
BATTERY INDICATOR
THROTTLE
REAR BRAKE
HANDLE
FRONT WHEEL
REAR WHEEL
MOTORIZED HUB
SEAT POST
STEM
SEAT CLAMP
LOCK
HEAD CLAMP
PEDAL
CRANK ARM
FRAME
FRONT BRAKE
BELL
REFLECTOR
REFLECTOR
KICKSTAND
SEAT
LATCH
HEAD TUBE
6
ENGLISH SWAGTRON EB-5 14" Electric Bike
Section 2. Folding, Unfolding & Adjusting Your SWAGTRON®EB-5 E-Bike
WARNING: Be careful not to position your fingers between the latch and the frame. Doing so may result in
injury.
2.1 Unfolding the Head Tube & Frame
Step 1. Unfold the rear wheel / section and hold your E-Bike upright with the kickstand.
Step 2. Push the latch closed so that it's parallel with the bike's frame then turn the lock down towards the
latch to lock it in place (fig.1).
Step 3. Pull the head tube and handlebars upright (fig.2)
Step 4. Fold the latch up, then turn the lock so that its end is inserted into the latch to lock it in place
(fig.3)
Latch Lock
fig.1 fig.2 fig.3
Latch
Lock
7ENGLISHSWAGTRON EB-5 14" Electric Bike
2.2 Unfolding & Folding the Pedals
Holding the crank arm vertical, fold or unfold the pedal. Repeat with the other pedal as needed (fig.4 & 5).
fig.4 fig.5
2.3 Folding the Head Tube
Turn the lock then unfold the latch by pulling it down away from the tube (fig.6). With the latch undone,
fold the head tube and handlebars down against the front wheel (fig.7).
Latch
Lock
fig.6 fig.7
