Sven RX-335 Wireless Manual de usuario

www.sven.ﬁ

RX-335

Wireless

Wireless Optical Mouse

USER’S MANUAL

Congratulations on your purchase of the Sven mouse!

Please read this Operation Manual before using the unit and retain this

Operation Manual in a safe place for future reference.

This Manual and information contained in it are copyrighted. All rights

reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this Manual more exact, some dis-

crepancies may occur. The information of this Manual is given on “as is”

terms. The author and the publisher do not bear any liability to a person or an

organization for loss or damages which have arisen from the information

contained in the given Manual.

CONTENTS

1. SPECIAL FEATURES ..................................................

2. PACKAGE CONTENTS ................................................

3. SYSTEM REQUIREMENTS ..........................................

4. DESCRIPTION .........................................................

5. INSTALLATION .........................................................

6. TROUBLESHOOTING ................................................

7. TECHNICAL SPECIFICATIONS ......................................

Technical support is on www.sven.ﬁ.

ENG

Wireless Optical Mouse

ENG

1. SPECIAL FEATURES

• BlueLED advanced optical technology

• 2.4 GHz USB Nano receiver included (range – up to 10 m)

• Resolution 600/1000/1400 dpi

• DPI resolution switch

• Two additional navigation buttons (Forward and Back)

• USB interface

• Soft Touch coating

• 2 AAA Alkaline type batteries

• Long life battery-fed operation (1 year)

• Drivers installation is not required for Windows XP/Vista/7/8/10

2. PACKAGE CONTENTS

• Optical mouse — 1 рс

• 2.4 GHz USB Nano receiver — 1 рс

• AAA type batteries — 2 рсs

• User’s Мanual — 1 рс

• Warranty card — 1 рс

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8/10.

• Free USB port.

User’s Manual

RX-335

Wireless

ON OFF

4. DESCRIPTION

a Scroll wheel

b DPI switch

c Forward and Back navigation buttons

d Optical sensor

e Battery compartment

f Nano receiver

g Connector USB

h ON/OFF: power switch

Fig. 1. Top view

Fig. 2. Bottom view Fig. 3. Nano receiver

5. INSTALLATION

• Open the cover of the mouse battery compartment e, insert two AAA

type batteries into the battery compartment, matching polarity, and close

the cover of the battery compartment (see Fig. 4).

• Pull out the nano receiver f from the mouse (Fig. 5) and connect it to a

free PC USB port without switching oﬀ the PC (Fig. 6).

• Turn on the mouse with the on/oﬀ switch h (the ON position). To acti-

vate the mouse, press any button of the mouse or turn the scroll wheel. If

the mouse has been connected correctly, it will turn on automatically.

ENG

Wireless Optical Mouse

SVEN

ON OFF

Battery com-

partment cover

ON OFF

ENG

2 × AAA type batteries

Improper installa-

tion of batteries can

result in failure of

the mouse!

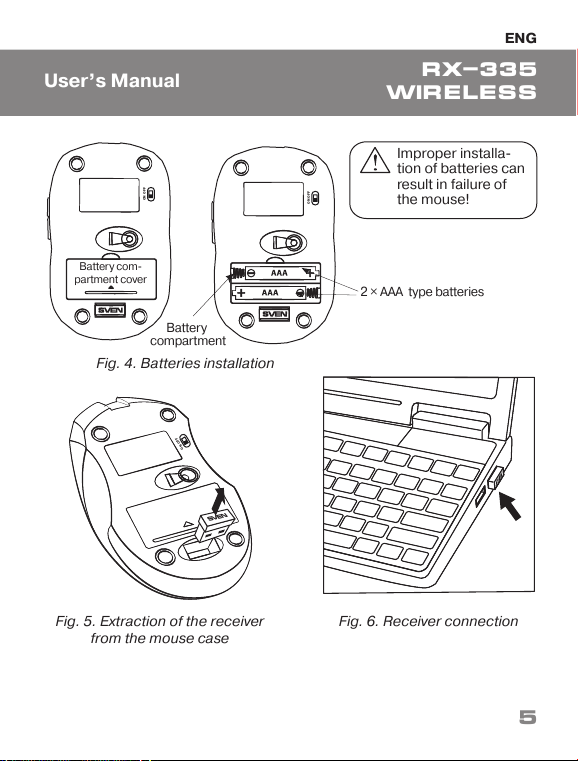

Fig. 4. Batteries installation

Fig. 5. Extraction of the receiver

from the mouse case

Fig. 6. Receiver connection

User’s Manual

RX-335

Wireless

Battery

compartment

SVEN

ON OFF

This device meets the highest standards of energy conservation.

Use the switch h on the bottom of the mouse to switch it on/off –

it will help you extend the mouse battery life.

Important

• After ﬁnishing work turn oﬀ the mouse with the power switch h (the OFF

position). After that the receiver can be pulled out from the PC USB port

and inserted back into the mouse (Fig. 7).

• Do not place the receiver in a metal conﬁned space (table drawer, box,

safe), as metal screen does not transmit radio signals.

• If the batteries run down, the mouse works in jerks. It means that bat-

teries should be replaced with new ones, as it is shown in Fig. 4. Always

install only identical new batteries.

Fig. 7. Fitting the receiver

into the mouse case

ENG

Wireless Optical Mouse

ENG

User’s Manual

RX-335

Wireless

Notes:

• Technical speciﬁcations given in this table are supplemental infor-

mation and cannot give occasion to claims.

• Technical speciﬁcations are subject to change without notice due to

the improvement of SVEN production.

TECHNICAL SPECIFICATIONS

Parameter

OS compatibility

Type of mouse

Resolution, dpi

Q-ty of buttons

Interface

Dimensions, mm

Weight, g

Value

Windows XP/Vista/7/8/10

Wireless 2.4 GHz

600/1000/1400

5 + 1 (scroll wheel)

USB

60 × 36 × 100

6. TROUBLESHOOTING

Solution

1. Make sure that the nano receiver has

been inserted into a USB port and its

distance to the mouse is less than 10 m.

2. Check whether the batteries have been

installed correctly.

3. Check if the batteries have run down,

replace the batteries with new ones if

necessary.

4. Address nearest authorized service center.

Problem

The mouse does not work.

Model:

RX-335 Wireless

Импортер в России: OOO «РЕГАРД», 109052,

РФ, г. Москва, ул. Нижегородская, д. 86, корп. Б.

Уполномоченная организация в России:

ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха

Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите

в гарантийном талоне или на сайте www.sven.ﬁ.

Гарантийный срок: 12 мес. Срок службы: 2 года.

Производитель: «СВЕН ПТЕ. Лимитед»,

176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано в Китае.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

№ 02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,

Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

RX-335

Wireless

Wireless Optical Mouse
