Surfwheel SU Manual de usuario

SURFWHEEL SU

RIDER GUIDE

www.surf-wheel.com

MEET SURFWHEEL

Dear Surfwheel rider,

Most creators of electric skateboards and self-balanced vehicles claim to create a “the

last mile” vehicle to carry commuters from public transportation to their final

destinations. This has never been Surfwheel team’s intention. Surfwheel is designed

for fun and recreation. We believe daily walking, jogging or running is necessities for

personal fitness. Getting on Surfwheel provides a fun alternative to traditional

exercise. The riding experience of Surfwheel simulates surfing and snowboarding

movement. Enjoy exercise! Enjoy Surfwheel!

Bob, Inventor of Surfwheel

VISIT WWW.SURF-WHEEL.COM FOR MORE INFORMATION AND

VIDEO TUTORIALS

GETTING STARTED

•Riding Surfwheel is similar to any other board sport; you will require practice to

learn how to ride.

•Completely read the user manual before attempting to ride Surfwheel.

•Fully charge Surfwheel before first use.

•Wear full safety equipment including wrist guards, knee/elbow pads and helmet at

all times when riding Surfwheel.

WARNINGS

•Surfwheel is designed for riders ages 16+. Do not allow under-aged people to use

Surfwheel.

•As with any vehicle, when using Surfwheel, riders risk death or serious injury from

loss of control, collisions, and falls.

•Do not ride in indoor environments, busy streets, or traffic.

www.surf-wheel.com

•Only ride Surfwheel where permitted. Consult local traffic authorities if you are

uncertain.

•Only wear flat, closed-toed shoes when riding Surfwheel.

•Do not touch the wheel with hands, feet, or other objects; never insert anything into

the gaps between the wheel and frame body of Surfwheel.

•Rider weight must not exceed 80kg (~176 lbs).

•Do not ride Surfwheel into slopes greater than 10 degrees

•Do not ride across the face of hills.

•Make turns gradually to prevent tipping or loss of control.

•Exercise extreme caution when changing direction on slopes.

•Only allow people who understand and agree to follow the instructions and

guidelines described in this user manual to ride Surfwheel.

•Surfwheel is only used by one person at a time. Please do not carry passengers.

•Performing stunts and turning abruptly may cause you to lose control and cause

serious injury.

•Do not use mobile phone when riding Surfwheel. Severe injuries could occur in

collision.

•Do not use Surfwheel App during ride. Surfwheel App is for firmware upgrade,

setting and diagnosis only.

www.surf-wheel.com

CONTENTS

MEET SURFWHEEL...................................................................................................................1

GETTING STARTED ..................................................................................................................1

WARNINGS.................................................................................................................................1

SURFWHEEL FEATURES..........................................................................................................4

WHAT IS in THE BOX? .........................................................................................................4

SURFWHEEL..........................................................................................................................4

BEFORE YOU RIDE SURFWHEEL...........................................................................................5

BATTERY STATUS & CHARGING & DISCHARGING......................................................5

HOW TO RIDE SURFWHEEL....................................................................................................6

UPDATING FIRMWARE.......................................................................................................6

GETTING STARTED IN TRAINER MODE..........................................................................6

MOVING FORWARD/BACKWARD.....................................................................................7

STOPPING & DISABLING SELF-BALANCING MODE .....................................................7

TURNING................................................................................................................................7

OVERLOADED or ERROR MODE........................................................................................7

Change from learn mode to regular mode ................................................................................8

APP SETTINGS ...........................................................................................................................8

SPECIFICATION.......................................................................................................................10

CARE AND MAINTeNANCE...................................................................................................11

Cleaning.................................................................................................................................11

Battery disposal......................................................................................................................11

FAQ ............................................................................................................................................11

WARRANTY .............................................................................................................................12

Surfwheel TWO year limited warranty...................................................................................12

Exclusion................................................................................................................................12

To fulfill a warranty ...............................................................................................................13

One year limited battery warranty..........................................................................................13

Company information .................................................................................................................15

MANUFACTURER...............................................................................................................15

NOTES .......................................................................................................................................16

www.surf-wheel.com

SURFWHEEL FEATURES

WHAT IS IN THE BOX?

•Surfwheel

•Charging adapter

•Quick start guide

•Carrying handle

Surfwheel

Charging adapter

Quick start guide

SURFWHEEL

www.surf-wheel.com

BEFORE YOU RIDE SURFWHEEL

Surfwheel is not designed to withstand running over sharp bumps, stairs or drop-offs.

Do not ride Surfwheel:

•On wet surfaces or in the rain.

•While wearing clothing that could restrict rider movement or interfere with

Surfwheel’s function. Closed-toed, athletic shoes must be worn at all times.

•Without an approved safety helmet and full safety equipment including

wrist guards, knee/elbow pads.

Be sure your local road authority allows riding Surfwheel in public areas.

BATTERY STATUS & CHARGING & DISCHARGING

1. Plug the charging cable into the wall outlet and Surfwheel charging port.

2. The charging adapter light will turn RED.

3. When Surfwheel is fully charged, the charging adapter light will turn

GREEN.

4. Unplug the charging adapter from the wall outlet and Surfwheel charging

port. Surfwheel is at full power.

Battery Status

REFER TO APP SETTINGS | TO SEE FURTHER DETAILS ON BATTERY

STATUS

When the battery needs charging, the LED light around the power button will flash

slowly. The LED light will turn into RED color. Please immediately charge the unit.

www.surf-wheel.com

HOW TO RIDE SURFWHEEL

UPDATING FIRMWARE

1. Visit Google Play or Apple store

2. Search Surfwheel and download the App

3. Follow the instruction on the App to connect to Surfwheel and update to

latest firmware

GETTING STARTED IN TRAINER MODE

1. For first time use, Surfwheel is in “Learner Mode” usage.

Learn Mode is designed for new Surfwheeler; the speed

is limited to 8kmh and it is less powerful to allow easy

to learn the basic balanced move. Once you advanced

your skills, you can switch off the learner mode and

adjust the performance setting via App for the regular

usage mode.

2. As before any physical activity, stretching and warming up are

recommended before riding Surfwheel.

3. Place Surfwheel on a level surface with one end touching the ground. This

is called “rest position”.

4. Push the power button. The LED light will flash for a few seconds, then

remain RED.

5. You have two ways to trigger the start of Surfwheel

i. Place your foot on the foot pad side first and put both feet on

Surfwheel; slowly lean to the center to trigger start.

ii. Place your foot on the side without foot pad and step on the foot

pad; Surfwheel will lift you up to balanced level.

The foot pad is used to trigger the start of Surfwheel SU

www.surf-wheel.com

MOVING FORWARD/BACKWARD

When standing on Surfwheel in balanced mode, lean forward to move forward. Lean

backward to move backward.

STOPPING & DISABLING SELF-BALANCING MODE

1. To deviate Surfwheel during riding, lean to the side 30 degree.

2. Surfwheel’s motor will stop carrying the rider forward and

balanced mode will be deactivated when your foot leaves the foot pad for

more than 2 seconds.

WARNING: NEVER USE BUMPS OR ANYTHING ELSE TO BRAKE

THE SURFWHEEL.

TURNING

1. Similar to surfing and snowboarding, shifting rider weight from left to right

will cause Surfwheel to curve. Point your leading shoulder in the direction

you want to turn.

2. Twisting your hips will cause Surfwheel to make sharper, more sudden

turns.

OVERLOADED OR ERROR MODE

Surfwheel can carry riders weighing up to 80 kg (172 lbs). If the rider is too heavy, Surfwheel

will shift into Overloaded or Error mode.

The LED light will flash in 1/2 second intervals when it is in Overloaded or Error mode. If

Surfwheel shifts into error mode, power off and power on to reset.

www.surf-wheel.com

CHANGE FROM LEARN MODE TO REGULAR MODE

Turn Off the learner mode to

enter regular usage mode. The

regular usage mode allows you

reach up to 18kmh.

APP SETTINGS

Download and install the Surfwheel APP from Google Play or Apple Store. Search

“Surfwheel”.

Please note that do not use Surfwheel App during riding. Surfwheel App is used for

settings and diagnosis mainly.

www.surf-wheel.com

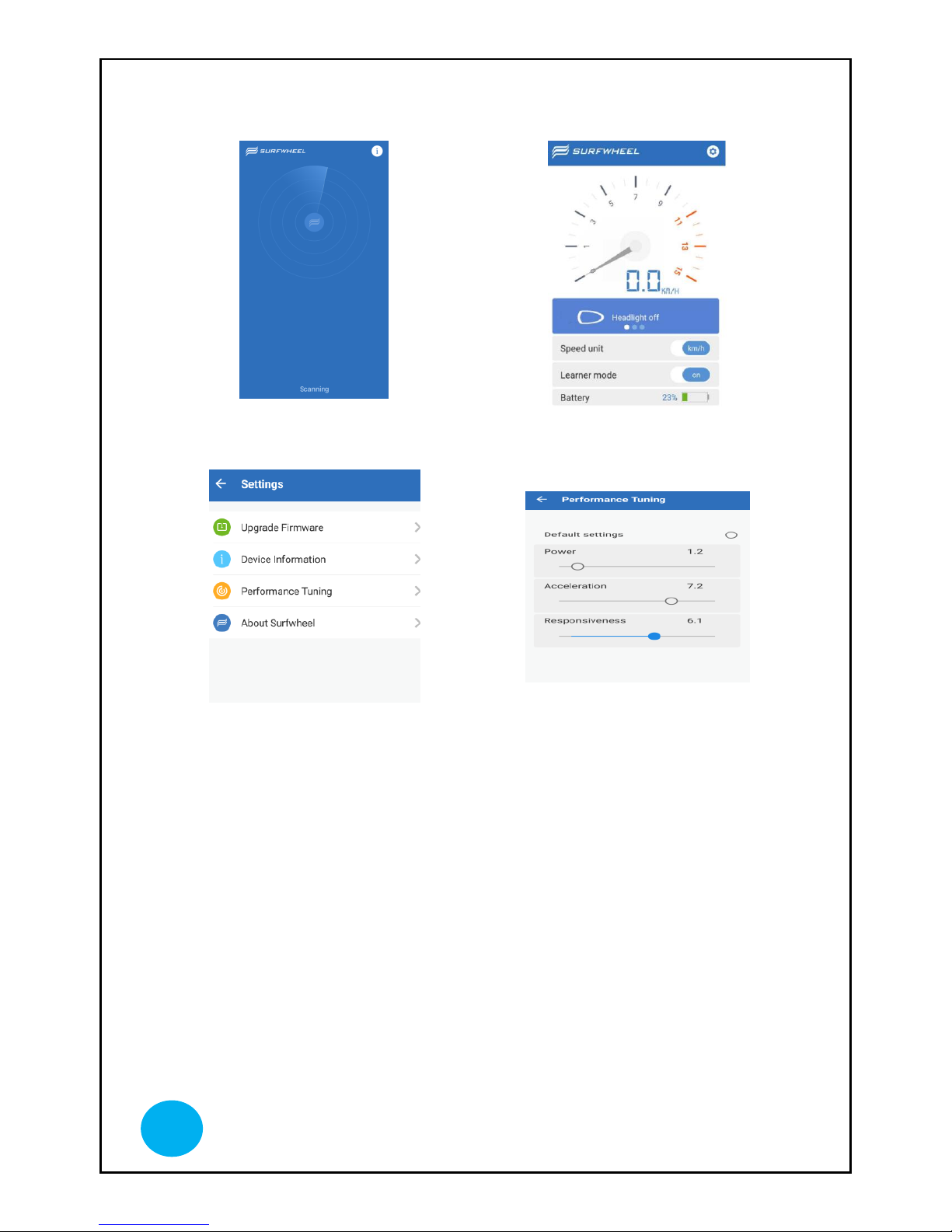

Connect to the APP via Bluetooth

You can check speed, battery status,

change mode and update software

It is recommended that you

frequently check for the latest

firmware available for upgrade.

Power: adjust the power output as

per angle changes

Acceleration: adjust the acceleration

speed as you speed up

Responsive: adjust the

responsiveness in terms of power

output at the rate of angle changes

TIPS:

If you experience swing or

wobbling during slow down, the

unit is over powered. Reduce Power

and Responsiveness

If you experience nose dive, the unit

is lack of power.
