SureShade RTX Manual de servicio

SURESHADE

PO Box 51294

Philadelphia, PA 19115

Tel: 1-877-333-8323

International: 215-673-2307

www.sureshade.com

The following instructions detail how to properly install

SureShade RTX on a tower or hardtop for DIY or

aftermarket installations.

SureShade RTX Pull-Out Shade can also be installed

aftermarket on a hardtop, arch, tower or T-Top.

Installation instructions will vary per application.

Page 1 of 4

TOOLS & SUPPLIES:

•SureShade RTX

•Tape measure

•Drill motor and 3/8-inch bit

•Adjustable wrench

•Allen wrenches (1/8 and

3/16 inches)

•Phillips screwdriver

•Marine sealant

Approximate Time: 3 hours

Illustrations provided

by Tim Barker - Boating Magazine

RTXINSTALL-HARDTOP-0518

RTX Pull-Out Shade

General Installation Instructions

S U R E S H A D E T E C H N I C A L D O C U M E N T A T I O N

SureShade RTX –General Installation Instructions

Page 2 of 4

Mounting Brackets

There are 3 types of mounting clamp configurations shown below

here in figures 1a thru 1c

Most important part of the

installation is to make sure the

actuators are installed parallel to

each other at the specified width

Fig 1a –standard mount Fig 1b –FIGURE 8 clamp Fig 1c –FIGURE 8 SWIVEL clamp

Installing RTX

SureShade RTX –General Installation Instructions

Page 3 of 4

Tower Mounting Shown in Fig 2 and 3

Rotate the roller clamp to line up the roller

mounting screws with the clamp

Adjust Fig 8 clamps to

make actuators

parallel to each other

You may need to rotate the actuator in the

clamps in order to get the mid crossbar and pull

bar connecting screws to line up

Fig 2

To preload the roller with tension, rotate the canvas

with the roller in the direction shown a few revolutions

as needed before attaching to the pull bar.

Notes for operation:

Pull/push evenly from the center of the pull bar to extend/retract the shade so the

framework doesn’t rack side to side during movement.

Depending on how much tension is on the canvas roller, in order to release the locking

pins you may have to push up and outward on the crossbar to release the tension on

the first locking pin.

SureShade RTX –General Installation Instructions

Page 4 of 4

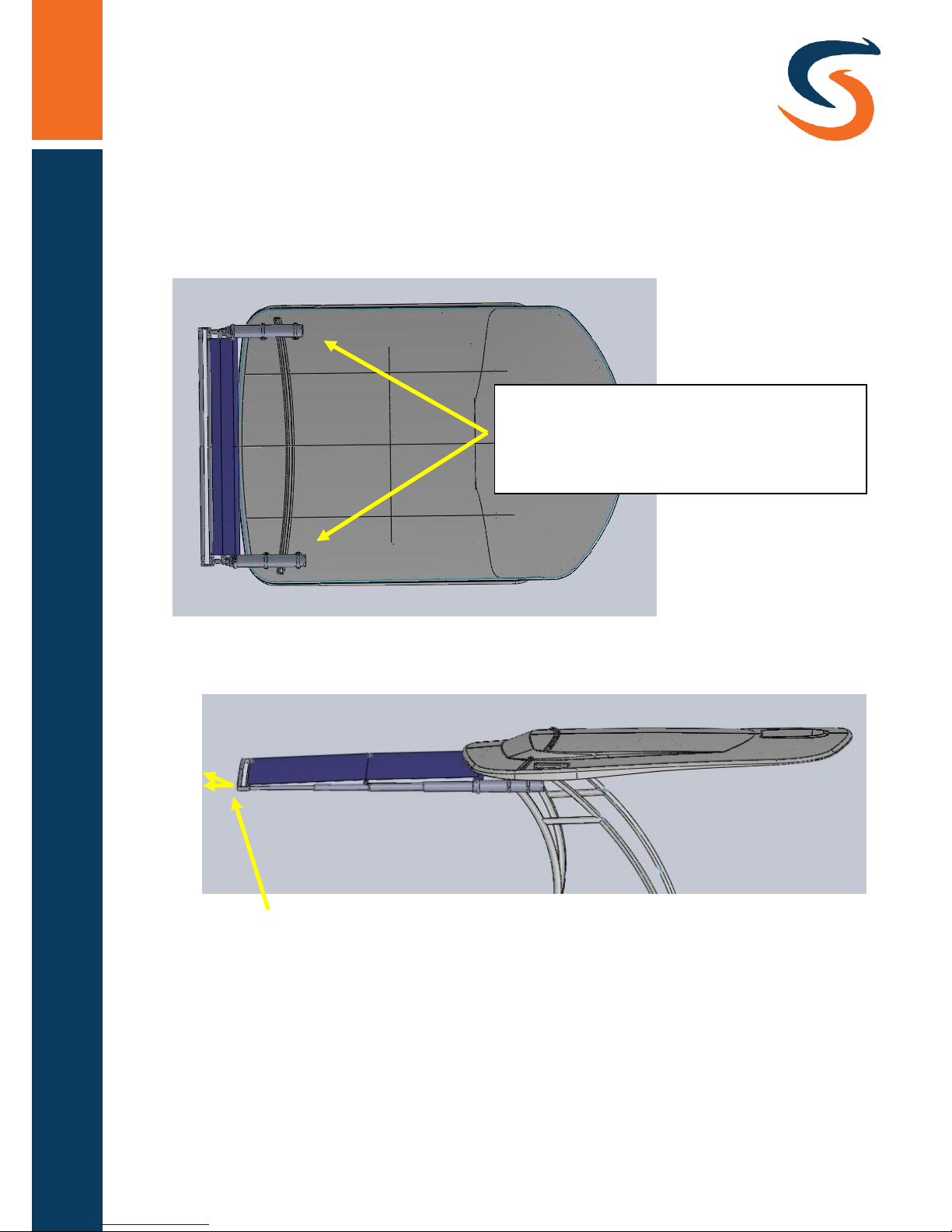

Hardtop Mounting Shown Below

Position actuators properly by specified width and

parallel to each other on the hardtop surface,

mark you mounting positions, drill thru the

hardtop for thru bolting, attach crossbars and

roller as described in Fig 2 and 3.

Operation of RTX system:

Extension

Center yourself in the middle of the push bar for even pressure

Lift up and out (as shown) on push bar when extending to reduce friction and for easier movement

Extend until all locking pins are engaged

Retraction

To release the first stage locking pins, relieve pressure on the pins

Release the first stage locking on one side at a time

Relieve pressure on the pins by lifting the framework up and pushing out (as shown) as if you

are extending the framework and release the locking pin, repeat on other side actuator

Center yourself in the middle of the push bar for even pressure

Lift up and push in bar when retracting to reduce friction and for easier movement until fully retracted

If you push too much on one side there is the chance of getting the framework stuck, if this occurs,

start over by extending the shade and then proceed with the retraction instructions again
