C9Z490-PG/-PGW QUICK REFERENCE GUIDE Product Safety Information

Standardized Warning Statements

Motherboards

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which can potentially

cause a bodily injury. Should you have questions or experience difculty, contact Supermicro's Technical Support De-

partment for assistance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the Supermicro chassis.

WARNING: This product can expose you to chemicals including

lead, known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, go

to www.P65Warnings.ca.gov.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-

lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理

廢棄舊電池。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理

废旧电池。

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のもの

を使用下さい。使用済電池は製造元の指示に従って処分して下さい。

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한

종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.









Note: For complete product safety information, refer to http://www.supermicro.com/about/policies/safety_information.cfm.

C9Z490-PG/-PGW QUICK REFERENCE GUIDE 限用物質含有情況標示聲明

限限用用物物質質含含有有情情況況標標示示聲聲明明書書

設備名稱：主機板

Motherboard

型號（型式）：

C9Z490-PG, C9Z490-PGW

單元

Ｕnit

限用物質及其化學符號

鉛

Lead

(Pb) 汞

Mercury

(Hg) 鎘

Cadmium

(Cd)

六價鉻

Hexavalent

chromium

(Cr

)

多溴聯苯

Polybrominated

biphenyls

(PBB)

多溴二苯醚

Polybrominated

diphenyl ethers

(PBDE)

主機板

(Motherboard)

－○○○○○

備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準

值。

備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。

備考3.〝－〞係指該項限用物質為排除項目。

Equipment name

Type designation (Type)

Restricted substances and its chemical symbols

Declaration of the Presence Condition of the Restricted Substances Marking

Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the

reference percentage value of presence condition.

Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.

Note 3：The “−” indicates that the restricted substance corresponds to the exemption.

AMI BIOS POST Codes

About AMI BIOS POST Codes

The table below lists some of AMI BIOS POST codes for C9Z490-PG/-PGW. For more information, refer to https://www.

supermicro.com/manuals/other/AMI_AptioV_BIOS_POST_Codes_for_SM_Motherboards.pdf.

Code Description

0x32 CPU post-memory initialization is started

0x55 No Memory detected or memory failed

0x63 CPU DXE initialization is started

0x69 North Bridge DXE initialization is started

0x70 South Bridge DXE initialization is started

0x92 PCI Bus initialization is started

0x99 Super IO Initialization

0x9A USB initialization is started

0xA0 IDE initialization is started

0xA9 Boot into BIOS setup menu

0xAE Legacy Boot event

0xB2 Legacy Option ROM Initialization

0xB4 USB hot plug

0xD6 No console output devices are found

0xD7 No console input devices are found

0xF2 Recovery process started

0xF9 Recovery capsule is not found

C9Z490-PG/-PGW QUICK REFERENCE GUIDE AMI BIOS POST Codes

M.2 Device Installation Instructions

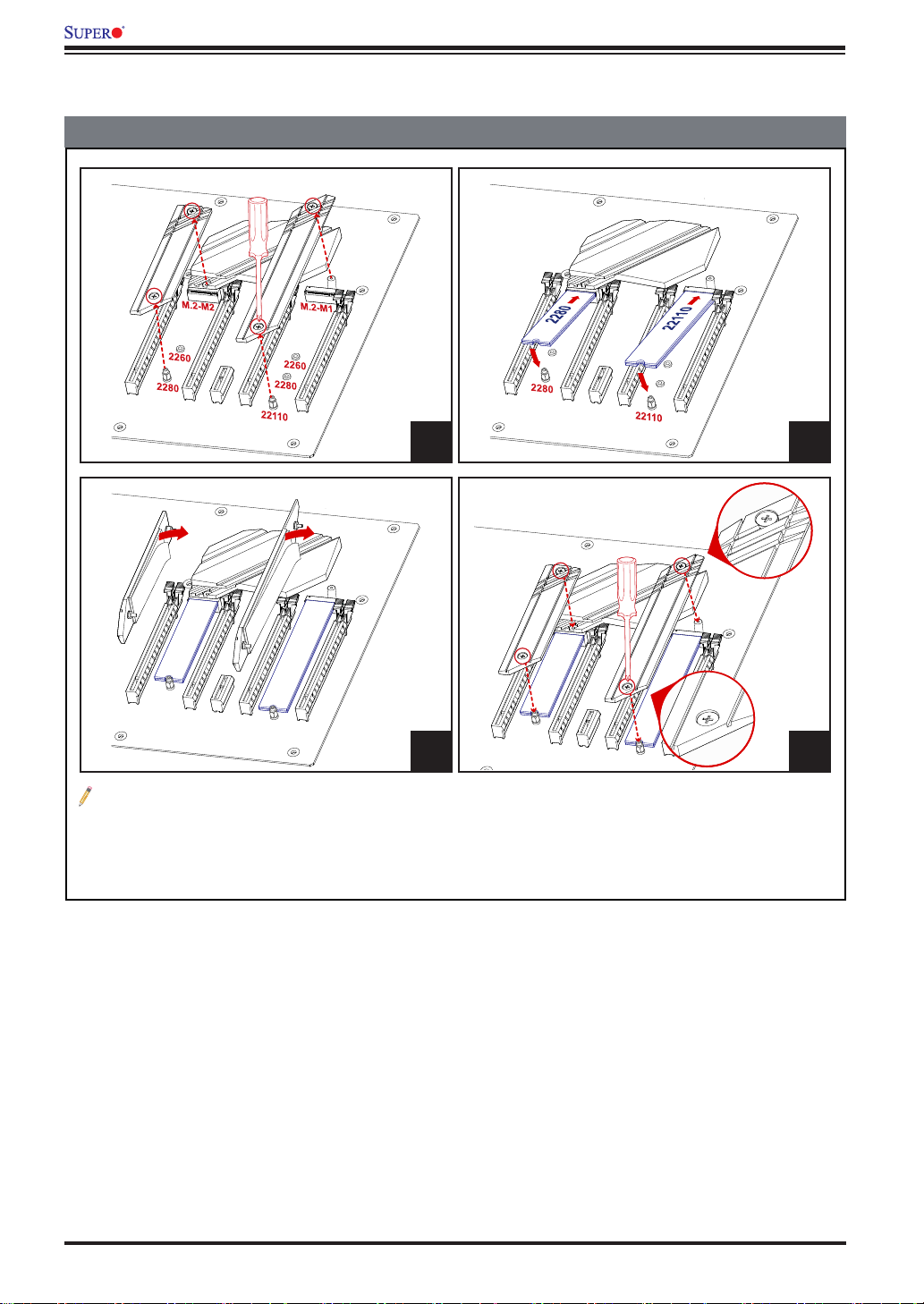

Installation with Pre-installed Stando󰀨s

Notes:

1. DO NOT install the bounded M.2 heatsink (refer to steps 3 and 4) if the M.2 device has a heatsink installed.

2. Please assemble the M.2 heatsink back to the motherboard once the M.2 device has been removed.

3. Beware of the direction when assembling the heatsink (refer to step 4).

4. Refer to the user's manual for more detailed descriptions.

C9Z490-PG/-PGW QUICK REFERENCE GUIDE M.2 Device Installation Instructions

1 2

C9Z490-PG/-PGW QUICK REFERENCE GUIDE M.2 Device Installation Instructions

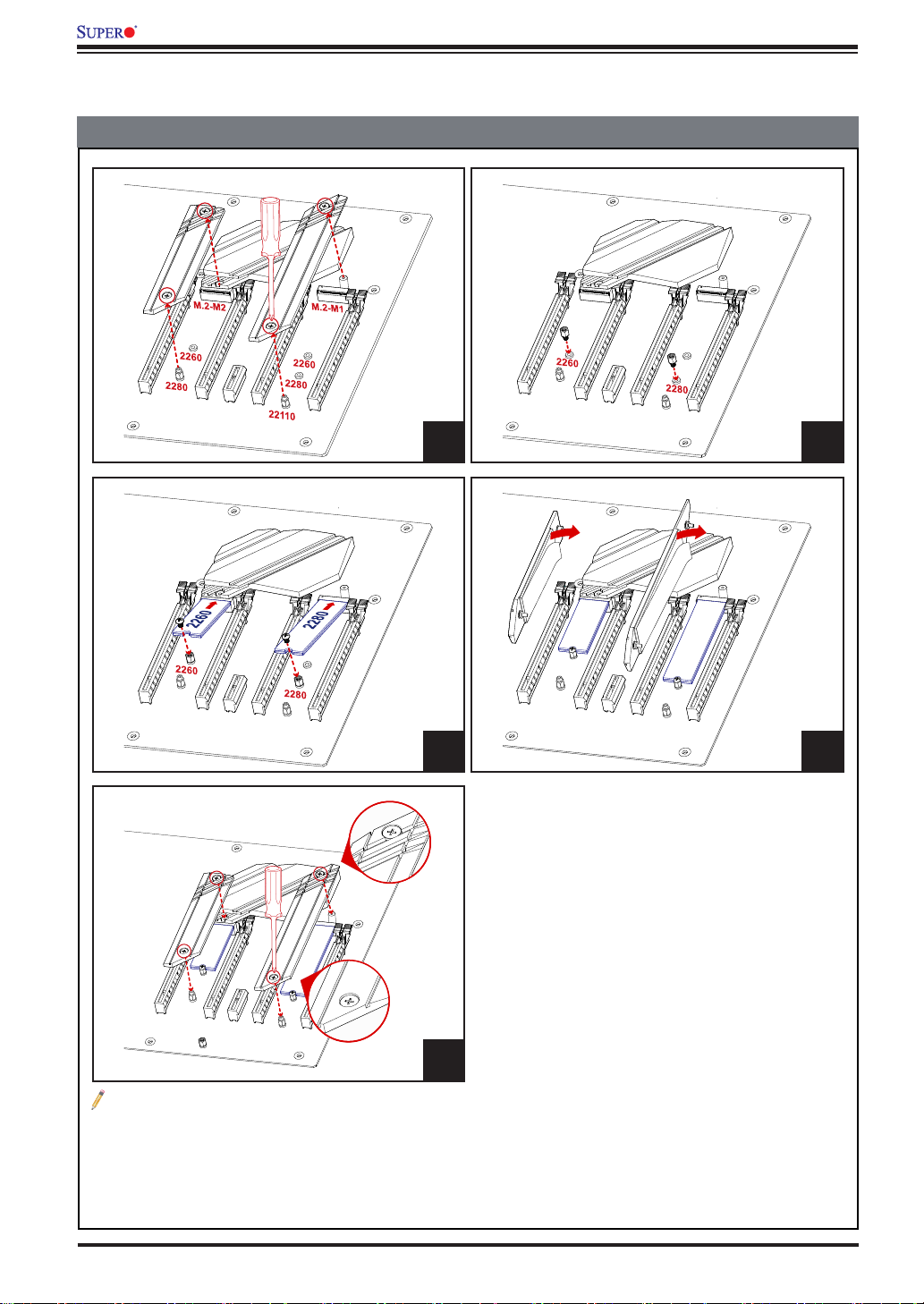

Installation without Pre-installed Stando󰀨s

Notes:

1. To install an M.2 22110 device, please refer to the instructions of Installation with Pre-installed Standoffs on

the previous page.

2. DO NOT install the bounded M.2 heatsink (refer to steps 4 and 5) if the M.2 device has a heatsink installed.

3. Please assemble the M.2 heatsink back to the motherboard once the M.2 device has been removed.

4. Beware of the direction when assembling the heatsink (refer to step 5).

5. Refer to the user's manual for more detailed descriptions.

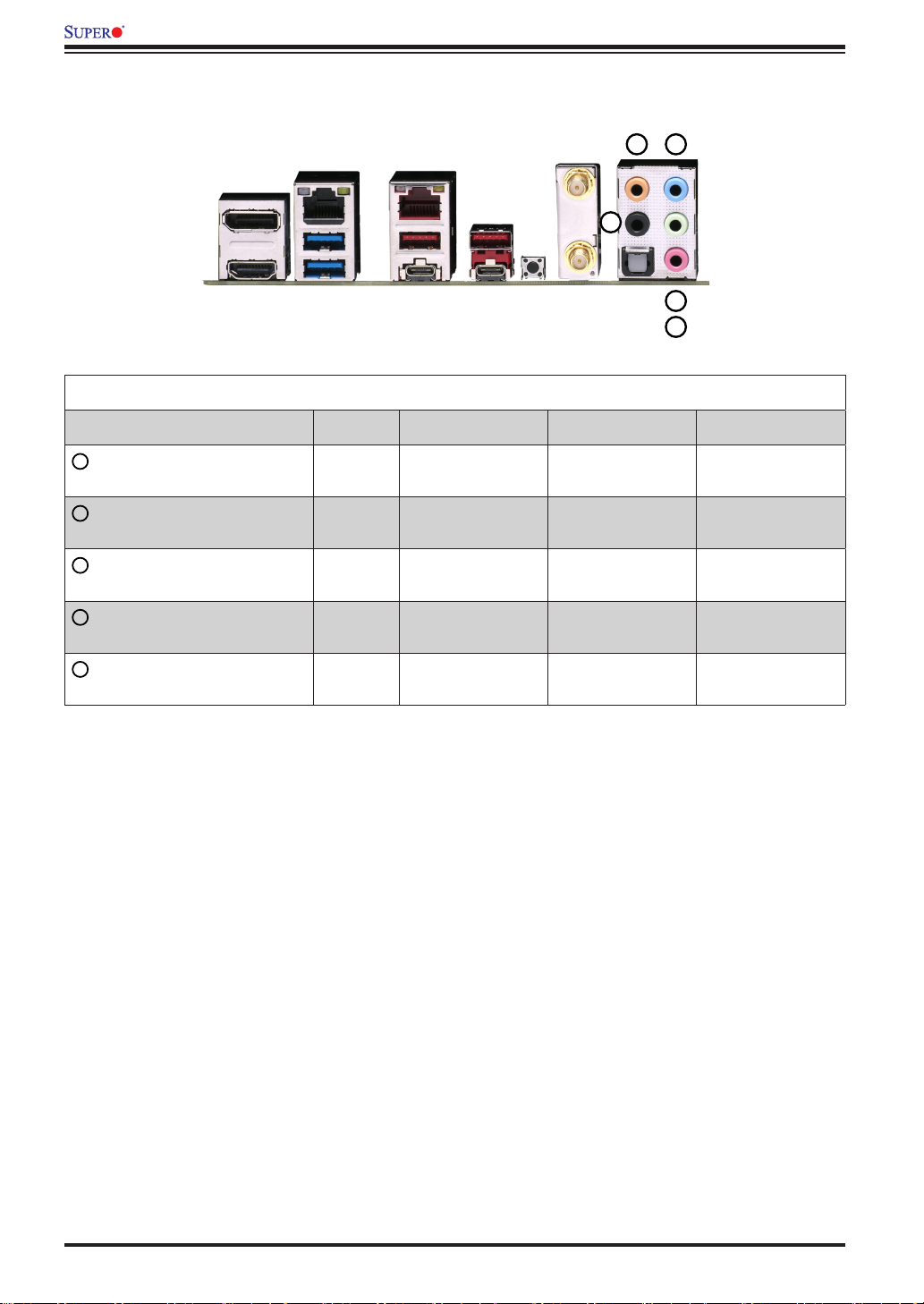

Audio Conguration

1 3

Audio Conguration

2 Channel 4.1 Channel 5.1 Channel 7.1 Channel

1Orange

(Center/LFE Out) Center/Subwoofer Center/Subwoofer

2Black

(Surround) Rear Speaker Out Rear Speaker Out Rear Speaker Out

3Light Blue

(Line In/Side Speaker Out) Line In Line In Line In Side Speaker Out

4Lime

(Line Out/Front Speaker Out) Line Out Front Speaker Out Front Speaker Out Front Speaker Out

5Pink

(Mic In) Mic In Mic In Mic In Mic In

C9Z490-PG/-PGW QUICK REFERENCE GUIDE Audio Conguration

C9Z490-PG/-PGW

QuiCk RefeRenCe Guide Rev. 1.0b

SUPERMICR R

PCH

PLX

Super I/O

LAN Controller

SW1

(CLEAR CMOS)

10G LAN

Controller

DESIGNED IN USA

C9Z490-PGW

REV:1.01

BIOS

LICENSE

MAC CODE

BAR CODE

MH14

JRLED1

MH11

MH10

MH12

MH13

MH15

JSTBY1

JTPM1

HD AUDIO

SP1

JD1

JSD1

SYS_FAN3

USB10/11 (3.2(5Gb))

JPW1

LED18

LED17

LED3

LED2

LED1

JPW2

JI2C2

JI2C1

JL1

LED4

JPAC1

JLED1 JWD1

JPME2

12V_PUMP_PWR1

USB9 (3.2(20Gb))

USB8 (3.2(10Gb))

USB2/3

JF1

BOOT LED

VGA LED

DIMM LED

CPU LED

DP/HDMI

LAN1

AUDIO FP

COM1

USB0/1

PCIE M.2-M1

CPU SLOT1 PCI-E 3.0 X8 (IN X16)

CPU SLOT3 PCI-E 3.0 X16

PCH SLOT4 PCI-E 3.0 X1

CPU SLOT5 PCI-E 3.0 X8 (IN X 16)

I-SATA1

I-SATA0

I-SATA3

I-SATA2

CPU SLOT7 PCI-E 3.0 X16

SYS_FAN2

PCIE M.2-M2

USB12 (3.2(10Gb))

USB6/7 (3.2(5Gb)) USB4/5 (3.2(10Gb))

POWER

BUTTON

DIMMB1

DIMMB2

DIMMA1

DIMMA2

RESET

BUTTON

SYS_FAN1

CPU_FAN1

CLEAR CMOS

CPU_FAN2

LAN2

PCIE M.2-E1

WiFi+BT

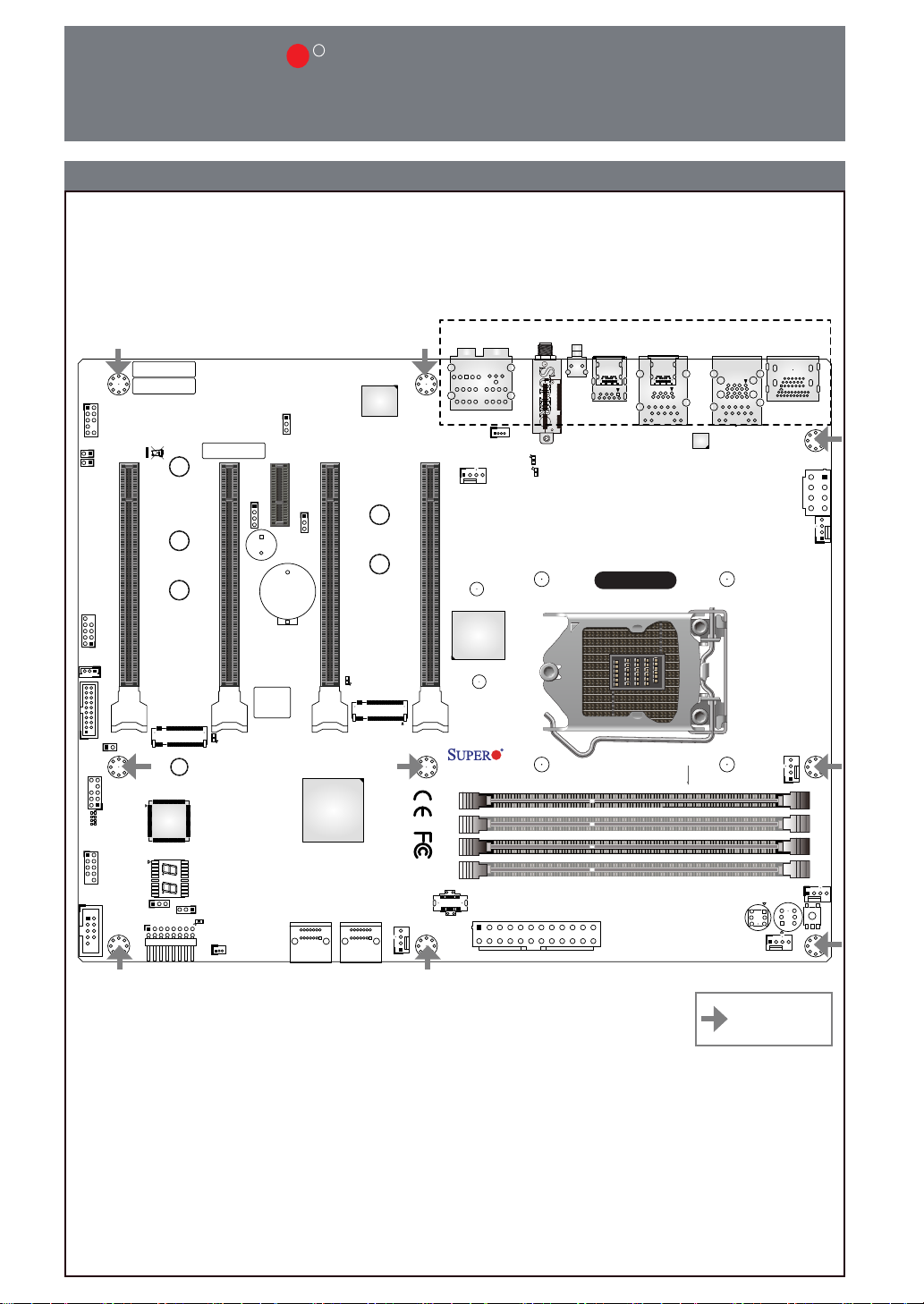

Motherboard Layout and Features

I/O BACK PANEL

= mounting hole

LGA 1200

10th Gen Intel Core i9/i7/i5/i3 CPU

Package contents

• One Supermicro Motherboard

• Four SATA Cables

• One I/O Shield

• One S-Connector

• One Quick Reference Guide

• One Driver CD

• Two Antennas (C9Z490-PGW only)

Connectors

Connector Description

12V_PUMP_PWR1 12V 4-pin Power Connector for CPU Liquid Cooling Pump

AUDIO FP Front Panel Audio Header

B1 Onboard Battery

COM1 COM1 Header

CPU_FAN1 ~ CPU_FAN2 CPU Fan Headers

CPU SLOT1/CPU SLOT5 PCI-E

3.0 x8 (IN x16)

PCIe 3.0 x16 Slots (PCIe 3.0 x8 Link )

*CPU Slot1/Slot5 PCIe 3.0 x8 (IN x16) slot shares PCIe x16 link with CPU Slot3/Slot7 PCIe 3.0 x16 slot,

therefore CPU Slot3/Slot7 PCIe 3.0 x16 link will change to PCIe 3.0 x8 link when one graphics card is

installed in CPU Slot1/Slot5 PCIe 3.0 x8 (IN x16) slot.

CPU SLOT3/CPU SLOT7 PCI-E

3.0 x16

PCIe 3.0 x16 Slots (PCIe 3.0 x16 Link)

*Always plug in one graphics card in CPU Slot3/Slot7 PCIe 3.0 x16 slot rst to maximize performance.

DP/HDMI Back Panel DisplayPort/High Denition Multimedia Interface

HD AUDIO High Denition Audio Ports

I-SATA0~3 (Intel Z490) Serial ATA (SATA 3.0) Ports 0~3 (6Gb/sec)

JD1 Speaker/Buzzer (Pins 1~4: External Speaker, Pins 3~4: Buzzer)

JF1 Front Control Panel Header

*Please align the printed indications on the S-Connector with the corresponding pins on JF1 when plugging in.

JL1 Chassis Intrusion Header

JLED1 Power LED Indicator Header

JPW1 24-pin ATX Main Power Connector (Required)

JPW2 +12V 8-pin CPU Power Connector (Required)

JRLED1 4-pin Connector for a White Light LED Board (Pre-installed) Inside the I/O cover

JSD1 SATA DOM (Disk-On-Module) Power Connector

JSTBY1 Standby Power Header

JTPM1 Trusted Platform Module (TPM)/Port 80 Header (Supports TPM 2.0 only)

LAN1/LAN2 RJ45 10GbE/5GbE LAN Ports

PCIE M.2-E1 WiFi 6+BT 5.1 (Pre-installed, for C9Z490-PGW only)

PCIE M.2-M1/M.2-M2

PCIe M.2 M Key Sockets. Small Form Factor Devices and Other Portable Devices for High

Speed NVMe SSDs

*Support RAID 0,1.

PCH SLOT4 PCI-E 3.0 x1 PCIe 3.0 x1 Slot (PCIe 3.0 x1 Link)

SP1 Internal Speaker/Buzzer

SYS_FAN1 ~ SYS_FAN3 System Fan Headers

USB 0/1, 2/3 Front Panel Accessible USB 2.0 Headers

USB 4/5 Back Panel USB 3.2 Gen 1 Ports (Type A)

USB 6 Back Panel USB 3.2 Gen 2 Port (Type A)

USB 7 Back Panel USB 3.2 Gen 2 Port (Type C)

USB 8 Back Panel USB 3.2 Gen 2 Port (Type A)

USB 9 Back Panel USB 3.2 Gen 2x2 Port (Type C)

USB 10/11 Front Panel Accessible USB 3.2 Gen 1 Header

USB 12 Front Panel Accessible USB 3.2 Gen 2 20-pin Connector

Jumpers and Connectors

Jumpers

Jumper Description Default

CLEAR CMOS Clear CMOS Switch Push Button Switch

JI2C1/JI2C2 SMB to PCIe Slots Open (Off): Disable

JPAC1 Audio Enable/Disable Pins 1-2 (Enable)

JPME2 Intel Manufacturing Mode Pins 1-2 (Normal)

JWD1 Watch Dog Function Enable Pins 1-2 (RST)

POWER BUTTON Internal Power Button Push Button Switch

RESET BUTTON Onboard System Reset Button Push Button Switch

SW1 Back Panel Clear CMOS Switch Push Button Switch

ContaCt InformatIon

• www.supermicro.com (Email: [email protected])

• Manuals: http://www.supermicro.com/support/manuals

• Drivers & Utilities: https://www.supermicro.com/wftp/driver/

• Safety: http://www.supermicro.com/about/policies/safety_information.cfm

LED Indicators

LED Description Color/State

BOOT LED Bootable Device POST (Power-On Self-Test) Status Bootable Device POST: Orange ON

Bootable Device POST Completion: OFF

CPU LED CPU POST (Power-On Self-Test) Status CPU POST: Yellow ON

CPU POST Completion: OFF

DIMM LED DIMM POST (Power-On Self-Test) Status DIMM POST: Blue ON

DIMM POST Completion: OFF

LED1 Onboard Power LED

S3 (Suspend to RAM) LED

Power On: Green On

S3: Green Blinking

LED17 WLAN POST (Power-On Self-Test) Status WLAN POST: Green ON

WLAN POST Completion: OFF

LED18 Bluetooth Device POST (Power-On Self-Test) Status Bluetooth Device POST: Green ON

Bluetooth Device POST Completion: OFF

LED2 PCIe M.2-M2 Socket LED PCIe Device Detected: Green ON

Activity: Green Blinking

LED3 PCIe M.2-M1 Socket LED PCIe Device Detected: Green ON

Activity: Green Blinking

LED4 BIOS POST Code LED Digital Readout

VGA LED Onboard VGA POST (Power-On Self-Test) Status Onboard VGA POST: Green ON

Onboard VGA POST Completion: OFF

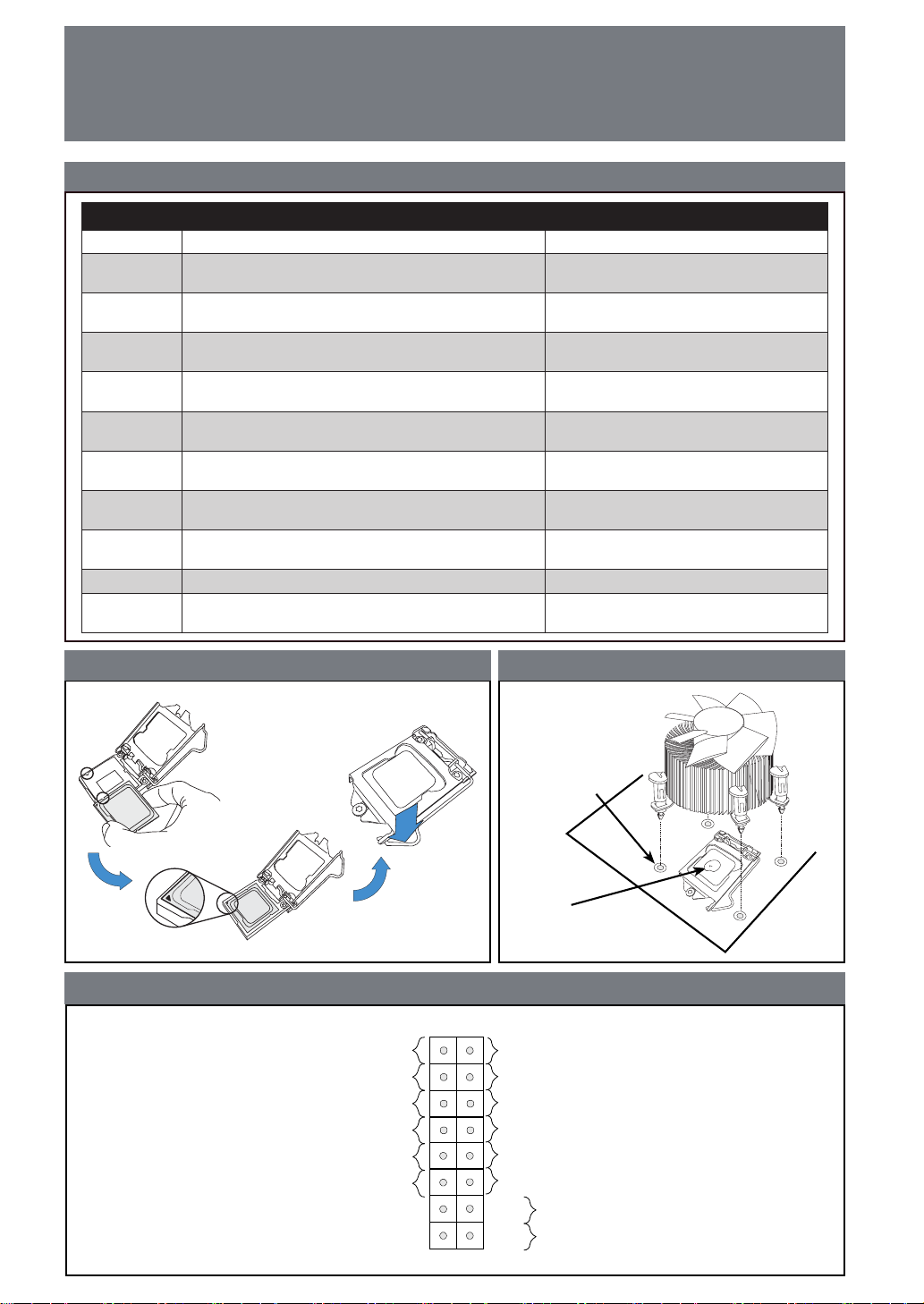

Front Control Panel (JF1)

Power Button

Overheat/

Fan Fail LED (-)

NIC1 LED (-)

Reset Button

HDD LED (-)

POWER LED (-)

Reset

PWR

POWER LED (+)

Ground

HDD LED (+)

NIC1 LED (+)

Overheat/

Fan Fail LED (+)

1615

NIC2 LED (-) NIC2 LED (+)

CPU Installation Heatsink Installation

Heatsink

with Fan

Motherboard

Mounting Hole

Add

thermal paste

Otros manuales para C9Z490-PG

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Supermicro

Supermicro

Supermicro X13SEED-F Manual de usuario

Supermicro

Supermicro X11DPG-OT-CPU Manual de usuario

Supermicro

Supermicro C7Z270-CG-M Manual de usuario

Supermicro

Supermicro X11DGQ Manual de usuario

Supermicro

Supermicro X10DRG-O+-CPU Manual de usuario

Supermicro

Supermicro X10DRG-Q Manual de usuario

Supermicro

Supermicro X11DAi-N Manual de usuario

Supermicro

Supermicro X11SCV-Q Manual de usuario

Supermicro

Supermicro H11DSU-iN Manual de usuario

Supermicro

Supermicro X5DPL-TGM Manual de usuario

Supermicro

Supermicro X9SKV Manual de usuario

Supermicro

Supermicro X6DHR-8G Manual de usuario

Supermicro

Supermicro PDSBA Manual de usuario

Supermicro

Supermicro X10DRT-H Manual de usuario

Supermicro

Supermicro X12STN-H Manual de usuario

Supermicro

Supermicro Supero X8SAX Manual de usuario

Supermicro

Supermicro PDSMi Plus Manual de usuario

Supermicro

Supermicro X10DRL-CT Manual de usuario

Supermicro

Supermicro X10SLA-F Manual de usuario

Supermicro

Supermicro X12STL-F Manual de usuario

Supermicro

Supermicro P3TDER Plus Manual de usuario

Supermicro

Supermicro X7DBR-8 Plus Manual de usuario

Supermicro

Supermicro P4DLR Manual de usuario

Supermicro

Supermicro SUPER P5MMA2 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
