QUICK REFERENCE GUIDE

Revision 1.0a

C7B250-CB-ML QUICK REFERENCE GUIDE Product Safety Information

Standardized Warning Statements

Motherboards

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which can potentially

cause a bodily injury. Should you have questions or experience difculty, contact Supermicro's Technical Support De-

partment for assistance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the Supermicro chassis.

WARNING: This product can expose you to chemicals including

lead, known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, go

to www.P65Warnings.ca.gov.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-

lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理

廢棄舊電池。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理

废旧电池。

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のもの

を使用下さい。使用済電池は製造元の指示に従って処分して下さい。









경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한

종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Note: For complete product safety information, refer to http://www.supermicro.com/about/policies/safety_information.cfm.

C7B250-CB-ML QUICK REFERENCE GUIDE 限用物質含有情況標示聲明書

限用物質含有情況標示聲明書

設備名稱：主機板

Motherboard

,型號（型式）：

C7B250-CB-ML; C7Q270-CB-ML

單元Ｕnit

限用物質及其化學符號

鉛Lead

(Pb) 汞Mercury

(Hg) 鎘Cadmium

(Cd)

六價鉻

Hexavalent

chromium

(Cr+6)

多溴聯苯

Polybrominated

biphenyls

(PBB)

多溴二苯醚

Polybrominated

diphenyl ethers

(PBDE)

主機板

(Motherboard)

－○○○○○

備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準

值。

備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。

備考3.〝－〞係指該項限用物質為排除項目。

Equipment name

Type designation (Type)

Restricted substances and its chemical symbols

Declaration of the Presence Condition of the Restricted Substances Marking

Note 1

：

“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the

reference percentage value of presence condition.

Note 2

：

“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.

Note 3

：

The “−” indicates that the restricted substance corresponds to the exemption.

C7B250-CB-ML QUICK REFERENCE GUIDE BIOS POST Code

AMI BIOS POST Codes

About AMI BIOS POST Codes

The table below lists some of AMI BIOS POST codes for C7B250-CB-ML. For more information, refer to https://www.

supermicro.com.tw/manuals/other/AMI_BIOS_POST_Codes_for_Grantley_Motherboards.pdf.

Code Description

0x32 CPU post-memory initialization is started

0x55 No Memory detected or memory failed

0x63 CPU DXE initialization is started

0x69 North Bridge DXE initialization is started

0x70 South Bridge DXE initialization is started

0x92 PCI Bus initialization is started

0x99 Super IO Initialization

0x9A USB initialization is started

0xA0 IDE initialization is started

0xA9 Boot into BIOS setup menu

0xAE Legacy Boot event

0xB2 Legacy Option ROM Initialization

0xB4 USB hot plug

0xD6 No VGA device

0xD7 No Keyboard plugged in

0xF2 Recovery process started

0xF9 Recovery capsule is not found

C7B250-CB-ML QUICK REFERENCE GUIDE Notes

Notes

C7B250-CB-ML

QuiCk RefeRenCe Guide Rev. 1.0a

SUPERMICR R

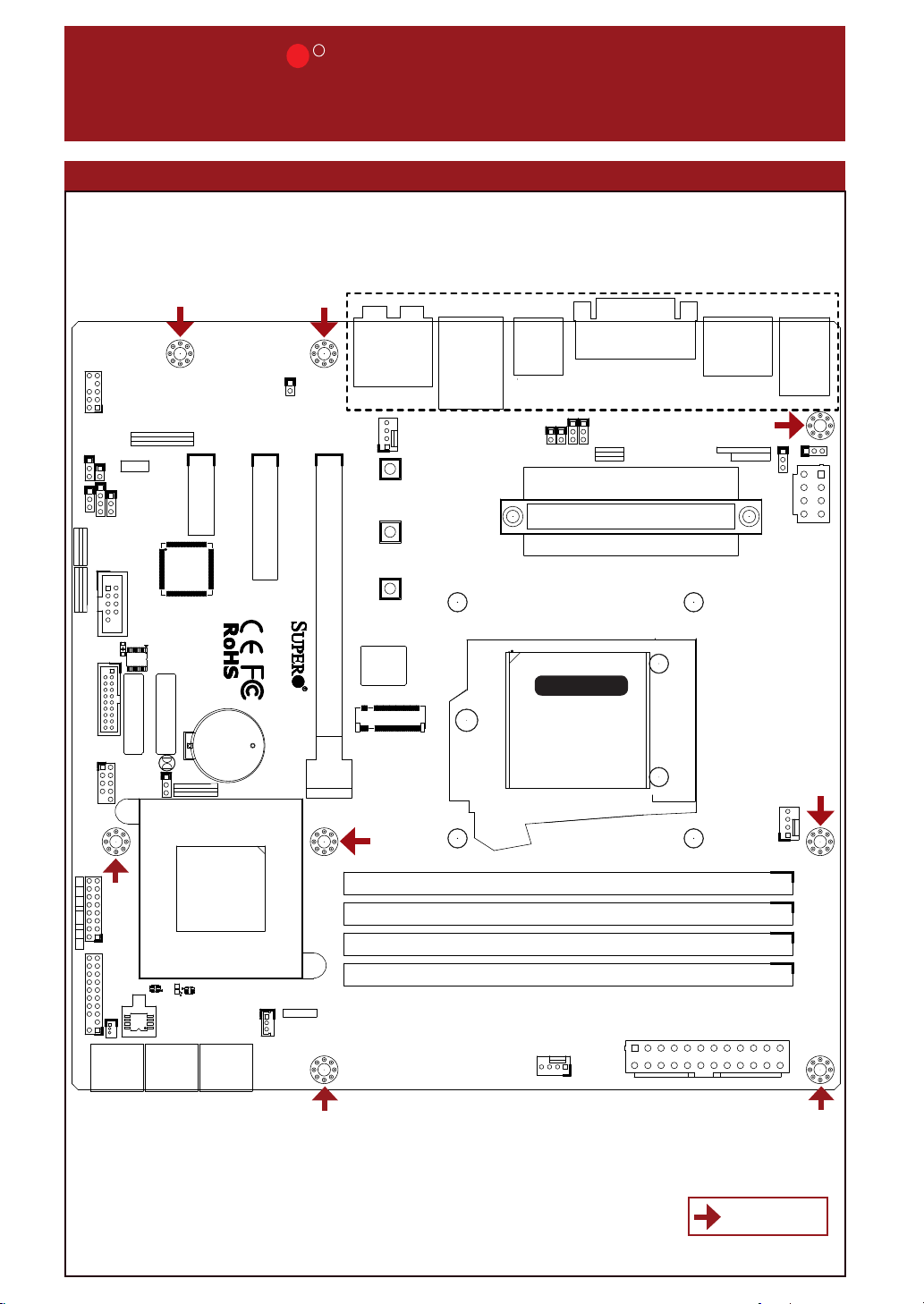

Motherboard Layout and Features

= mounting hole

LGA 1151

I/O BACK PANEL

TPM/PORT80JTPM1:

JTPM1

RST PWR

XOH/FF

NIC

PWR

LED

HDD

LED

JF1

USB 2/3USB 8/9(3.0)

2-3:BIOS RECOVERY

1-2:NORMAL

JBR1

WATCH DOG

1-2:RST

2-3:NMI

JWD1:

JBR1

JPME2

AUDIO FP

COM1

JD1:SPEAKER :1-4

JD1

JSD1

JWD1

JL1

JSD1:SATA DOM PWR

JL1:

CHASSIS

INTRUSION

2-3:ME MANUFACTURING MODE

JPME2:

1-2:NORMAL

I-SATA5

I-SATA4

I-SATA3

I-SATA2

I-SATA1

I-SATA0

PCH SLOT1 PCI-E 3.0 X1

PCH SLOT2 PCI-E 3.0 X4

J9702

JSTBY1

J9701

JI2C2

JI2C1

JSPDIF_OUT

5V STBY POWER

JSTBY1:

CPU SLOT3 PCI-E 3.0 X16

OFF:DISABLE

JI2C1/JI2C2

ON :ENABLE

HD AUDIO

PCIE M.2

CONNECTOR 1

SYS_FAN2

USB 6/7(3.0)

LAN

CPU

JPW1

DVI

JPUSB1:USB0/1 WAKE UP

HDMI/DP

DIMMB2

DIMMA2

DIMMB1

DIMMA1

2-3 DISABLE

1-2 ENABLE

CPU_FAN1

JVR1 JPUSB1

JPW2

KB/MOUSE

LED1

REV: 1.0

C7B250-CB-ML

DESIGNED IN USA

BAR CODE

MAC CODE

BIOS LICENSE

A C

USB 4/5(3.0)

USB 0/1

2280

2260

2242

JBT1

JBT1:CMOS CLEAR

JCMOS

2-3:CLEAR CMOS

1-2:NORMAL

JCMOS:

SYS_FAN1

7th/6th Gen

Intel® CoreTM i7/i5/i3

Series CPU

Package contents

• One (1) Quick Reference Guide

• One (1) Driver CD

• One (1) Supermicro Motherboard

• Two (2) SATA cables

• One (1) I/O Shield

Jumpers and Connectors

Jumpers

Connectors

Jumper Description Default

JCMOS Clear CMOS 1-2: Normal

JBR1 BIOS Recovery 1-2: Normal

JBT1 Clear CMOS (onboard) Short pads to clear CMOS

JI2C1/JI2C2 SMB to PCI-E Slots On: Enable

JPME2 Intel®Manufacturing Mode 1-2: Normal

JPUSB1 USB Wake Up Enable (Back Panel USB 0/1) 1-2: Enable

JWD1 Watch Dog Function Enable 1-2: RST

Connector Description

AUDIO FP Front Panel Audio Header

BT1 Onboard Battery

COM1 COM1 Port Header

CPU_FAN1 CPU Fan Headers

I-SATA0~5 (Intel®PCH) Serial ATA (SATA) 3.0 Ports 0~5 (6Gb/sec)

JD1 Pin 1~4: External Speaker

JF1 Front Control Panel Header

JL1 Chassis Intrusion Header

JPW1 24-pin ATX Power Connector (Required)

JPW2 8-pin CPU Power Connector (Required)

JSD1 SATA DOM (Disk On Module) Power Connector

JSPDIF_OUT Sony/Philips Digital Interface (S/PDIF) Out Header

JSTBY1 Standby Power Header

JTPM1 Trusted Platform Module (TPM) Header

PCI-E M.2 CONNECTOR 1 PCI-E M.2 Connector 1. Small form factor devices and other portable devices for

high speed NVMe SSDs

SYS_FAN1/FAN2 System Fan Headers

USB 2/3 Front Panel Accessible USB 2.0 Header

USB 8/9 (3.0) Front Panel Accessible USB 3.0 Header

ContaCt InformatIon

• www.supermicro.com (Email: [email protected])

• Manuals: http://www.supermicro.com/support/manuals

• Drivers & Utilities: https://www.supermicro.com/wftp/driver/

• Safety: http://www.supermicro.com/about/policies/safety_information.cfm

LED Indicators

LED indicators

CPU & Memory Support

DIMM Memory Installation

LED Description Color/State

LED1 Power On

S3 (Suspend to RAM) LED

Power On: Green On

S3: Green Blinking

The C7B250-CB-ML supports a single 6th and 7th generation Intel® CoreTM i7/i5/i3/Pentium®/Celeron®series proces-

sor, up to 64GB of Unbuffered (UDIMM) non-ECC DDR4 memory, up to 2400MHz in four 288-pin memory slots.

Populating these DIMM slots with a pair of memory modules of the same type and size will result in interleaved

memory, which will improve memory performance.

Note: 1) For memory optimization, use only DIMM modules that have been validated by Supermicro. For the latest memory updates, please

refer to our website at http://www.supermicro.com/products/motherboard.

2) Always connect the power cord last, and always remove it before adding, removing or changing any hardware components.

Memory Population Guidelines

When installing memory modules, the DIMM slots should be populated in the following order: DIMMB2, DIMMA2,

then DIMMA1, DIMMB1.

• Always use DDR4 DIMM modules of the same size, type, and speed.

• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.

Recommended Population (Balanced)

DIMMB2 DIMMA2 DIMMB1 DIMMA1 Total System Memory

4GB 4GB 8GB

4GB 4GB 4GB 4GB 16GB

8GB 8GB 16GB

8GB 8GB 8GB 8GB 32GB

16GB 16GB 32GB

16GB 16GB 16GB 16GB 64GB

Towards the CPU

DIMMB2 (Red Slot)

DIMMA2 (Red Slot)

DIMMA1 (Black Slot)

DIMMB1 (Black Slot)

MNL-1938-QRG-10a

micro's written consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing;

however, it is not guaranteed.

Notes

• Graphics shown in this quick reference guide are for illustration only. Your components may or

may not look exactly the same as drawings shown in this guide.

• Refer to Chapter 2 of the User Manual for detailed information on jumpers, connectors, LED

indicators, memory support and CPU/motherboard installation instructions.

Front Control Panel (JF1)

CPU Installation Heatsink Installation

Heatsink

with Fan

Motherboard

Mounting Hole

Back Panel I/O Connectors

Add

thermal paste

Power Button

Over heat/Fan Fail L

ED (-)

NIC1 LED (-)

Reset Button

HDD LED (-)

POWER LED (-)

Reset

PWR

POWER LED (+)

Ground

HDD LED (+)

NIC1 LED (+)

Over heat/Fan Fail L

ED (+)

1516

A. PS/2 Keyboard/Mouse Port G. USB 3.0 Port 4 L. Center/LFE Out

B. USB 2.0 Port 0 H. USB 3.0 Port 5 M. Surround Out

C. USB 2.0 Port 1 I. RJ-45 Gigabit Ethernet Port N. SPDIF Out

D. DisplayPort J. USB 3.0 Port 6 O. Line In

E. HDMI Port K. USB 3.0 Port 7 P. Line Out

F. DVI-D Port Q. Mic In
