Supermicro SC942i-550 Manual de usuario

1.0

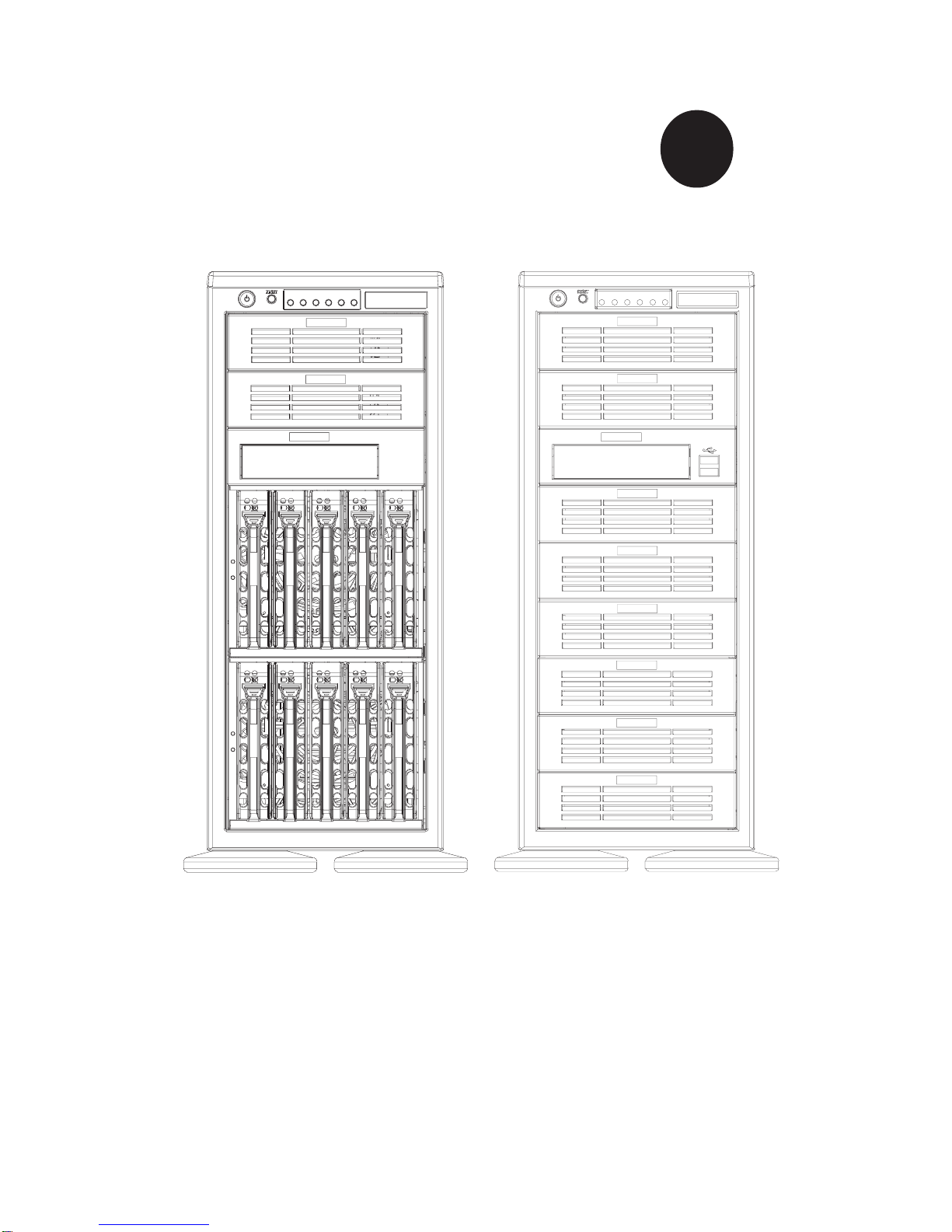

SUPER

SC942 CHASSIS

INSTALLATION GUIDE

SC942S-600 SC942i-600/550

SUPER SC942 Chassis User's Guide

1-2

Table of Contents

Chapter I: Unpacking and Check Lists ....................................1-3

Chapter 2: Installation Procedures...........................................2-1

Section 1: Installing components into the SC942 Chassis............. 2-1

A. Removing the Side Cover of the SC942 Chassis................................ 2-1

B. Removing the SCSI Drive Trays .............................................................. 2-2

C. Removing the Rear Exhaust Fan and Installing the Motherboard..... 2-3

D. Removing the Components from and Installing Devices into the 5.25"

Drive Bays........................................................................................................ 2-4

E. Installing the Rear Chassis Lock ............................................................. 2-5

F. Removing the Front Side Cover to Access the Drives ....................... 2-7

Section 2: Installing the SC942 as a Rackmount ............................. 2-9

G. Rackmount Rail Kit-CSE-PT26 .................................................................. 2-9

H. Removing the Top Chassis Cover and Chassis Feet to install Chassis

for Rackmount purpose................................................................................ 2-10

I. Attaching Chassis Ears to the Chassis ............................................... 2-11

J. Installing Chassis Rails.......................................................................... 2-12

K. Rack Installation ....................................................................................... 2-13

Appendix A: CSE-M35S/CSE-M35T1 Mobile Rack ................. A-1

A. Packaging List ........................................................................................... A-2

B. Technical Specifications .......................................................................... A-2

Appendix B: Power Supply Specifications............................ B-1

Appendix C: SCSI (Super) GEM Driver Installation Instructions

for Windows OS ........................................................................... C-1

1-3

Chapter 1: Unpacking and Check Lists

Chapter 1- Unpacking and Check Lists

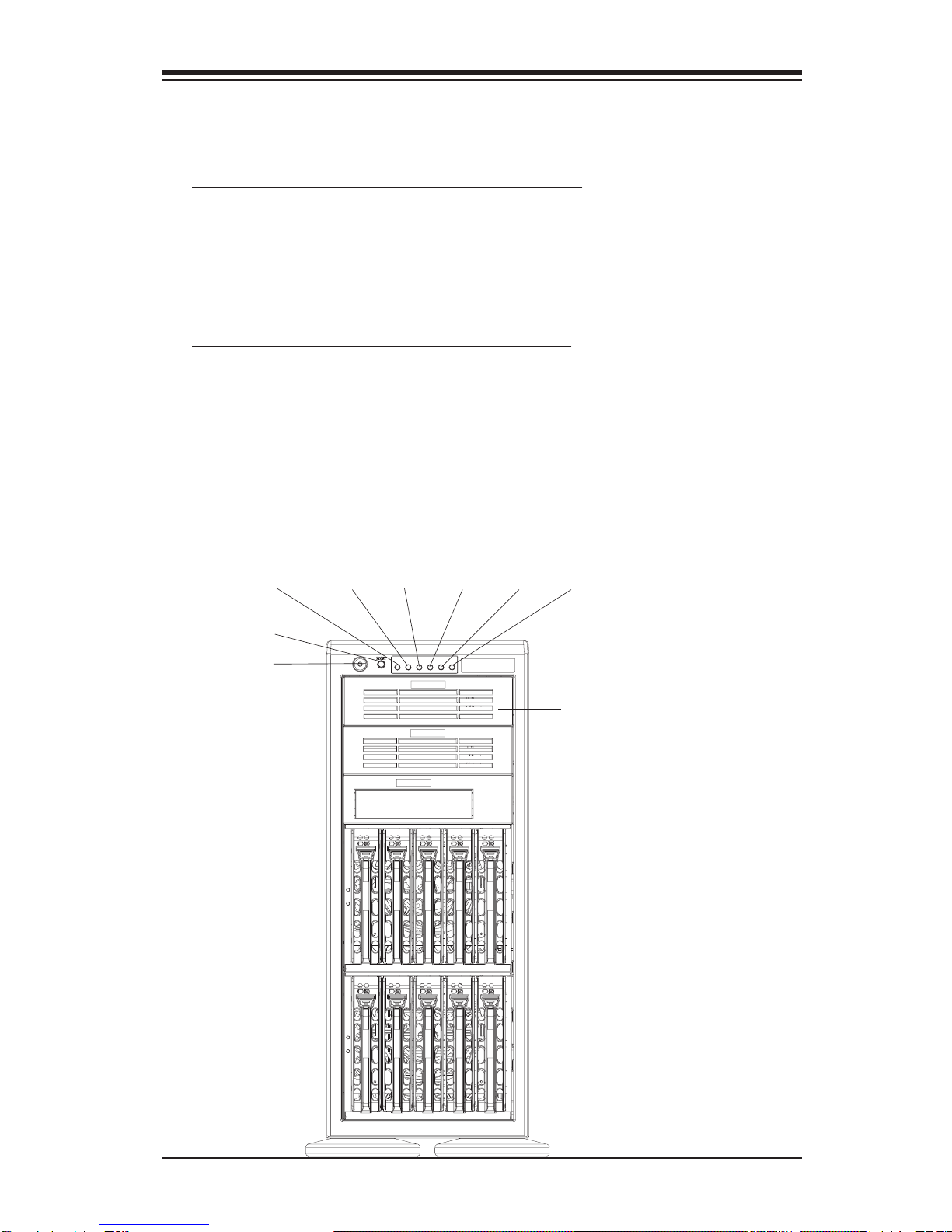

1-A. The SC942S-600 chassis

The SC942S chassis contains the following:

One (1) 5.25" drive bay (for floppy drive)

Two (2) 5.25" drive bays (for peripheral drives)

Ten (10) SCA 1" drive trays

Three (3) Hot-swappable 120mm chassis fans

One (1) 120mm rear exhaust fan

The accessory box contains the following:

One set of motherboard screws

One set of drive screws

One set of HDD (hard disk drive) screws

One (1) chassis lock mechanism

Three (3) AC power cords

PowerButton

Reset Button

5.25" Expansion Bays

(SC942S-600)

PWR On

One (1) 30" SCSI cable (CBL-028)

One (1) 10" SCSI cable (CBL-043)

HDD Activity OH PWR Fail LAN1 LAN2

SUPER SC942 Chassis User's Guide

1-4

1-B. The SC942i chassis

The SC942i chassis contains the following:

Eight (8) 5.25" peripheral drive bays

One (1) 5.25" drive bay for floppy drive

Three (3) Hot-swappable120mm chassis fans (*SC 942i-600)

Two (2) Hot-swappable120mm chassis fans (*SC 942i-550)

One (1) 120mm Rear Exhaust fan

Two (2) Front accessible USB 2.0 ports

The accessory box contains the following:

One set of motherboard screws

One set of drive screws

One set of HDD (hard disk drive) screws

One (1) chassis lock mechanism

One (1) AC power cord(*SC 942i-550)

PowerButton

Reset Button

USB 2.0 Ports (*SC 942i only)

(SC942i-600/550)

5.25" Expansion Bays

Three (3) AC power cords(*SC 942i-600)

PWR On HDD Act OH PWR Fail LAN1 LAN2

2-1

Chapter 2: Installation Procedures

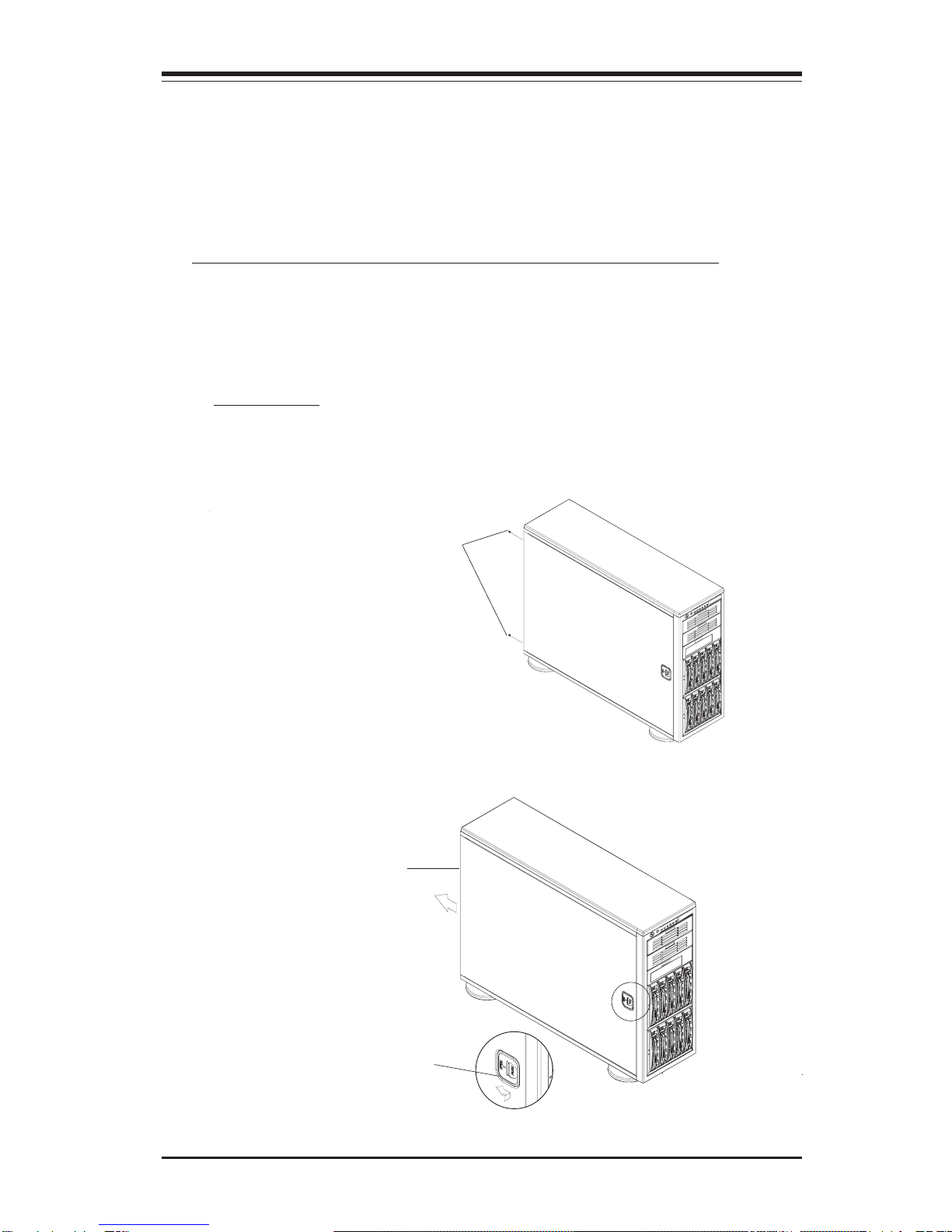

A. Removing the Side Cover of the SC942 Chassis

Before installing any components, replacing chassis fans or accessing the

motherboard, you will first need to remove the side cover.

Procedures

1. Remove the two screws from the back lip of the side cover (-this is the

left cover when you looking from the front.)

3. You can now lift the side cover up and off the chassis.

2. Push in the release tab on the cover and push the cover back to the rear

of the chassis about 1/2 inch.

Remove the screws

Push in the Release Tab

Push the cover toward

the rear of the chassis

Chapter 2: Installation Procedures

Section 1: Installing Components into the SC942

Chassis

SUPER SC942 Chassis User's Guide

2-2

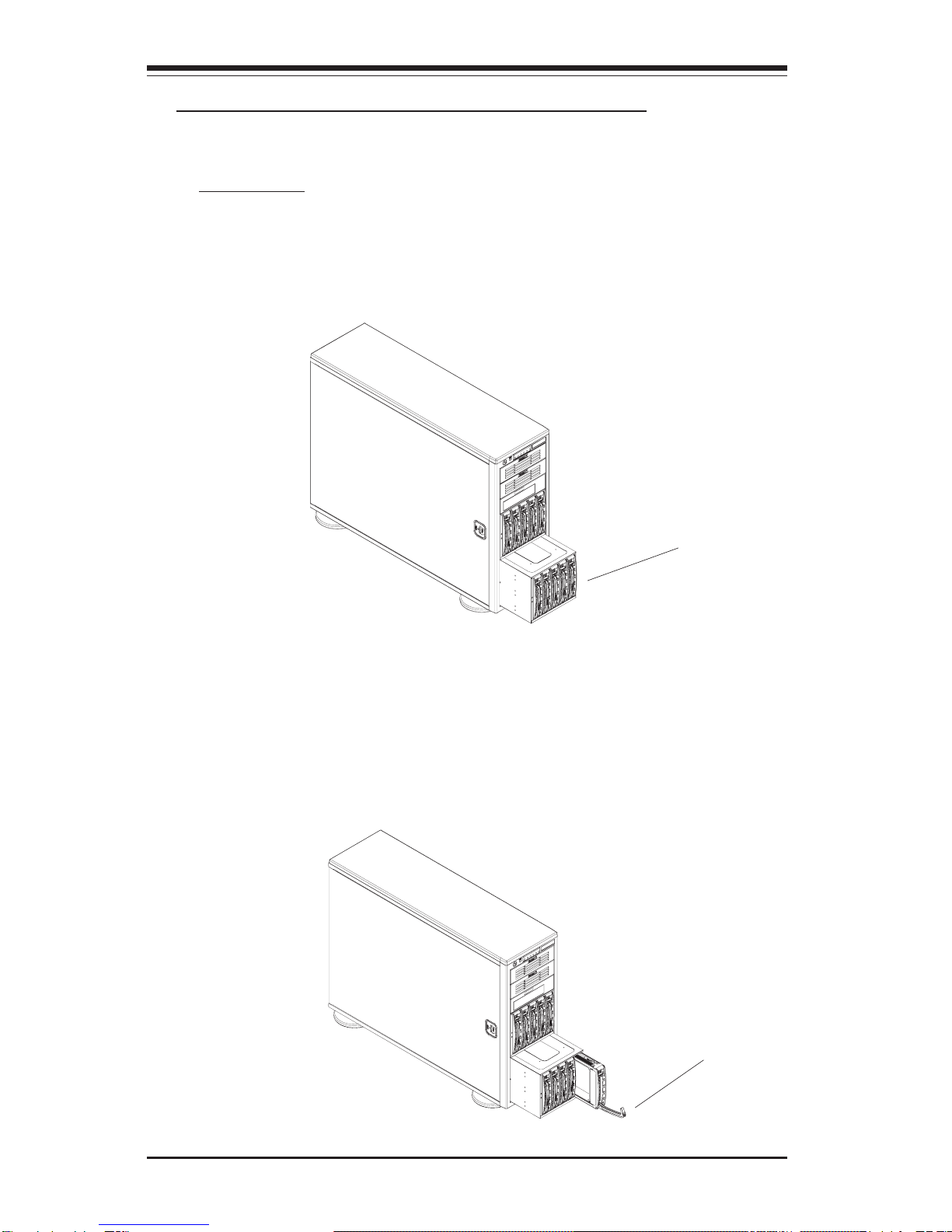

B. Removing the SCSI Drive Trays (*SC942S)

Procedures

1.Pull out the SCSI Drive Trays located on the front side of the

chassis(*SC942S only)

2. Pull the SCSI Drive Bay outwards, and press the release tab located on

the SCSI Drive Bay. Then, you can access the SCSI Drive.

Pull the SCSI Drive

Trays outwards

Press the release tab

and open the drive bay

door

2-3

Chapter 2: Installation Procedures

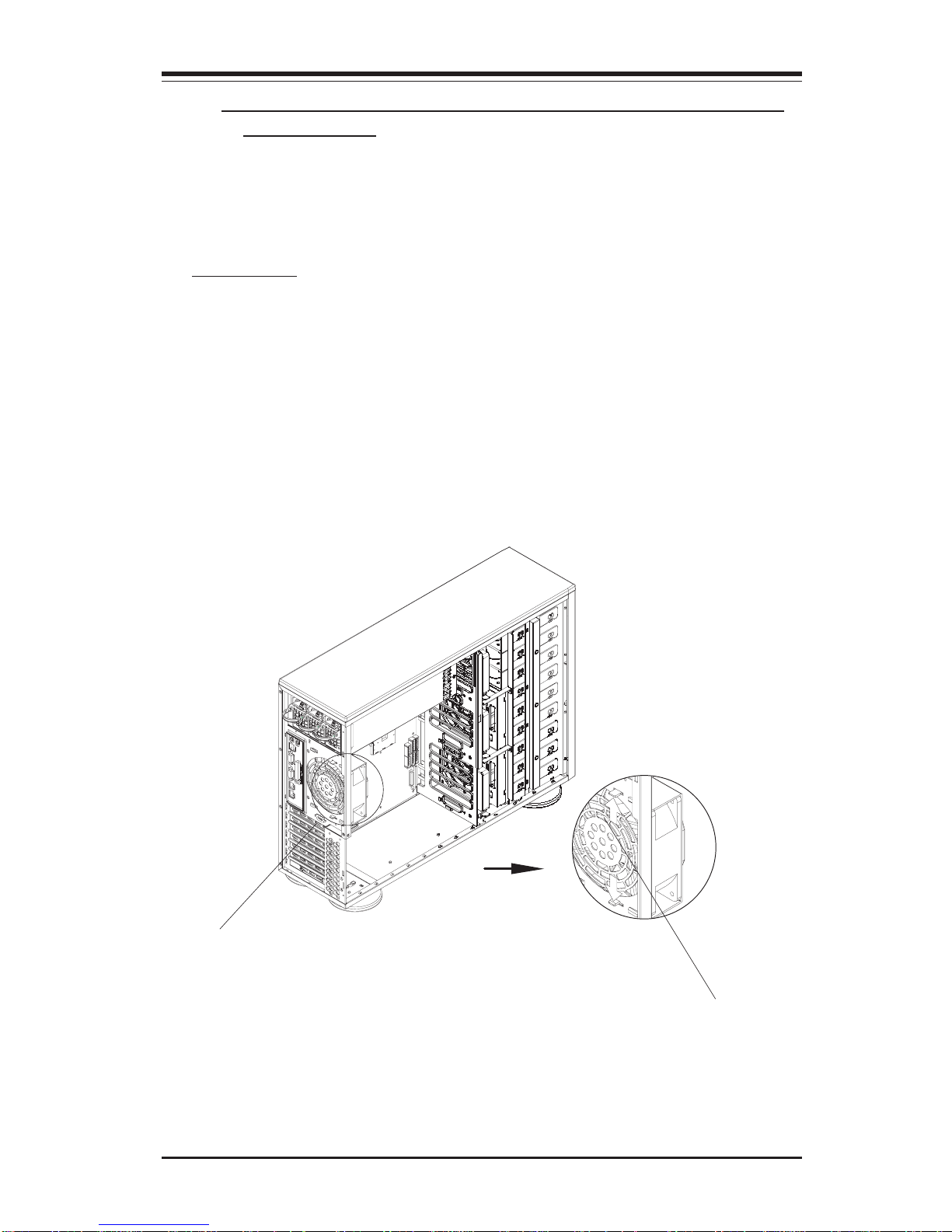

C. Removing the Rear Exhaust Fan and Installing the

Motherboard

(You will need to remove the rear exhaust fan before you install the

motherboard.)

Procedures

1. Remove the side cover from the chassis (refer to Section A).

2. Locate the exhaust fan tabs on the back panel (See picture below right.)

3. Apply pressure to the tabs (located on the top and the bottom of the rear

exhaust fan) to snap the fan out of its locked position.

4. Pull the fan away from the chassis.

Rear Exhaust Fan

Apply Pressure to the

tabs to loosen the fan,

and then, pull the fan

out from the chassis.

SUPER SC942 Chassis User's Guide

2-4

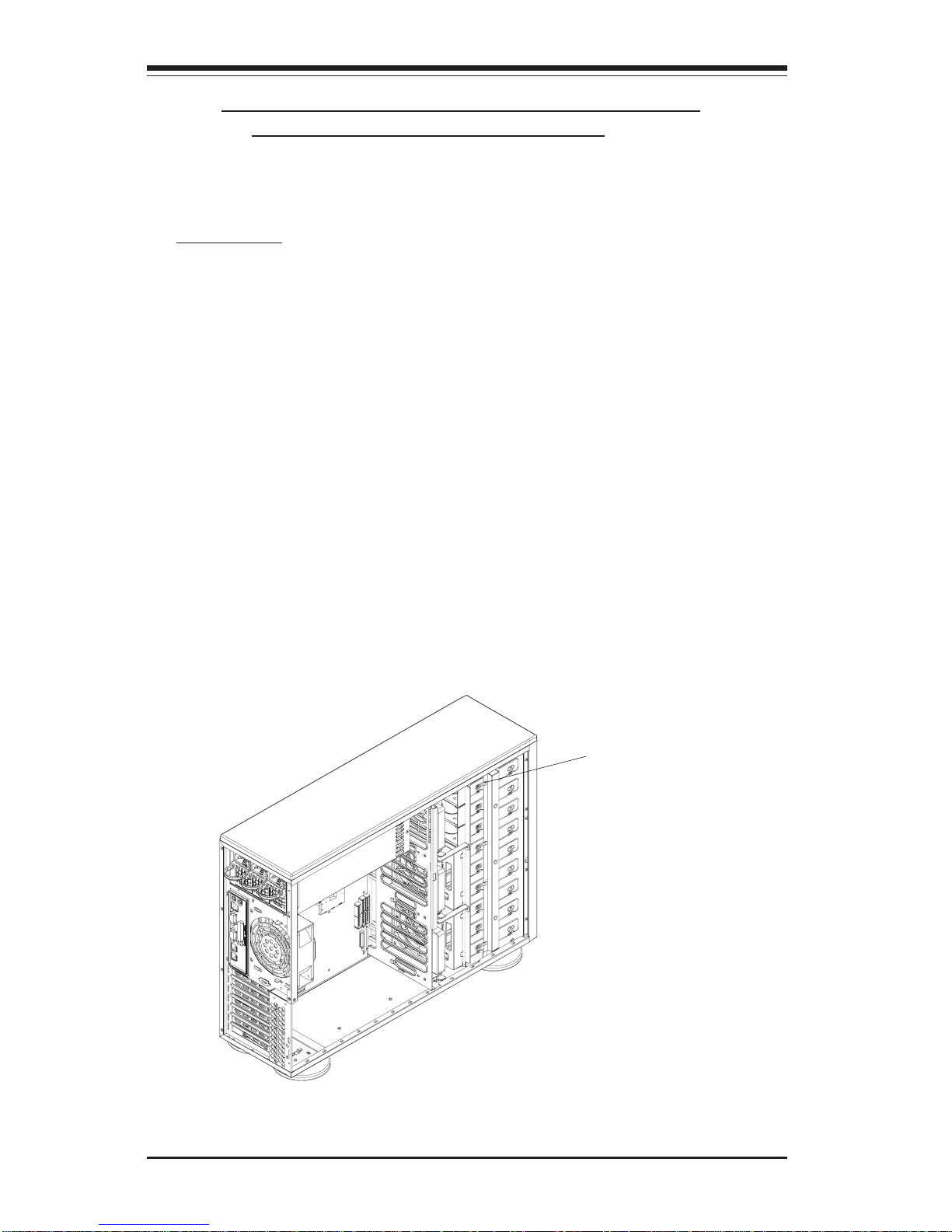

D. Removing Components from and Installing

Devices into the 5.25" Drive Bays

After removing the side cover from the chassis, you can remove or install

devices into the drive bays (See Section A for removing the side cover).

Procedures

1. Remove the side cover to access the 5.25" drive bays.

2. Remove the screws of the bay you wish to install or remove a compo-

nent from. (*The chassis comes with dummy modules in all bays to maintain

adequate airflow. These dummy modules should remain in the chassis until

you want to add a component. Note that the top two bays are combined into

a single module. To add components, you must first remove the four screws

corresponding both bays.)

3. After removing the screws, push the drive module out from the front of

the chassis. For the floppy drive bay, you must first remove the two face

plates.

4. Attach the dummy rails to the new drive and insert the new drive into the

bay. Secure it to the chassis with the screws you've removed. Remember

to plug the data and power cables into the drive. When finished, place the

chassis side cover to its place and secure it with the screws.

Remove the screws

2-5

Chapter 2: Installation Procedures

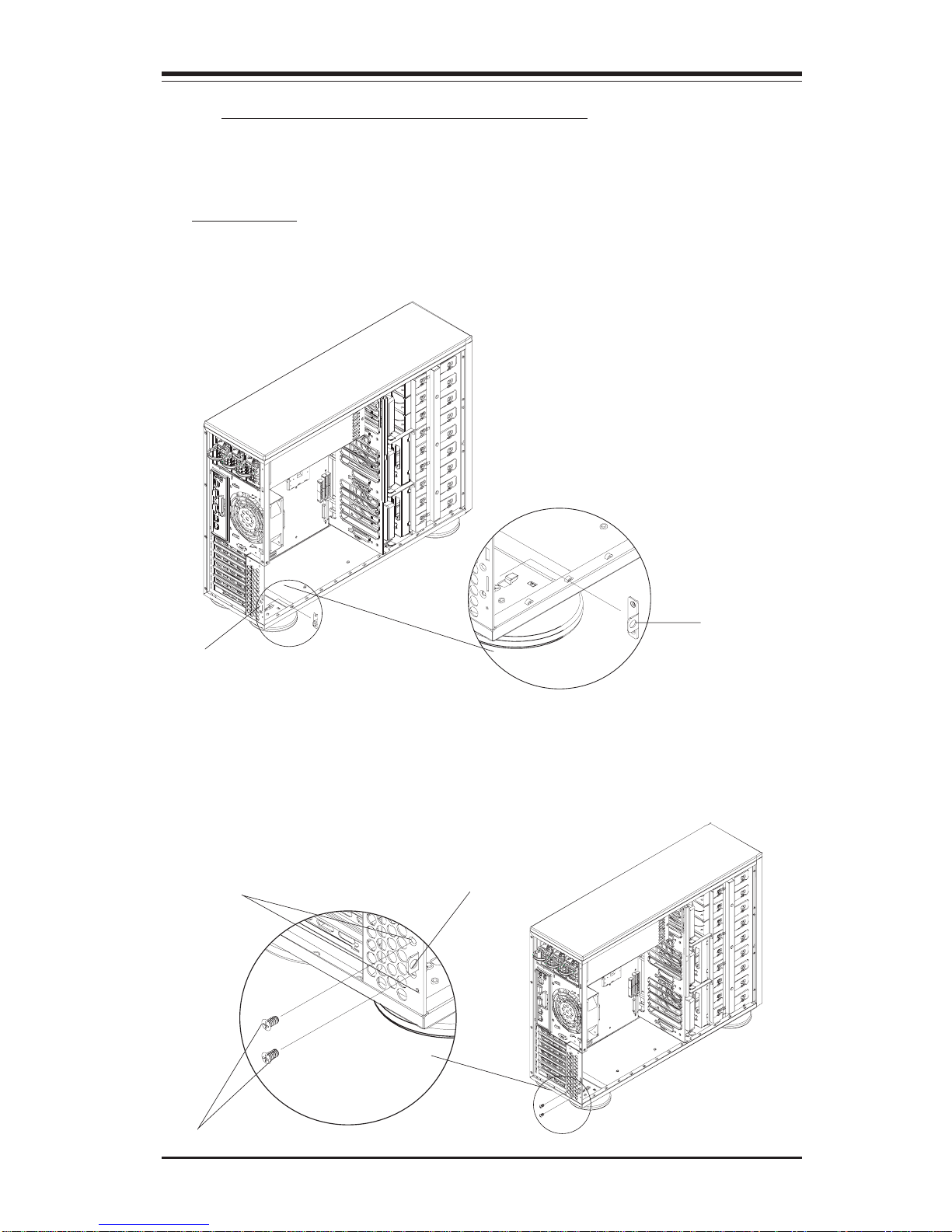

E. Installing the Rear Chassis Lock

Follow the procedures listed below to install the Rear Chassis Lock.

Procedures

1. Locate the hole at the right bottom corner of the rear side of the chassis.

Also locate the lock bracket included in your shipping package.

Hole for the lock bracket

2. Insert the lock bracket into the hole (*See above) and secure the lock

bracket onto the chassis by putting flat screws on holes on the top and

bottom of the lock bracket hole as shown below:

Holes for the screws

lock bracket

screws

lock bracket

SUPER SC942 Chassis User's Guide

2-6

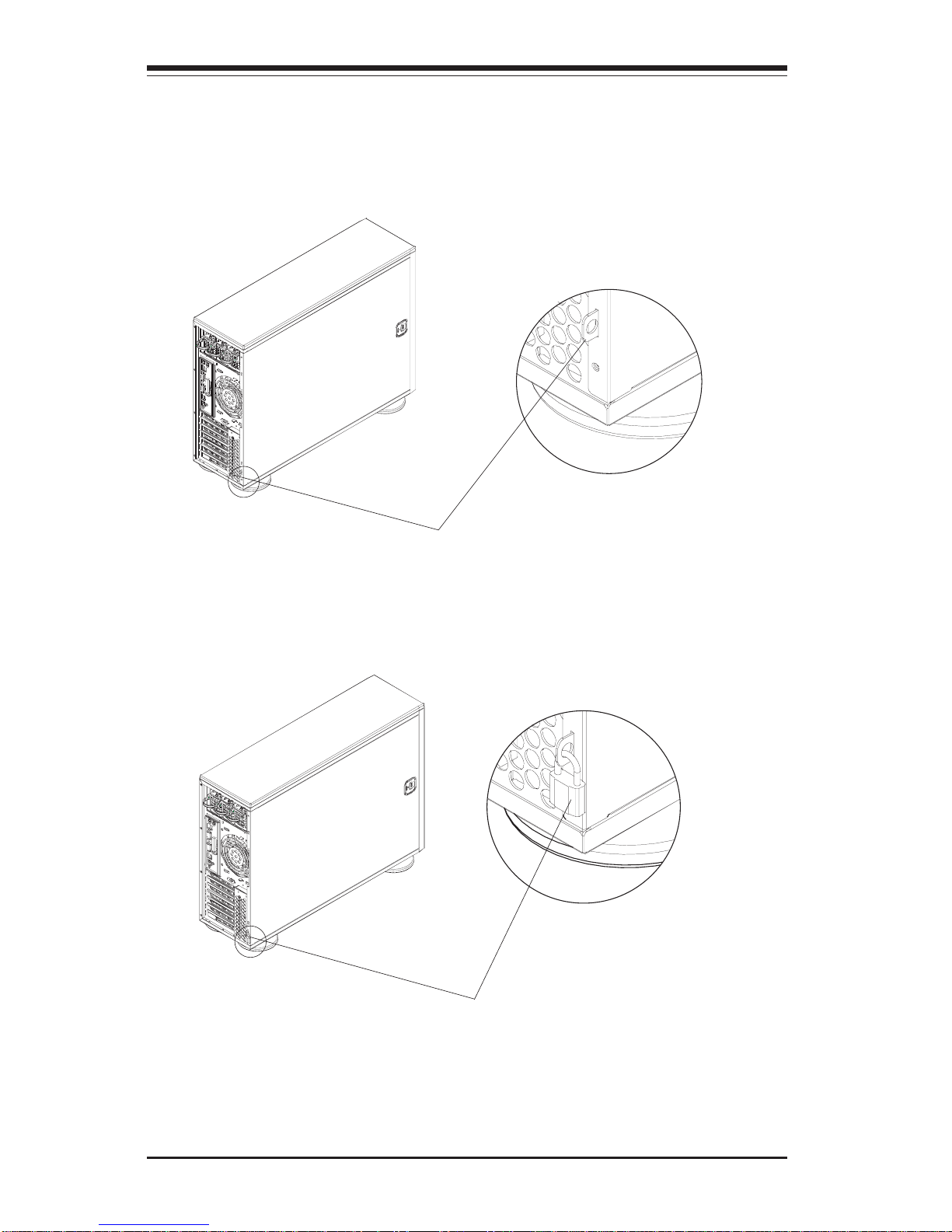

3. Slide the side cover back to the proper position. Make sure that the lock

bracket is easily accessible from the rear of the chassis.

Lock Bracket

4. Secure the system by putting a lock(*not included) on the lock bracket as

shown below:

Lock (*Not included)
