LED Parking Lot/Area Light
Important: Read all instructions prior to installation. PLLD-T Series
4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com
Rev Date: V2.0 03/12/2021
User Manual
Mounting Options
Safety and Notes
Environmental Specications
Operating Temperature -40°–113° F(-40°–45° C)
IP Rating IP65

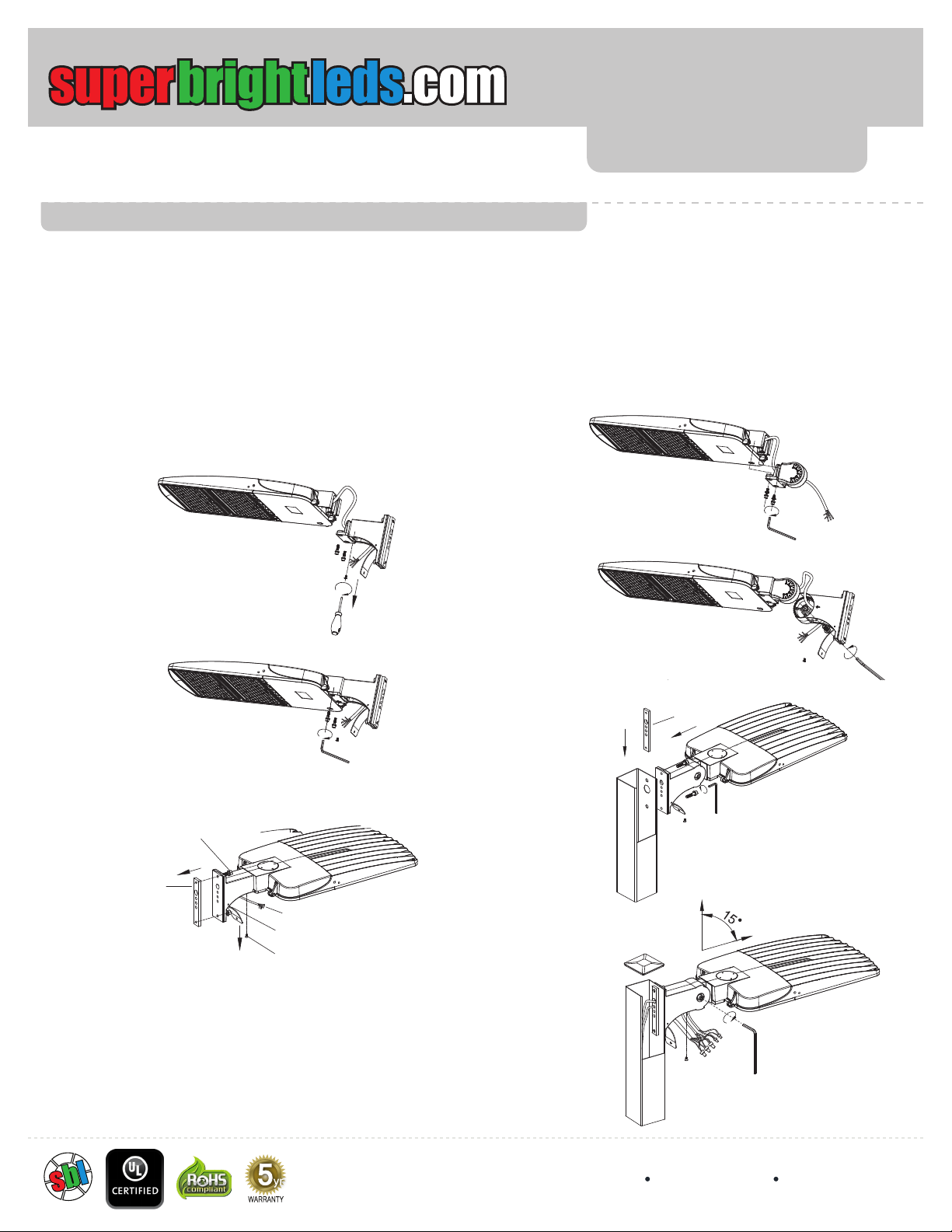

Fixed Square/Round Pole Mount (PLLD-T1FPM)
Adjustable Slip-tter/Pole Mount (PLLD-T1SF)
Adjustable Square/Round Pole Mount (PLLD-T1APM)

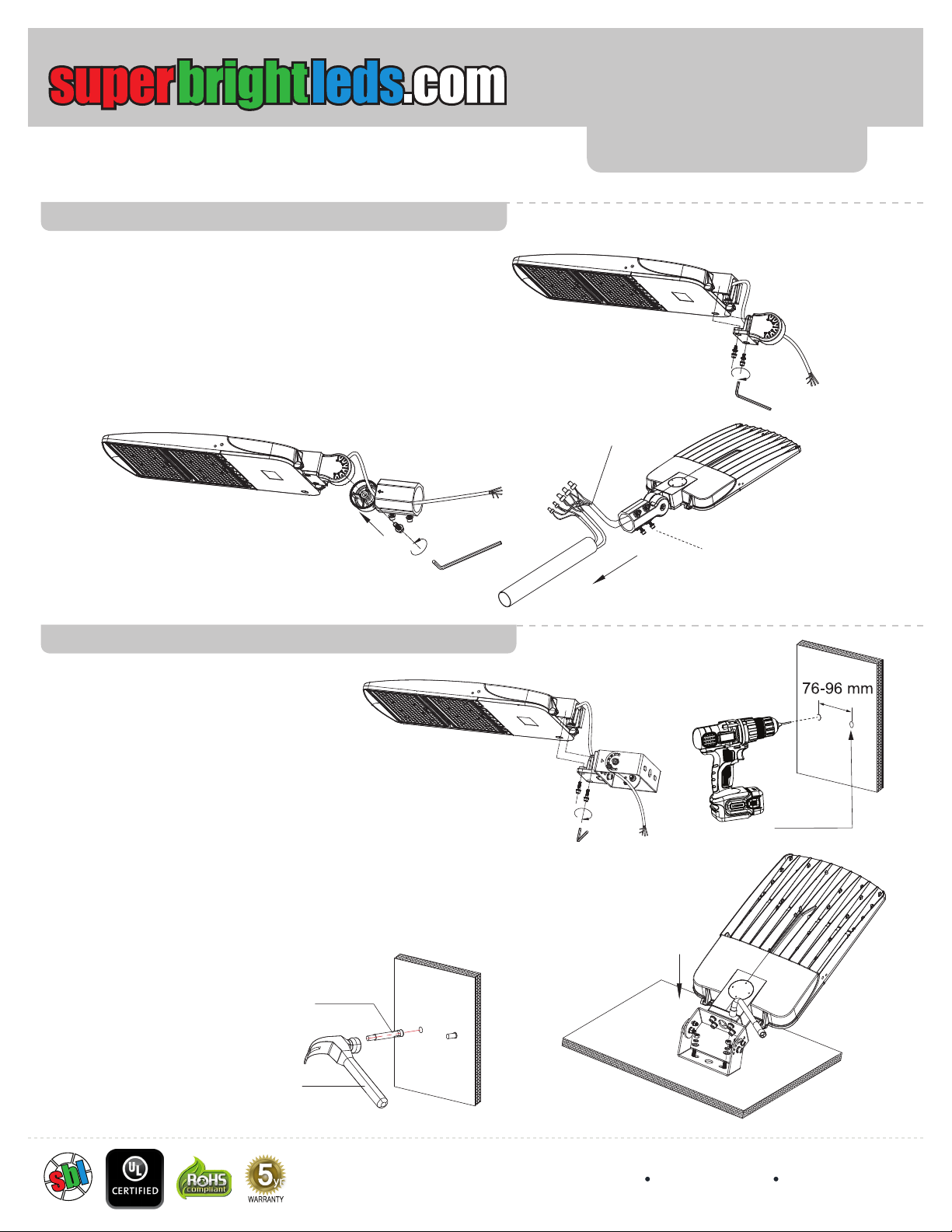

Wall/Trunnion Mount (PLLD-T1WM)
• Product should be installed and serviced by a certied electrician in accordance
with applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and
circuit breakers are switched o before performing any installation or wiring
procedures. Do not install while inclement weather, such as rain storms, may
increase the chances of electrical hazard.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the
xture. Failure to properly support xture may result in damage or injury, for
which the manufacturer does not assume responsibility.
Specications
PLLD-T150K240-H3P
(with PLLD-T1SF mount)
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Wiring Diagram
Line
Neutral
Ground
Black
L L
N N
GND GND
White
Dim (+)
Dim (-)
Purple
+ +
- -
Gray
Green
Line
Neutral
Ground
Black
L L
N N
GND GND
White
Dim (+)
Dim (-)
Purple
+ +
- -
Gray
120–277 VAC Input 1–10 V Dimming
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
Slip fitter
square/round pole mount
fixed square/round pole mount
trunnion
