VRT3036 AND VCT3036

P/N 900660-01, REV. A, 02/2017

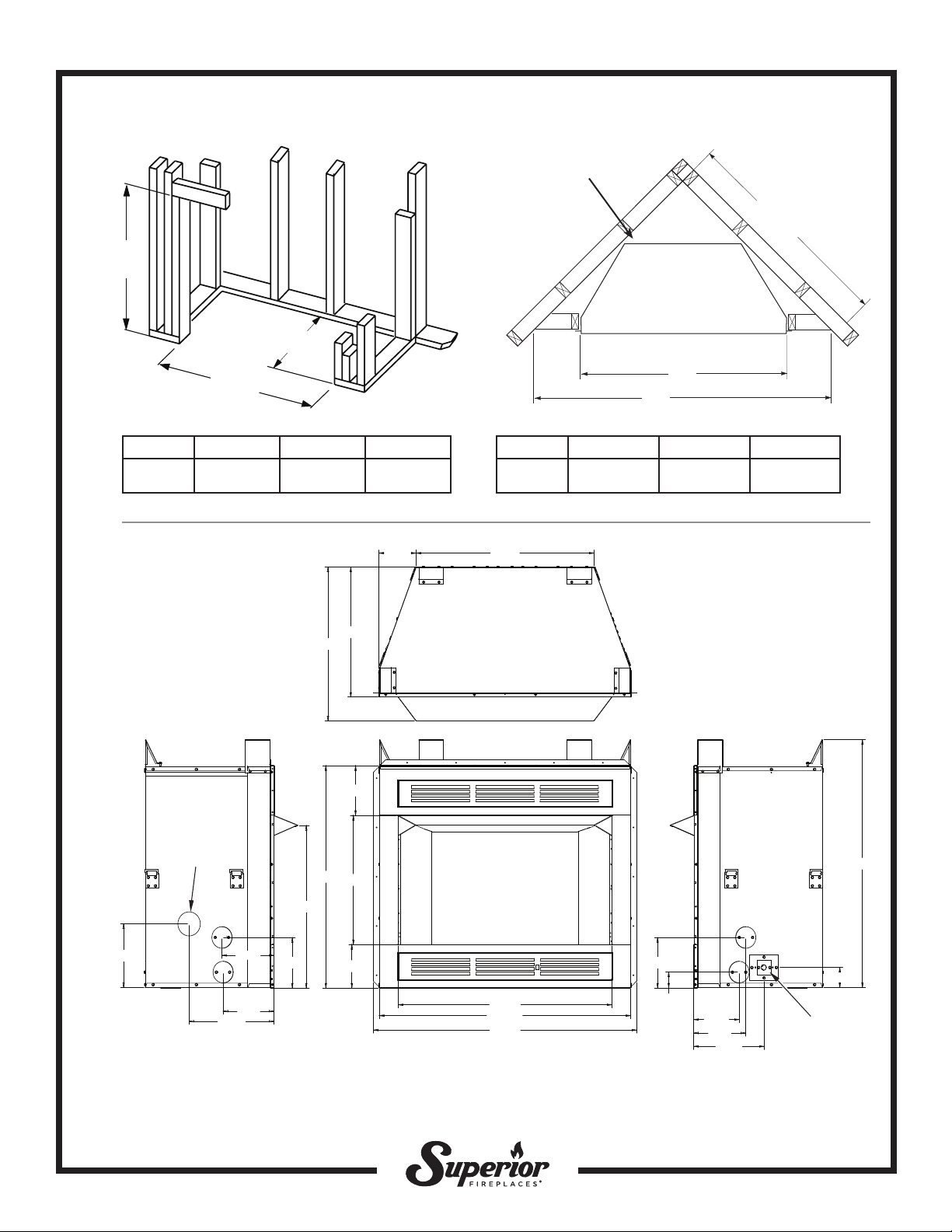

Fireplace Dimensions

VENT-FREE FIREPLACES

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Models A B C

36” Models 40-1/4”

1023 mm

41-3/8”

1051 mm

21-1/8”

537 mm

Models D E F

36” Models 41-3/8”

1051 mm

71-1/4”

1810mm

50-3/8”

1280 mm

Framing Dimensions

0” Clearance Permitted

Diagrams, illustrations and photographs are not to scale. Consult installation instructions. Product designs,

materials, dimensions, speciﬁcations, colors, and prices are subject to change or discontinuance without notice.

8-1/8”

10-3/8”

21”

14”

7-1/8”

26-3/8”

36-1/8”

43-1/8”

11-1/2”

3-3/8”

40-1/4”

7-1/2”

2-5/8”

8-5/8”

8-1/4”

35”

41-1/8”

8-1/4”

8-3/8”

8-5/8”

25”

21-1/8”

6-1/8” 29-1/8”

Right Side View

Left Side View Front View

Firebox Top View

Outside

Air Kit

Location

Electrical

Outlet

P/N 900660-01 REV. A 02/2017 Page 2 of 2

Speciﬁcations and clearances are subject to change without notice.

Refer to Installation and Operation Manual before installation of these

appliances for updated dimensions and instructions.

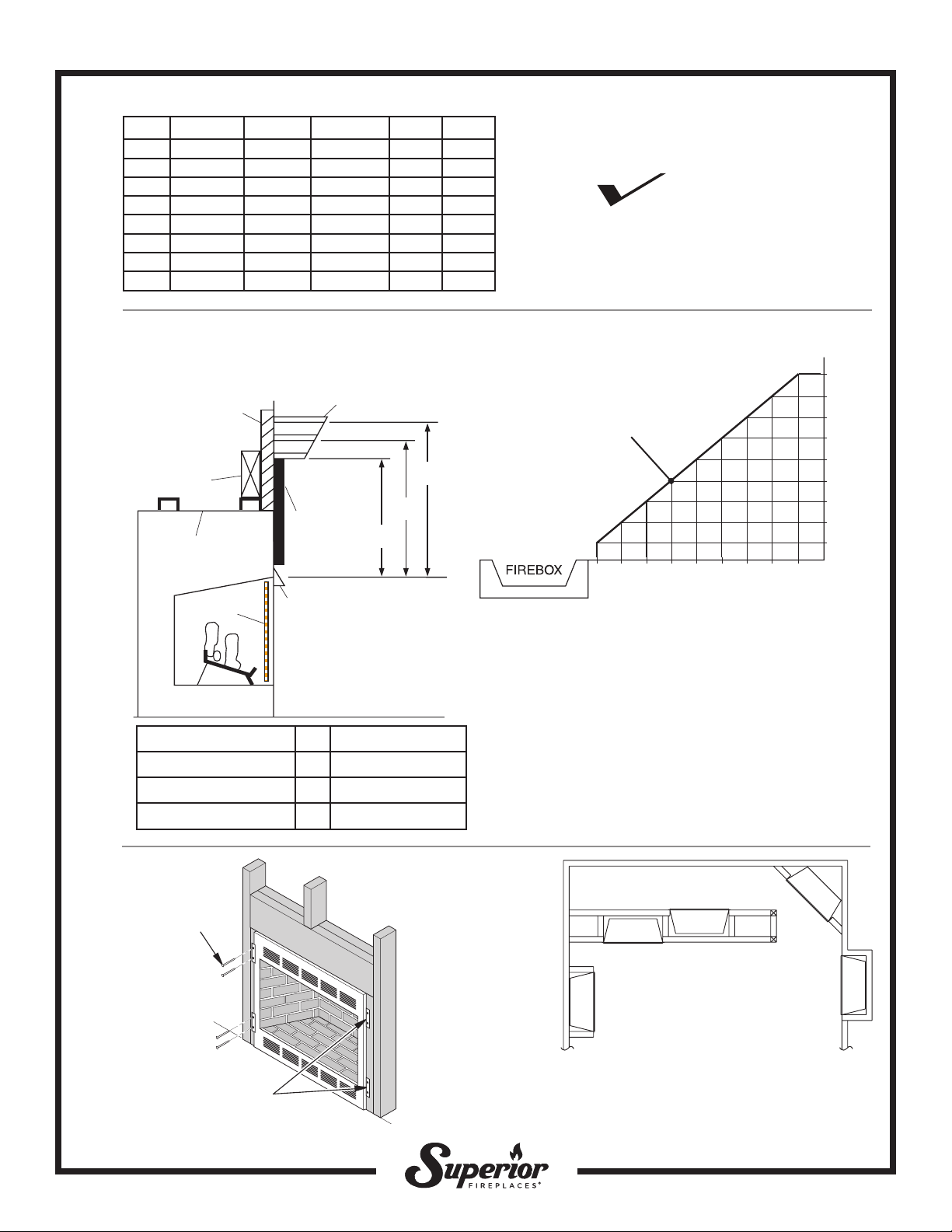

Clearances

VRT3036 AND VCT3036

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Mantel Clearance

Minimum Wall and Ceiling Clearances

A. Clearances from the side of the ﬁreplace cabinet to any combustible

material and wall should follow diagram shown here.

Example: The face of a mantel, bookshelf, etc. is made of combustible

material and protrudes 3-1/2” from the wall. This combustible material

must be 4” from the side of the ﬁreplace cabinet.

B. Clearances from the top of the ﬁrebox opening to the ceiling should not

be less than 42”.

C. When the ﬁrebox is installed directly on carpeting, vinyl tile or other

combustible material, other than wood ﬂooring, the ﬁrebox should be

installed on a metal or wood panel extending the full width and depth of

the enclosure.

D. Clearances from the bottom of ﬁrebox to the ﬂoor is 0”.

INTERNAL WALL

INSTALLATION

CORNER

INSTALLATION

FULL

PROJECTION

INSTALLATION

FLUSH

INSTALLATION

Typical Locations

Nailing Flanges Product Information

Listing Information

PFS

USC

Report No. F12-020

Cat. # Model Type Interior Weight Cu. Ft.

F0304 VRT3036B Radiant Black Interior 184 lb. 32.4

F0305 VCT3036B Louvered Black Interior 184 lb. 32.4

F0310 VRT3036WS Radiant WS refractory 184 lb. 32.4

F0311 VCT3036WS Louvered WS refractory 184 lb. 32.4

F0312 VRT3036RS Radiant RS refractory 184 lb. 32.4

F0313 VCT3036RS Louvered RS refractory 184 lb. 32.4

F0314 VRT3036RH Radiant RH refractory 184 lb. 32.4

F0315 VCT3036RH Louvered RH refractory 184 lb. 32.4

12-1/4 (312)

10-1/2 (267)

8-3/4 (223)

7 (178)

5-1/4 (134)

3-1/2 (89)

1-3/4 (45)

7/8 (23)

1/2 (13)

1/2

(13)

(26)

(51)

(102)

(153)

(204)

(254)

(305)

(356)

(407)

Example

Inch (millimeter)

These appliances comply with National

Safety Standards and are listed by PFS Cor-

poration to ANSI Z21.91 Ventless Firebox

EnclosuresforGas-FiredUnventedDecora-

tive Room Heaters and is approved for use

with appliances listed to ANSI Z21.11.2

decorative type unvented room heaters.

Supplied

Firebox Hood

Must Be Used

at All Times

Wire-mesh

Screen

Firebox

Noncombustible

Material May

Project Off this

Surface above

the Firebox Hood

Mantel Shelf

Note: Any portion of the

mantel shelf must NOT

extend beyond this profile.

1-1/2 (38)

6-3/4 (172)

12 (305)

Note: All vertical

measurements are

from top of fireplace

hood opening to

bottom of mantel shelf.

These minimum

clearances replace any

other recommended

clearances supplied

with your ANSI Z21.11.2

approved gas logs.

Wall board or facing

material (above

firebox) may be of

combustible material,

including decorative

mantel ornaments or

other similar projec-

tions off of the facing

material.

Framing

Material

(508)

(407)

(305)

Inch (millimeter)

Nails or Wood

Screws

Nailing Flange

Mantel from Top of Opening Mantel Depth Allowed

12” (305 mm) 1-1/2” (38 mm) max.

16” (407 mm) 6-3/4” (172 mm) max.

20” (508 mm) 12” (305 mm) max.
