VENTILATOR USER GUIDE

MODEL 716WT

VentilatorUserGuide-716WT.docx

REV. 06/09/17

This manual covers the description, cautions, operation and maintenance of the Super Vac Hydraulic Positive Pressure Ventilator

Model 716WT

Please take the time to read this manual before operating the ventilator.

Save this guide for future reference.

CONTENTS

1. BREAKAGE OR DAMAGE DURING SHIPMENT .................................................................................................................................................. 3

2. GENERAL DESCRIPTION AND SPECIFICATIONS............................................................................................................................................... 4

3. PRODUCT SAFETY PRECAUTIONS.................................................................................................................................................................. 5

4. BEFORE OPERATING VENTILATOR................................................................................................................................................................ 5

5. OPERATION................................................................................................................................................................................................ 6

6. INLET AND DISCHARGE POSITION .............................................................................................................................................................. 8

7. PARTS LIST................................................................................................................................................................................................ 9

8. EXPLODED VIEW DRAWING ........................................................................................................................................................................ 10

9. WARRANTY............................................................................................................................................................................................... 12

10. CONTACT INFORMATION .......................................................................................................................................................................... 13

VentilatorUserGuide-716WT.docx

1. Breakage or Damage During Shipment

The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it

correctly. Please read these instructions carefully.

Examine the contents of all shipping cases. If you find any damage, call your transportation agent at once and have them make a

description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send you the

original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the

original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail

or hand these papers to your local transportation agent. They will process your claim with reasonable promptness.

Please note, we cannot and will not enter claims for damages. If we filed claim here, it would be sent to your local freight agent for

verification and investigation. This time can be saved by your filing the claim directly. Every consignee is on the ground floor and

in contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.

Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow deduction

from any invoice because of any damage, however, be sure to file your claim promptly. Our goods are sold F.O.B. factory. We take

receipt from the transportation company certifying that the goods were delivered to them in good order, and our responsibility

ceases.

It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if

they follow the above instructions.

Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some

time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of

these damaged goods, your claim may not be paid.

VentilatorUserGuide-716WT.docx

REV. 06/09/17

2. General Description and Specifications

Super Vac ventilators are specifically designed to provide a convenient and portable source of air. Super Vac positive pressure

ventilators are tested to AMCA PPV Standard 240-95, for use in extreme conditions.

Specifications1

Model#

Engine

Height x Width x Depth

Weight (lbs.)

716WT

POK

5.5

15.25” X 20” X 19.75”

1 Specifications are subject to change without notification. Refer to model decal affixed to ventilator to determine

actual specifications.

This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater intake of air and eliminates

turbulence at the tips. Each blade is statically balanced for high efficiency and long life.

This document is designed to function as a quick start guide and not an in-depth comprehensive instructional manual. Please read

all accompanying documents shipped with your ventilator. Due to the many features of powered equipment thorough familiarity

with the operating controls is essential to assure safe and trouble free operation.

VentilatorUserGuide-716WT.docx

3. Product Safety Precautions

Ø Do not use the ventilator for purposes other than its’ intended use.

Ø Wear eye and ear protection when operating the ventilator.

Ø Never operate ventilator while fatigued.

Ø Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury.

Ø Do not wear loose clothing that could become entangled in the operating ventilator.

Ø Never permit anyone to operate ventilator without proper instruction.

Ø Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact factory

for replacements.

Ø Do not place fingers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator,

immediately stop engine. Be certain all mechanical motion has stopped.

Ø Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces.

Ø Do not use chock blocks to increase the angle of the ventilator, severe injury could occur.

4. Before Operating Ventilator

§ A complete inspection of the ventilator should be made prior to operation.

§ Check all threaded fasteners for proper tightness.

§ Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating ventilator.

VentilatorUserGuide-716WT.docx

REV. 06/09/17

5. Operation

Check ventilator inlet and outlet guards for obstructions. Check and remove

from immediate surrounding area any objects that could be drawn into the

ventilator intake.

Place ventilator in desired location before starting.

The two graphs allow you to establish with precision the best utilization of

the apparatus.

Graph 1 depicts rotational speed and water consumption depending on

input feed pressure.

Graph 2 depicts the usable horsepower depending on the driving torque.

Example: If the inlet pressure of the water supplied to the motor is 174 psi,

and the resisting torque of the driven machine is 7.4 lb/ft, the rotational

speed is 4560 rpm, water consumption is 117 gpm (graph 1) and the usable

power is 5.5 HP (graph 2)

VentilatorUserGuide-716WT.docx

Inlet Pressure

Water Flow

Air Flow

BAR

PSI

GPM

LPM

CFM

CMH

3.3

208

5168

8781

6.7

100

295

10112

17179

10.0

150

371

16178

27487

13.3

200

110

416

19100

32450

16.7

250

130

492

22470

38177

The maximum feed pressure is 300 psi (20 bar).

VentilatorUserGuide-716WT.docx

REV. 06/09/17

6. Inlet and Discharge Position

As delivered, the standard position of the inlet and discharge connections on your 716WT allow for easier connection of water supply lines. This

positioning does not allow full range of tilt positions.

If your application requires the use of the two back tilt positions the inlet and discharge blocks on the water turbine motor may be rotated 90 degrees.

Using a 3mm hex key (not supplied) remove the 4 screws on the block , turning the block to the desired location , reinstalling the 4 screws. Use care to

assure the o-ring is in place for proper seal. Torque screws to 3 lbs./in ( .33 N-m), check for leaks, re-torque as required.

STANDARD POSITION

ROTATED POSITION

VentilatorUserGuide-716WT.docx

7. Parts List

012-10285

GUARD, 716, FRONT, FINISHED

032-15540

SCREW, 10-24 X 1/2, PHIL PH, PATCH, BLAC

032-10754

WASHER, 1/4, LOCK, ZINC

032-10745

BOLT, 1/4-20 X 1 1/4, HEX HEAD, ZINC

008-10193

KEYSTOCK 3/16X13/8"SQ.(BLADE-BUSH)

008-10187

BUSHING, BLADE, HQ 3/4, MAUREY

003-10055

BLADE, 16", 7 BLADE, GAS, FINISHED

032-10787

WASHER, 5/16, LOCK, ZINC

032-10779

BOLT, 5/16-24 X 1 1/4, HEX HEAD, ZINC

018-14030

SHROUD, 716, W GUARD PAINTED

032-10750

NUT, HEX, 1/4-20, NYLOK, ZINC

032-10752

WASHER, 1/4, FLAT, ZINC

018-15035

MOTOR MOUNT, 716, GAS, PAINTED

032-10725

SCREW, 1/4-20 X 5/8, PHILLIPS RH, ZINC

032-14565

BOLT, 3/8-16 X 4 1/2, SKTHD BUTTON, ZINC

005-10136

BUSHING, REDUCER, 3\4 X 1/2

008-13374

WHEEL, URETHANE, PPV FANS, NEW DESIGN

032-11129

WASHER, 3/8, SAE FLAT, ZINC

032-11133

NUT, HEX, 3/8-16, NYLOK, ZINC

008-10189

PLUG, FINISHING, 1", SQ RIBBED, BLACK

018-10431

FRAME, 716, PAINTED

032-14564

BOLT, 3/8-16 X 2 1/2, SKTHD BUTTON, ZINC

008-10212

WASHER, FLAT, NYLON, WHEEL SPACER

032-11129

WASHER, 3/8, SAE FLAT, ZINC

032-11133

NUT, HEX, 3/8-16, NYLOK, ZINC

008-10192

SPRING, A-180-S VALCO 40 PCS. PER LB.

032-14564

BOLT, 3/8-16 X 2 1/2, SKTHD BUTTON, ZINC

032-11129

WASHER, 3/8, SAE FLAT, ZINC

032-14559

NUT, HEX CAP, 3/8-16, NICKEL PLATED

019-17014

HANDLE, 716, PAINTED

008-14586

CAP, NEOPRENE, BLACK, HANDLE TAB

032-11133

NUT, HEX, 3/8-16, NYLOK, ZINC

024-13284

SPRING, COMPRESSION, TILT LEVER

008-10219

KNOB, 716, TILT LEVER

019-15084

TILT LEVER, 716, PAINTED

024-13284

SPRING, COMPRESSION, TILT LEVER

023-10512

POK WATER TURBINE MOTOR, 5.5 HP

032-10777

BOLT, 5/16-24 X 3/4, HEX HEAD, ZINC

032-10791

WASHER, 5/16, FENDER, ZINC

032-10787

WASHER, 5/16, LOCK, ZINC

025-13429

DECAL YELLOW SAFETY

025-13430

DECAL SERIAL NUMBER, GREY

025-13426

DECAL, SUPER VAC, VERT LTRS, BLACK REFLT

025-15162

DECAL, HONDA ENGINE DIAGRAM, BLK ON WHT

032-10790

NUT, HEX, 5/16-18, NYLOK, ZINC

032-10786

WASHER, 5/16, FLAT, ZINC

032-10770

BOLT, 5/16-18 X 1 1/2, HEX HEAD, ZINC

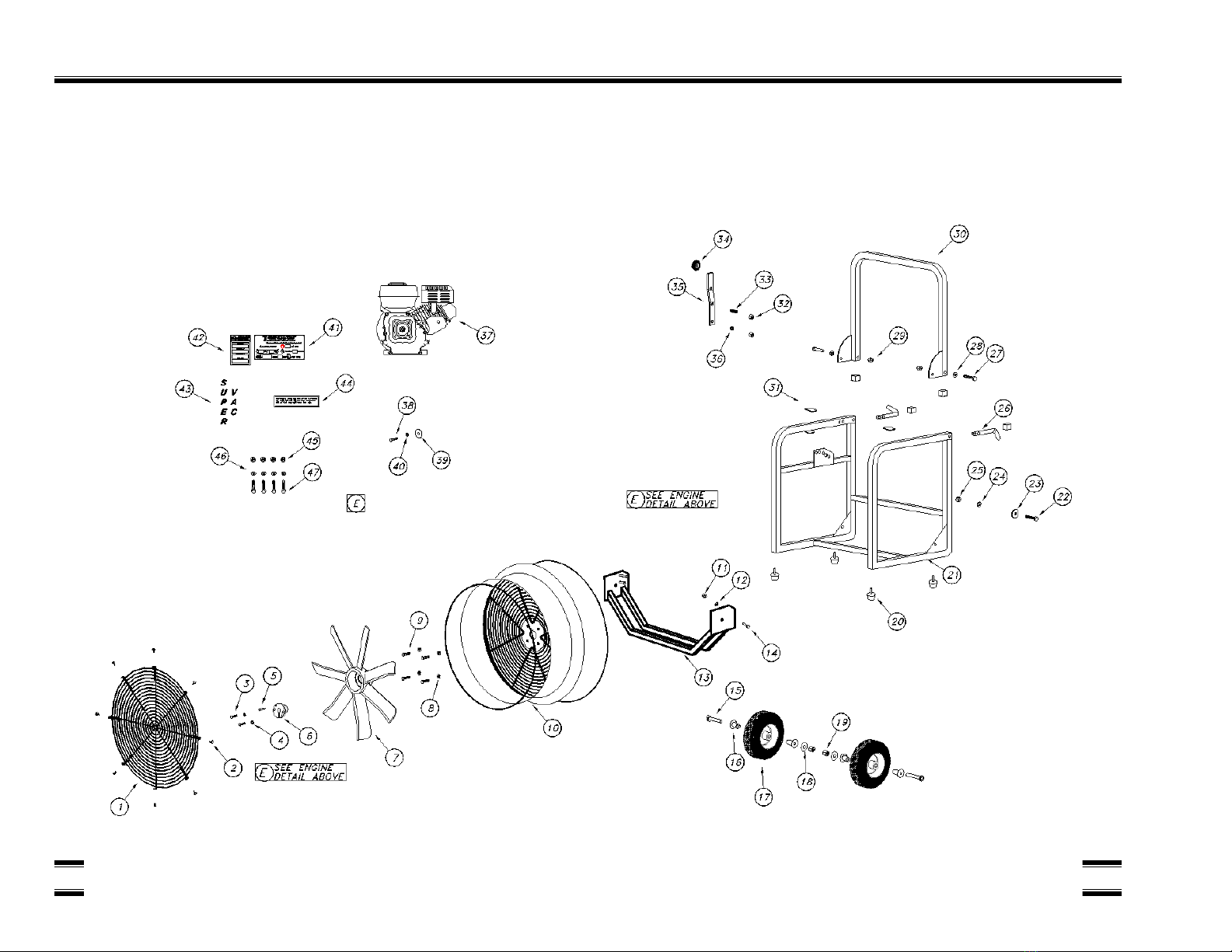

8. Exploded View Drawing
