SunStar SWF Manual de usuario

SWF EMBROIDERY MACHINE

How to Replace the Presser Foot Pressure Spring

1 Remove the thread 3mm T-wrench,＋driver

tension adjusting plate

2 Remove the head face plate ＋driver,－driver

3 Replace the presser foot －driver(small)

pressure spring 2.5 T-wrench

4 Set the upper dead & manual knob, presser lower drop

lower drop point and foot height control point gauge

the presser foot height rubber (0.5t,1t) and presser

foot

5 Assemble the thread 3mm T-wrench,＋driver height gauge

tension adjusting plate

6 Assemble the head face plate ＋driver,－driver

1. Remove the Thread Tension Adjusting

Plate

Refer to Picture 1

1)Change the color at a position that the needle bar

to be replaced does not interfere with reciprocator.

(If the presser foot of #2 needle bar is replaced,

change the color with a needle bar other than #2)

2)Remove the thread tension adjusting plate.

2.Remove the Head Face Plate

1) Remove the head face plate (L) & (U).

Refer to Picture 1

[K] HEAD

A. Content

SWB-M-56

Order Tools Required

B. Order

C. Details

JIG /

Instruments

No.

CD CODE No:

Picture 1

Head Face

Plate(L)

Head Face

Plate(U) Head

─ Ver.2009 1st ────────────────────── SunStar Co., Ltd ─

SWF EMBROIDERY MACHINE

3.Replace the Presser Foot Pressure Spring

Refer to Picture 2

1) Use 2.5 T-wrench to remove the upper dead point

stopper and the needle bar holder.

2)Use "-" driver (small) to remove the needle bar

fixed holder.

Refer to Picture 3

Needle Bar Fixed Holder

Picture 2

Picture 3

Picture 2-2

For Thick

Material

General

Type

Upper Dead

Point Stopper

Needle Bar

Holder

─ Ver.2009 1st ────────────────────── SunStar Co., Ltd ─

SWF EMBROIDERY MACHINE

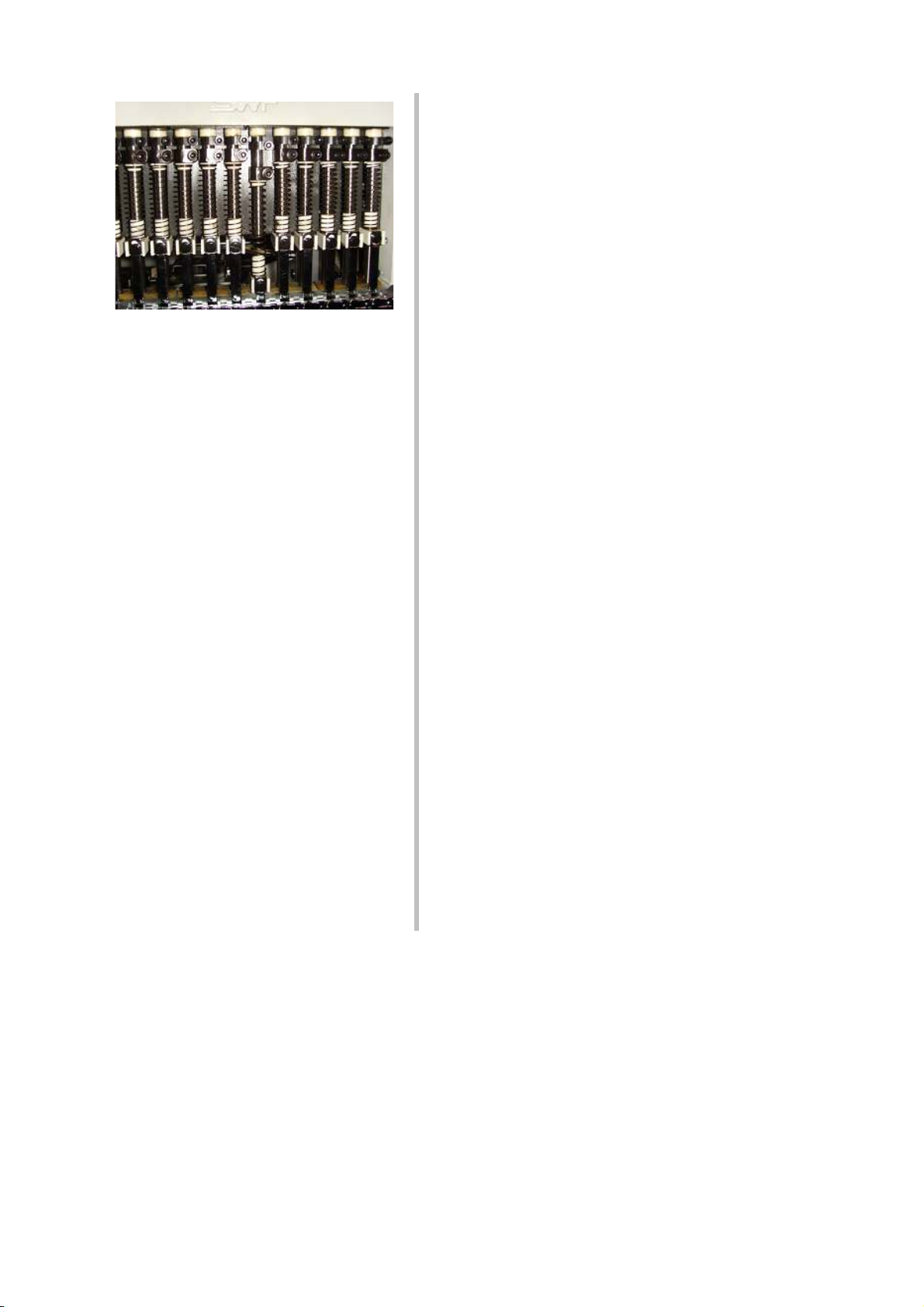

3) As shown in Picture 4, lift the needle bar up and

replace presser foot pressure spring.

4.Set the Upper Dead Point/Lower Drop Point

and the Presser Foot Height

Refer to SWB-M-30

5.Assemble the Thread Tension Adjusting

Plate

1)Attach the disassembled thread tension

adjusting plate.

8.Assemble the Head Face Plate

1)Assemble the head face plate (L) & (U).

2)Assemble the thread guide (L).

Picture 4

─ Ver.2009 1st ────────────────────── SunStar Co., Ltd ─
