Sunricher SR-SBP2801K4-5C Manual de usuario

Self Powered 3 in 1 RF+Bluetooth Remote Controller

70200009

Function introduction

Important: Read All Instructions Prior to Installation

Front side

CCT button, press and hold to

increase warm white and

decrease cool white, release

and press and hold again to

increase cool white and

decrease warm white.

RGB color button, press and

hold down to get the color you

would like

Click to turn on paired

light devices, press

and hold to increase

light intensity

Click to turn off paired

light devices, press

and hold to decrease

light intensity

Back side

10.10 mm

86mm

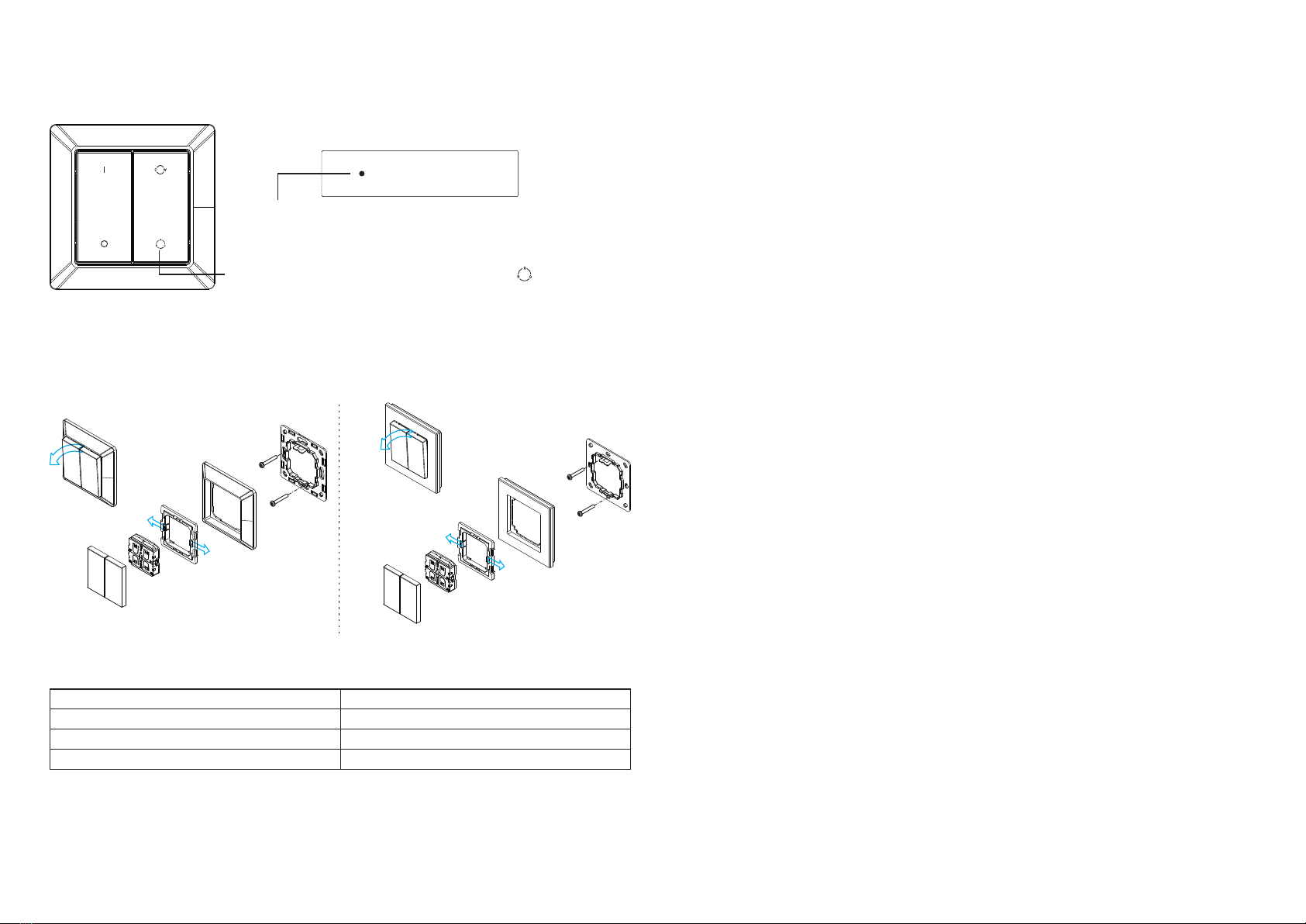

The remote control can be fixed on the wall with 3M glue or screw.

With Glass Frame

Product Data

Protocol

Power Supply

Transmission Frequency

Transmission Range (free field)

Protection Type

Dimming Range

Dimensions

RF+Bluetooth

Self powered by built-in nano generator

2.4GHz

30m

IP20

0.1%-100%

80.5x80.5x14.7mm / 86x86x14mm

• RGB, CCT, DIM 3 in 1 wall remote based on RF+Bluetooth Mesh

• Self-powered wall remote, no battery replacement & re-installation costs

• No wires, no batteries, no limits

• Ultra long lifetime, more than 1 million times pushing

• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons

• Enables to control 1 zone of receivers

• Mesh network for further control distance, receivers can transmit signal to each other

• 2.4 GHz global operation

• The controlled receiver status can be quickly synchronized to the smart APP

• Transmission range between every two neighbor devices up to 30m

• Each receiver can be paired to max. 8 remote controls

• Enables to control universal DIM, CCT, RGB, RGBW and RGB+CCT RF+Bluetooth devices

• Standard size, compatible with existing EU size frame

The remote control can be fixed on the wall with 3M glue or screw.

80.5 mm

With Plastic Frame

14.7 mm

• DO NOT expose the device to moisture.

Safety & Warnings

Pair with RF+Bluetooth receiver

Step 3:Click any of the 4 buttons on the remote, e.g. button .

LED lights connected with the receiver flicker once means the receiver is paired

to the remote successfully.

Note: one receiver can be paired with max 8 remote controls.

Step 1:Do wiring the RF+Bluetooth receiver according to wiring diagram(please refer

to the instruction of RF receiver that you would like to pair with)

Prog.

RF+Bluetooth LED Receiver

Installation

The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in

numerous frames by different manufactures as below list:

BEKER S1, B1, B3, B7 glass

GIRA Standard55, E2, Event, Esprit

JUNG A500, Aplus

MERTEN M-smart, M-Arc, M-Plan

With Plastic Frame With Glass Frame

Step 2:Click the “Prog. Key” or “Reset” button on RF+Bluetooth receiver (or reset

power of the receiver 3 times continuously if the button is not accessible) to set it into

pairing to RF remote status
