Slate Top Cook Pit

L-FT710PST

Assembly and Care Instructions

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

WARNINGS:

Cook pit is intended for outdoor use only. For use on nonflammable surfaces such as slate, stone or

brick.

Do not use on wood decks or any wooden surface.

Cook pit is intended to burn wood logs only. Do not burn coal, leaves or other combustible materials.

Keep flammable or combustible objects away from cook pit.

Not for use by children. Keep children and pets a safe distance from the cook pit.

Cook pit is hot. Use with caution. Never touch hot cook pit with bare hands.

Never leave burning cook pit unattended. Always extinguish the fire completely before leaving the

cook pit.

When the cook pit is in use, the handle on the mesh screen can reach extreme temperatures that

will cause injury to an unprotected hand. Please use poker or an appropriate heat resistant glove or

pad when handling.

IMPORTANT: For technical assistance on assembly or replacement parts, you can call us toll-free at

1-866-578-6569 from 8 a.m. EST to 8 p.m. PST or email to customer[email protected] or visit

www.sunjoyonline.com to place your order or fax your parts replacement order form together with your

purchase receipt to 1-740-283-3549 for assistance.

March 2016 Made in China 2/ 4

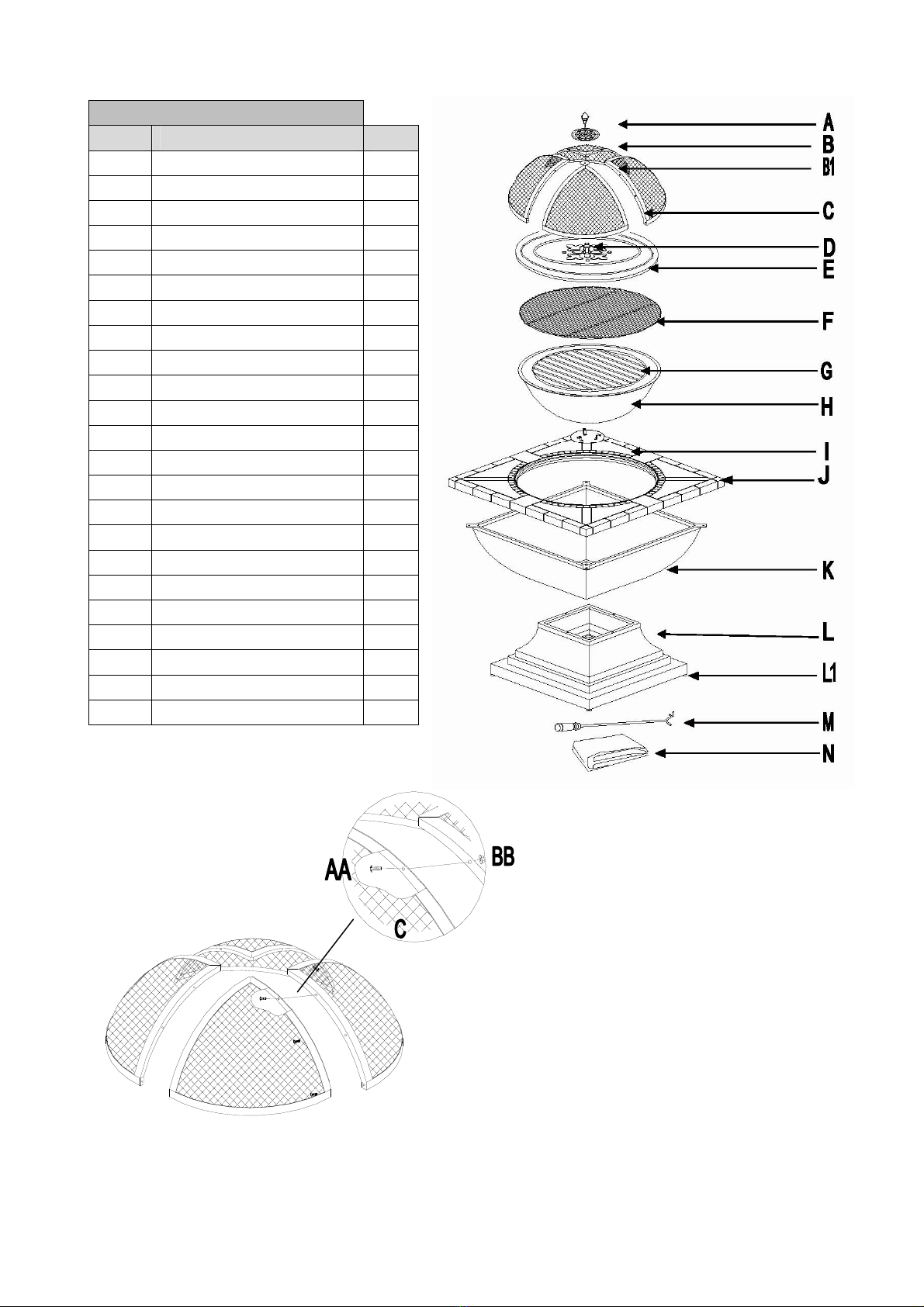

Parts List

No. Description Qty

A Handle 1

B Top decorative 1

B1 Decorative connect 1

C Mesh screen 4

D Handle 1

E Table top lid 1

F Cooking grate 1

G Log grate 1

H Fire bowl 1

I Ash tray 1

J Table top 1

K Base top 1

L Base bottom 1

L1 Base pad (preassembled) 4

M Poker 1

N Protective cover 1

AA Bolt M5*10 12

BB Nut M5 15

CC Nut M6 5

DD Bolt M6*15 4

EE Bolt M6*35 4

FF Flat Washer M6 8

GG Wrench M5/M6 2

Connect the mesh screens (C) with bolts (AA) and

nuts (BB). Do not fully tighten.

Step 1

March 2016 Made in China 3/ 4

Attach ash tray (I) to fire bowl (H), using bolts (AA)

and nuts (BB).

Step 2

Connect base top (K) and base bottom (L), using

bolts (EE),

flat washers (FF) and nuts (CC).

Step 3

Attach handle (D) to table top lid (E) with nut (CC).

Step 4

Insert handle (A) into decorative connect (B) and mesh

screens (C) connect with top decorative (B1).

Tighten all the bolts.

Step 5

March 2016 Made in China 4/ 4

Cleaning and care of the cooking grate. After cooking on your grate you can allow any accumulated

residue to burn off, this will reduce the amount of cleaning required for the grill and inside of the cooking

pit. Once the fire and embers have died down and cooled off, brush any loose particles from the grate

with a grill brush, do not attempt while the grate is hot! Let it cool first. For a more thorough cleaning you

can use mild soap and water and gently scrub the grate with fine steel wool.

Remove ashes from the fire bowl. It is important to remove the accumulated ashes from the fire bowl

when they are cold. Ashes absorb moisture and may promote premature rusting and will also prevent the

proper air flow required for grilling.

Protective fabric cover. After the unit has fully cooled, place the protective fabric cover over the cook

pit to help protect it from the outdoor elements.

Cook pit poker. The poker is not intended for food use.

WARNING: Fuels used in wood or charcoal burning appliances, and the products of combustion of

such fuels, contain chemicals known to cause cancer, birth defects or other reproductive harm.

Carefully turn over the assembled base top (K), attach

base top (K) to table top (J) with bolts (DD) and flat

washers (FF).

Ste

Step 7 Turn over the assembled table top (J), put on fire bowl

(H), log grate (G), cooking grate (F), table top lid (E),

mesh screen (C ).

Your cook pit is ready for use now.
