Suncast Covington BMS7425 Manual de usuario

BMS7425– Covington™

Blow Molded Resin Storage Shed

ASSEMBLY INSTRUCTIONS

Quality Control Number:

Easy Bolt Easy Driver

INCLUDED IN KIT

010210410

Tools needed for installation

Before You Begin...

• Consult your local authorities for any permits required to construct shed.

Prior to the construction of your shed, check with the local building code ofﬁcial to review any required

permits or building limitations.

• A level and sturdy foundation is required before shed construction can begin.

Review the site preparation information within the manual before beginning assembly.

• Read instructions thoroughly prior to assembly.

This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.

• Please follow instructions.

Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.

• Assistance is required during entire assembly.

IMPORTANT

OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN EACH BOX.

PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY ALL PARTS ARE PRESENT.

COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE UNPACKING ALL PARTS.

Caution

• Proper site preparation required.

• Shed not intended for use in extreme weather conditions.

• Shed not intended for storage of ﬂammable or caustic chemicals.

• Store heavy items near the bottom of shed.

• Shed not intended for use by children.

• DO NOT stand, sit, or store items on storage shed roof.

• Treat carefully in extreme temperatures.

• Repair or replace broken parts immediately.

• Suncast is not responsible for damage caused by weather or misuse.

• At regular intervals inspect your shed to make sure that assembly integrity has been

maintained.

• Periodically check that the location you have chosen to set your shed is still level.

• This kit contains parts with metal edges. Please be careful when handling.

Suncast Products and Replacement Parts

To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.

www.suncast.com

24 hours a day, 7 days a week, 365 days a year. 1-800-846-2345 or 1-630-879-2050

Shed Safety and Care

• Hot items, such as recently used grills, blowtorches, etc., must not be stored in the shed.

• Heavy articles should not be leaned against the walls, as this may cause panel distortion and

permanent damage.

• Keep roof clean of snow and leaves.

• The shed walls and roof sections have a textured exterior, much like vinyl home siding.

Over time, dust may accumulate in the texture. When combined with moisture, this could

encourage the growth of moss or mold on the shed. To maintain the look of your shed, we

recommend cleaning it each year with mild soap and water.

DO NOT use bleach, ammonia, or other caustic cleaners, and DO NOT use stiff bristle

brushes. Failure to perform annual cleaning could result in permanent staining of the plastic.

This is not a manufacturing defect and is not covered under warranty.

Assembly Day Tips

• Complete site preparation and foundation construction before unpacking parts and beginning

assembly.

• DO NOT attempt to assemble on a day with strong winds.

• DO NOT attempt to assemble on days when temperature is below 32 degrees.

• Set aside appropriate amount of time to completely assemble shed. Assembly time is

approximately 3 hours.

• Make sure you have assistance nearby to lift and secure parts in place.

• Wear light duty work gloves while assembling shed.

• Once roof is assembled, a ﬂashlight may be of use when assembling smaller components

inside shed.

• DO NOT use a torque wrench or hand drill to tighten provided Easy bolts. Use 010210410

Easy Bolt Easy Driver tool (provided) ONLY.

• Suncast provides extra hardware for small fasteners for customer convenience. In some

cases, there will be extra small fasteners once the assembly is complete.

Note: This product contains parts that are used in different orientations to construct the shed. Please take note

of the orientation of the parts shown throughout this instruction manual. Failure to follow instructions could re-

sult in damage to parts. Suncast is not responsible for replacing parts lost or damaged due to incorrect

assembly.

0B00106

0B00104

0B00152

0B00109

0B00103

Parts - BMS7425 Walls and Floors

IMPORTANT

OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE

CONTAINED IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS

MANUAL TO VERIFY ALL PARTS ARE PRESENT.

COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE

UNPACKING ALL PARTS.

0B00358

0B00359

0440631

0440655

0463370

HHH

0631300

0631299

Parts - BMS7425 Doors

IMPORTANT

OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE

CONTAINED IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS

MANUAL TO VERIFY ALL PARTS ARE PRESENT.

COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE

UNPACKING ALL PARTS.

0MR001007

0B00112A

0MR002001

0102203 –

0MP000001

0B00150A

0MR009005

0B00151A

0B00107A

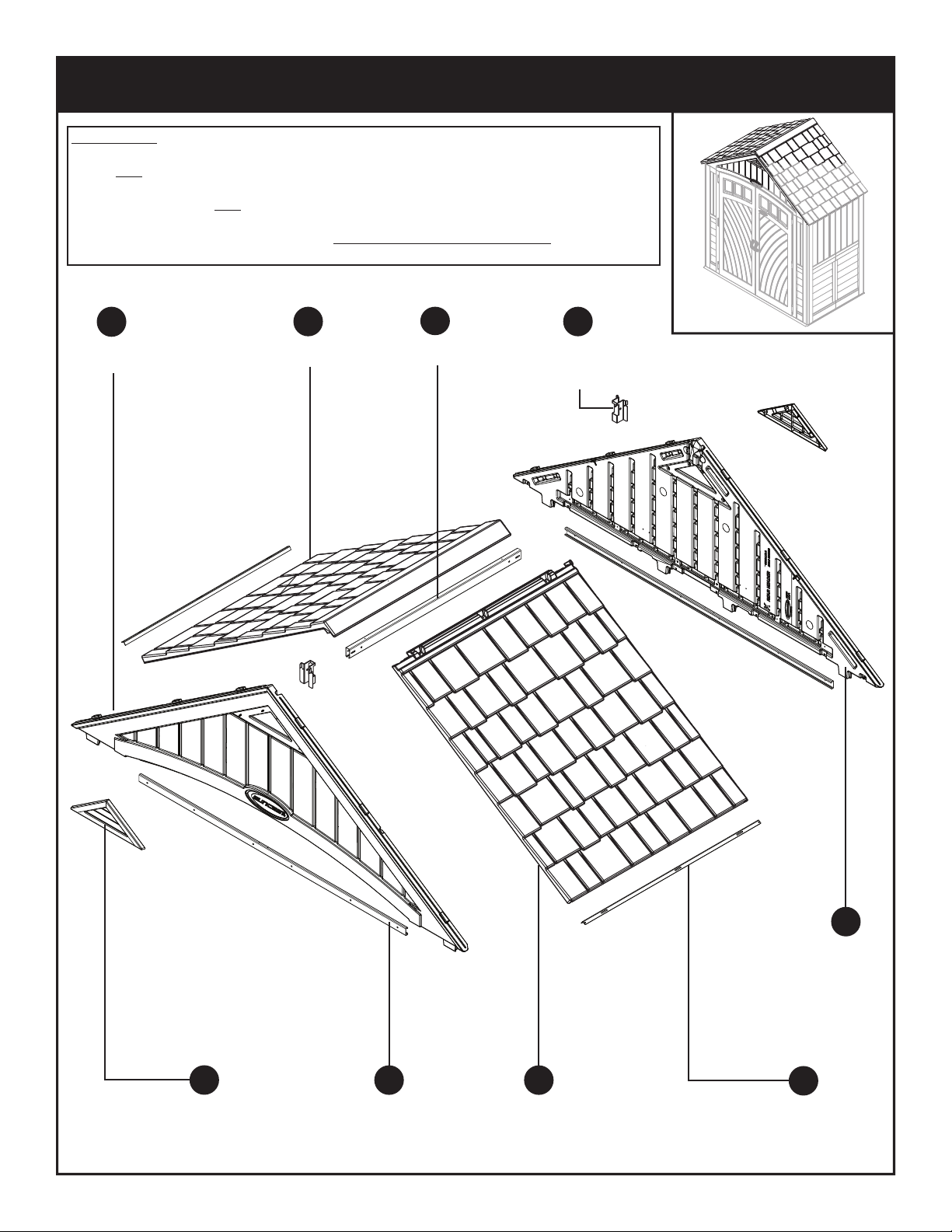

Parts - BMS7425 Headers and Roof

IMPORTANT

OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE

CONTAINED IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS

MANUAL TO VERIFY ALL PARTS ARE PRESENT.

COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE

UNPACKING ALL PARTS.

x77

0480324A

0480303B –

04803270MP000002

0480341

x40

0480374

x18

AAA

0480337

Hardware shown at actual size (*Unless otherwise noted.) Extra hardware provided. Not all are used.

Hardware - BMS7425

0480370

Hardware

Hardware shown at actual size (*Unless otherwise noted.) Extra hardware provided. Not all are used.

0463370

HHH

III

Door Handle Kit - BMS7425

Site Preparation and Platform Construction

Materials NOT supplied with BMS7425 Shed Kit

Note: Site preparation is required for this shed. Placing the shed on a constructed foundation is required. Without

a constructed foundation, settling will probably occur, causing distortion and damage to the shed. Suncast is not

responsible for replacing parts damaged or property lost due to incorrect assembly. Warranty requires foundation.

Note: Complete the site preparation and foundation construction before unpacking parts and beginning assembly. For

tips on site preparation, go to www.suncast.com, consult retailer, or local code.

To prepare your shed site, follow the below steps:

1) Consult your local authorities for building codes and covenants before beginning foundation or erecting shed.

2) Before any digging, check with local utilities to determine location of buried cables, pipes, etc.

3) Decide which type of foundation you want:

- Concrete slab, 4" thick

- Wood platform

Use exterior grade wood. The wood platform should be set on pier blocks or footing. Consult your local retailer for

help to determine the best anchoring method for your particular installation. The provided plans are sized for the

minimum number of cuts to lumber and plywood.

4) Prepare the building site:

- The ground should slope away from the foundation area to provide drainage.

- The foundation surface must be ﬂat and level.

- A vapor barrier should be provided to prevent excessive condensation in the shed.

- Follow local building codes for a proper vapor barrier.

5) Anchoring the shed to the foundation:

- Consult your local retailer for help to determine the best anchoring method for your particular installation.

- To secure the shed to a concrete slab, use masonry fasteners available at your local hardware retailer.

- To secure the shed to a wood platform, use 1/4" x 3" long lag screws with washers.

84"

47 1/4"

Anchoring ﬂoor panel to concrete slab

• Secure shed to concrete slab using masonry

fasteners.

• Dimensions allow for shed to ﬁt within the nearest

1" on each side.

47 1/4"

84"

Anchoring ﬂoor panel to wood platform

• Secure shed to wood platform using 1/4" x 3" lag

screws.

Site Preparation and Platform Construction (continued)

Materials NOT supplied with BMS7425 Shed Kit

Wood platform critical spacing

• Check all critical spacing measurements.

Item Qty Size

A 1 47 ¼" x 84" x 3/4"

B 2 2" x 6" x 84"

C 4 2" x 6" x 12 ¼"

D 7 2" x 6" x 44 ¼"

Materials list

PLEASE NOTE- DIMENSIONAL

LUMBER IS ACTUALLY 1/2"

SMALLER THAN NOTED SIZES

(A 2x6 BOARD ACTUALLY

MEASURES 1½" X 5½")

84"

47 1

15 1

29"

15 1

29"

42 3

14 3

9 3

12 1

" (APPROXIMATE)

FRONT
