GB5100 4-Burner Gas Barbecue Issue: A Page 1 of 6

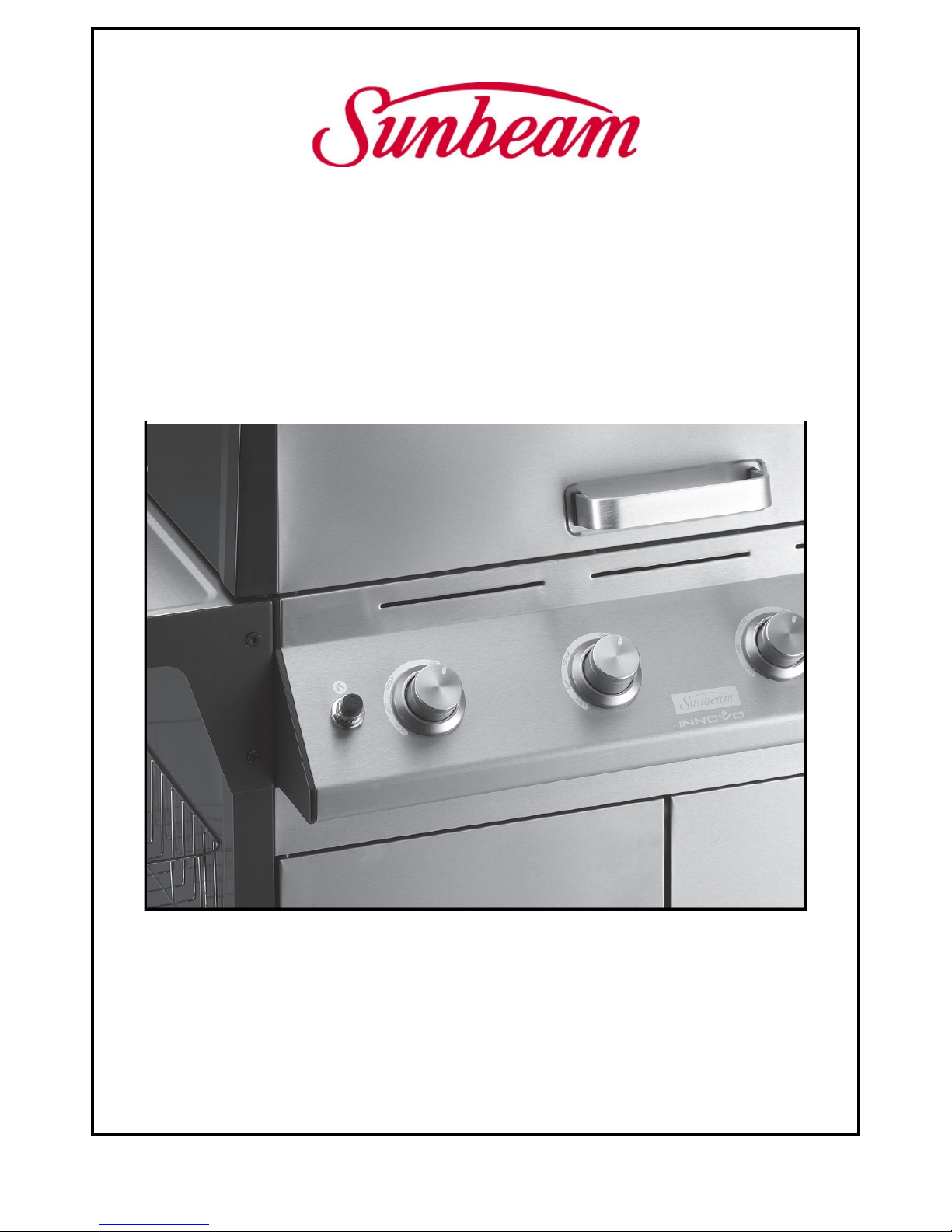

SERVICE MANUAL

Model No: GB5100

Model Name: Innovo 4-Burner Gas Barbecue

with Stainless Trim

GB5100 4-Burner Gas Barbecue Issue: A Page 2 of 6

SPARE PARTS LIST

Note: Not all parts are available as spare parts. Please check price list.

Explode

Diagram

Ref

Description

No.

Parts

Supplier’s

Code

Sunbeam

Part No.

Hood Left End Cap

146102/1003

Hood Top Cover – Stainless

146102/1001

Hood Handle

146102/1007

Hood Handle Insulating Spacer

146102/1008

Hood Handle Support

146102/1012

Hood Right End Cap

146102/1004

Hood Pivot Screw

146102/1005

Hood Nut Insert

146102/1006

Hood Rubber Buffer

146102/1009

Hood Liner – Stainless Steel

146102/1002

GB51135

Hood Thermometer Bezel

142501/3008

GB51102

Hood Thermometer

141601/306

GB51101

Warming Tray

146102/1010

GB51104

Warming Rack

146102/1011

GB51105

Firebox Assembly

146102/2100

Control Panel Heat Shield

146102/2004

Gas Manifold Assembly

146102/2300

Ignition Module

142801/7000

Control Panel Left End Cap

146102/2006

Control Panel Component

146102/2005

Control Panel Right End Cap

16102/2007

Cross-Lighting Channel

146102/2107

Main Burner Assembly

146102/2200

Ignition Probe

146102/2105

Ignition Shroud

146102/2106

On Request

Gas Manifold Assembly

146102/2300

On Request

Knob Bezel

146102/2504

GB51121

Knob Pin

146102/2506

Knob Spring

146102/2505

GB51120

GB5100 4-Burner Gas Barbecue Issue: A Page 3 of 6

Knob Spring Plate

146102/2508

Knob Plastic Insert

146102/2502

Knob Body

146102/2501

BBQ Grill Plate

146102/2001

GB51106

Flat BBQ Plate

146102/2003

GB51108

Flame Tamer

146102/2002

GB51107

Main Burner Assembly

146102/2200

GB51115

Ignition Probe

146102/2105

GB51113

Oil Tray Assembly (Large)

146102/2400

GB51118

Oil Dish (Small)

141601/410

GB51119

Left Side Shelf Panel – (Stainless

Steel) – with Cutout for Ice Bucket

146102/3301

GB51127

Left Side Shelf Frame Assembly

146102/3307

On Request

Ice Bucket

146102/3304

GB51129

Lid for Ice Bucket

146102/3303

GB51130

Right Side Shelf Panel – (Stainless

Steel) – No Cutout

146102/3401

GB51128

Right Side Shelf Frame Assembly

146102/3403

On Request

Cart Back Panel

146102/3003

On Request

Cart Left-Side Panel

146102/3100

On Request

Condiment Basket

146102/3001

GB51126

Cart Door Beam – (Stainless Steel)

146102/3601

On Request

Door Assembly – (Stainless Steel)

146102/3700

GB51131

Cart Right-Side Panel

146102/3200

On Request

Castor Wheel

146102/3503

GB51132

Cart Base Panel

146102/3501

On Request

Cart Shelf Panel

146102/3002

On Request

Magnetic Door Latch

146102/3603

GB51123

Gas Regulator Assembly

146102/2306

GB51117

Fasteners Package

146102/4009

GB51133

GB5100 4-Burner Gas Barbecue Issue: A Page 4 of 6

EXPLODED VIEW DRAWING

GB5100 4-Burner Gas Barbecue Issue: A Page 5 of 6

GB5100 4-Burner Gas Barbecue Issue: A Page 6 of 6

CIRCUIT DIAGRAM

IGNITION

MODULE

IGNITION

PROBES

CHASSIS

CONNECTION

WIRING
