This guide describes the minimum steps you must perform to power on and boot your server for the first time.

Detailed installation information can be found in the Installation Guide for each server, which is available at the

Sun product documentation web site. Refer to the section “Documentation for This Product” at the end of this

document for a list of documentation for your system and location of the documentation.

Contents

The Sun FireTM X4150, X4250, and X4450 servers are shipped with the components that you ordered for your

configuration. Optional components or rack installation hardware might be packaged and shipped separately.

Documentation and Media Kit

The Documentation and Media Kit is an orderable option for your server. It contains installation documentation,

the Tools and Drivers CD/DVD, the Sun Installation Assistant CD/DVD, and the SunVTS CD/DVD. You can

order additional media kits at any time, using the following marketing part numbers: Sun Fire X4150: X6438A;

Sun Fire X4250: X6369A; and Sun Fire X4450: X6439A.

Safety and Compliance Information

Before performing an installation, refer to the following documents for safety information:

■Important Safety Information for Sun Hardware Systems – Printed document included in the ship kit.

■Safety and Compliance Guide - Available on the product documentation site.

▼Install Optional Components

Before installing the server into the rack, you must first install any optional components that you ordered with

the server, such as DIMMs, PCIe cards, and so on. Refer the Service Manual for your server for instructions on

about installing optional components.

▼Mount the Server in a Rack

For rackmounting instructions, refer to the instructions included with the rail kit, the service label on the server,

and the server Installation Guide.

Sun Fire™X4150, X4250 and

X4450 Servers

Getting Started Guide

▼Connect the Cables

1. Connect a serial cable between the server’s SER MGT port (FIGURE 1) and a serial terminal device.

This connection provides your initial communication with the service processor (SP). The device must be set

up to communicate using 9600 baud, 8 bit, no parity, 1 stop bit. A null modem configuration is needed,

meaning the transmit and receive signals are reversed (crossed over) for DTE to DTE communications. You

can use the supplied RJ-45 crossover adapter with a standard RJ-45 cable to achieve the null modem

configuration. (FIGURE 1 shows the Sun Fire X4150 server. The locations of the connectors and ports are the

same on the Sun Fire X4250 and X4450 servers.)

FIGURE 1 Back Panel of Server (Server Connections)

2. (Optional) Connect an Ethernet cable between the server’s NET MGT port and the network to which

future connections to the SP will be made.

After the initial configuration of the system using the SER MGT port, communication with the SP is usually

performed through this Ethernet interface.

3. Connect an Ethernet cable between one of the server’s NET ports (NET 0, 1, 2, or 3) and the network to

which the server will communicate.

4. Connect the power cords to the AC power connectors and, to enhance redundancy, connect the cords to

separate power sources.

When power is applied, the SP initializes and the Power/OK LED (FIGURE 2) flashes. After a few minutes,

the SP Login prompt appears on the terminal device. Note that the server is not initialized or powered on

yet. You can now set up the ILOM.

ILOM Connection Options

This section describes the tasks for initial setup of SP and Integrated Lights Out Manager (ILOM) software. Refer

to the installation guide for your server and the ILOM 3.0 documentation for instructions on using ILOM to

configure and manage the server.

There are three methods for connecting to the ILOM SP to perform initial setup and configuration:

■Connect to ILOM using a serial connection

■Connect to ILOM using an Ethernet connection (DHCP)

■Connect to ILOM using an Ethernet connection (static IP address)

Figure Legend

1AC power connectors 4Gigabit Ethernet ports NET 0, 1, 2, 3 (Intel)

2Serial management (SER MGT)/RJ-45 serial port 5USB 2.0 ports (0, 1)

3Service processor network management (NET MGT) port 6HD15 video connector (analog VGA)

The method for connecting to ILOM using a serial connection is given in this document; for the remaining

methods, refer to the Installation Guide for your server.

Note – The connection options described in this document assume that ILOM 3.0 is installed on your server.

Earlier versions of ILOM are available for all Sun Fire X4x50 servers and Embedded LOM (ELOM) is also

available for the Sun Fire X4150 and X4450 servers. The documentation for all supported LOM versions are

available in your server’s documentation set.

▼Connect to ILOM Using a Serial Connection

1. Verify that your terminal, laptop, or terminal server is operational.

2. If not already configured, configure the terminal device or terminal emulation software running on a

laptop or PC. For information, see “Connect the Cables.”

3. If not already connected, connect a serial cable from the RJ-45 SER MGT port (FIGURE 1) on the server’s

back panel to a terminal device. For information, see “Connect the Cables.”

4. Press Enter on the terminal device to establish a connection between the terminal device and the

ILOM SP.

5. At the ILOM Login prompt, log in to ILOM.

The default user name is root; the default password is changeme.

▼Register the System

1. Locate the serial number for your system on the EZ label or on the customer information sheet that came

with the system.

2. Go to the following web site to register your system:

http://www.sun.com/service/warranty/index.xml#reg

▼Power On the System

Use this procedure to apply main power to the server. Do not apply main power to the server until you are

ready to install a platform operating system.

Caution – Do not operate the server without all fans, component heatsinks, air baffles, and the cover

installed. Severe damage to server components can occur if operated without adequate cooling

mechanisms.

1. Verify that the power cord has been connected (FIGURE 1) and that standby power is on.

At this point, standby power is supplied only to the service processor and power supply fans.

In standby power mode, the Power/OK LED on the server’s front panel flashes. (FIGURE 2 shows the Sun

Fire X4150 server. The Sun Fire X4250 and X4450 server front panel controls are the same as Sun Fire X4150

controls.)

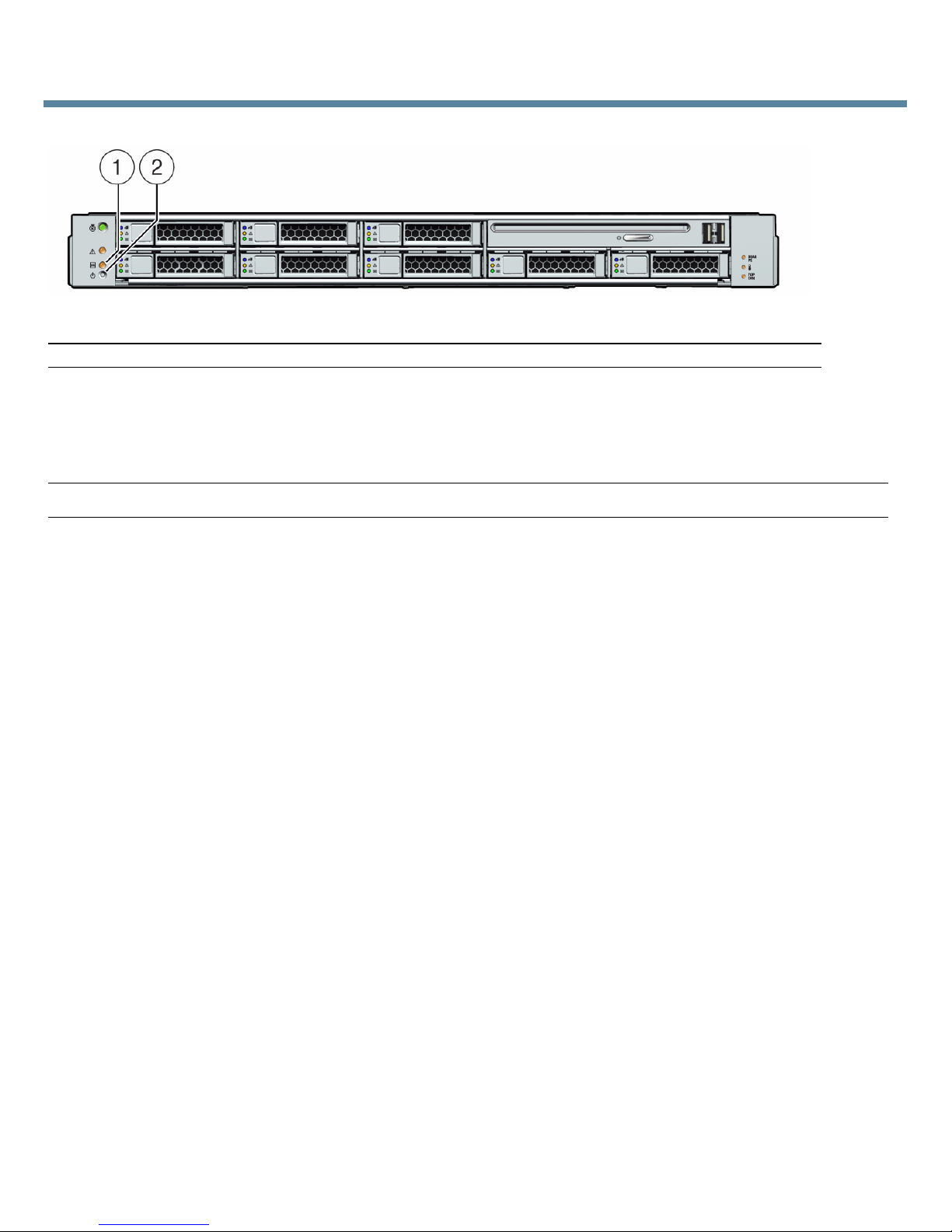

FIGURE 2 Server Front Panel Controls

2. To power on the server, use a non-metallic stylus to press and release the recessed Power button on the

front panel.

The server powers on and enters the power-on self-test (POST). The Power/OK LED lights and remains on.

Note – POST can take up to 1 minute to complete.

3. Continue with initial software setup tasks, as described in the server Installation Guide.

▼Set Up the Platform Operating System, Driver Software, and Firmware

After configuring the ILOM SP with network settings, you can configure a preinstalled or supported OS.

Sun Installation Assistant

Sun highly recommends using the Sun Installation Assistant (SIA) to automate firmware upgrades and to

install a supported Linux or Windows operating system.

To determine which operating systems and firmware upgrades are supported by SIA for your system and to

download SIA, go to http://www.sun.com/systemmanagement/sia.jsp. SIA is also available in the

Documentation and Media Kit.

Also refer to the Sun Installation Assistant for Windows and Linux User’s Guide (820-3357) at

http://docs.sun.com/app/docs/prod/install.x64svr#hic.

Operating System, Firmware and Driver Information

For information about operating systems supported for your system, go to:

http://www.sun.com/servers/x64/x4x50/os.jsp

For firmware and driver downloads go to:

http://www.sun.com/servers/x64/x4x50/downloads.jsp

where x4x50 is x4150, x4250, or x4450.

Figure Legend

1Power/OK LED 2Power Button

The following table contains additional references for installing an operating systems and patches.

▼Update Firmware and Drivers

To update supported firmware and drivers on your system, refer to the Sun Installation Assistant for Windows and

Linux User’s Guide or to the Sun Integrated Lights Out Manager 3.0 User’s Guide.

Documentation for This Product

The following table lists the documentation in the approximate order of the tasks that you might perform when

installing a new system. The documentation is cross platform, unless specified otherwise. The most up-to-date

versions of the documents are at the Sun documentation web sites:

http://docs.sun.com/app/docs/prod/sf.x4x50

where x4x50 is x4150, x4250, or x4450.

For translated versions of the documentation, go to http://docs.sun.com and select your language.

Operating

system: Read this document:

For patch information,

go to:

Preinstalled

Solaris OS

Sun Fire X4x50 Server Installation Guide • See the Product Notes for each server.

• http://sunsolve.sun.com

Solaris OS Sun Fire X4150, X4250, and X4450 Servers

Linux, VMware, and Solaris OS Installation Guide

OpenSolaris

VMware

(ESX)

Sun Fire X4150, X4250, and X4450 Servers

Linux, VMware, and Solaris OS Installation Guide

http://www.vmware.com/download/

Windows Sun Fire X4150, X4250, and X4450 Servers

Windows OS Installation Guide

http://update.microsoft.com/

Linux Sun Fire X4150, X4250, and X4450 Servers

Linux, VMware, and Solaris OS Installation Guide

• Red Hat:

https://www.redhat.com/apps/download/

• SUSE:

http://download.novell.com/index.jsp

Task Document or Collection Type Part Number

Review safety information. Safety and Compliance Manual X4150: 820-1856

X4250: 820-2704

X4450: 820-2704

Important Safety Information for Sun Hardware

Systems

816-7190

Review known issues and workarounds. Product Notes X4150: 820-1854

X4250: 820-4211

X4450: 820-2703

Install and cable the server. Configure the

service processor and the preinstalled

Solaris or Windows OS.

Installation Guide and

Windows Preinstalled Documentation Collection (if

your system has Windows OS preinstalled.)

Installation Guide

X4150: 820-1851

X4250: 820-4217

X4450: 820-2709

Part No. 820-7843-10, Rev. A

May 2009

Sun Microsystems, Inc.

www.sun.com

Sun Contact Information

Topic URL

Technical support http://www.sun.com/service/contacting

Submitting comments on this document http://www.sun.com/hwdocs/feedback

Please include the title and part number of your document with your feedback:

Sun Fire X4150, X4250, and X4450 Servers Getting Started Guide (820-7843-10)

Driver and firmware updates See “Set Up the Platform Operating System, Driver Software, and Firmware.”

If you are not using a preinstalled

operating system, install and configure the

Solaris, Linux, or Windows OS.

Linux, VMware, and Solaris OS Installation Guide 820-1853

Windows OS Installation Guide 820-7141

Sun Installation Assistant User’s Guide 820-3357

Configure system utilities. x64 Servers Utilities Reference Manual 820-1120

Configure installed HBAs. Sun x64 Server - Disk Management Documentation n/a

Manage server accounts, monitor alerts,

set remote access and redirection, and

view component status and event logs.

Sun Integrated Lights Out Manager 3.0 Collection n/a

Sun Integrated Lights Out Manager (ILOM) 3.0

Supplement

820-7842

Set BIOS and RAID settings. Service

components.

Service Manual X4150: 820-1852

X4250: 820-4214

X4450: 820-2707

Perform system diagnostics. Diagnostics Guide 820-4213

Task Document or Collection Type Part Number

Otros manuales para Sun Fire X4150 Server

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Servidor de Sun Microsystems

Sun Microsystems

Sun Microsystems Sun Fire V440 Manual de usuario

Sun Microsystems

Sun Microsystems SUN FIRE 280R Manual de servicio

Sun Microsystems

Sun Microsystems Fire 6800 Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire V215 Manual de instrucciones

Sun Microsystems

Sun Microsystems SUN FIRE X4500 Manual de instrucciones

Sun Microsystems

Sun Microsystems Netra t1 105 Manual de usuario

Sun Microsystems

Sun Microsystems Netra T4 AC100 Manual de usuario

Sun Microsystems

Sun Microsystems Sun SPARC Enterprise M4000 Manual de usuario

Sun Microsystems

Sun Microsystems Netra 240 Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire X4150 Server Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire V880 Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire V20z Manual de usuario

Sun Microsystems

Sun Microsystems Ultra Enterprise 450 Manual

Sun Microsystems

Sun Microsystems Enterprise Expansion Cabinet Optional Power... Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire T1000 Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire X2270 Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire X2250 Manual de instalación y funcionamiento

Sun Microsystems

Sun Microsystems Ultra Enterprise 3000 Guía del usuario

Sun Microsystems

Sun Microsystems Sun Manual de usuario

Sun Microsystems

Sun Microsystems Sun SPARC Enterprise M3000 Manual de usuario

Sun Microsystems

Sun Microsystems Fire 880 Manual de instrucciones

Sun Microsystems

Sun Microsystems Fire V210 Manual de usuario

Sun Microsystems

Sun Microsystems Sun Fire V1280 Manual de usuario

Sun Microsystems

Sun Microsystems Sun Enterprise 4000 Manual de instalación y operación

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
