Netra™t1 Model 105 Installation

Guide

Part 1

Safety Precautions

For your protection, observe the following safety precautions when

setting up your equipment:

•Follow all cautions and instructions marked on the equipment.

•Never push objects of any kind through openings in the equipment.

Dangerous voltages may be present.

Conductive foreign objects can produce a short circuit that could cause

fire, electric shock, or damage to your equipment.

Symbols

The following symbols may appear in this poster:

Caution – There is a risk of personal injury and equipment

damage. Follow the instructions.

Caution – Harzardous voltages are present. To reduce the risk

of electric shock and danger to personal health, follow the

instructions.

Modifications to Equipment

Do not make mechanical or electrical modifications to the equipment.

Sun Microsystems is not responsible for the regulatory compliance of a

modified product.

806-1551-10.doc Page 1 Friday, July 9, 1999 4:23 PM

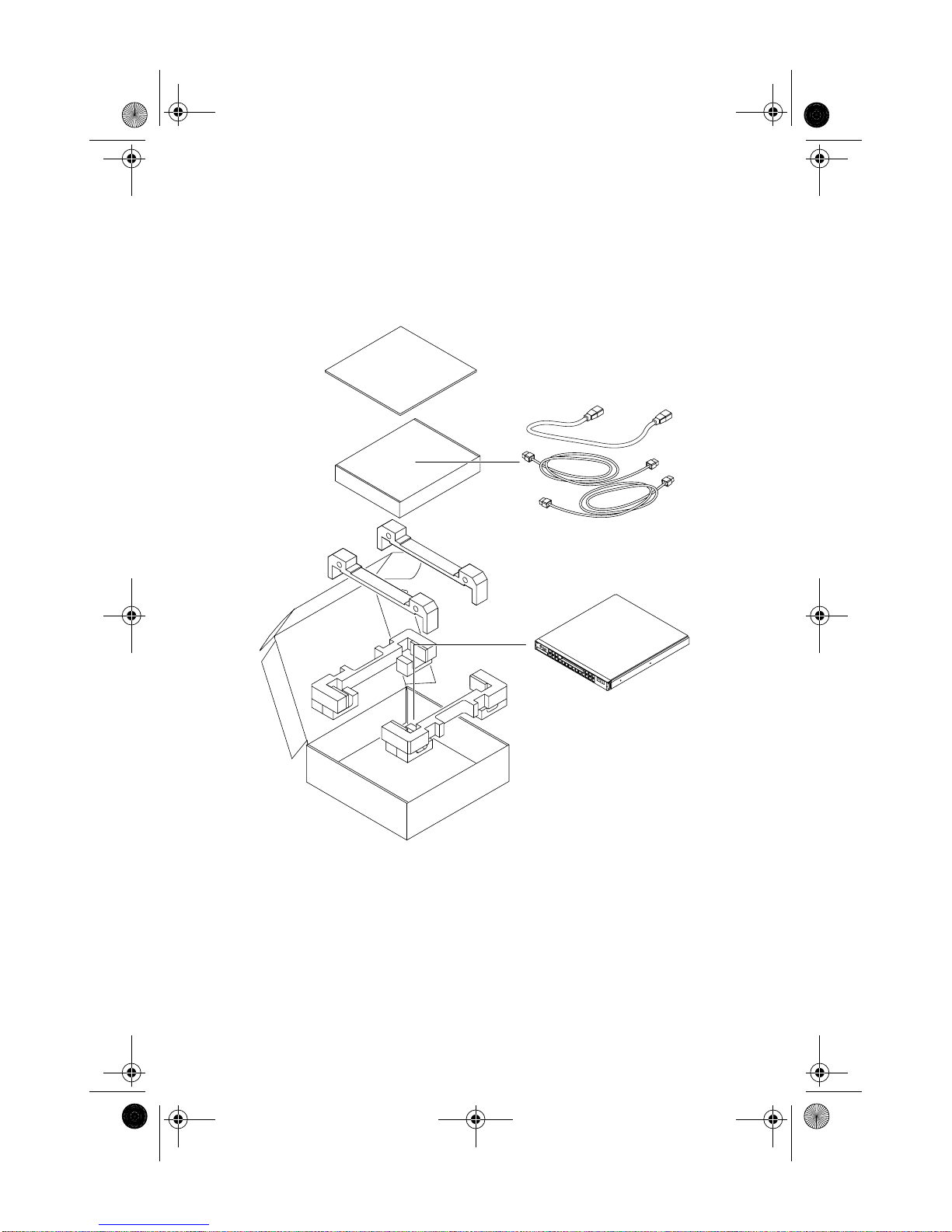

1Setup

*Contents may vary

806-1551-10.doc Page 2 Friday, July 9, 1999 4:23 PM

1, 3

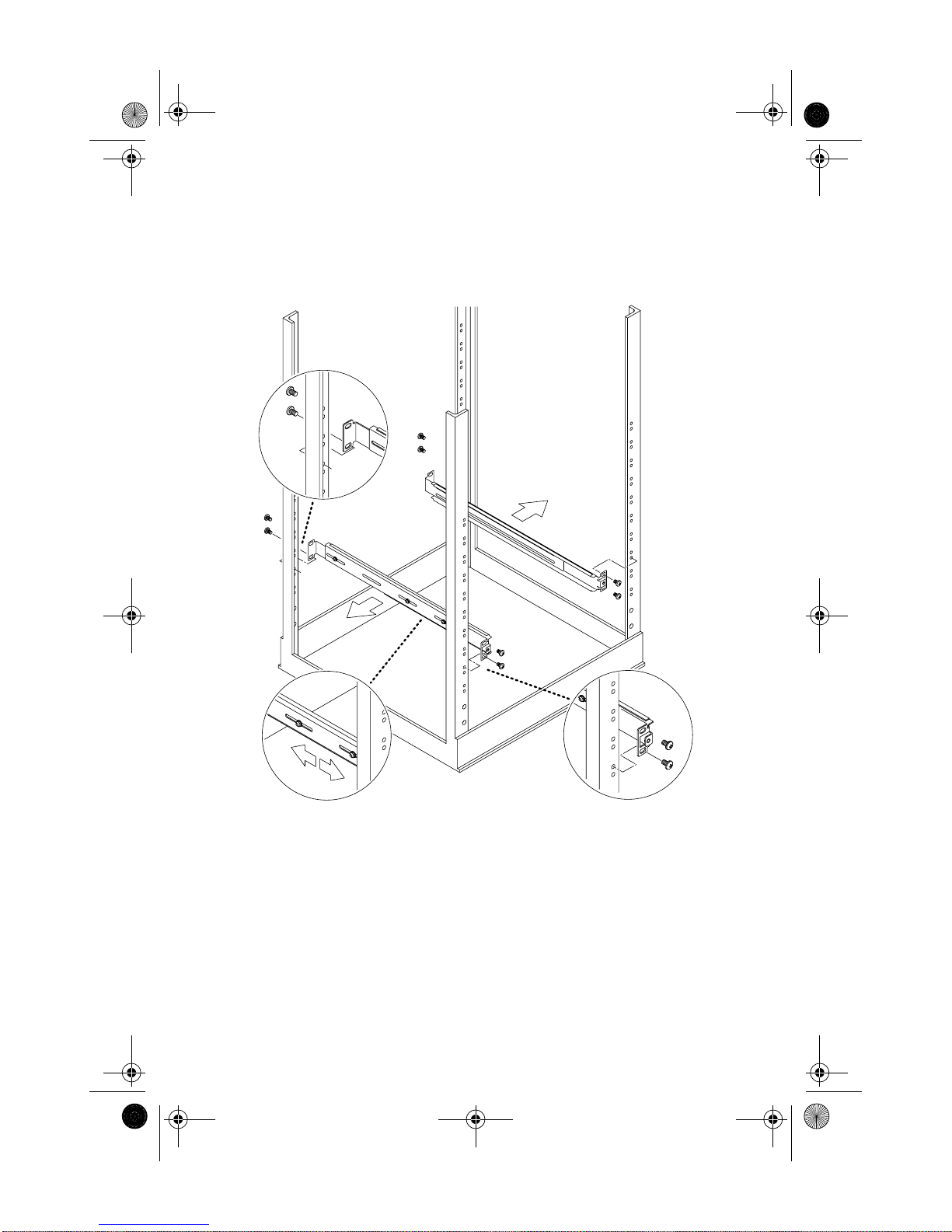

2Rack Mounting

1Slacken the M4 nuts on the left bracket. 2Adjust the bracket to fit the rack.

The ends of the bracket must be outside the rack. 3Move the brackets so that

the studs are in suitable slots and tighten the nuts. 4Fasten the screws on both

ends of the bracket. 5Repeat for the right bracket.

806-1551-10.doc Page 3 Friday, July 9, 1999 4:23 PM

Caution – Do not block or cover the openings of your Sun product. Never place a Sun

product near a radiator or heat register. Failure to follow these guidelines can cause

overheating and affect the reliability of your Sun product.

Caution – The workplace-dependent noise level defined in DIN 45 635 Part 1000 must be

70Db(A) or less.

Caution – If installed in a closed or multi-unit rack assembly, the operating ambient

temperature of the rack environment may exceed the room ambient. Ensure that rack

environment ambient temperature does not exceed 55 degrees Celsius (130 degrees

Fahrenheit).

Caution – Mounting of the equipment in a rack or cabinet should be such that a hazardous

condition is not created due to uneven mechanical loading or weight distribution.

Caution – Ensure that the connection of multiple system units to the circuit does not

overload the the supply overcurrent protection or supply wiring. Consider the Sun product

nameplate electrical ratings when determining the correct branch circuit rating for your

installation.

6Slide the unit into the rack. 7Fasten the screws on the left side of the unit. 8

Adjust the bracket on the right side of the unit. 9Fasten the screws on the right

side of the unit. It may be necessary to readjust the brackets fixings in order to

align the system as required.

806-1551-10.doc Page 4 Friday, July 9, 1999 4:23 PM

1Connect the Netra t1 Model 105 AC power cord. 2Connect the two

Ethernet devices. 3Connect up to two serial devices. You must connect a

console to one serial port. You can also connect to the LOMlite device for

remote power on/off via the port marked LOM/Serial A. See the Netra t1

LOMlite User’s Guide for details. 4If required, insert the serial cable for

external devices into the adapter. 5If required, connect a SCSI adapter to

the SCSI cable. 6Turn power supply switch on.

Note – The cables and adapters meet the requirements for the

Netra t1 Model 105 RJ-45 and AUX ports.

On – Applies AC power to the system.

Standby – The On/Standby switch is in the standby position.

Safety status of I/O connections comply to SELV requirements.

Connecting the System

806-1551-10.doc Page 5 Friday, July 9, 1999 4:23 PM

Power Cord Connection

Caution – Sun products are designed to work with single-phase power

systems having a grounded neutral conductor. To reduce the risk of

electric shock, do not plug Sun products into any other type of power

system. Contact your facilities manager or a qualified electrician if you are

not sure what type of power is supplied to your building.

Caution – Not all power cords have the same current ratings. Household

extension cords do not have overload protection and are not meant for use

with computer systems. Do not use household extension cords with your

Sun product.

Caution – Your Sun product is shipped with a grounding type (three-

wire) power cord. To reduce the risk of electric shock, always plug the

cord into a grounded outlet.

Caution – The power switch of this product functions as a standby device

only. The power cord serves as the primary disconnect device for the

system. Be sure to plug the power cord into a grounded power outlet that

is nearby the system and is readily accessible. Do not connect the power

cord when the power supply has been removed from the system chassis.

806-1551-10.doc Page 6 Friday, July 9, 1999 4:23 PM

4Installing Options

Electrostatic Discharge

This system contains electronic parts that are extremely sensitive to

static electricity. Do not touch any metal parts. Wear a wrist strap.

1Shut down Solaris™ from the console. 2Turn the power supply switch off.

3Disconnect the AC power cord. 4Disconnect any other cables. 5Remove the

system from the rack and place at an ESD station. 5Attach the wrist strap to

the attachment point on the station.

Caution – Do not touch any metal parts.

806-1551-10.doc Page 7 Friday, July 9, 1999 4:23 PM

Caution – Do not operate Sun products without the top cover in place.

Failure to take this precaution may result in personal injury and system

damage.

1Remove the cover screw using a Phillips No. 2 screwdriver. 2Remove the

rack brackets, if fitted. 3Slide the cover to rear and lift. 4Reverse the procedure

to replace the cover. See panel 9 for more information about disassembling the

system when required to install options.

806-1551-10.doc Page 8 Friday, July 9, 1999 4:23 PM

See panel 9 for an illustration of all removable parts.

1Remove the system from the rack (see panel 4). 2Remove the cover (see

panel 4). 3Push the slide in the mid-baffle away from the edge of the PCI card

and lift out the baffle. 4Remove the blanking panel or previous PCI card. 5Slide

the PCI card into place. 6Insert the mid-baffle. 7Push the slide in the baffle

forward to hold the PCI card in place. 8Replace the other components in the

reverse order to that in which you removed them.

Installing PCI Cards

806-1551-10.doc Page 9 Friday, July 9, 1999 4:23 PM

There is one memory board in the shipped system. You can upgrade it and

install an additional memory board.

See panel 9 for an illustration of all removable parts.

1Remove the system from the rack (see panel 4).2Remove the cover (see

panel 4). 3Slide and lift off the processor cover. 4Unplug the serial and SCSI

cables from the rear I/O board. 5Remove the processor cover. 6Remove the

screws and washers from the base memory board. 7Position the new spacers

over the screw holes. 8Position the additional memory board above the base

memory board so that the connectors line up. 9Insert the new, longer screws

through both boards and the intervening spacers. See the memory board

documentation for further information. 10 Replace the other components in the

reverse order to that in which you removed them.

6Installing Additional

Memory

806-1551-10.doc Page 10 Friday, July 9, 1999 4:23 PM
