Introduction

This guide presents an overview of the Netra™ 440 server

installation.

For complete installation instructions, refer to the

Netra 440 Server Installation Guide.

Documentation

You can view, print, or download manuals from the

Sun™ documentation web site:

http://www.sun.com/documentation

■Netra 440 Server Release Notes

(817-3885-xx)

Latest product updates

■Netra 440 Server Product Overview

(817-3881-xx)

Product overview information

■Netra 440 Server Installation Guide

(817-3882-xx)

Detailed rackmounting, cabling, power-on, and

configuring information

■Netra 440 Server Service Manual

(817-3883-xx)

Service information

■Netra 440 Server System Administration Guide

(817-3884-xx)

Administration information

■Netra 440 Server Diagnostics and Troubleshooting Guide

(817-3886-xx)

Diagnostics and troubleshooting information

■Sun Advanced Lights Out Manager User’s Guide for the

Netra 440 Server (817-5481-xx)

Advanced Lights Out Manager (ALOM) software

information

■Netra 440 Server Safety and Compliance Manual

(817-6225-xx)

Essential safety and compliance information

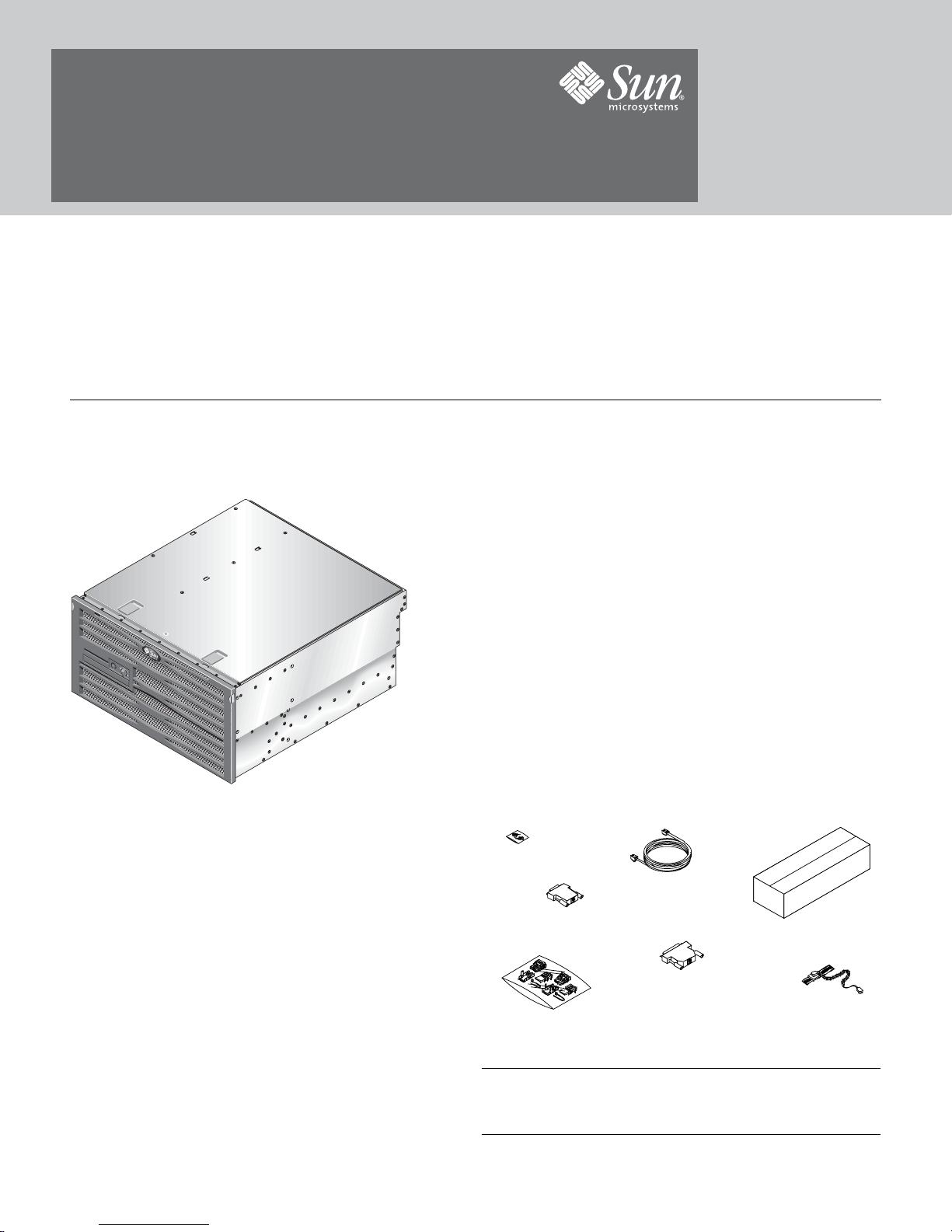

Shipment Contents

Besides the server (shown on the left), the ship kit contains:

Note – The DC connectors are for the DC-powered servers

only. Use the separately ordered AC cables with the

AC-powered server.

Antistatic

wrist strap

RJ-45 serial

console cable

M5 nut kit

RJ-45 to

DB-9 adapter

RJ-45 to DB-25

adapter

Rackmount kit

DC connectors

(For DC servers only)

Netra™440 Server Quick Start Guide

The shipment also contains these documents:

Important Safety Information for Sun Hardware (816-7190-xx),

Sun Netra 440 Server Product Documentation (817-4755-xx),

Binary Code Licenses (816-4835-xx), Sun Install Check Tool

(817-0440-xx), and this guide.

1. Viewing Front Components

1. Press in on the door release latches to lower the front

door.

2. View the components accessible from the front panel.

2. Mount Server to Rack

Detailed instructions on mounting the server in a rack are

in the Netra 440 Server Installation Guide. The following rack

mount kits are available for the Netra 440 server.

■19-inch 4-post sliding or hardmount

■19-inch 2-post hardmount

■23-inch 2-post hardmount

■600 mm 4-post hardmount

Door release latches

SCC

System configuration

card reader Rotary switch

On/Standby

button

Hard drives

Fan trays 0-2

Power distribution

DVD drive board

Following are the basic instructions for the 19-inch 4-post

hardmount rack mount kit:

1. Get the front hardmount brackets from the rack kit

and secure the front brackets to the sides of the server.

2. Get the two rear mount support brackets from the

rack kit and install the rear mount support brackets at

the rear of the server.

3. Lift the server to the desired location in the rack.

4. Secure the front hardmount brackets attached to the

sides of the server to the front of the rack.

5. Get the two rear mount flanges from the rack kit and,

at the rear of the rack, use the two captive screws to

secure the two rear mount flanges to the rear mount

support brackets that are attached to the server.

6. Using two screws for each rear mount support

bracket, secure the rear mount support brackets to the

rear of the rack.

3. Attach Cables

Alarm

DB-15 connector; use this port to connect to the central

office alarming system.

Serial

DB-9 connector; use this port (TTYB) for general purpose

serial data transfer.

USB

Use the ports (USB0–3) to connect to external USB devices.

Captive screws to

secure flange to

rear of server

Screws to secure

ﬂange to rack

AlarmSerial USB Ethernet SCSI Net MGT

Serial MGT

AC power OR DC power Ground

studs

You cannot mix AC and DC power supplies in the same server

Ethernet

RJ-45 connectors; use these ports (NET0, NET1) to connect

to autonegotiating 10/100/1000BASE-T Ethernet networks.

SCSI

Ultra320 LVD SCSI connector; use this port to connect to

external SCSI devices.

SERIAL MGT

RJ-45 connector; use this serial port for server management

using the ALOM software. If needed, use the supplied

RJ-45 to DB-9 or RJ-45 to DB-25 adapters.

NET MGT

RJ-45 connector; use this port for making an Ethernet

connection to the ALOM software.

AC Power (AC Server Only)

Connect the AC power cords to the AC power source.

DC Power (DC Server Only)

Assemble DC connectors and connect to DC power source.

Ground Studs (DC Server Only)

Connect to protected earth ground.

Note – Refer to the Netra 440 Server Installation Guide for

complete cabling instructions.

4. Power On Server

Note – The server goes into Standby mode as soon as the

power cables are connected to the power source.

1. Make sure the rotary switch is in the Normal (|)

position before powering on the server.

SCC

Forced Normal Locked

Diagnostics

standby

Part No. 817-4756-11, Rev. A

August 2004

Sun Microsystems, Inc.

www.sun.com

2. Set up a console connection to the server using the

server’s SERIAL MGT port.

Refer to the Netra 440 Server Installation Manual for

complete instructions.

3. Power on server either from the keyboard or by

pressing the system power button at the front of the

server.

Note – Refer to the Netra 440 Server Installation Manual for

complete power on and configuration instructions.

Indicator Overview

Front Panel Indicators

SCC

System status Hard drives Fan trays 0-2

Alarms

Rear Panel Indicators

Note – Refer to the Netra 440 Server Installation Manual for

the description of these indicators.

System status NET MGT

Ethernet connection

Power supply
