Sun Microsystems Sun Ultra 60 Manual de usuario

10

1

Operating and Service Positions

Operating Position

The Sun Ultra 60 system must be operated in a vertical position.

Service Position

Place the system in the horizontal service position on a hard

surface to perform service on the system.

JP tasks

KR tasks

TW tasks

PRC tasks

11

1

12

2

Opening the System Unit

1. Press the Standby ( ) side of the power switch.

2. Remove the lock block from the system.

3. Grasp the side panel and pull it toward the back of the system.

Lift up and remove the panel.

JP tasks

KR tasks

TW tasks

PRC tasks

13

2

14

3

Installing DIMMs

Note - Use only dual in-line memory modules (DIMMs) that are

speciﬁcally designed for your Sun Ultra 60 system. See ( 11).

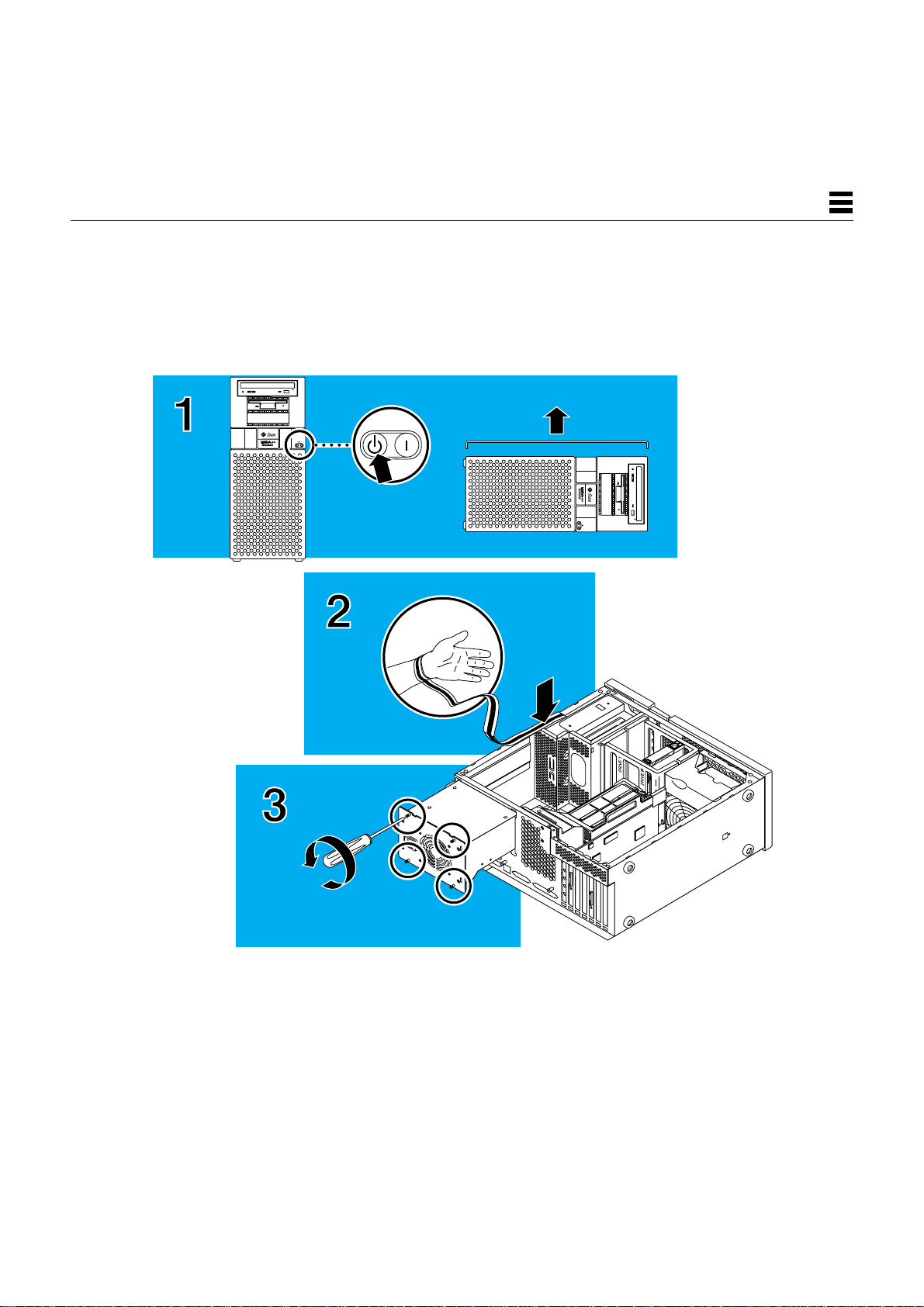

1. Power off your system and open the system unit ( 2).

2. Locate the wrist strap, and attach its adhesive copper strip to

the chassis back panel. Wrap the other end twice around your

wrist, with the adhesive side against your skin.

3. Use a Phillips screwdriver to loosen the four screws that hold

the power supply to the chassis. Disconnect the power harness

plug from the connection at the motherboard. Slide the power

supply partially out until it is not blocking the DIMMs.

4. Locate and select an available bank of DIMM slots on the

motherboard. See ( 12).

JP tasks

KR tasks

TW tasks

PRC tasks

15

3

16

3

Installing DIMMs

5. Unpack the DIMM, holding it only by the edges.

6. For each DIMM, align the notch on the side of the DIMM with

the ejector on the DIMM slot. Insert the DIMM into the slot.

7. Push the DIMM ﬁrmly into its connector until you hear a “click.”

8. Slide the power supply back into the chassis. Reconnect the

power harness plug to the connection at the motherboard. Use

a Phillips screwdriver to tighten the four screws that attach the

power supply to the chassis.

9. Detach the wrist strap and close the system unit ( 10).

JP tasks

KR tasks

TW tasks

PRC tasks

17

3

18

4

Changing the RS-423/232 Jumpers

Note — If you are connecting your system to a public X.25 network,

you may need to change the serial port mode jumpers from RS-423

to RS-232 mode.

1. Power off the system and open the system unit ( 2).

2. Locate the wrist strap, and attach its adhesive copper strip to

the chassis back panel. Wrap the other end twice around your

wrist, with the adhesive side against your skin.

3. Use a Phillips screwdriver to loosen the four screws that hold

the power supply to the chassis. Slide the power supply partially

out such that it is not blocking the jumpers.

Note — The power cord must remain plugged into the power

source.

JP tasks

KR tasks

TW tasks

PRC tasks

19

4
