Welcome

Quick Installation Guide

Parts and Features Ingenious Model

Quick Reference Guide Ingenious

Where to Start

Know Your Product

Temperature Control

Air Regulator

Exterior Display

Smart Station

SmartFillIceFactory

Compartments

Take&Go Egg Box

ExpressChillZone

Safety Glass Spill Guard Shelf

Shelves

Air Flow

How to Get the Most from Your Refrigerator

Choosing a location

Positioning

Installation

Levelling

Minimum requirements for correct electrical installation

General Temperature Control

Express Chill Zone Function

Exterior Temperature Control

Power Cool Function

Holidays Function

Alarm Function

Lock Function

EnergySaver

Fruits & Veggies Crisper

Deli Fresh Compartment

Meat Keeper

Humidity Control

Medium Shelf

Wide Shelf

Double Capacity Shelf

Jumbo Drinks Shelf

Dairy Shelf

ingenious model

Cleaning and Servicing Your Refrigerator

Increased Temperatures of Areas Close to Freezer

General Precautions

Holidays and Absences

Moving

Power Outages

Normal Operating Sounds

Changing the Bulb

Frequently Asked Questions and Operating Guide

welcome

Ouraimistomakeyourlifebettereveryday;that’swhywecreateappliances

whichadapt to yourlifestyle and throughtheir technology allowyou to enjoy

each moment.

Today we invite you to join this world, so you can discover the ingenuity

and versatility that our line of refrigerators offers you.

You will nd all of the information you need for running your refrigerator

inside this booklet. We invite you to read it and to enjoy your new product.

Thank you for choosing us.

Before beginning, we’ve included a quick guide and a brief description of

the most important parts of your new refrigerator.

quick installation guide

choosing a

location

installation

positioning

cleaning

packaging

connection

Select a large, clean,

and dry space.

Let the refrigerator

stand for 6 to 8 hours.

THIS IS VERY

IMPORTANT SO THAT

THE GAS CAN SETTLE.

Allow for a 5 cm space

on each side, 10 cm at

the back, and between

5 and 10 cm at the top.

Before connecting the

plug, clean the

refrigerator with a cloth

or soft sponge and a

neutral soap.

Remove all packaging

including tape,

cardboard, plastic,

and Styrofoam.

Connect the plug to

the correct outlet.

Leave it empty and

closed for 4 hours

before usage.

Exterior

Handles

Wheels - Levellers

Display

Access to Smart Station

Inside Freezer

Shelves

Air Regulator

Express Chill Zone

Smart Fill Ice Factory

Medium Shelf

Wide Shelf

Inside Cooler

Shelves

Multiple Use Compartment

Fruits and vegetables compartment

Air Flow Outlets

Take & Go Egg Box

Internal Temperature Control

Refrigerator Light

Cold Meats Comparment

Medium Shelf

Smart Station

Double Capacity Shelf

Jumbo Drinks Shelf

Ingenious Model

quick reference guide for the ingenious model

For more details on the use and the specications of the benets described

below, we recommend you consult the rest of the manual.

express chill zone

Inside the freezer you’ll find

this separate compartment

designed to rapidly cool

your favourite foods and

drinks. You can control it

from the exterior display

and it will let you know

when your foods and drinks

are ready. )

exterior display

take & go egg box

smart fill ice factory

power cool

smart station

Specially designed to allow

easy organisation of your

favourite foods. Furthermore,

thanks to its external

access you will always have

these on hand. Not having to

open the refrigerator door,

thanks to this special access,

will help save energy.

)

Practically designed to allow you to operate certain additional

functions like the Express Chill Zone, as well as the refrigerator

temperature. )

You can take this

multipurpose egg box

wherever you want.

In addition, it’s designed to

hold loose eggs or a carton.

You can also put

the Take&Go in the

“Double Capacity” shelf at

the door.

)

This no-spill ice-maker has a

removable cylinder which

can be easily filled and when

in place, automatically fills

the ice-trays. It also comes

with a storage box that can

be used as an ice-bucket.

)

The Power Cool function

is great for rapidly cooling

a large amount of room

temperature food once it’s

placed in the refrigerator.

As soon as you get back

from the supermarket,

simply activate it and it

will rapidly cool the

refrigerator interior.

)

(pg.

(pg. 23

(pg.

where to start?

choosing a location

Choose a place for your refrigerator. We recommend a large space that

can be kept clean and dry to prevent oxidation.

positioning

To ensure that the refrigerator works correctly, it’s important that air can

circulate. We recommend the following minimum surrounding distances:

• 10 cm on both sides, 10 cm at the back,

between 5 and 10 cm on top.

• Don’t position it near heat-generating appliances

such as hobs, heaters, or in areas exposed to

sunlight. This could overwork the refrigerator,

making it less efcient and increasing energy

consumption.

• Don’t lean it against a wall.

Observing these distances and recommendations

will guarantee you a fully-functioning product, as

it will prevent the components from direct contact

with walls and furniture, thus avoiding unpleasant

sounds.

installation

You must remove all packaging including:

tape,cardboard,plastic, and/orStyrofoam(EPS).

The refrigerator must not be connected to an

energy source before installation.

important

Let the refrigerator stand for 6 to 8 hours before

connecting it to allow the cooling gas and the

compressor oil to settle.

Top

Base

Corner

packaging

working width

door opening direction

model ingenious ingeniousprismatic prismatic glass glass

Capacity 400 litres 510 litres 400 litres 510 litres 400 litres 510 litres

Total Dimensions

(closed doors) cm cm cm cm cm cm

Depth 69.32 70.28 76.02 78.18 76.58 78.16

Width 66.22 74.37 66.22 74.37 66.22 73.91

Total Dimensions

(open doors)

Depth 125.85 138.80 126.07 138.83 125.70 138.61

Width 107.06 120.35 111.14 124.51 111.64 124.42

working depth

Top

Base

Corner

packaging

working width

door opening direction

model ingenious ingenious prismatic prismatic glass glass

Capacity

Total Dimensions

(closed doors) cm cm cm cm cm cm

Depth

Width

Total Dimensions

(open doors)

Depth

Width

working depth

Top

Base

Corner

packaging

working width

door opening direction

model ingenious ingeniousprismatic prismatic glass glass

Capacity 400 litres 510 litres 400 litres 510 litres 400 litres 510 litres

Total Dimensions

(closed doors) cm cm cm cm cm cm

Depth 69.32 70.28 76.02 78.18 76.58 78.16

Width 66.22 74.37 66.22 74.37 66.22 73.91

Total Dimensions

(open doors)

Depth 125.85 138.80 126.07 138.83 125.70 138.61

Width 107.06 120.35 111.14 124.51 111.64 124.42

working depth

levelling

To level the refrigerator use

the two levelling screws

found on the base at the

front. Make sure that the

refrigerator is placed on level

ground. Adjust the levelling

screws to ensure that the

refrigerator doesn’t move

during day-to-day use.

Turn the screws anti-

clockwise to lift the front of

the refrigerator and clockwise

to lower it.

The front part of the

refrigerator should be a little

higher than the back causing

it to tilt backwards slightly.

Levelling requires two people;

one to tilt the unit backwards

and the other to turn the screws.

To level it, lift the front by turning the screws until there is a 48 mm (1.9

in) gap between the oor and the base of the refrigerator, as indicated in

the gure on the right.

observe the following when installing:

important – after leaving the refrigerator to stand 6 to 8 hours

and before plugging it in:

1.Clean the interior of your refrigerator with a cloth or soft sponge, and

a neutral soap or a soda bicarbonate solution.

2.Plug it in to the correct outlet.

3.Leave it on, empty and closed, for 4 hours before putting food inside.

4.Avoid opening the door before optimum temperature has been

reached.

5.If you want to move your refrigerator to another location, disconnect

it. When it has been repositioned repeat steps 3 and 4.

caution

In the case of physical, mental or sensorial difculties (including

children), or if you don’t have sufcient experience or knowledge to

handle this product, you will need the assistance of a capable adult

to ensure safety.

Children should always be supervised. This product is not a toy.

Levelling

screws

Front

wheels

Back

wheels

mm84

Front

Levelling

screws

Front

wheels

Back

wheels

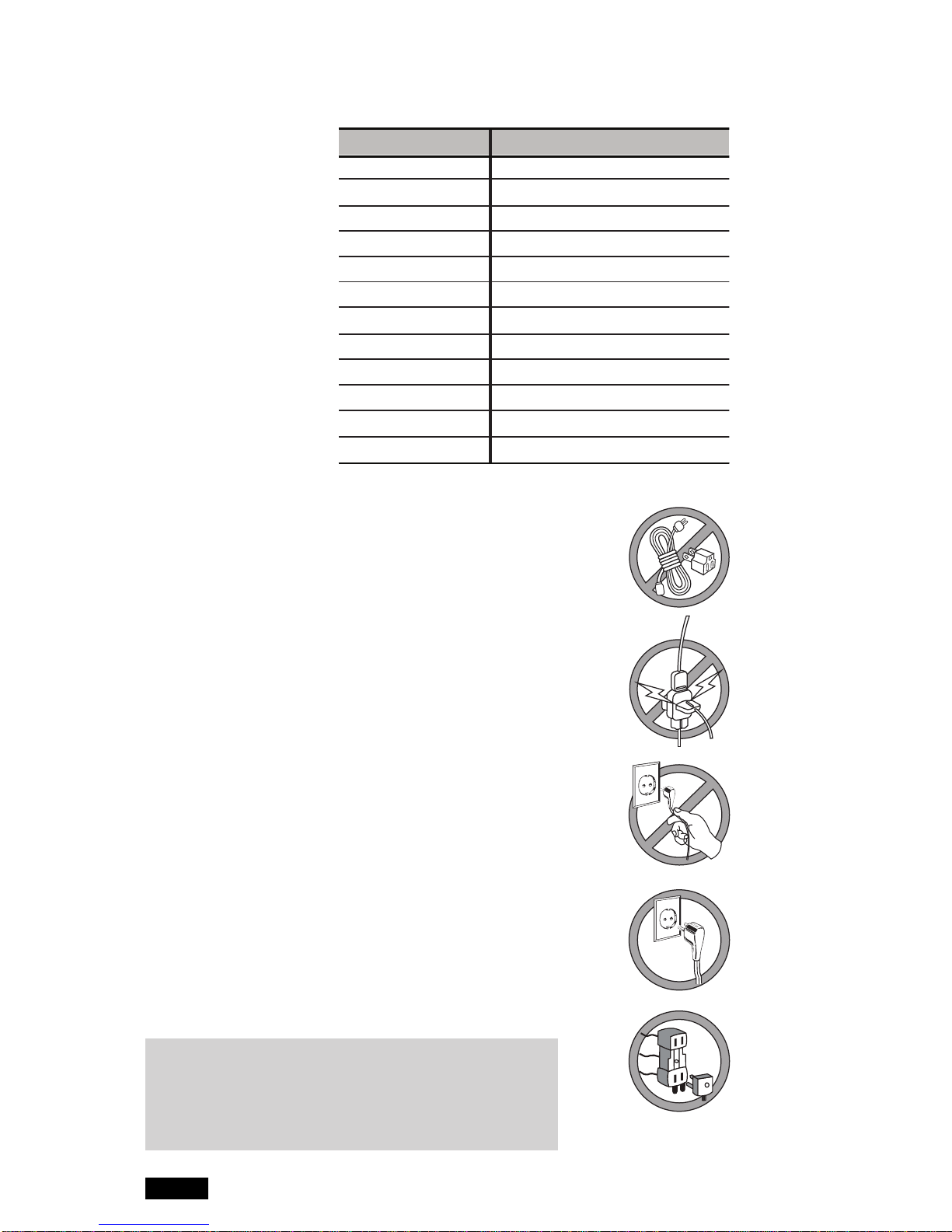

minimum electrical requirements:

Check the voltage

and frequency

characteristics in

accordance with

your country of

residence.

electrical installation:

1.Install your refrigerator to the closest outlet. The use of

an extension cord is not recommended

2.Where possible, avoid connecting other electrical

appliances to the same outlet as your refrigerator while

it’s in use. This will prevent uctuations in voltage and

overheating of the refrigerator.

3.To connect and disconnect your refrigerator, take the

cord by the plug and remove it. Never pull on the cable.

4.Your refrigerator comes equipped with a type “Y”

polarisedpowercord, whichincludesagrounding cable.

Do not remove the ground prong by using a two-prong

adaptor, or cut the cable to replace the original plug for

a two-prong plug.

5.If you live in a region where there are voltage and

frequency variations, don’t connect your refrigerator

into the outlet. You must install an automatic voltage

regulator with a minimum power of 500 Watts for 1000

Watts. Makesure theregulator canhandle yourregion’s

variations in tension.

6.If the supply cord is damaged, it must be replaced

by the manufacter, its service agent or similarly

qualied persons in order to avoid a hazard.

important:

Ignoring the above-mentioned advice places the

responsibility for any personal or material risk

entirely with the customer.

País Características Nominales

México 115 V ~ 60 Hz

Brasil 127 V ~ 60 Hz / 220 V ~ 60 Hz

Europa 220 V - 240 V ~ 50 Hz

Medio Oriente 220 V - 50 Hz / 110 V ~ 60 Hz

Perú 220 V ~ 60 Hz

Ecuador 115 V ~ 60 Hz

Venezuela115 V ~ 60 Hz

Colombia115 V ~ 60 Hz

Chile 220 V ~ 50 Hz

El Salvador 115 V ~ 60 Hz

Argentina 220 V ~ 50 Hz

Canadá 115 V ~ 60 Hz

CountryNominal Characteristics

115 V ~ 60 Hz

Brasil 127 V ~ 60 Hz / 220 V ~ 60 Hz

Europa 220 V - 240 V ~ 50 Hz

Medio Oriente 220 V - 50 Hz / 110 V ~ 60 Hz

Peru 220 V ~ 60 Hz

Ecuador115 V ~ 60 Hz

Venezuela115 V ~ 60 Hz

Colombia 115 V ~ 60 Hz

Chile220 V ~ 50 Hz

El Salvador115 V ~ 60 Hz

Argentina 220 V ~ 50 Hz

Canada115 V ~ 60 Hz

Mexico

32°C 10°C

N 32°C 16°C

Subtropical ST 38°C 16°C

Tropical T 43°C 16°C

Temperatura ambiente

Temperature Range

Class Symbol

Room Temperate Range

within which our products are

designed for use.

(Storage temperatures should

comply with these.)

Temperate SN +10 to + 32

Mild Temperate N+16 to + 32

Subtropical ST +18 to + 38

Tropical T +16 to + 43

Symbol Maximum Minimum

Mild Temperate

Values in Celsius Degrees

know your product

The refrigerator is designed to work within the room temperatures specied

in the table below.

note: The internal temperature can be affected by factors such as the

locationoftherefrigerator,theroomtemperature,andhowoftenthedoors

are opened.Adjust the temperaturecontrols accordinglyto compensate

for these factors.

For Chile and Europe:

For Brazil, Ecuador, Colombia, and Argentina:

temperature control

The internal temperatures of the freezer compartments and the cooler can

be regulated to allow them to be adjusted for suitable conservation of food.

When using your refrigerator for the rst time, we recommend maintaining

the original factory positions (in mid-position). Let it stand for 4 to 6 hours to

allow the temperature to stabilise.

If you need to change the temperature after this period you can adjust it with

the controls.

general temperature control

Therefrigeratorcontrolhastemperaturegraduationsforbothcompartments

thatvaryfromminimum(leastcold)tomaximum(coldest).Ifneedsbe,adjust

the control and monitor the food for a couple of hours. You can readjust it

until you obtain the desired refrigeration level. You will have to wait between

4 and 6 hours until the refrigerator reaches the selected temperature.

air regulator

Your refrigerator has an additional

control that regulates the air ow

between the freezer and the cooler.

It’s calibrated in the factory to ensure

optimum function, so we recommend

you don’t alter its position.

If you wish to adjust it, put a coin into

the central slot. By turning it to the right

you’ll generate greater air ow to the

freezer, accelerating the freezing process. However, you’ll notice that the

cooler will take longer to reach the correct temperature.

By turning the control to the left, the air ow to the cooler will increase,

delaying the freezing process according to the following guide:

note: Forsomemodelsthetemperaturecontrolis located on theexterior

control or display. If your model has an external control or display,

see page 72 to understand how it works.

important

Changing the position of the air regulator will alter the time it takes the

cooler to reach the correct temperature but not the temperature itself.

note: Do not overll the refrigerator. Leave space between food and

use the shelves provided to hold everything. This will facilitate the

necessary air circulation and prevent it from lower performance.

Cold days

Few foods stored

Infrequent door opening

Hot Days

Many foods storedMaximum

Mínimum

Medium Recommended for normal use

regulator position

position when to use

Minimum Maximum

Turn the knob towards Minimum

for less chill or towards Maximum

for greater chill.

Freezer Temperature

Cooler Temperature No variation

Least cold Suggested Coldest

Frequent door opening

Cold days

Few foods stored

Infrequent door opening

Hot Days

Many foods storedMaximum

Mínimum

Medium Recommended for normal use

regulator position

position when to use

Minimum Maximum

Turn the knob towards Minimum

for less chill or towards Maximum

for greater chill.

Freezer Temperature

Cooler Temperature No variation

Least cold Suggested Coldest

Frequent door opening

Cold days

Few foods stored

Infrequent door opening

Hot Days

Many foods storedMaximum

Mínimum

Medium Recommended for normal use

regulator position

position when to use

Minimum Maximum

Turn the knob towards Minimum

for less chill or towards Maximum

for greater chill.

Freezer Temperature

Cooler Temperature No variation

Least cold Suggested Coldest

Frequent door opening

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Summit

Summit

Summit accucold FFAR21LMAN Manual de usuario

Summit

Summit CP171 Series Manual de usuario

Summit

Summit FFAR10 Guía del usuario

Summit

Summit X-Series Manual de usuario

Summit

Summit FF1117BL Series Manual de usuario

Summit

Summit FFBF192SSBI Manual de usuario

Summit

Summit CSW-34 Manual de usuario

Summit

Summit FF-1274 Series Manual de usuario

Summit

Summit FF7LBLBI Guía

Summit

Summit FFBF247SSIM Manual de usuario

Summit

Summit CP351W Manual de usuario

Summit

Summit SCRR230 Manual de usuario

Summit

Summit CP-35 Manual de usuario

Summit

Summit FFRF24SS Manual de usuario

Summit

Summit FF1425SS Manual de usuario

Summit

Summit FFBF240W Manual de usuario

Summit

Summit R17FF Manual de usuario

Summit

Summit FF6BI series Manual de usuario

Summit

Summit FFBF191SS Manual de usuario

Summit

Summit FFAR2L Manual de usuario

Summit

Summit BRF65S Manual de usuario

Summit

Summit BDR190NASSTB Guía

Summit

Summit FF82W Manual de usuario

Summit

Summit SPR7OSST Series Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario

Summit ingenious Manual de usuario

Manuales populares de Refrigerador de otras marcas
