Summit VIPER SS INFINITY Manual de usuario

VIPER SS INFINITY

FOOTREST INSTRUCTIONS

FORM# 18054, 6/2010

PN 81530

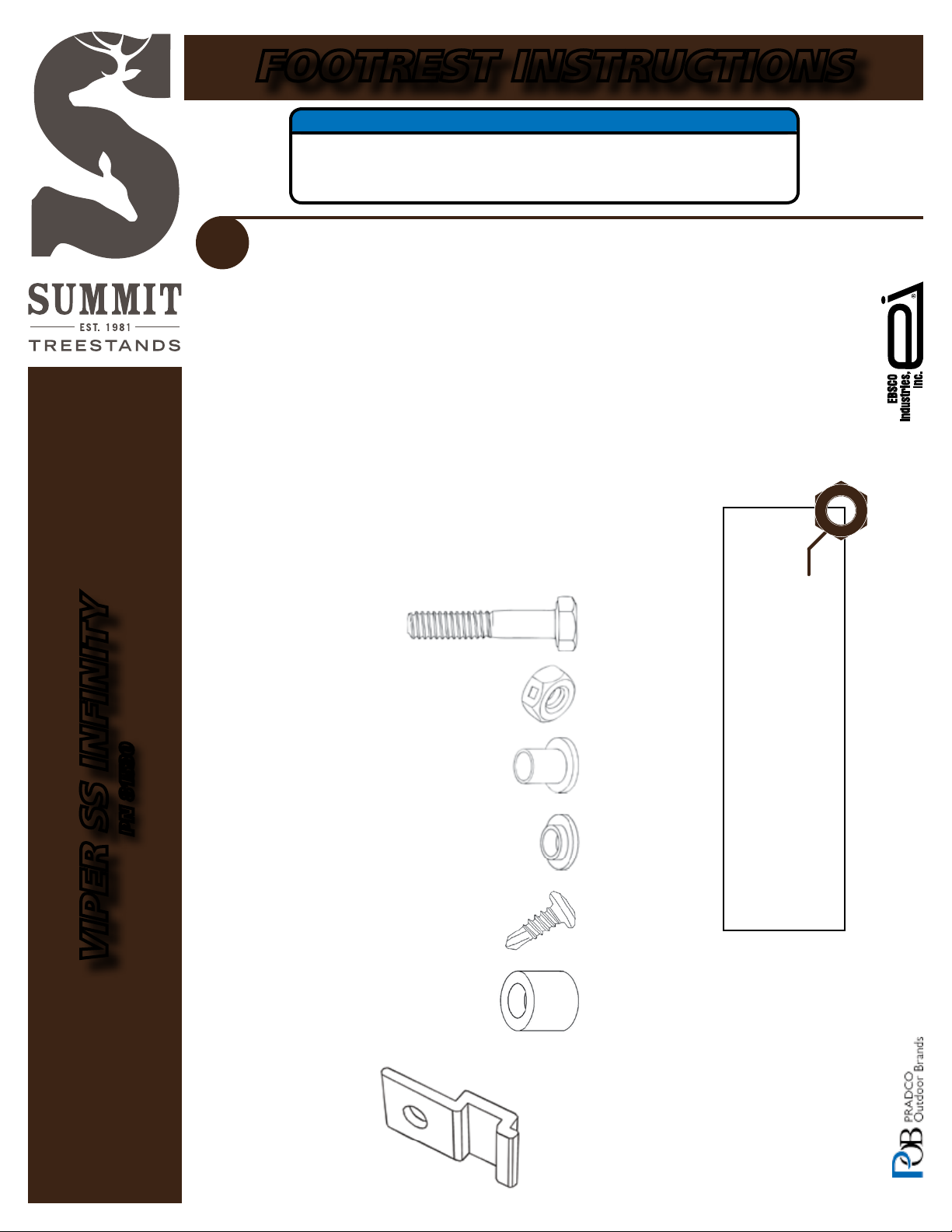

BOX CONTENTS

In addition to the items listed on Page 2 of the 2010

Viper SS Instructions, your treestand should include

the following:

PN DESCRIPTION QTY

HAT 1

40123 FOOTREST BAR 1

22029 FOOTREST HARDWARE PACKET 1

1 PARTS LIST

Please call 256-353-0634 or visit http://www.summitstands.com/contactus/

if you have any questions, if you need replacement parts, or if you have any missing parts.

22029 - FOOTREST HARDWARE KIT

PN DESCRIPTION QTY

10601 1 3/4” BOLT, 1/4x20 2

10612 LOCK NUT, 1/4x20 2

10640 LONG SHANK BUSHING 4

10641 SHORT SHANK BUSHING 2

10635 SELF TAPPING SCREW 4

10668 FOOTREST BUMPER 2

10122 FOOTREST MOUNTING BRACKET 2

NOTICE

These instructions are only for installing the included footrest on the

Dick’s Viper SS Infinity (PN 81530). ALWAYS refer to the Viper SS

Infinity Written Instructions for warnings and usage instructions.

Summit products are manufactured under one or more

of the following US Patents: 5,937,969; 5,971,104;

5,975,242; 5,979,603; 6,125,966; 6,182,792; 6,397,973;

D,417,011; D,420,147; D,575,411

Summit Bucksteps are Patent Pending

715 Summit Dr. Decatur, AL 35601

(256) 353-0634

[email protected]

2 TOOLS REQUIRED

Tools Use

• 7/16” Wrenches and / or Socket / Ratchet Footrest Attachment Bolts / Nuts

• Powered Screwdriver Footrest self tapping screws

3 INSTALLATION

FOOTREST

(Installation is made easier by the use of a

powered screwdriver)

1. Insert the Footrest Bracket into the perimeter tube

as shown in figure 1. This bracket should be placed

between the first and second rung from the front of

the platform.

2. Secure the bracket with one self tapping screw as

shown in figure 2. Repeat for the other side.

3. Insert two of the long shank bushings into the

pre-punched holes in each end of the footrest tube as

shown in figure 3.

4. Insert the short shank bushing into the outside of

each footrest bracket from Step 1 (See figure 4).

5. Line up the footrest bar on the INSIDE of the two

footrest brackets and secure one side using the 1 1/2”

bolt and lock nut. The gap between the other side of

the bar and the bracket is normal at this point.

6. Insert the remaining 1 1/2” bolt through the other

side of the footrest bar and pull the bar to the side so

that you can tighten the lock nut. If squeaking occurs,

loosen the bolts by 1/2 turn.

7. Fold the bar down and note where it crosses the

stand frame - make a mark on the footrest at this

point. Fold the bar back up. Secure the two rubber

bumpers at the mark using the two remaining self

tapping screws as shown in figure 5. Your finished

footrest should look like figure 6.

3 4

5 6

FOOTREST BRACKET

(PN 10122)

LONG

SHANK

BUSHING

(PN 10640)

SHORT

SHANK

BUSHING

(PN 10641)

FOOTREST BUMPERS

(PN 10668)
