Subaru FORESTER2001 Manual de usuario

This service manual has been prepared

to provide SUBARU service personnel

with the necessary information and data

for the correct maintenance and repair of

SUBARU vehicles.

This manual includes the procedures for

maintenance, disassembling, reassem-

bling, inspection and adjustment of com-

ponents and diagnostics for guidance of

experienced mechanics.

Please peruse and utilize this manual

fully to ensure complete repair work for

satisfying our customers by keeping their

vehicle in optimum condition. When

replacement of parts during repair work is

needed, be sure to use SUBARU genu-

ine parts.

All information, illustration and specifica-

tions contained in this manual are based

on the latest product information avail-

able at the time of publication approval.

FUJI HEAVY INDUSTRIES LTD.

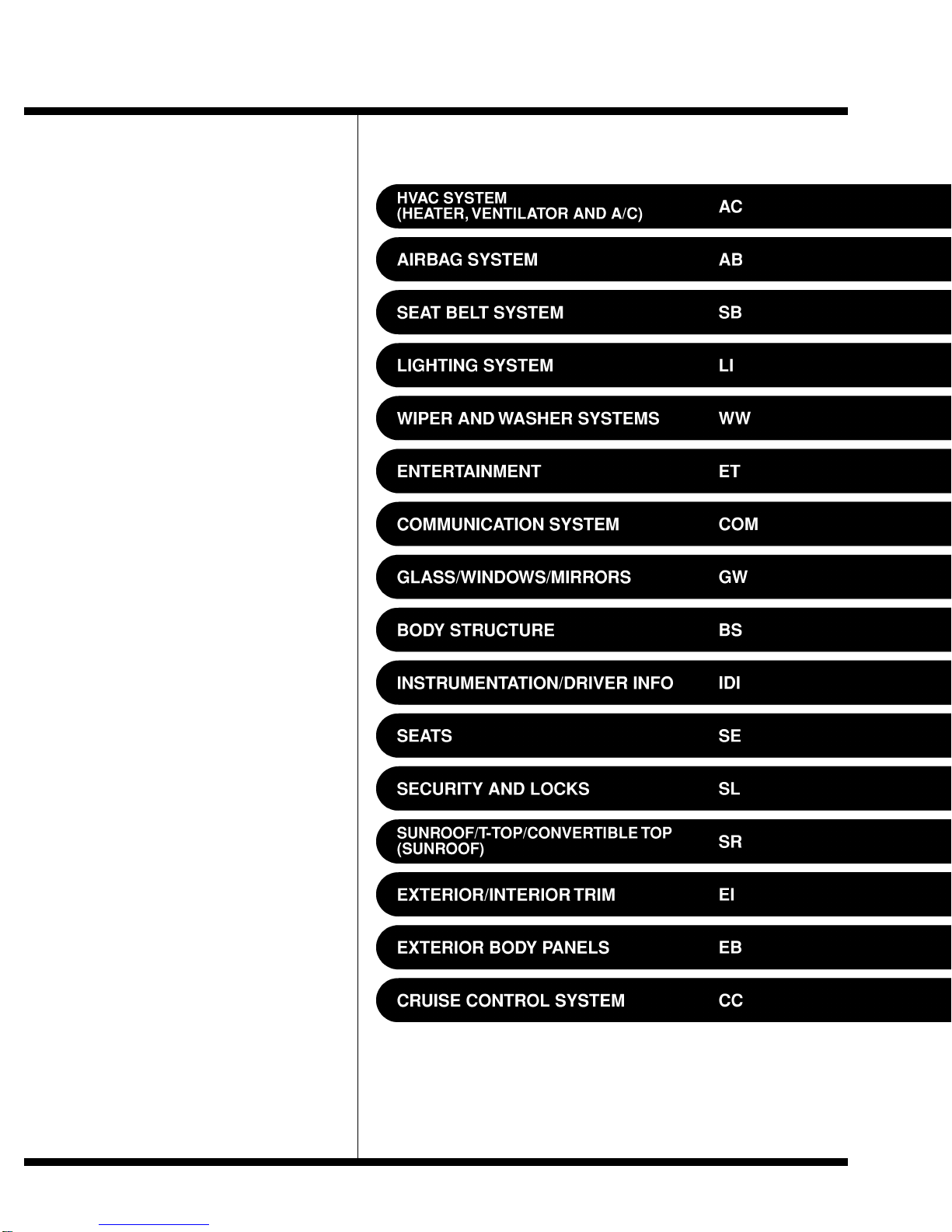

2001 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX

BODY SECTION

G8050GE6

SEATS SE

Page

1. General Description.....................................................................................2

2. Front Seat....................................................................................................5

3. Rear Seat....................................................................................................6

1. General Description S908001

A: COMPONENT S908001A05

1. FRONT SEAT S908001A0501

S5M0440A

(1) Lumbar lever

(2) Lumbar cover

(3) Lumbar unit

(4) Headrest

(5) Backrest

(6) Cushion

(7) Cushion frame

(8) Lifter dial

(9) Hinge cover OUT

(10) Reclining lever

(11) Hinge ASSY

(12) Hinge spring cover

(13) Slide rail ASSY IN

(14) Connecting wire

(15) Slide rail ASSY OUT

(16) Bracket

Tightening torque: N·m (kgf-m, ft-lb)

T1: 18 (1.8, 13)

T2: 52 (5.3, 38)

SE-2

GENERAL DESCRIPTION

Seats

2. REAR SEAT S908001A0505

S5M0508A

(1) Backrest RH

(2) Backrest LH

(3) Headrest OUTSIDE

(4) Headrest CENTER

(5) Hinge RH

(6) Hinge CENTER

(7) Hinge LH

(8) Cushion

(9) Striker

(10) Cap

(11) Webbing guide

Tightening torque: N·m (kgf-m, ft-lb)

T1: 10 (1.0, 7.2)

T2: 25 (2.5, 18.1)

SE-3

GENERAL DESCRIPTION Seats

B: CAUTION S908001A03

쐌Take care not to contaminate or damage seat

surface.

쐌While loading to or unloading to vehicle, take

care not to contact body.

쐌When removing front seat from a side airbag

loaded vehicle, follow cautions given in the airbag

section.

SE-4

GENERAL DESCRIPTION

Seats

2. Front Seat S908343

A: REMOVAL S908343A18

1) While operating button (located on top of

backrest), lift headrest out with hand placed

between backrest and headrest.

S5M0303

2) Pull reclining lever back to fold backrest all the

way forward. While pulling slide adjuster lever,

move seat all the way forward.

3) Remove bolt cover at rear end of slide rail.

4) Remove bolts securing seat rear.

S5M0366

5) While pulling slide adjuster lever, slide seat all

the way back.

6) Remove bolts securing front of seat.

G5M0344

7) While disconnecting side airbag connector,

detach front seat. (Side airbag equipped vehicle)

and inner belt connector.

CAUTION:

쐌When removing seat from vehicle, take care

not to damage body, seat, or trim.

쐌After the front seat has been removed from

side airbag equipped vehicle, store it as

instructed in AIRBAG REPAIR SECTION. <Ref.

to AB-15, CAUTION, Side Airbag Module.>

B: INSTALLATION S908343A11

1) While operating button (located on top of

backrest), lift headrest out by placing your hand

between backrest and headrest.

S5M0303

2) Pull reclining lever back to fold backrest all the

way forward. Pull slide adjuster lever and move

lower slide rail all the way backward.

3) Position seat in compartment and align the

holes on the seat with the holes on the vehicle

body side.

4) Secure the front of seat using inward and out-

ward bolts (A) and (B) in that order.

5) While pulling slide adjuster lever, move seat all

the way forward.

6) Secure the rear of seat using inward and out-

ward bolts (C) and (D).

S5M0227A

7) Connect inner belt connector.

8) Connect side airbag connector. (Side airbag

equipped model)

9) Install bolt cover on rear end of slide rail.

10) Install headrest on backrest.

CAUTION:

Confirm that seat can move smoothly and be

locked securely at any position.

SE-5

FRONT SEAT Seats

3. Rear Seat S908350

A: REMOVAL S908350A18

1) Remove bolts securing hinges (located at front

of cushion) to body.

2) Slightly raise front of cushion while pushing

down on cushion in the direction of “A”. With cush-

ion held in that position, move it forward until it is

unhooked.

S5M0228A

3) Remove rear quarter lower trim. <Ref. to EI-39,

REMOVAL, Rear Quarter Trim.>

4) Remove bolts and nuts.

S5M0407

5) Detach backrest.

B: INSTALLATION S908350A11

Install in the reverse order of removal.

SE-6

REAR SEAT

Seats
