Subaru 2001 IMPREZA Manual de usuario

FUJI HEAVY INDUSTRIES LTD. G1830GE6

2001 IMPREZA SERVICE MANUAL QUICK REFERENCE INDEX

BODY SECTION

This service manual has been prepared

to provide SUBARU service personnel

with the necessary information and data

for the correct maintenance and repair

of SUBARU vehicles.

This manual includes the procedures

for maintenance, disassembling, reas-

sembling, inspection and adjustment of

components and diagnostics for guid-

ance of experienced mechanics.

Please peruse and utilize this manual

fully to ensure complete repair work for

satisfying our customers by keeping

their vehicle in optimum condition.

When replacement of parts during

repair work is needed, be sure to use

SUBARU genuine parts.

All information, illustration and specifi-

cations contained in this manual are

based on the latest product information

available at the time of publication

approval.

HVAC SYSTEM

(HEATER, VENTILATOR AND A/C) AC

HVAC SYSTEM (AUTO A/C)

(DIAGNOSTICS) AC

AIRBAG SYSTEM AB

AIRBAG SYSTEM (DIAGNOSTICS) AB

SEAT BELT SYSTEM SB

LIGHTING SYSTEM LI

WIPER AND WASHER SYSTEMS WW

ENTERTAINMENT ET

COMMUNICATION SYSTEM COM

GLASS/WINDOWS/MIRRORS GW

BODY STRUCTURE BS

INSTRUMENTATION/DRIVER INFO IDI

SEATS SE

SECURITY AND LOCKS SL

IMMOBILIZER (DIAGNOSTICS) IM

SUNROOF/T-TOP/CONVERTIBLE TOP

(SUNROOF) SR

EXTERIOR/INTERIOR TRIM EI

INSTRUMENTATION/DRIVER INFO IDI

Page

1. General Description ....................................................................................2

2. Combination Meter System.........................................................................4

3. Combination Meter Assembly...................................................................19

4. Speedometer.............................................................................................21

5. Tachometer...............................................................................................22

6. Fuel Gauge ...............................................................................................23

7. Water Temperature Gauge.......................................................................24

8. Ambient Sensor.........................................................................................25

IDI-2

INSTRUMENTATION/DRIVER INFO GENERAL DESCRIPTION

1. General Description

A: SPECIFICATIONS

Combination meter

Speedometer Electric pulse type

Temperature gauge Thermistor cross coil type

Fuel gauge Resistance cross coil type

Tachometer Electric impulse type

Turn signal indicator light 14 V —1.4 W

Charge indicator light LED

Oil pressure indicator light LED

ABS warning light LED

CHECK ENGINE warning light

(Malfunction indicator light) LED

HI-beam indicator light 14 V —1.4 W

Door open warning light LED

Seat belt warning light LED

Brake fluid and parking brake warning

light LED

FWD indicator light LED

AIRBAG warning light LED

Meter illumination light 14 V —3 W, 14 V —2 W

AT OIL TEMP. warning light LED

LO indicator light LED

HOLD indicator light LED

Immobilizer indicator light LED

POWER indicator light 14 V —2 W

Low fuel warning light LED

AT select lever position indicator light 14 V —100 mA

LCD back light 14 V —1.4 W

IDI-3

INSTRUMENTATION/DRIVER INFO

GENERAL DESCRIPTION

B: CAUTION

•Be careful not to damage meters and instrument panel.

•Be careful not to damage meter glasses.

•Make sure that electrical connector is connected securely.

•After installation, make sure that each meter operates normally.

•Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

•Do not apply excessive force to circuit plate.

•Do not drop or otherwise apply impact.

C: PREPARATION TOOL

1. GENERAL TOOLS

TOOL NAME REMARKS

Circuit Tester Used for measuring resistance and voltage.

IDI-4

INSTRUMENTATION/DRIVER INFO

COMBINATION METER SYSTEM

2. Combination Meter System

A: SCHEMATIC

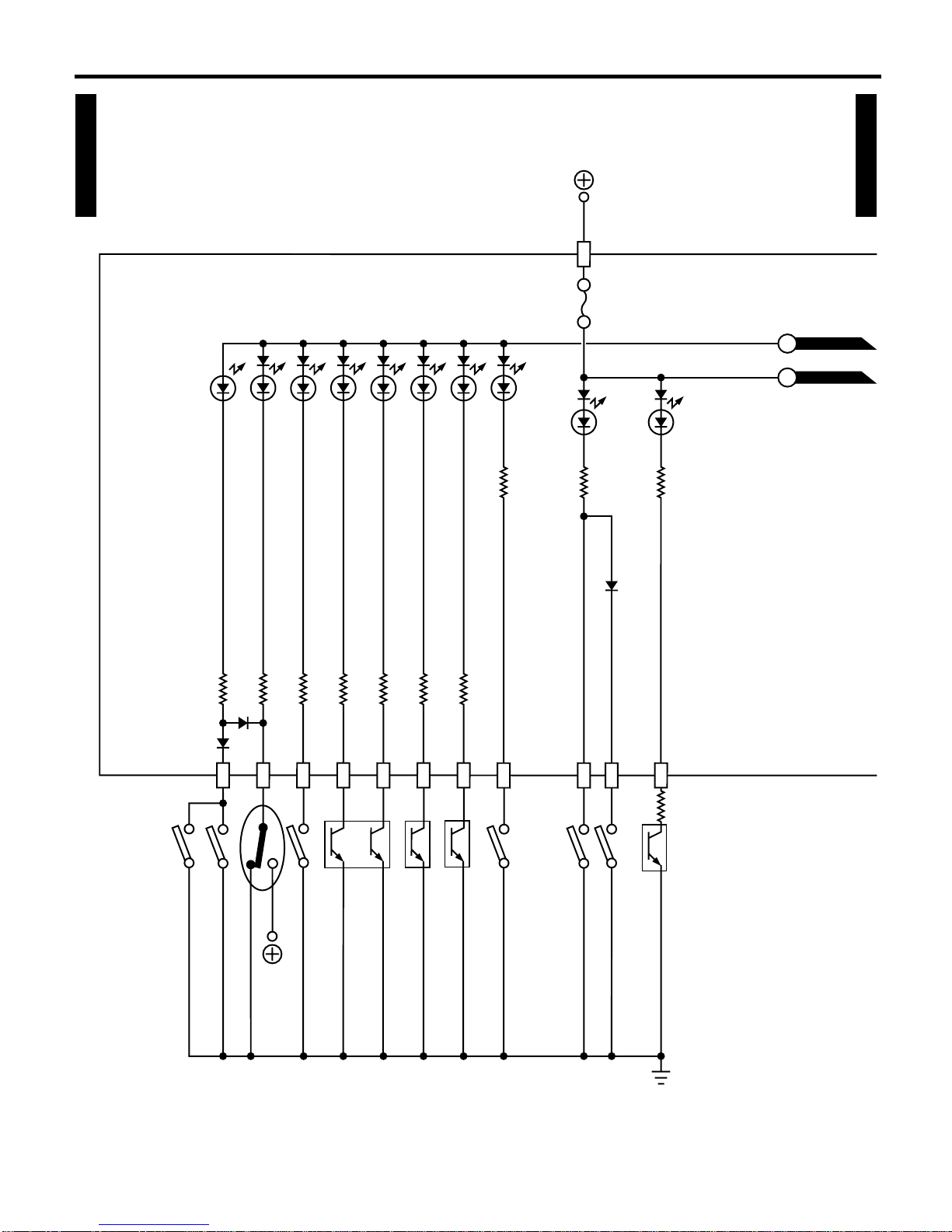

1. COMBINATION METER

METER-01

(GREEN)

i12

To C:

(GREEN)

i11

To B:

(GREEN)

i10

To A:

B16

B29

B15

B14

B30

C14

C13

A10

GG64-20A

IDI-5

INSTRUMENTATION/DRIVER INFO

COMBINATION METER SYSTEM

GG64-20B

METER-02

SEAT BELTWARNING LIGHT

SEAT BELT SWITCH

ENGINE CONTROL MODULE

ABS CONTROL MODULE

TRANSMISSON CONTROL MODULE

OIL PRESSURE SWITCH

GENERATOR

BRAKE FLUID LEVEL

WARNING SWTCH

FWD INDICATOR LIGHT

MALFUNCTION INDICATOR LIGHT

OIL PRESSUREWARNING LIGHT

ABSWARNING LIGHT

CHARGEWARNING LIGHT

PARKING BRAKE/BRAKE FLUID LEVELWARNING LIGHT

AT OILTEMPWARNING LIGHT

PARKING BRAKE SWITCH

METER-03

METER-04

B19

DOORWARNING LIGHT

B14

B13

IMMOBILIZER INDCATOR LIGHT

DOOR SWITCH

IMMOBILIZER CONTROL MODULE

A10

IDI-6

INSTRUMENTATION/DRIVER INFO

COMBINATION METER SYSTEM

GG64-20C

METER-03

INHIBITOR

SWITCH

DIMMER SWITCH

TURN SIGNAL INDICATOR LIGHT RH

TURN SIGNAL INDICATOR LIGHT LH

HEAD LIGHT RELAY RH

TURN SIGNAL SWITCH

HI-BEAM

METER-04

METER-02 AMETER-04

AIRBAG WARNING LIGHT

AIRBAG CONTROL MODULE

IGN

SNOW HOLD PILOT LIGHT

AWD-LO INDICATOR LIGHT

AWD-LO SWITCH

POWER PILOT LIGHT

B30

B29

AIRBAG CIRCUIT

METER-04

B18

B10

B15

C11

B10

C10

C12

C14

C13

DIMMER CIRCUIT

DIMMER

CIRCUIT

IDI-7

INSTRUMENTATION/DRIVER INFO

COMBINATION METER SYSTEM

GG64-20D

CUSTOM CPU

FUEL GAUGE MODULE

AMBIENT SENSOR

THERMOMETER

ILLUMINATION

LIGHT

TAIL & ILLUMINATION

RELAY

METER-04

POWER CIRCUIT

WATER TEMPERATURE GAUGE

FUEL GAUGE

ODO METER

TRIP METER

OUT.TEMP

SPEEDOMETERTACHOMETER

BUZZER

I/F

: AT MODEL

: MT MODEL

:WITH AUTO A/C MODEL

TRANSMISSION CONTROL MODULE

VEHICLE SPEED SENSOR

AUTO A/C

CONTROL

MODULE

ENGINE CONTROL MODULE

METER-03 C

METER-03 D

B11

LOW-FUEL

WARNING LIGHT

I/F I/F

METER-03 E

METER-02 B

BRIGHT

SWITCH

IGNITION SWITCH

BATTERY

+–

DRIVER

I/F

DRIVER

ODO/TRIP LCD

BACK LIGHT OUTTEMP

LCD BACK

LIGHT

TRIP

CHANGE

TRIP

RESET SWITCH

B12

IDI-8

INSTRUMENTATION/DRIVER INFO

COMBINATION METER SYSTEM

2. OUTSIDE TEMPERATURE INDICATOR LHD MODEL

GL96-20

O/T(L)-01

FB-36

F/B FUSE NO. 13

(IG)

FB-9

M/B FUSE NO. 2

(B)

FB-8

M/B FUSE NO. 2

TO POWER SUPPLY ROUTING

GOr A10

BL B8

BA6

YB B12

GOr

BP B11

CUSTOM

CPU LCD

RW 20

BL 21

YB 12

BP 22

AMBIENT

SENSOR

COMBINATION

METER

i10

i11

I/F

REF.TO GND-03

POWER

CIRCUIT

B17

BPB9

A11

AUTO A/C

CONTROL

MODULE

B282

B283

F78

1 2

(GREEN)

(BLACK)

A: i10

123456789

B283 (GRAY)

123456789

11 12 13 14 15 16 17 18 19 20

B282

12345678

10 11 12 13 14 15 16

(GRAY)A: B:

F45

12 89

10 11

12 13 14 15 16 17 18 19 20 21 22 23 24

567

(GREEN)B: i11

1 2 3 4 5 6 7 8 9

10 11 12 13 14

15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

B62

B36 i1

F45

B B

B37

F78

B36

12 89

10 11

12 13 14 15 16 17 18 19 20 21 22 23 24

56 7

:WITH AUTO A/C MODEL

IDI-9

INSTRUMENTATION/DRIVER INFO

COMBINATION METER SYSTEM

3. OUTSIDE TEMPERATURE INDICATOR RHD MODEL

GR96-20

O/T(R)-01

FB-36

F/B FUSE NO. 13

(IG)

MB-10

M/B FUSE NO.2

TO POWER SUPPLY ROUTING

BYB B8

BA6

B11

A10

CUSTOM

CPU LCD

AMBIENT SENSOR

26 B

B37

B62 F45 F78

COMBINATION

METER

i10

i11

B38

I/F

I/F I/F

REF.TO GND-03

: AT MODEL

: MT MODEL

:WITH AUTO A/C MODEL

POWER CIRCUIT

4GW

B36

AT MT

YBB17

A11

AUTO A/C

CONTROL

MODULE

B282

A: B283

F78

1 2

(GREEN)(BLACK) A: i10

123456789

B283 (GRAY)

123456789

11 12 13 14 15 16 17 18 19 20

B282

12345678

10 11 12 13 14 15 16

(BLACK)

1 2 3 456

7 8 9

10 11 12 13 14

123 8

11 12 13 14 15 16

567

17 18

1234 56

10 11 12 13 14 15

23 30

19 20

22 26 27 28 29

24 31

(GREEN)B: i11

1 2 3 4 5 6 7 8 9

10 11 12 13 14

15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

(GRAY)A:

(BLACK)

F45 (BLACK)

WB12
