Built-In Refrigeration Use & Care Guide

BUILT-IN REFRIGERATION

Customer Care

The model and serial number are printed on the enclosed

product registration card. Both numbers are also listed on

the product rating plate. Refer to page 4 for rating plate

location. For warranty purposes, you will also need the date

of installation and name of your authorized Sub-Zero dealer.

Record this information below for future reference.

If your product ever needs attention, be sure to use a

Sub-Zero factory certied service provider recommended

by our customer care center, or select one from our list of

providers available at subzero.com/locator. All factory certi-

ed service providers are carefully selected and thoroughly

trained by us.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certied Service Name

Certied Service Number

Authorized Dealer

Dealer Number

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

Contents

4Built-In Features

5Electronic Controls

6Storage

8Operation

13 Care Recommendations

14 Technical Data

16 Troubleshooting

19 Sub-Zero Warranty

Sub-Zero Customer Care 800.222.7820

subzero.com

Thank You

Thank you for your purchase. We look forward to being part of your home for decades to

come. As a third-generation family-owned company, we take a very personal stake in the

preservation of your family’s food. We built our business and our reputation on helping

families serve the freshest food possible.

With your purchase, you receive one of the strongest warranties in the appliance industry.

Take a moment to read the full warranty statement on page 19. It’s also important to

such as; assurance that you will be taken care of in the unlikely event that service

becomes necessary during the warranty period, and a proof-of-purchase record in case

of a home insurance claim. You may register by one of the following options:

•Mail in the completed Sub-Zero product registration card.

•Register online at subzero.com/register and create a personalized My Sub-Zero/Wolf

account using the serial number on your product.

•Register by phone by calling Sub-Zero Customer Care at 800-222-7820.

As a Sub-Zero owner, you can count on ongoing support, day in and day out. Our cus-

tomer care center is available 24 hours a day, seven days a week and staffed by knowl-

edgeable product experts at our factory in Madison, Wisconsin. Should the need arise,

simply call 800-222-7820 and speak with one of our product experts. They will help

troubleshoot any issues you might have.

We are condent this guide will answer your questions about the features, operation, and

maintenance of your Sub-Zero, but if you have additional questions, please contact us at

800-222-7820 or visit us online at subzero.com.

Sub-Zero Customer Care 800.222.7820

Built-In Features

FEATURE PG

1Product Rating Plate 2

2Electronic Control Panel and Display 5

3Freshness Cards 6

4Door Shelves 6

5Dairy Compartment 6

6Refrigerator Storage Drawers 6

7High-Humidity Crisper Drawer 6

8Glass Shelves 6

9Freezer Baskets 7

10 Ice Container 7

11 Air Purication System 8

12 Water Filtration System (behind grille) 9

13 Automatic Ice Maker 10

14 Ice and Water Dispenser (dispenser models) 10

15 Condenser (behind grille) 13

BUILT-IN FEATURES

Over-and-under model.

Side-by-side model with internal dispenser.

subzero.com

ELECTRONIC CONTROLS

Control Panel

FUNCTION

LIGHTS Turns interior accent lighting on or off for glass

door models.

ICE MAKER Turns power to ice maker on or off. Use to disable

ice maker during extended vacations.

MAX ICE Activates or deactivates max ice feature which

increases ice production 40% for a 24-hour period.

COLDER

WARMER

Adjusts temperature in one-degree increments.

Combination units have separate temperature con-

trols for refrigerator and freezer. Temperatures are

preset at 38°F (3°C) and 0°F (-18°C).

PURE AIR Activates or deactivates air purication system.

ALARM Activates or deactivates door alarm. An audible

chime indicates door has been left ajar for more

than 60 seconds.

POWER Turns unit on or off. When power is off, ‘OFF’ will

appear in control panel display. Turning power off at

the control panel eliminates the need to unplug or

turn power off at the circuit breaker during service

or extended vacations.

Control panel and display (model BI-30UG shown).

Display

INDICATOR

Illuminates or ashes when electronic control system

has detected a temperature or ice maker problem, or if

condenser needs to be cleaned.

Illuminates when air purication system is activated

and ashes when cartridge needs to be replaced.

After the cartridge has been replaced, touch and hold

PURE AIR on the control panel for 5 seconds to

reset.

Illuminates and ashes when lter needs to be replaced.

Illuminates when ice maker system is activated.

Illuminates when max ice feature is activated.

Illuminates when door alarm is activated.

Illuminates when accent lighting is activated for glass

door models.

Sub-Zero Customer Care 800.222.7820

Keeping Food At Its Best

This Sub-Zero features a unique dual refrigeration system to

keep food fresher longer.

With the Sub-Zero dual refrigeration system, individual

refrigerator and freezer systems have been designed to

maintain accurate, consistent temperatures and proper

humidity levels for longer food life expectancy. Dual refrig-

eration eliminates transfer of fresh food odors to frozen food

and ice and does not freeze the moisture out of the air in the

fresh food section.

For handy tips and information on how to maximize

food freshness, refer to the freshness cards stored in the

refrigerator.

Refrigerator Storage

DOOR SHELVES

To remove a door shelf or the dairy compartment, lift from

the bottom and slide out. To reinstall, place in the desired

position and slide the shelf down onto the guides. Refer to

the illustration below.

IMPORTANT NOTE: If door opening is limited to 90°, door

shelves may need to be removed before removing a storage

drawer or glass shelf.

STORAGE

STORAGE DRAWERS

To remove a storage drawer, pull forward until the drawer

stops. Lift the front of the drawer slightly, then pull forward.

Refer to the illustration below.

For the French door model, drawer slides may need to be

pushed back manually to provide sufcient clearance for

removal.

To reinstall, push drawer slides in. Align the drawer with

slides and push back until it stops. Press down on the front

of the drawer to engage the slides.

GLASS SHELVES

To remove or adjust a glass shelf, tilt up, then lift up and out.

To reposition, insert shelf in the tracks along the back wall,

then lower the front until it locks into position. Refer to the

illustration below.

IMPORTANT NOTE: Use care when handling glass shelves to

prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature before

immersing in warm water.

Storage drawer removal.

Glass shelf removal.

Door shelf removal.

subzero.com

ICE CONTAINER

BI-36F and over-and-under models |To remove, pull con-

tainer forward until it stops, then lift out.

Side-by-side models |To remove, pull container forward

until it stops, then lift to clear the carrier assembly along the

back. Pull forward and out. Refer to the illustration below.

Dispenser models |To remove, pull container out partially,

then rotate and pull out. Refer to the illustration below.

STORAGE

Freezer Storage

FREEZER BASKETS

BI-36F and side-by-side models |To remove, pull forward

until basket stops. Pull the two metal clips located behind

the bottom two corners of the basket forward, then lift up

and out. Refer to the illustration below. To reinstall, push

drawer slides in. Align the basket with slides and push

back until it stops. Press down on the front of the basket to

engage slides.

IMPORTANT NOTE: To remove for models BI-36S, BI-42S,

BI-42SID and BI-42SD, the basket must be raised

and pulled through the opening in the door liner after

disengaging.

Over-and-under models |To remove the upper and lower

freezer baskets, lift up and out. Refer to the illustration

below. To reinstall, insert the lower basket into the four

corner retainers. Position the upper basket onto the side

rails and slide back until it clicks.

BI-36F and side-by-side models.

Over-and-under models.

Side-by-side models.

Dispenser models.

Sub-Zero Customer Care 800.222.7820

AIR PURIFICATION CARTRIDGE REPLACEMENT

1To access the air purication cartridge, grasp the outside

cover from the bottom and rotate upward. Refer to the

illustration below.

2Grasp the black cover from the top and rotate down-

ward. The cartridge will pop out and can be removed.

3Remove the new cartridge from packaging and insert

with connector pointing downward.

4Once in position, close the black cover. Then rotate the

outside cover downward until it closes against the back

wall.

5Once the cartridge has been replaced, touch and hold

PURE AIR on the control panel for ve seconds to reset.

The indicator will appear in the control panel display

but not ash.

Air Purication System

The advanced air purication system of Sub-Zero built-in

models reduces bacteria, odors and ethylene gas, which

causes premature ripening in fruits and vegetables. The

air purication cartridge has been factory installed and is

located inside the refrigerator, on the back wall.

To initiate air purication, touch PURE AIR on the control

panel.

The cartridge will last approximately one year. The

indicator will ash in the control panel display when the

cartridge needs to be replaced.

Replacement Sub-Zero air purication cartridges can be

ordered online at subzerowolfstore.com. For questions,

contact Sub-Zero customer care at 800-222-7820.

CAUTION

The air purication system complies with applicable

Federal requirements regarding incidental exposure

to ultraviolet light. Lamp contains mercury. Manage in

accordance with disposal laws. Visit earth911.com or

call 800-222-7820.

OPERATION

Air purication cartridge.

subzero.com

OPERATION

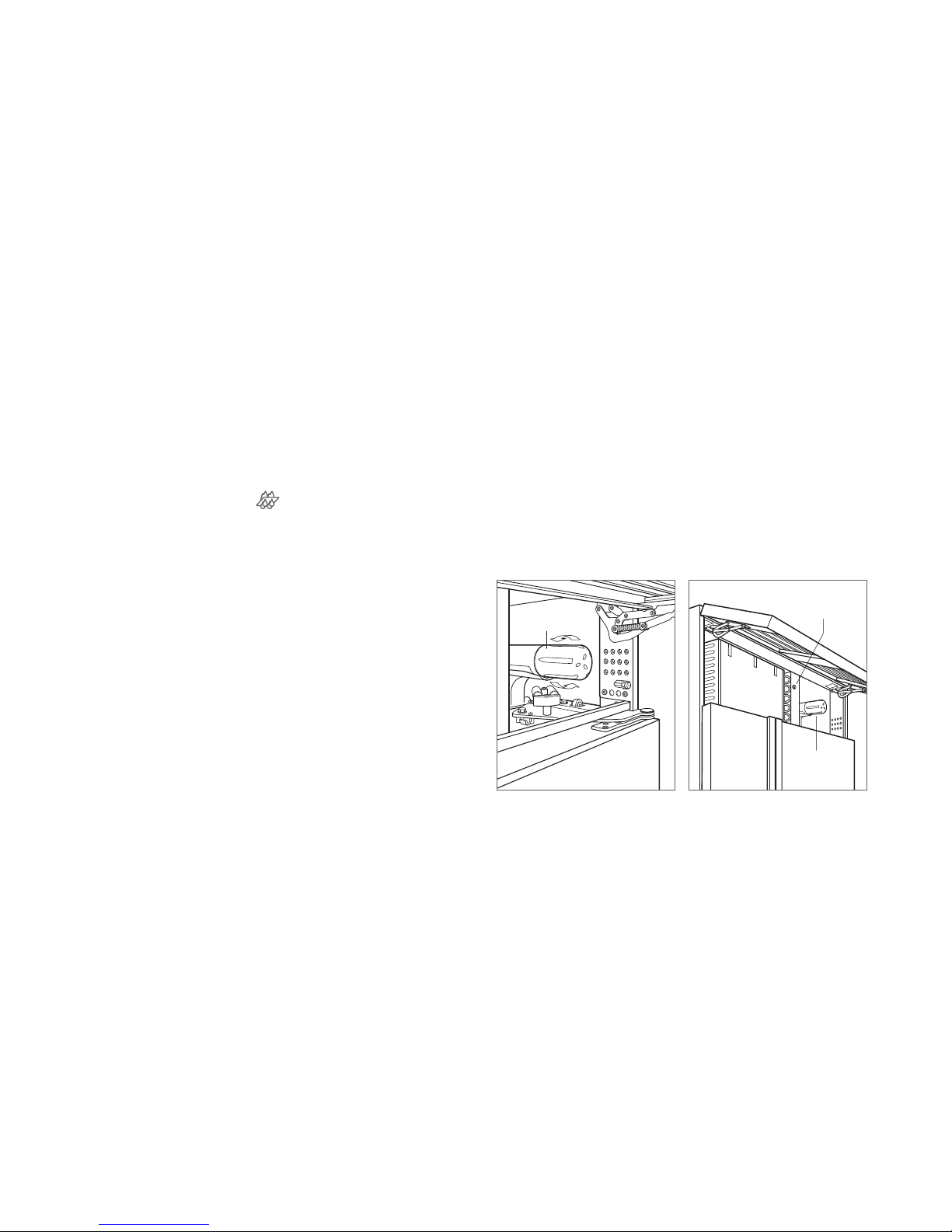

WATER FILTER REPLACEMENT

1To access the water lter, pull out on the bottom edge

of the grille assembly and rotate upward.

2To remove the old lter, rotate counterclockwise one-

quarter turn, then pull out. Refer to the illustration below.

It is normal for a small amount of water to drip when

the lter is removed. It should be wiped up with a paper

towel or cloth.

3Remove the new lter from packaging and remove

plastic cap.

4Insert the new lter into the manifold and turn clockwise.

5Once the new lter has been installed, press and hold

the water lter reset button for ve seconds to reset.

Refer to the illustration below.

Water Filtration System

The water ltration system of Sub-Zero built-in models

supplies ltered water to the ice maker and water dispenser

(dispenser models) to produce great-tasting water and ice.

IMPORTANT NOTE: When using the water ltration system

for the rst time and after lter replacement, it is neces-

sary to clear any air from the system and allow the lter to

assist in cleaning the water lines. For non-dispenser models,

discard the rst two full containers of ice. For dispenser

models, dispense several glasses of water for a period of

two minutes.

If the water ltration system will not be utilized, it can be

placed in water lter bypass mode by removing the lter.

The lter is rated for 750 gallons (2839 L) or one year,

whichever comes rst. The indicator will illuminate and

ash in the control panel display when the lter needs to be

replaced.

Replacement Sub-Zero water lters can be ordered online

at subzerowolfstore.com. For questions, contact Sub-Zero

customer care at 800-222-7820.

Water lter removal.

WATER FILTER

Water lter location.

WATER FILTER

RESET BUTTON

WATER

FILTER

Sub-Zero Customer Care 800.222.7820

OPERATION

Ice and Water Dispenser

The rst time the water dispenser is used, purge the water

system and storage tank for three minutes. This will clear

any air in the system, along with impurities from new

plumbing connections.

Initially, for water to dispense properly, press and hold

WATER until water ows from the dispenser. WATER may

need to be pressed for 60 seconds for water to ll the

internal reservoir tank.

The chilled water reservoir tank holds approximately 50 oz

(1.5 L) of ltered water. It may take several hours to chill the

water to refrigerator temperature during the original ll and

after a large amount of water is dispensed.

CAUTION

Limit continuous ice and water dispenser operation to

seven minutes or less.

Ice Maker Operation

To initiate ice production, touch ICE MAKER on the control

panel. After initial start-up, discard the rst few batches

of ice. The ice may contain impurities from new plumbing

connections.

The ice maker will cycle (eight cubes) every two hours. If ice

is not used regularly it may fuse together. To avoid, discard

ice and allow ice maker to replenish.

Sabbath

This appliance is certied by Star-K to meet strict religious

regulations in conjunction with specic instructions found

on www.star-k.org.

To initiate Sabbath mode, while the unit is on, touch POWER

on the control panel. ‘OFF’ appears in the control panel

display. Touch and hold POWER for 10 seconds until ‘SAb’

appears in the display indicating Sabbath mode has been

initiated. Lights, ice maker, door alarm and dispenser (if

applicable) will be disabled. To return to normal operating

conditions, touch POWER.

Tabla de contenidos

Idiomas:

Otros manuales de Refrigerador de Sub-Zero

Sub-Zero

Sub-Zero 700 Series Manual de usuario

Sub-Zero

Sub-Zero 648PRO Manual de usuario

$Sub-Zero \601RG Manual de usuario$

Sub-Zero

Sub-Zero \601RG Manual de usuario

Sub-Zero

Sub-Zero ID-30RP Manual de usuario

Sub-Zero

Sub-Zero UC-24B Manual de usuario

Sub-Zero

Sub-Zero IC-24FI Manual de usuario

Sub-Zero

Sub-Zero BI-42SID Manual de usuario

Sub-Zero

Sub-Zero IC-27R Instrucciones de montaje

Sub-Zero

Sub-Zero UC-24C Instrucciones de montaje

Sub-Zero

Sub-Zero Integrated Series Manual de usuario

Sub-Zero

Sub-Zero 424 Manual de usuario

Sub-Zero

Sub-Zero 632 Manual de usuario

Sub-Zero

Sub-Zero 685 Instrucciones de uso

Sub-Zero

Sub-Zero Uc24crh Manual de usuario

Sub-Zero

Sub-Zero 700BCI Manual de usuario

Sub-Zero

Sub-Zero 650 Manual de usuario

Sub-Zero

Sub-Zero BI-30UA/S/PH-RH Manual de usuario

Sub-Zero

Sub-Zero ICBPRO3650RH Manual de usuario

Sub-Zero

Sub-Zero PRO 48 Manual de usuario

Sub-Zero

Sub-Zero Built-In Refrigeration Manual del propietario

Sub-Zero

Sub-Zero PRO3650GRH Manual de usuario

Sub-Zero

Sub-Zero Sub-Zero BI series Manual de usuario

Sub-Zero

Sub-Zero 736TR Manual de usuario

Sub-Zero

Sub-Zero 611G Instrucciones de uso

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
