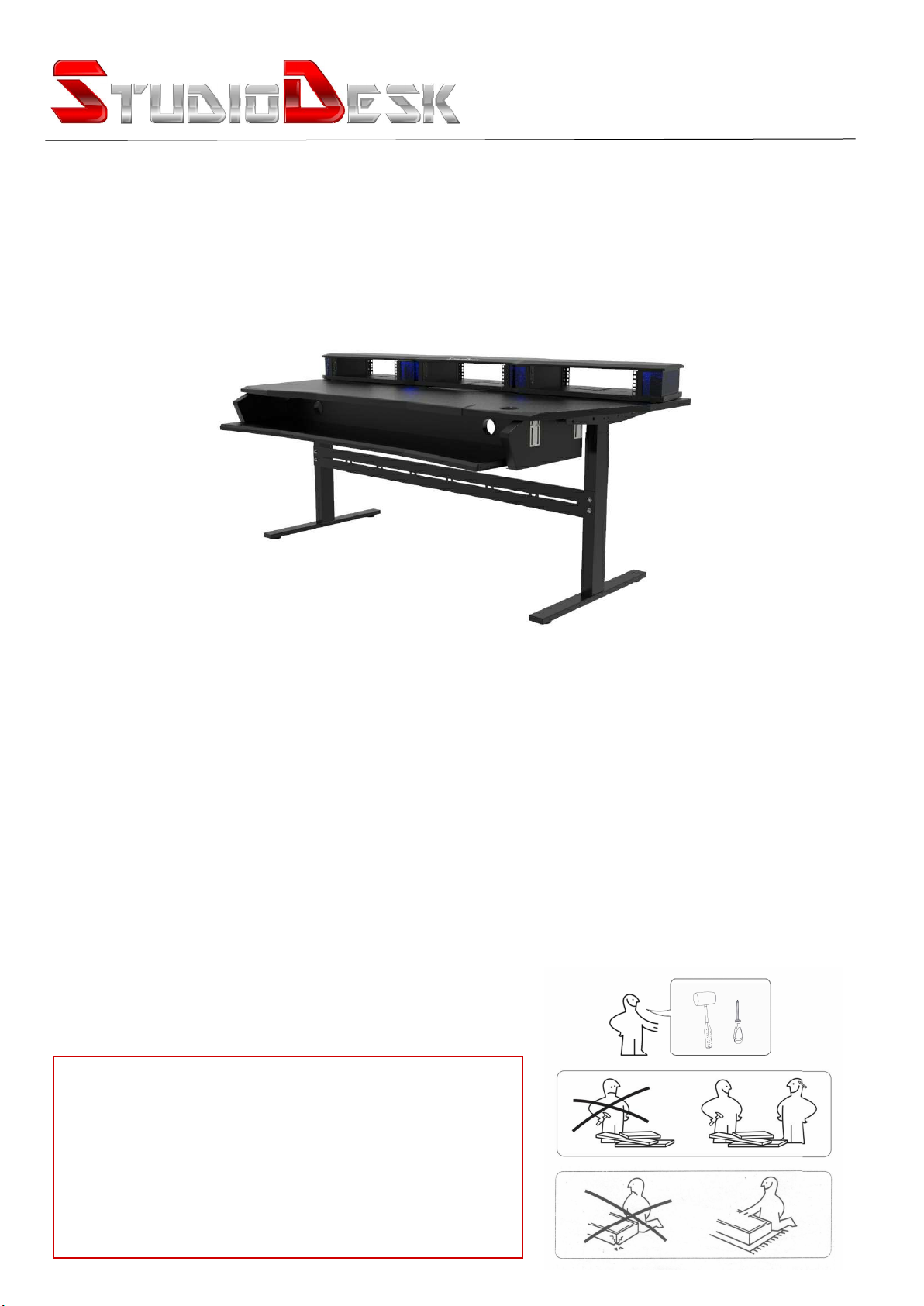

ASSEMBLY MANUAL
ORBIT Series and Keyboard pull out option
NOTE: In order to avoid injury or damages,
please do not try to assemble your desk alone.
Our furniture is massive and heavy and requires
at least two people to carry out assembly.
Please assemble on soft surface to avoid
scratches to the lacquer.
!
www.studiodesk.net
Video Assembly manual is also available.
Search for ORBIT Assembly Video assembly manual on the YouTube.
The Desk You Deserve
Thank you for making StudioDesk your desk of choice!
Before beginning assembly of your desk, let’s get familiar with the parts you have received in your package.
Please match the corresponding numbers on this page with the drawings.
1. Desk Surface 2. Armrest 3. Electric platform 4. Cable management 5. Controller 7. Cable inlay
Hardware
Parts
Tools needed (Not included)
Phillips Screwdriver
1
2
OPTIONAL SPEAKER SHELVES OPTIONAL RACK MODULE
OPTIONAL Keyboard pull out
OPTIONAL SPEAKER SHELVES
M6 x 8
3
4
5
5
M6 Screws
Washer
7 x
7 x
TOOLS needed
1
Step One
Place desk top to the soft surface and install Electric platform as
shown on the picture below. You will find separate manual
how to assemble electric platform inside it’s box.
To watch step by step assembly manual look for link on
https://www.studiodesk.net/video-assembly-manuals/
2
Step Two
Turn desk to standing position. Install
Cable inlay 1 and controller 2
8
10
www.studiodesk.net
3
Step Three
12
Modules (if purchased) come assembled and can
be placed on the desktop on desired place.
Screw with the plastic head is used to fix module
to the desk from below. You can move module
front and back left and right by unscrewing screw
a bit and fasten it back when you set module in
the position.
4
Step Four
Speaker shelf (if purchased) should be installed as shown below. Use Screw with plastic head.
Fix it from the bottom.
5
Step Five
If Pull out keyboard option is part of your
Set, install pull out on the beginning
while desk is still not in upward position.
Install brackets to the pull out holders using
M6 screws.
6
Step Six
Install pull out vertical to pull out board
using confirmat screws.
Push rails installed on the board to the
slides on the pull out holders to the
position evenly on the both sides.
7
Step Seven
Install Poll out holders to the
Desk surface using M6 screws as shown
on the picture.
8
Step Eight
8
Step Eight
We add keyboard stopper belt as optional element
as a regulator for Keyboard to be pulled out as per need.
Install it under the confirmat screw in the middle
and and central support bar as shown on the picture.
If you purchase optional keyboard pull out, here is how to assemble it.
