CrossFlow quick start guide

TABLE OF CONTENTS

Table of contents

CrossFlow quick start guide

Pump interface reference

Pump start up

Setting navigation

Pressure, suction and flow settings

Wash function

Cannula settings

Shaver and RF console integration

Footswitch and hand control settings

Temperature monitoring settings

Save surgeon profile settings

INTERFACE MAP

Pump interface reference

CrossFlow interface map

Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.

The IFU part number is: P17330 The CrossFlow Pump catalog number is: 0450-000-000

User interface reference

1. Joint settings

2. Set pressure (mmHg)

3. Actual pressure

4. Adjust set pressure up/down

5. End case

6. Flow limit pop-up menu

7. Start/stop

8. Resection console connection icon

9. Wash (use for better visibility)

10. Settings menu

11. Temperature indicator (during RF use)

12. Adjust suction up/down

13. Surgeon prole

14. Suction indicators

15. Scope/cannula combination in use

NOTE: Identies which scope/cannula

combo is selected for the procedure

Pump start up

How to start up the pump and navigate to the Run Screen

Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.

Step 1: Turn on pump Step 2: Insert cassettes

= Power on the pump

The CrossFlow start up screen will appear and a progess bar

will indicate that the pump is starting up.

START UP

Doctor 1

Dynamic Medium

XF2

STOP

Doctor 1

Dynamic Medium

XF2

STOP

Doctor 1

Dynamic Medium

XF2

STOP

Wait for “insert cassette” screen to appear, then align the colored side of the cassette

facing out toward its matching colored button. Green checkmarks will indicate that

the cassette(s) have been properly inserted. Once the Inow Cassette is inserted, the

pump will advance to the User Prole Selection Screen.

= Inow cassette (blue) = Outow cassette (red)

Press the icon that identies the operative joint:

= Return to previous screen

The IFU part number is: P17330. The CrossFlow Pump catalog number is: 0450000000

START UP

Step 3: Select user prole Step 4: Select joint Step 5: Start pump

Select the name of the surgeon performing the

case. If no prole is uploaded for that surgeon,

press “Dynamic Mode”.

= Advance to next screen

Once tubing is set up and saline is spiked:

=Prime pump

= Return to joint selection

screen and start new case

Shoulder Knee Hip Small joint

GENERAL SETTINGS

Settings navigation

How to access and adjust general settings for the CrossFlow pump.

Step 1: Access settings menu Step 2: Adjust general settings Step 3: Change pressure display

Step 4: Return to run screen

= Pump customization menu = Setup sub-menu = Actual pressure display

settings screen

Change how pressure displays on the run screen

by pressing the desired icon.

Note: This new pressure display will now appear

on the run screen of the pump.

= Exit menu

General settings are now customized.

Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.

PRESSURE, SUCTION AND FLOW

Pressure, suction and flow settings

How to access and adjust set pressure, suction and flow settings.

Step 1: Start the pump Step 2: Adjust pressure Step 3: Adjust suction and ow

= Prime pump

= Stop pump

= Start pump

= Set pressure up

= Set pressure down

Note: Actual pressure indicates the pressure in

the joint.

= Suction rate

down

Note: Each dial sets

and displays suction

for the listed line

Rotating dots

indicate the

console is

pumping uid

Flow

Flow limit pop-up menu

accessed to set inow

limit

Suction

Set pressure

Set pressure is the pump’s target

pressure in the joint.

NOTE: On the CrossFlow console,

pressure is adjusted in increments

of 5mmHg

Suction (Inflow/outflow mode)

Suction refers to the ow rate

the outow pump will achieve

through the outow cannula,

shaver, and RF tube.

NOTE: Suction will adjust

in increments of 10%

Flow limit

Flow is the maximum ow

rate the inow pump will reach

while attempting to achieve the

set pressure.

Settings in detail

The IFU part number is: P17330. The CrossFlow Pump catalog number is: 0450000000 5

WASH FUNCTION

Wash function

How to access and adjust the wash function.

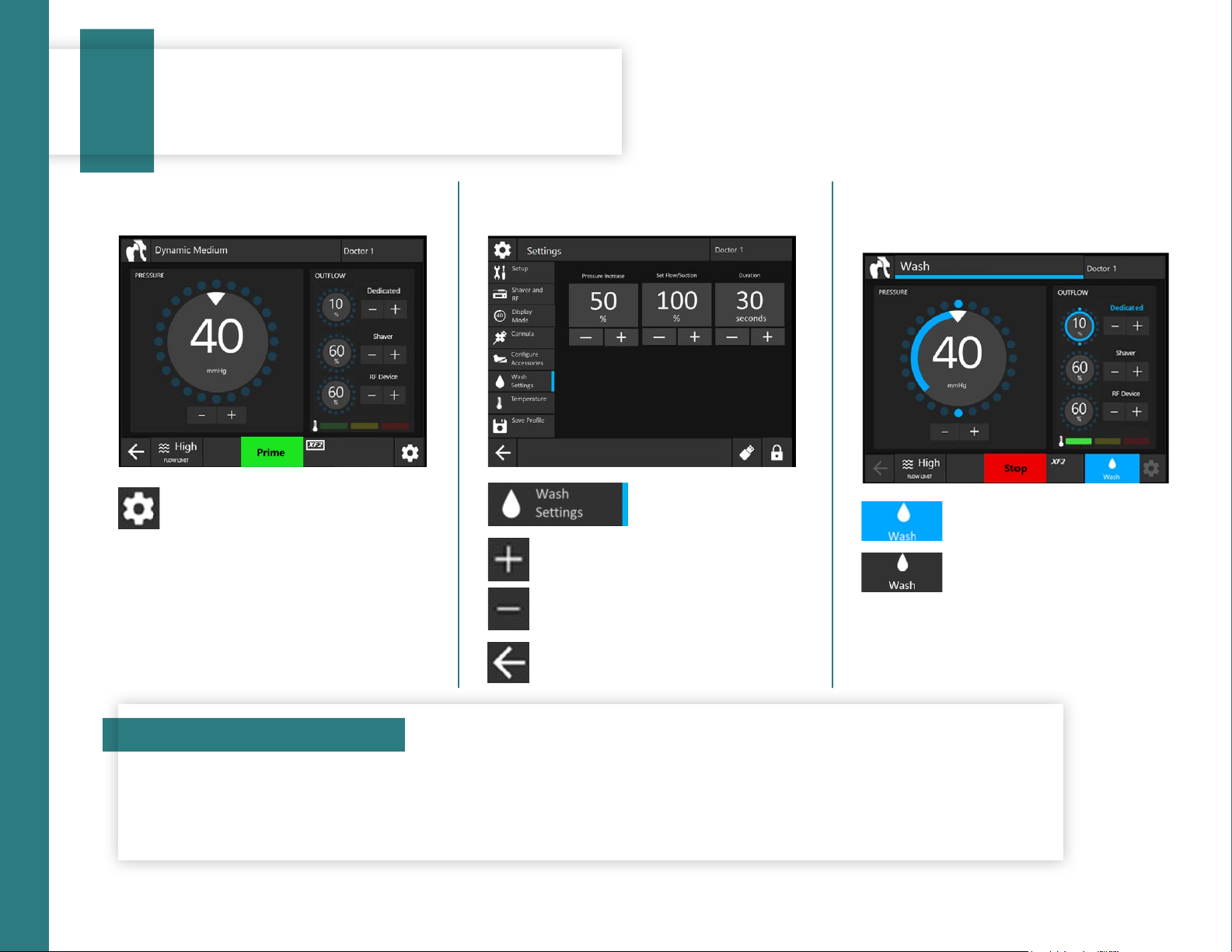

Step 1: Access settings menu Step 2: Adjust wash settings Step 3: Start pump to perform

wash

= Wash function active

= Wash function inactive

= Wash settings sub-menu

= Increase pressure/ow/duration settings

= Decrease pressure/ow/duration settings

= Exit settings menu

Wash function

The wash function allows for a customized, quick increase in pressure and ow to

clear debris, control bleeding and improve visualization in the joint. Can customize

to last for a duration up to 120 seconds.

Understanding wash

EXAMPLE: 50% Pressure increase of 50 mmHg

set pressure would become 75mmHg during

wash cycle.

Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.

= Pump customization menu
